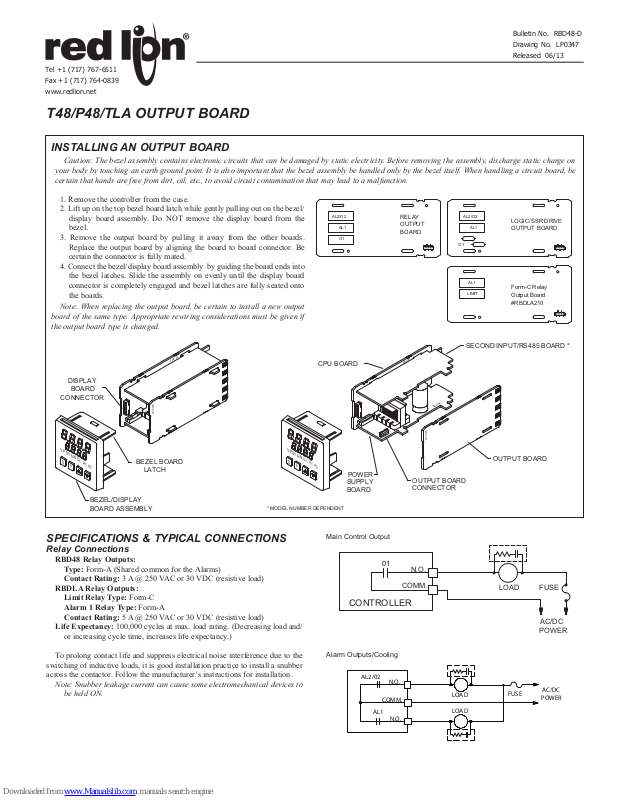

Red Ion RBDLA, RBD48, RBD48200, RBD48100, RBD48111 User Manual

Bulletin No. RBD48-D

Drawing No. LP0347

Released 06/13

Tel [phone]

Fax [phone]

www.redlion.net

T48/P48/TLA OUTPUT BOARD

INSTALLING AN OUTPUT BOARD

Caution: The bezel assembly contains electronic circuits that can be damaged by static electricity. Before removing the assembly, discharge static charge on
your body by touching an earth ground point. It is also important that the bezel assembly be handled only by the bezel itself. When handling a circuit board, be
certain that hands are free from dirt, oil, etc., to avoid circuit contamination that may lead to a malfunction.

1. Remove the controller from the case.

2. Lift up on the top bezel board latch while gently pulling out on the bezel/
display board assembly. Do NOT remove the display board from the
bezel.

3. Remove the output board by pulling it away from the other boards.
Replace the output board by aligning the board to board connector. Be
certain the connector is fully mated.

4. Connect the bezel/display board assembly by guiding the board ends into
the bezel latches. Slide the assembly on evenly until the display board
connector is completely engaged and bezel latches are fully seated onto
the boards.

Note: When replacing the output board, be certain to install a new output
board of the same type. Appropriate rewiring considerations must be given if
the output board type is changed.

AL2/O2

RELAY

AL1

O1

OUTPUT
BOARD

O1

AL2/O2

AL1

LIMIT

AL1

LOGIC/SSR DRIVE
OUTPUT BOARD

Form-C Relay
Output Board
#RBDLA210

EB0783

DISPLAY

BOARD

CONNECTOR

%P

DV MN A1 A2

O1

D

P

MD1797

BEZEL BOARD

LATCH

BEZEL/DISPLAY
BOARD ASSEMBLY

* MODEL NUMBER DEPENDENT

SPECIFICATIONS & TYPICAL CONNECTIONS

Relay Connections

RBD48 Relay Outputs:

Type: Form-A (Shared common for the Alarms)
Contact Rating: 3 A @ 250 VAC or 30 VDC (resistive load)

RBDLA Relay Outputs:

Limit Relay Type: Form-C
Alarm 1 Relay Type: Form-A
Contact Rating: 5 A @ 250 VAC or 30 VDC (resistive load)

Life Expectancy: 100,000 cycles at max. load rating. (Decreasing load and/

or increasing cycle time, increases life expectancy.)

%P

DV MN O1 A1 A2

D

P

CPU BOARD

POWER
SUPPLY
BOARD

Main Control Output

CONTROLLER

01

EB0783

EB0784

MD1797

OUTPUT BOARD
CONNECTOR

N.O.

COMM.

SECOND INPUT/RS485 BOARD *

OUTPUT BOARD

LOAD FUSE

AC/DC

POWER

To prolong contact life and suppress electrical noise interference due to the
switching of inductive loads, it is good installation practice to install a snubber
across the contactor. Follow the manufacturer’s instructions for installation.

Note: Snubber leakage current can cause some electromechanical devices to

be held ON.

Alarm Outputs/Cooling

AL2/02

N.O.

COMM.

AL1

N.O.

LOAD

LOAD

FUSE

AC/DC
POWER

Logic/SSR Connections (T48 Only)

Logic/SSR Drive Output (O1 only):
Rating: 45 mA @ 4 V min., 7 V nominal (current limited)

Main Control Output

ORDERING INFORMATION

MODEL NO.

RBD48

RBDLA

MAIN CONTROL

OUTPUT

RLY-A NONE NONE RBD48100
RLY-A

LGC NONE NONE RBD48200
LGC

RLY-C

AL1

RLY-A RLY-A RBD48111

RLY-A
RLY-A

Do not dispose of unit in trash - Recycle

Note: For units equipped with a single alarm, order a dual alarm replacement

board.

Note: RLY-A = Form-A Relay Output

RLY-C = Form-C Relay Output
LGC= Logic/SSR Drive Output

AL2

02 (COOL)

RLY-A
NONE

PART NUMBER

RBD48211
RBDLA210
