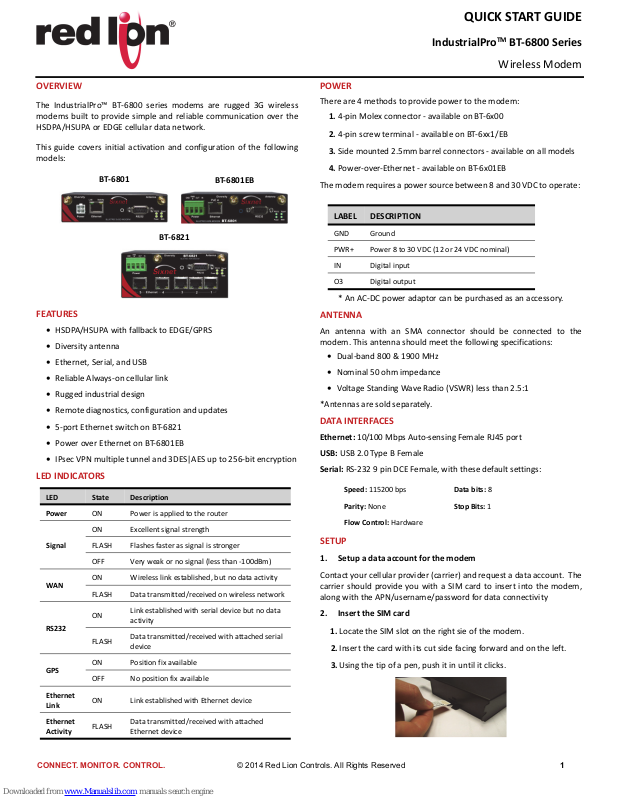

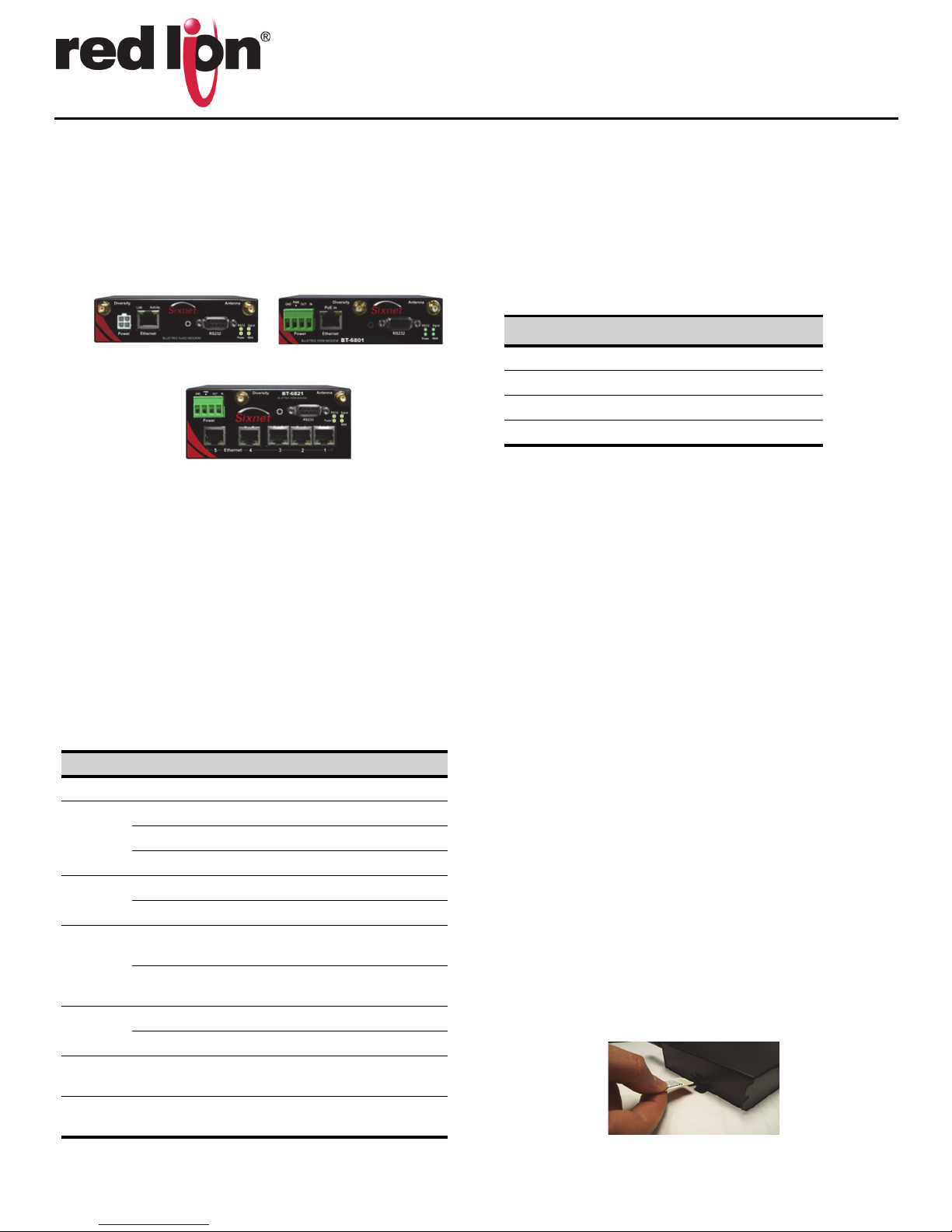

QUICK START GUIDE
IndustrialProTM BT-6800 Series
Wireless Modem
OVERVIEW
The IndustrialPro™ BT-6800 series modems are rugged 3G wireless
modems built to provide simple and reliable communication over the
HSDPA/HSUPA or EDGE cellular data network.
This guide covers initial activation and configuration of the following
models:
BT-6801
BT-6801EB
BT-6821
FEATURES
• HSDPA/HSUPA with fallback to EDGE/GPRS
• Diversity antenna
• Ethernet, Serial, and USB
• Reliable Always-on cellular link
• Rugged industrial design
• Remote diagnostics, configuration and updates
• 5-port Ethernet switch on BT-6821
• Power over Ethernet on BT-6801EB
• IPsec VPN multiple tunnel and 3DES|AES up to 256-bit encryption
LED INDICATORS
LED State Description
Power ON Power is applied to the router
ON Excellent signal strength
Signal
WAN
RS232
GPS
Ethernet
Link
Ethernet
Activity
FLASH Flashes faster as signal is stronger
OFF Very weak or no signal (less than -100dBm)
ON Wireless link established, but no data activity
FLASH Data transmitted/received on wireless network
ON
FLASH
ON Position fix available
OFF No position fix available
ON Link established with Ethernet device
FLASH
Link established with serial device but no data
activity
Data transmitted/received with attached serial
device
Data transmitted/received with attached
Ethernet device
POWER
There are 4 methods to provide power to the modem:
1. 4-pin Molex connector - available on BT-6x00
2. 4-pin screw terminal - available on BT-6xx1/EB
3. Side mounted 2.5mm barrel connectors - available on all models
4. Power-over-Ethernet - available on BT-6x01EB
The modem requires a power source between 8 and 30 VDC to operate:
LABEL DESCRIPTION
GND Ground
PWR+ Power 8 to 30 VDC (12 or 24 VDC nominal)
IN Digital input
O3 Digital output
* An AC-DC power adaptor can be purchased as an accessory.
ANTENNA
An antenna with an SMA connector should be connected to the
modem. This antenna should meet the following specifications:
• Dual-band 800 & 1900 MHz
• Nominal 50 ohm impedance
• Voltage Standing Wave Radio (VSWR) less than 2.5:1
*Antennas are sold separately.
DATA INTERFACES
Ethernet: 10/100 Mbps Auto-sensing Female RJ45 port
USB: USB 2.0 Type B Female
Serial: RS-232 9 pin DCE Female, with these default settings:
Speed: 115200 bps Data bits: 8
Parity: None Stop Bits: 1
Flow Control: Hardware
SETUP
1. Setup a data account for the modem
Contact your cellular provider (carrier) and request a data account. The
carrier should provide you with a SIM card to insert into the modem,
along with the APN/username/password for data connectivity
2. Insert the SIM card
1. Locate the SIM slot on the right sie of the modem.
2. Insert the card with its cut side facing forward and on the left.
3. Using the tip of a pen, push it in until it clicks.
CONNECT. MONITOR. CONTROL. © 2014 Red Lion Controls. All Rights Reserved 1
Page 2
Quick Start Guide
3. Wiring and power-up
1. Connect the modem to your computer using a standard Ether-
net cable. Alternatively, the RS-232 or USB ports can be used for
setup.
2. Connect the cellular antenna to the antenna connector.
3. Plug in the power connector to power-up the modem.
4. Start BlueVue Device Manager Software
1. Download and install the latest version of BlueVue Device Man-
ager from www.redlion.net.

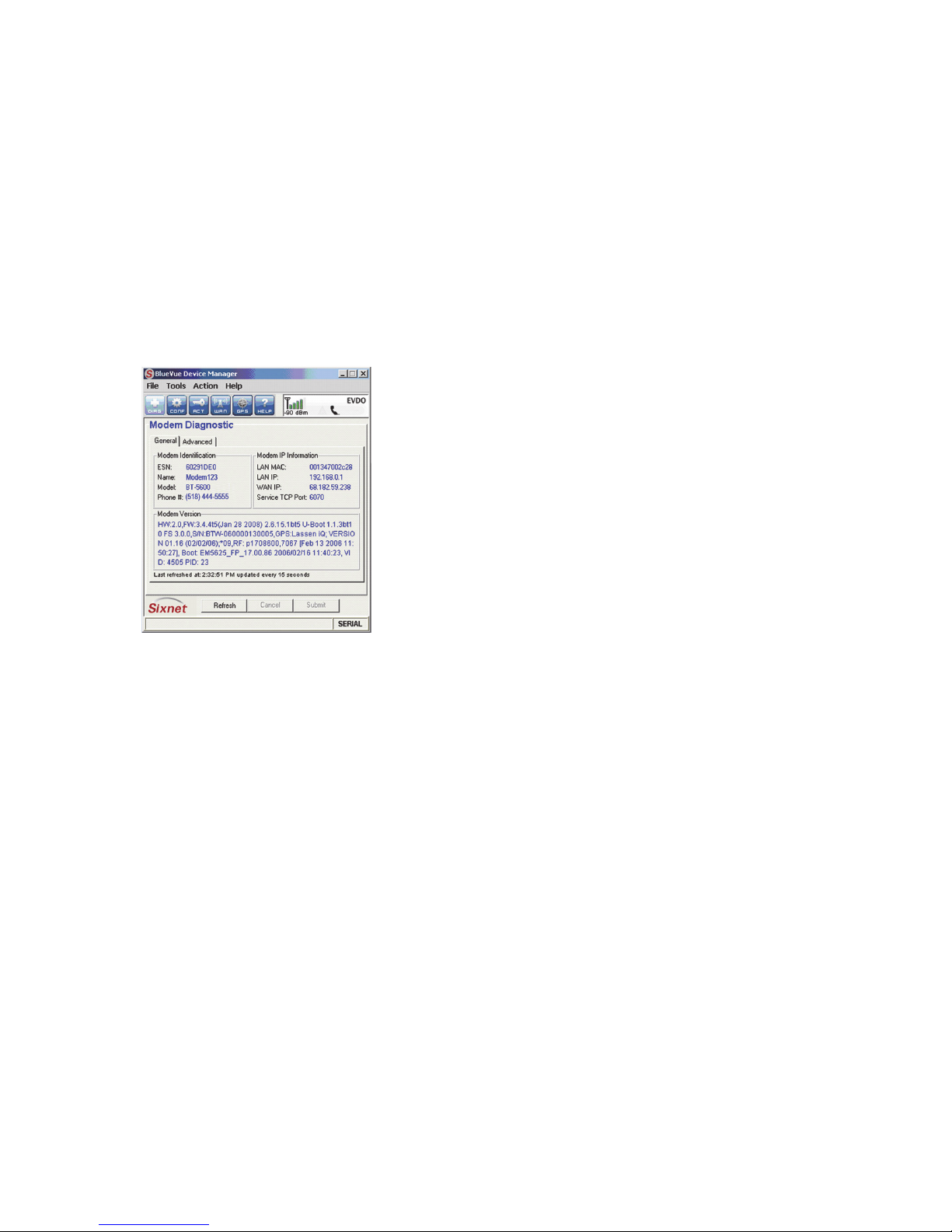

2. When launched, it will attempt to connect to 192.168.0.1 by
default, once connected to the modem, the Modem Diagnostic
window will open. (Note that 192.168.0.1 connects to the Ethernet cable. To connect to the USB port use 192.168.111.1):
Troubleshooting: If BlueVue displays “Detecting Modem at
192.168.0.1” indefinitely, then:
• Make sure the modem is powered on.
• Check the Ethernet Link LED on the modem. If it’s off, it usually
means you have a problem with the Ethernet cable or with your
computer’s network card.
• Close all other network connections (such as WiFi)
• Set your computer to obtain an IP address automatically
5. Confirm that the modem is acquiring a cellular signal
5. Confirm the modem has successfully connected to the cellu-
lar network:
• The WAN LED will be on or flashing.
• In BlueVue, click the DIAG button, the WAN IP should
indicate the IP address assigned to the modem by the
cellular network.
SETUP IS COMPLETE
The modem should be ready for use as a basic internet access point.
ADDITIONAL INFORMATION
For more advanced modem configuration, consult the support section
on our website. Visit our support page at www.redlion.net to access
the modem’s documentation, as well as configuration help, troubleshooting and firmware & software updates. Or contact Technical Support at 1-877-432-9908 or [email protected].
INSTALLATION AND HAZARDOUS AREA WARNINGS
Suitable for use in Class I, Division 2, Groups A, B, C and D hazardous
locations, or non-hazardous locations only. All power, input and output
(I/O) wiring must be in accordance with Class I, Division 2 wiring methods and in accordance with the authority having jurisdiction.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT
UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO
BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS
MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
AVERTISSEMENTS POUR INSTALLATION ET
ENDROITS DANGEREUX
Cet équipement est adapté pour une utilisation en Classe I, Division 2,
Groupes A, B, C et D pour endroits dangereux , ou endroits non-dangereux seulement. Tout câblage électrique, entrée et sortie (I / O) doivent être en conformité avec Classe I, Division 2 méthodes de câblage
et conformément à l'autorité compétente.
AVERTISSEMENT - RISQUE D'AVERTISSEMENT - NE DÉBRANCHEZ PAS
L'ÉQUIPEMENT PENDANT QUE LE CIRCUIT EST DIRECT OU À MOINS
QUE L'ENVIRONNEMENT SOIT CONNU POUR ÊTRE NON-DANGEREUX.
AVERTISSEMENT - RISQUE D'EXPLOSION - LA SUBSTITUTION DE TOUT
COMPOSANT PEUT NUIRE À LA CONFORMITÉ DE CLASSE I, DIVISION 2
The Signal LED should be on or flashing, indicating that the modem has
a signal. BlueVue Device Manager displays signal information in the top
right of its window; a minimum of 1 bar is required to connect to the
carrier with the modem.
Troubleshooting: If the Signal LED is off, then there may be an issue
with the antenna or cellular coverage might be too low in your current
location.
6. Set the WAN data connection
1. In BlueVue Device Manager, click on the WAN button.
2. Set the Username and Password if provided by the carrier.
3. Set the APN as provided by the carrier.
4. Click Submit.
CONNECT. MONITOR. CONTROL. © 2014 Red Lion Controls. All Rights Reserved 2
