Red Goat EC-33 Installation Manual

MODEL EC-33

Instructions for use

IMPORTANT SAFEGUARDS

When using electrical appliances basic safety precautions should always be

following including the following:

1. Read all instructions.

2. To protect against electrical hazards, DO NOT IMMERSE IN WATER OR OTHER
LIQUID.

3. Unplug from outlet when not in use - also before putting on or taking off accessories
and before cleaning.

4. Avoid contact with moving parts. Keep hand, hair, clothing, as well as spatulas and
other utensils, away from accessories and attachments during operation to prevent
personal injury and/or damage.

5. Do not operate with a damaged cord set or after the slicer has been dropped or
damaged in any manner. Contact the nearest Service Agency for examination,
repair or adjustment.

6. Do not let cord set hang over the edge of a table or counter, or touch hot surfaces.

7. Remove all attachments and accessories before washing.

8. Never leave unattended during operation.

9. The use of attachments and accessories not recommended by the manufacturer
may cause hazards.

10. SAVE THESE INSTRUCTIONS.

1

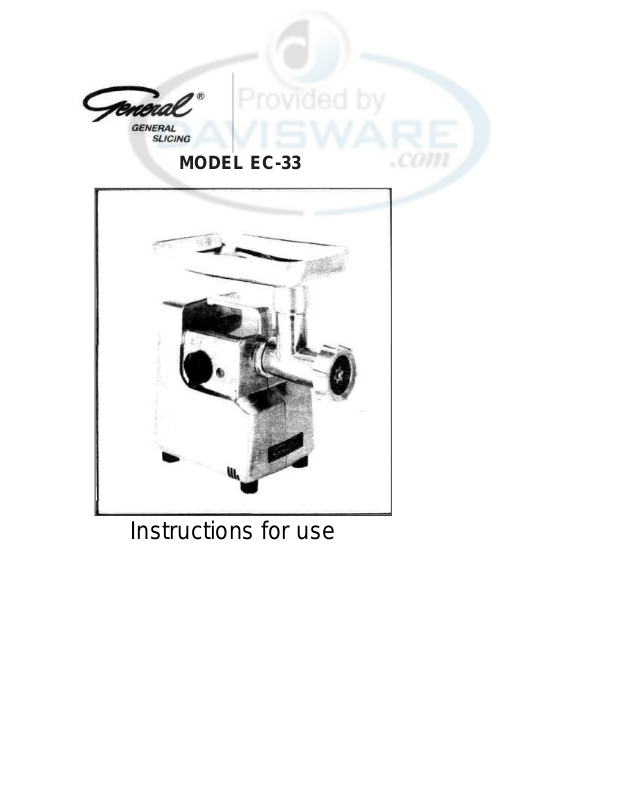

GENERAL DESCRIPTION

cam

w

Black star

A: Grinder unit

1 Locking ring
2 Perforated disc
3 Steel knife

4 Feed screw with

5 Housing
6 Pusher/Stomper

7 Feeding hopper

B: Motor unit

8 Carrying

handle

9 Pilot lamp
10 On/off switch

11 Fixing scre

12 Feed cord
13 Type plate

14 Overload

safety switch

2

Attention:

Indication on type plate (13)
must be identical with your
mains current !

Assembly

Push feed screw (4) into
housing (5). Push cutting
device, first knife (3),
cutting side away from feed
screw, then disc (2) onto
the shaft, groove onto hol-
ding pin at housing. Screw
on locking ring (1) and
tighten well.

Insert mounted grinder A
onto receiver of motor unit
B. Locate it properly by a
light reciprocating turning
until pin engages onto
groove at motor unit B. On -
ly then tighten well fixing
screw (11), Black star knob.

Now set on feeding hopper
(7) and keep ready the
pusher (stomper) (6).

Cleaning before
using

Wash all parts of grinder the
normal way with a little
washing up liquid. Then dry
immediately. Blow away
water from holes of disc.
Coats sparingly with vege­table oil.

For dismantling:

Unscrew locking ring (1),
then pull out cutting device
(2 + 3) as well as feed
screw (4).

Putting into operation

Start motor by turning
switch (10) to the right
(position 1). Pilot lamp (9)
will flash up.

By turning switch (10) to the
left (position R) motor runs
in reverse. Only a short time
service is allowed!

If something unsuitable got
into the filler tube or if the
motor is overloaded, safety
switch (14) will trip and stop
machine.

In such a case switch off
motor, press in overload
safety switch (14) after
about 10 seconds, then turn
switch (10) briefly to the left
(in positon R). Motor runs in
reverse and clears the
blockage.

Then disassemble grinder
unit A, remove all residue
from the parts. After
reassembling and inserting
the grinder you may
continue to work.

Removing grinder
unit A
from motor unit B

open safety locking screw
(11), black star knob, and pull
forward grinder A

Attention:

Always unplug before cleaning
and for security's sake also
after having finished to work!

Effective: October

1,

1997

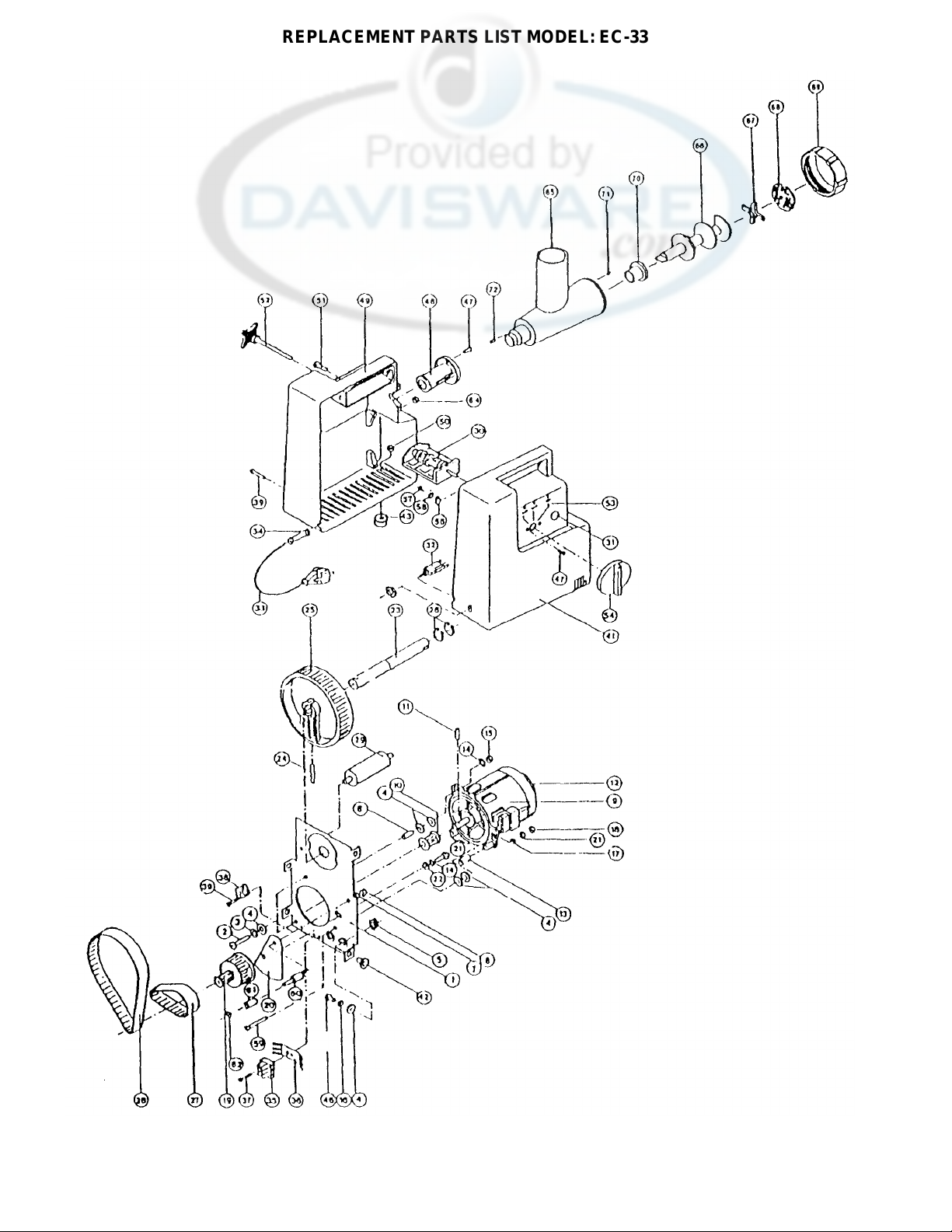

REPLACEMENT PARTS PRICE LIST
MODEL: EC-33

KEY

PART NO.

1 04-EC-4005 MTG PLATE:MOTOR .....................…....……..1

2 08-EC-4006 SCREW......….........................................……….1

3 08-EC-4007 WASHER ..........................................…..………1

4 06-EC-4008 GROMMET ............................................………6

5 06-EC-4009 BUSHING...............................................……….1

6 06-EC-4011 ISOLATION TUBE .................................……...1

7 08-EC-4015 WASHER:LOCK, STAR .........................……..1

8 08-EC-4016 NUT:HEX ...............................................………1

9 02-EC-4010 MOTOR: 115V/60HZ................................…….1

02-EC-4063 MOTOR:220V/50HZ................................……..1

10 09-EC-4012 PINION:MOTOR .....................................……..1

11 08-EC-4013 PIN:SPRING, MOTOR ............................……..1

12 08-EC-4014 FAN:MOTOR ..........................................……...1

13 06-EC-4045 ISOLATION TUBE ..................................…….1

14 08-EC-40I8 WASHER:LOCK, STAR ..........................…….2

15 08-EC-4019 NUTHEX ................................................………1

QTY.

KEY

PART NO.

QTY.

38 08-EC-4039 STRAIN RELIEF .................................…….... 1

39 08-EC-4040 SCREW:CORD CLAMP.........................……. 3

41 04-EC-4041 HOUSING:LEFT .................................…….... 1

42 06-EC-4042 BUSHING:RUBBER..............................…….. 3

43 06-MC-1059 FOOT W/STUD....................................…….... 4

46 08-EC-4045 SCREW..............................................……....... 2

47 08-EC-4046 SCREW:CSK HD ..................................…….. 2

48 08-EC-4047 FLANGE:HEAD MOUNTING .................….. 1

49 04-EC-4048 HOUSING:RIGHT..................................……. 1

50 08-EC-4049 NUTHEX ..............................................……....4

51 08-EC-4050 SCREW...................................................……...1

52 08-EC-4051 KNOB:LOCK, HEAD............................…..….1

53 12-EC-4052 LABEL: ON/OFF......................................……1

54 09-EC-4053 KNOB................…..................................……..1

56 12-EC-4061 LABEL:GROUND.................................…...…1

57 08-EC-4062 SCREW:GND LABEL ............................…….1

16 08-EC-4017 WASHER:NYLON ...................................…….1 58 08-EC-4063 WASHER:LOCK, GND LABEL............……..1

17 08-EC-4043 INSERT...................................................………1

18 08-EC-4044 NUTHEX ................................................………1

19 09-EC-4020 PULLEY:INTERMEDIATE.......................……1

20 04-EC-4021 PLATE:BELT ADJ ...................................…….1

59 08-EC-4064 SCREW:CSK HD ....................................…….1

60 30-EC-4065 IDLER SHAFT ASSY ............................……..1

(INC:60-62)

61 ASSY ONLY. SEE KEY #60

21 08-EC-4022 SCREW:HXHD .......................................……..2 62 ASSY ONLY. SEE KEY #60

22 08-EC-4023 WASHER:FLAT.......................................……..1

23 04-EC-4024 DRIVE SHAFT ........................................……..1

24 08-EC-4025 PIN:SPRING, DRIVE SHAFT..................…….1

25 09-EC-4026 PULLEY:MAIN DRIVE ............................……1

26 08-EC-4027 RING RETAINING ....................………………2

27 06-EC-4028 BELT:TIMING (SMALL)..........................……1

28 06-EC-4029 BELTTIMING (LARGE) ..........................……1

29 05-EC-4030 CAPACITOR ...........................................……..1

30 05-EC-4031 SWITCH:120V........................…….....…..……1

31 05-EC-4032 RUNNING LIGHT:120V ..........................…….1

32 05-EC-4033 THERMAL PROTECTOR:4A, SNAP-IN.…….1

05-EC-4066 THERMAL PROTECTOR:4A,SCREW-MNT...1
05-EC-4070 THERMAL PROTECTOR:2A,SCREW-MNT...1

33 05-MM-2242 CORDSET:MM-7 ....................................……..1

34 05-EC-4035 GROMMET .............................................……..1

35 05-EC-4036 TERMINAL BLOCK.................................……1

64 30-EC-4060 HEAD ASSY COMP..............................……...1

(INC:64-72)

65 09-EC-4060 HEAD:#8 .................................................…….1

66 30-EC-4054 FEED SCREW:#8 ...................................…….1

67 09-EC-4001 KNIFE:#8.................................................…….1

68 09-EC-4002 PLATE:3/16, #8 .......................................……1

09-EC-4003 PLATE:1/4, #8 .........................................……1

09-EC-4004 PLATE:3/8, #8 .........................................……1

69 09-EC-4059 RING COLLAR........................................……1

70 08-EC-4060 BUSHING:HEAD.....................................……1

71 08-EC-4061 PIN:PLATE LOCATING..........................……1

72 08-EC-4062 SCREW:GND LABEL............…............……..1

12-MC-6063 LABEL:SAFETY (CHOPPERS)..............….…1

12-MC-6065 LABELSAFETY (CHOPPERS) ..............…….1

12-SM-1755 LABEL:ELECTRICAL WARNING ...........….1

12-SM-1756 LABEL:READ SAFETY INSTRUCTIONS….1

36 05-EC-4037 HOLDER:WIRE.......................................……..1 12-6-1760 LABEL:CORDSETWARNING...............…….1

37 08-EC-4038 SCREW:TERMINAL BLOCK ..................……1

* Not pictured
** Refer to current equipment Price List for pricing of these items.

* 30-EC-4055 SAUSAGE TUBE:#8 .............................……..1
