Red-D-Arc DC-400 Operator's Manual

Download

IM655-B

RED-D-ARC DC-400

For use with machines having Code Numbers:

November, 2006

10648; 10699; 11038; 11085 and 11128; 11347

OPERATOR’S MANUAL

Red-D-Arc Spec-Built Welding Equipment

This RED-D-ARC welder is built to RED-D-ARC Extreme Duty design specifications by Lincoln Electric.

Safety Depends on You

This welder is designed and built with safety in mind.

However, your overall safety can be increased by proper installation

... and thoughtful operation on your part.

DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL AND THE SAFETY PRECAUTIONS CONTAINED THROUGHOUT.

And, most importantly, think before you act and be careful.

1-800-245-3660

North America’s Largest Fleet of Welding Equipment

SAFETY

WARNING

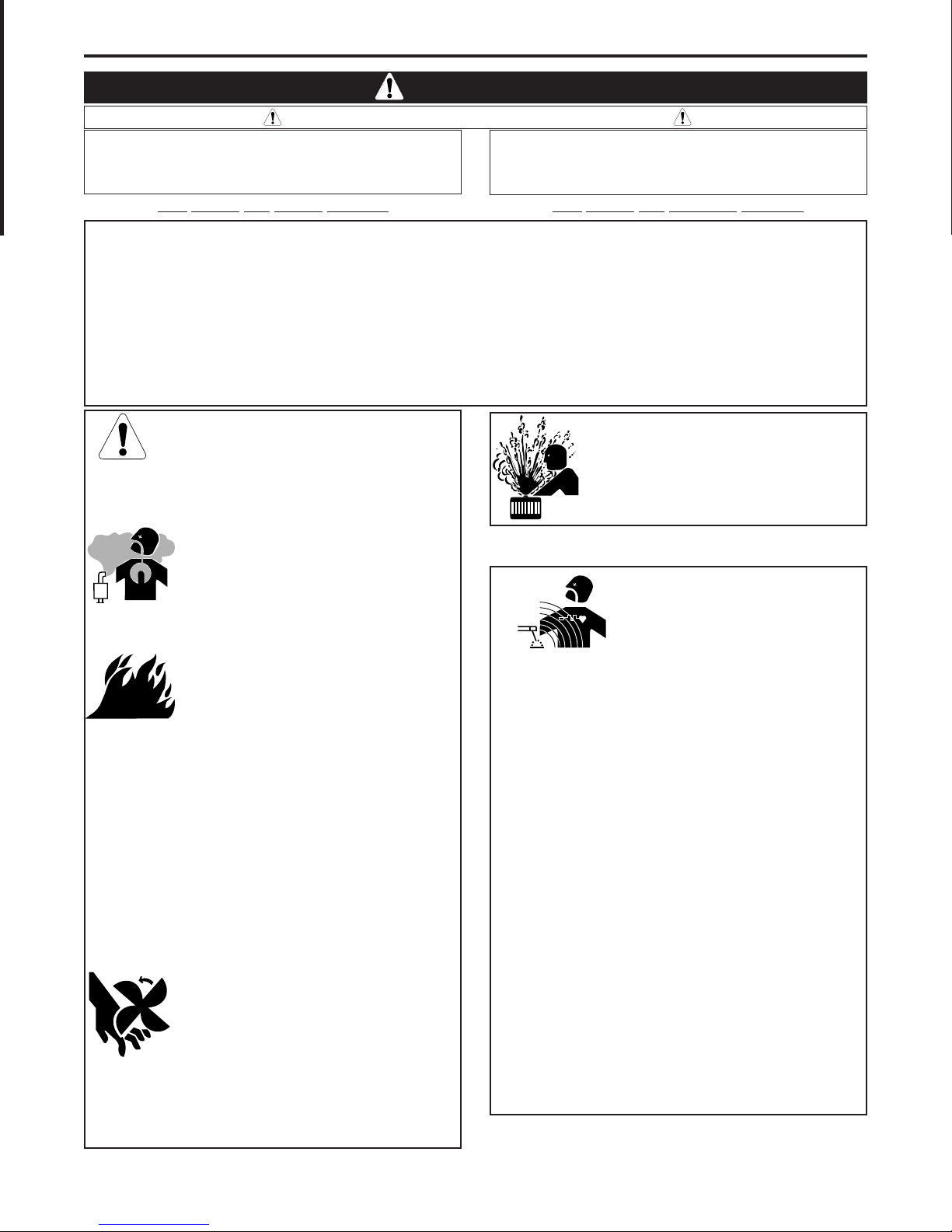

CALIFORNIA PROPOSITION 65 WARNINGS

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

The Above For Diesel Engines

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box 351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

The Above For Gasoline Engines

FOR ENGINE powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance work unless the maintenance work requires it to be running.

____________________________________________________

1.b. Operate engines in open, well-ventilated areas or vent the engine exhaust fumes outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame welding arc or when the engine is running. Stop the engine and allow it to cool before refueling to prevent spilled fuel from vaporizing on contact with hot engine parts and igniting. Do not spill fuel when filling tank. If fuel is spilled, wipe it up and do not start engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers and devices in position and in good repair.Keep hands, hair, clothing and tools away from V-belts, gears, fans and all other moving parts when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove guards only when necessary and replace them when the maintenance requiring their removal is complete. Always use the greatest care when working near moving parts.

___________________________________________________

1.f. Do not put your hands near the engine fan. Do not attempt to override the governor or idler by pushing on the throttle control rods while the engine is running.

1.h. To avoid scalding, do not remove the radiator pressure cap when the engine is hot.

ELECTRIC AND MAGNETIC FIELDS may be dangerous

2.a. Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). Welding current creates EMF fields around welding cables and welding machines

2.b. EMF fields may interfere with some pacemakers, and welders having a pacemaker should consult their physician before welding.

2.c. Exposure to EMF fields in welding may have other health effects which are now not known.

2.d. All welders should use the following procedures in order to minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right side, the work cable should also be on your right side.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while turning the engine or welding generator during maintenance work, disconnect the spark plug wires, distributor cap or magneto wire as appropriate.

2.d.4. Connect the work cable to the workpiece as close as possible to the area being welded.

2.d.5. Do not work next to welding power source.

Mar ‘95

SAFETY

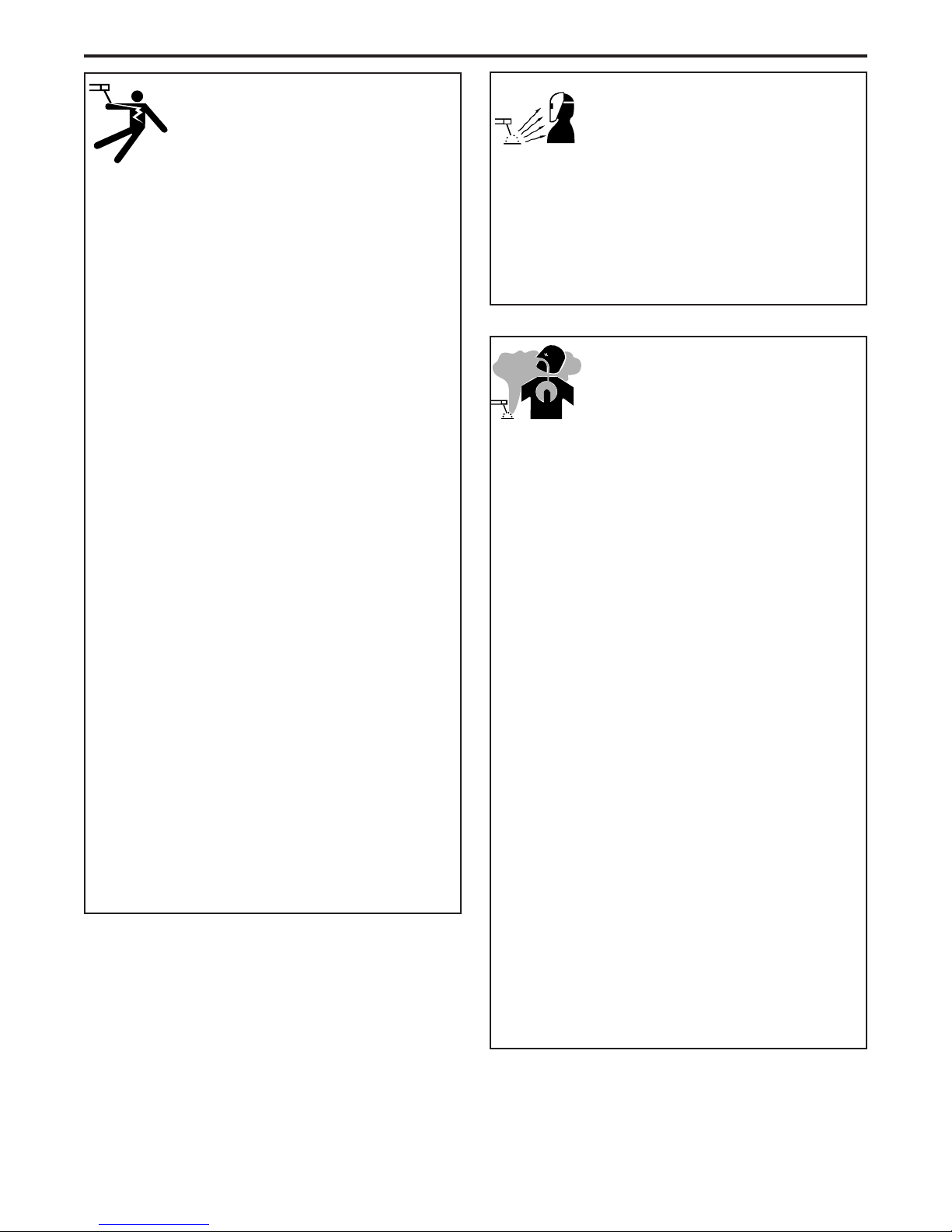

ELECTRIC SHOCK can kill.

3.a. The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation. Make certain the insulation is large enough to cover your full area of physical contact with work and ground.

In addition to the normal safety precautions, if welding must be performed under electrically hazardous conditions (in damp locations or while wearing wet clothing; on metal structures such as floors, gratings or scaffolds; when in cramped positions such as sitting, kneeling or lying, if there is a high risk of unavoidable or accidental contact with the workpiece or ground) use the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode, electrode reel, welding head, nozzle or semiautomatic welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical connection with the metal being welded. The connection should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical (earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and welding machine in good, safe operating condition. Replace damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot” parts of electrode holders connected to two welders because voltage between the two can be the total of the open circuit voltage of both welders.

3.i. When working above floor level, use a safety belt to protect yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover plates to protect your eyes from sparks and the rays of the arc when welding or observing open arc welding. Headshield and filter lens should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant material to protect your skin and that of your helpers from the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable screening and/or warn them not to watch the arc nor expose themselves to the arc rays or to hot spatter or metal.

FUMES AND GASES can be dangerous.

5.a. Welding may produce fumes and gases hazardous to health. Avoid breathing these fumes and gases. When welding, keep your head out of the fume. Use enough ventilation and/or exhaust at the arc to keep

fumes and gases away from the breathing zone. When

welding with electrodes which require special ventilation such as stainless or hard facing (see instructions on container or MSDS) or on lead or cadmium plated steel and other metals or coatings which produce highly toxic fumes, keep exposure as low as possible and below Threshold Limit Values (TLV) using local exhaust or mechanical ventilation. In confined spaces or in some circumstances, outdoors, a respirator may be required. Additional precautions are also required when welding on galvanized steel.

5. b. The operation of welding fume control equipment is affected by various factors including proper use and positioning of the equipment, maintenance of the equipment and the specific welding procedure and application involved. Worker exposure level should be checked upon installation and periodically thereafter to be certain it is within applicable OSHA PEL and ACGIH TLV limits.

5.c.

Do not weld in locations near chlorinated hydrocarbon coming from degreasing, cleaning or spraying operations. The heat and rays of the arc can react with solvent vapors form phosgene, a highly toxic gas, and other irritating products.

5.d. Shielding gases used for arc welding can displace air and

cause injury or death. Always use enough ventilation, especially in confined areas, to insure breathing air is safe.

vapors

5.e. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the material safety data sheet (MSDS) and follow your employer’s safety practices. MSDS forms are available from your welding distributor or from the manufacturer.

5.f. Also see item 1.b.

AUG 06

iii

SAFETY

iii

WELDING SPARKS can cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

the welding sparks from starting a fire.

materials from welding can easily go through small cracks and openings to adjacent areas. Avoid welding near hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site, special precautions should be used to prevent hazardous situations. Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1) and the operating information for the equipment being used.

6.c. When not welding, make certain no part of the electrode circuit is touching the work or ground. Accidental contact can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the proper steps have been taken to insure that such procedures will not cause flammable or toxic vapors from substances inside. They can cause an explosion even been “cleaned”. For information, purchase “Recommended Safe Practices for the Containers and Piping That Have Held Hazardous Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or welding. They may explode.

Sparks and spatter are thrown from the welding arc. Wear oil

6.f. free protective garments such as leather gloves, heavy shirt, cuffless trousers, high shoes and a cap over your hair. Wear ear plugs when welding out of position or in confined places. Always wear safety glasses with side shields when in a welding area.

6.g. Connect the work cable to the work as close to the welding area as practical. Work cables connected to the building framework or other locations away from the welding area increase the possibility of the welding current passing through lifting chains, crane cables or other alternate circuits. This can create fire hazards or overheat lifting chains or cables until they fail.

6.h. Also see item 1.c.

Remember that welding sparks and hot

though

they have

Preparation

for Welding and Cutting of

CYLINDER may explode if damaged.

7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand tight except when the cylinder is in use or connected for use.

7.g. Read and follow the instructions on compressed gas cylinders, associated equipment, and CGA publication P-l, “Precautions for Safe Handling of Compressed Gases in Cylinders,” available from the Compressed Gas Association 1235 Jefferson Davis Highway, Arlington, VA 22202.

FOR ELECTRICALLY powered equipment.

8.a. Turn off input power using the disconnect switch at the fuse box before working on the equipment.

8.b. Install equipment in accordance with the U.S. National Electrical Code, all local codes and the manufacturer’s recommendations.

8.c. Ground the equipment in accordance with the U.S. National Electrical Code and the manufacturer’s recommendations.

Mar ‘95

SAFETY

PRÉCAUTIONS DE SÛRETÉ

Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce manuel aussi bien que les précautions de sûreté générales suivantes:

Sûreté Pour Soudage A L’Arc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à l’électrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours tout contact entre les parties sous tension et la peau nue ou les vétements mouillés. Porter des gants secs et sans trous pour isoler les mains.

b. Faire trés attention de bien s’isoler de la masse quand on

soude dans des endroits humides, ou sur un plancher metallique ou des grilles metalliques, principalement dans les positions assis ou couché pour lesquelles une grande partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état defonctionnement.

d.Ne jamais plonger le porte-électrode dans l’eau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à souder parce que la tension entre les deux pinces peut être le total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions pour le porte-électrode s’applicuent aussi au pistolet de soudage.

2. Dans le cas de travail au dessus du niveau du sol, se protéger contre les chutes dans le cas ou on recoit un choc. Ne jamais enrouler le câble-électrode autour de n’importe quelle partie du corps.

5. Toujours porter des lunettes de sécurité dans la zone de soudage. Utiliser des lunettes avec écrans lateraux dans les zones où l’on pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de prévenir tout risque d’incendie dû aux étincelles.

7. Quand on ne soude pas, poser la pince à une endroit isolé de la masse. Un court-circuit accidental peut provoquer un échauffement et un risque d’incendie.

8. S’assurer que la masse est connectée le plus prés possible de la zone de travail qu’il est pratique de le faire. Si on place la masse sur la charpente de la construction ou d’autres endroits éloignés de la zone de travail, on augmente le risque de voir passer le courant de soudage par les chaines de levage, câbles de grue, ou autres circuits. Cela peut provoquer des risques d’incendie ou d’echauffement des chaines et des câbles jusqu’à ce qu’ils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage. Ceci est particuliérement important pour le soudage de tôles galvanisées plombées, ou cadmiées ou tout autre métal qui produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant d’opérations de dégraissage, nettoyage ou pistolage. La chaleur ou les rayons de l’arc peuvent réagir avec les vapeurs du solvant pour produire du phosgéne (gas fortement toxique) ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté, voir le code “Code for safety in welding and cutting” CSA Standard W 117.2-1974.

PRÉCAUTIONS DE SÛRETÉ POUR

3. Un coup d’arc peut être plus sévère qu’un coup de soliel, donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi qu’un verre blanc afin de se protéger les yeux du rayonnement de l’arc et des projections quand on soude ou quand on regarde l’arc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de l‘arc.

c. Protéger l’autre personnel travaillant à proximité au

soudage à l’aide d’écrans appropriés et non-inflammables.

4. Des gouttes de laitier en fusion sont émises de l’arc de soudage. Se protéger avec des vêtements de protection libres de l’huile, tels que les gants en cuir, chemise épaisse, pantalons sans revers, et chaussures montantes.

LES MACHINES À SOUDER À TRANSFORMATEUR ET À REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code de l’électricité et aux recommendations du fabricant. Le dispositif de montage ou la piece à souder doit être branché à une bonne mise à la terre.

2. Autant que possible, I’installation et l’entretien du poste seront effectués par un électricien qualifié.

3. Avant de faires des travaux à l’interieur de poste, la debrancher à l’interrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur place.

Mar. ‘93

for selecting a QUALITY product. We want you to take pride in

Thank You

operating this product ••• as much pride as we have in bringing this product to you!

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims for material damaged in shipment must be made by the purchaser against the transportation company at the time the shipment is received.

Please record your equipment identification information below for future reference. This information can be found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code_________________________________________________________________

Serial Number____________________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you have recorded above. The code number is especially important when identifying the correct replacement parts.

On-Line Product Registration

- Register your machine with Lincoln Electric either via fax or over the Internet.

• For faxing: Complete the form on the back of the warranty statement included in the literature packet accompanying this machine and fax the form per the instructions printed on it.

• For On-Line Registration: Go to our

“Product Registration”. Please complete the form and submit your registration.

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. The level of seriousness to be applied to each is explained below:

WEB SITE at www.lincolnelectric.com. Choose “Quick Links” and then

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

CAUTION

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.

TABLE OF CONTENTS

Page

Installation .. .......................................................................................................Section A

Technical Specifications ............................................................................................. A-1

Safety Precautions .......................................................................................................A-2

Location........................................................................................................................A-2

Input Power Connection...............................................................................................A-2

Output Connections .....................................................................................................A-2

Output Cables ..............................................................................................................A-2

Remote Output Control ................................................................................................A-2

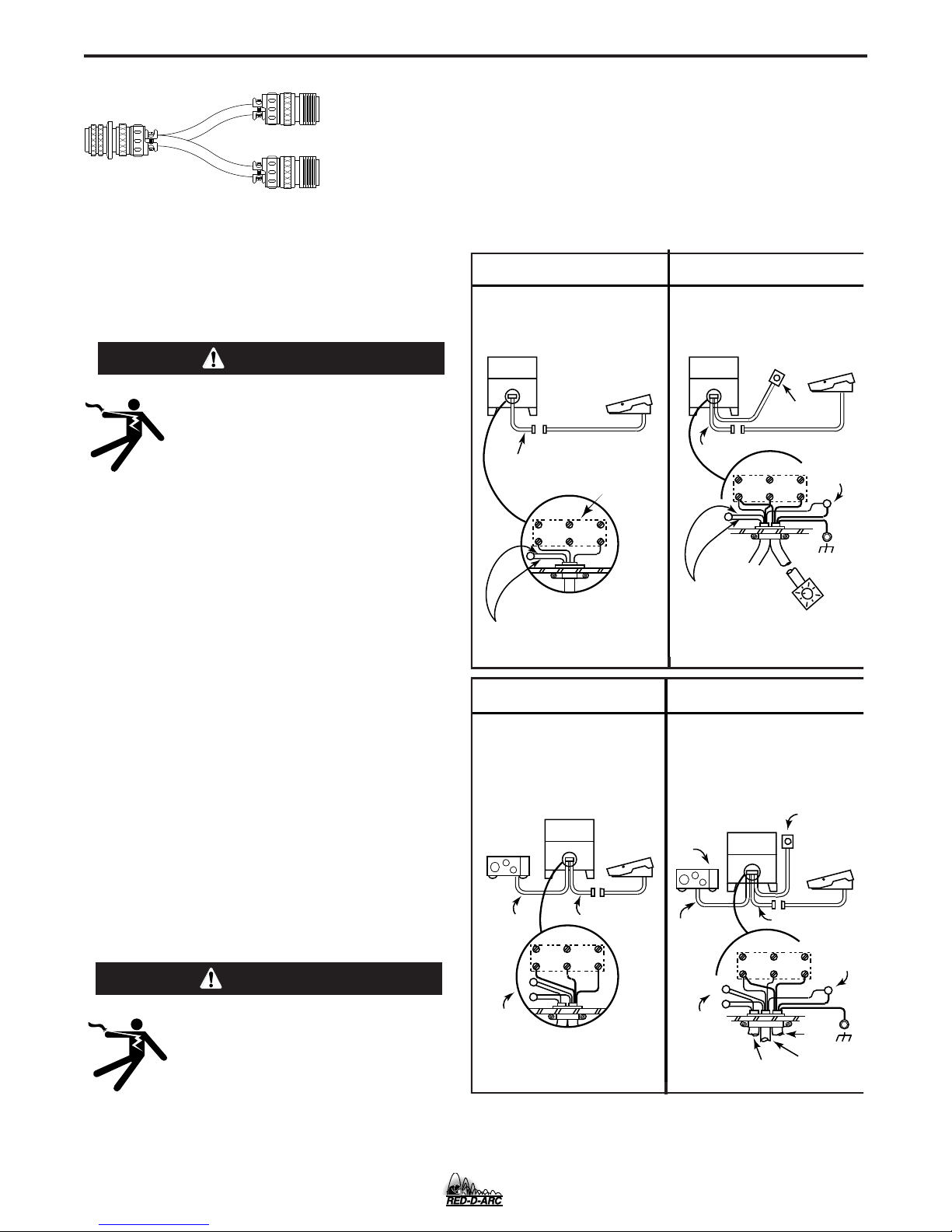

Remote Control Adapter Cable (K864) ........................................................................A-3

Amptrol Adapter Cable (K843) .....................................................................................A-3

(K843)Amptrol Adapter Installation Instructions...........................................................A-3

Hi-Frequency Kit ..........................................................................................................A-4

Amptrol Adapter for K799 Hi-Frequency Kit.................................................................A-4

Multiprocess Switch .....................................................................................................A-4

Capacitor Discharge Circuit .........................................................................................A-4

Undercarriages.............................................................................................................A-4

Installation of Equipment Required for Recommended Processes .................A-4 thru A-6

Connection of DC-400 to LN-22 or LN25 .....................................................................A-5

Auxiliary Power Connections .......................................................................................A-6

Remote Control Connections .......................................................................................A-6

Output Connections .....................................................................................................A-6

Input Connections ........................................................................................................A-6

Input Line Voltage Compensation ................................................................................A-6

Solid State Output Control ..........................................................................................A-6

Solid State Control System ..........................................................................................A-6

Machine Cooling ..........................................................................................................A-6

Case Features .............................................................................................................A-6

Arc Force Selector .......................................................................................................A-7

Arc Control ...................................................................................................................A-7

Mode Switch.................................................................................................................A-7

Stick Welding ...............................................................................................................A-7

Paralleling ....................................................................................................................A-7

Diode Option ................................................................................................................A-7

Machine & Circuit Protection........................................................................................A-7

Multiprocess Switch .....................................................................................................A-8

________________________________________________________________________

Operation ...........................................................................................................Section B

Safety Precautions ..................................................................................................... B-1

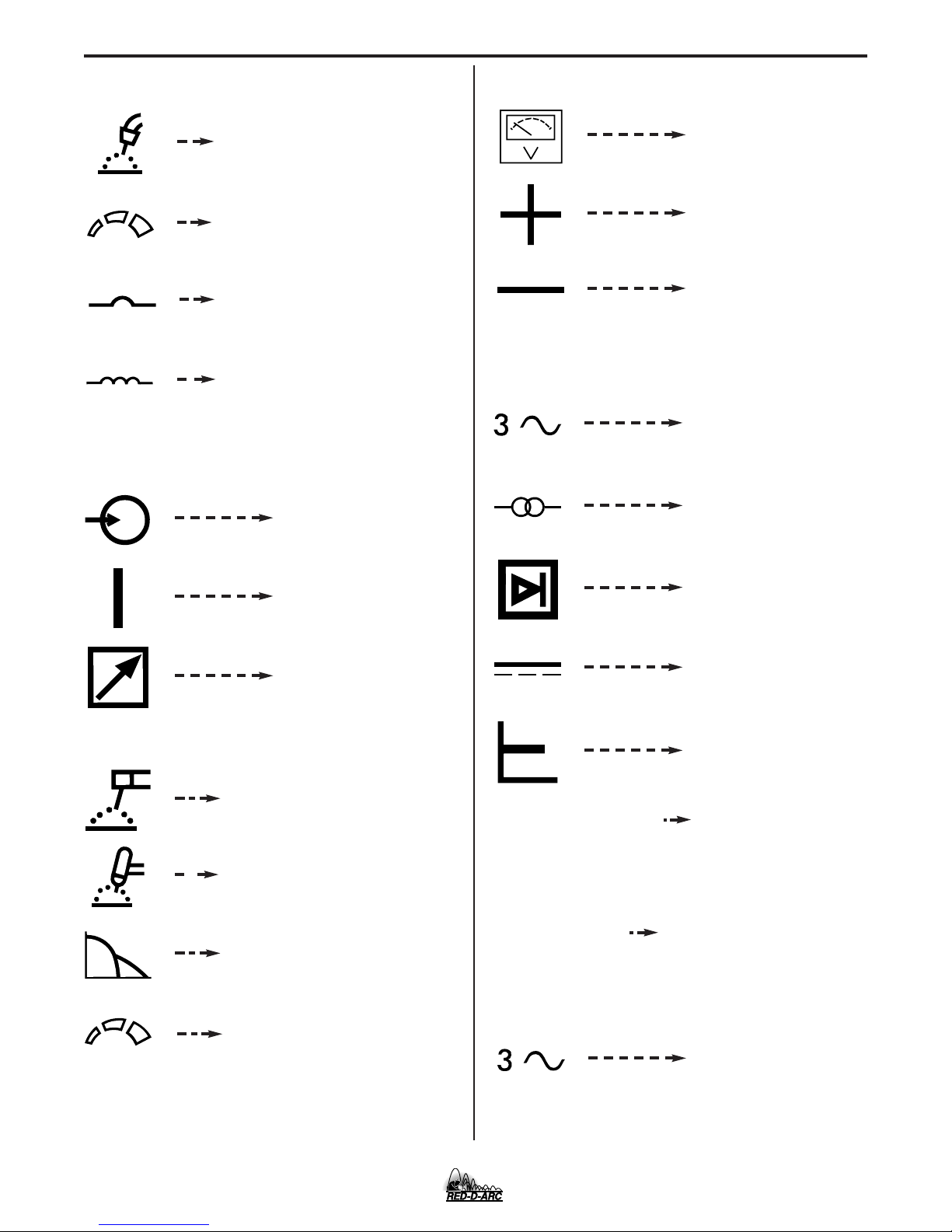

Meanings of Graphic Symbols .......................................................................B-1 thru B-4

General Machine Description.......................................................................................B-5

Recommended Processes and Equipment...... ...........................................................B-5

Operational Features & Controls ...........................................................................B-5

Power Source Operation..........................................................................B-6 thru B-8

________________________________________________________________________

Accessories .. .....................................................................................................Section C

Factory or Field Installed Options ................................................................................C-1

Diode Option..........................................................................................................C-1

Multi-Process Switch ............................................................................................C-1

Field Installed Options .................................................................................................C-1

Remote Output Control..........................................................................................C-1

Amptrol Adapter Cable ..........................................................................................C-1

Remote Control Adapter Cable ............................................................................C-1

Multi-Process Switch ............................................................................................C-1

Capacitor Discharge Circuit...................................................................................C-1

Hi-Frequency Kit....................................................................................................C-2

Optional Amptrol Adapter for Hi-Frequency Kit .....................................................C-2

Undercarriages......................................................................................................C-2

________________________________________________________________________

vii

TABLE OF CONTENTS

Page

Maintenance... ....................................................................................................Section D

Safety Precautions.......................................................................................................D-1

Routine Maintenance ...................................................................................................D-1

________________________________________________________________________

Troubleshooting .. ..............................................................................................Section E

How to Use Troubleshooting Guide .............................................................................E-1

Troubleshooting Guide ...................................................................................E-2 thru E-6

________________________________________________________________________

Wiring Diagrams and Dimension Print .. ..........................................................Section F

________________________________________________________________________

Parts Lists.....................................................................................................P355, P239

A-1

INSTALLATION

TECHNICAL SPECIFICATIONS – DC-400

INPUT-THREE PHASE ONLY

Standard Input Current at Rated Output (CVI) Voltage 100% Duty Cycle 60% Duty Cycle

Frequency

230/460/575V/60Hz 400Amps/36V 450Amps/38V 500Amps/40V

78/39/31Amps 83/42/33Amps 84/42/34Amps

RATED OUTPUT

Duty Cycle

100% 400 36

60% 450 38 50% 500 40

(1)

Amps Volts at Rated Amps

(4)

A-1

50% Duty Cycle

OUTPUT

OUTPUT MAXIMUM OPEN CIRCUIT VOLTAGE AUXILIARY POWER

Min.----60A 12V CV(22V CC) 57V. (CC) 45.5V. (CVI) 115 VAC, 15 AMPS

Max.---500A 42V (CC, CV) 42 VAC, 10 AMPS

RECOMMENDED INPUT WIRE AND FUSE SIZES FOR MAXIMUM RATED OUTPUT

INPUT

VOLTAGE /

FREQUENCY

230/60HZ 460/60HZ 575/60HZ

INPUT AMPERE

RATING ON

NAMEPLATE

@ 100%

Duty Cycle

78 39 31

TYPE 75°C COPPER

WIRE IN CONDUIT

AWG (IEC)

SIZES (mm

40°C(104°F)

3(25) 8(10) 10(6)

)

TYPE 75°C GROUND

WIRE IN CONDUIT

AWG (IEC)

SIZES (mm

6(10) 10(6) 10(6)

)

TYPE 75°C

SUPER LAG

OR BREAKER

SIZE(AMPS)

125

60 50

PHYSICAL DIMENSIONS

HEIGHT WIDTH DEPTH WEIGHT

27.50 in. 22.25 in. 32.0 in. 473 lbs.

699 mm 565 mm 988 mm 215 kg.

(1) Based upon 10 minute time period (i.e., for 60% duty cycle, it is 6 minutes on an 4 minutes off).

DC-400

A-2

INSTALLATION

A-2

SAFETY PRECAUTIONS

Read this entire section of operating instructions before operating the machine.

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrodes with your skin or wet clothing.

• Insulate yourself from the work and ground.

• Always wear dry insulating gloves.

-----------------------------------------------------------------------FUMES AND GASES can be dangerous.

• Keep your head out of fumes.

• Use ventilation or exhaust to remove

fumes from breathing zone.

------------------------------------------------------------------------

WELDING SPARKS can cause fire or explosion.

• Keep flammable material away.

• Do not weld on containers that have held combustibles.

-----------------------------------------------------------------------ARC RAYS can burn.

• Wear eye, ear, and body protection.

------------------------------------------------------------------------

Observe additional guidelines detailed in the beginning of this manual.

LOCATION

The machine should be located in a clean dry place where there is free circulation of clean air such that air movement in through the front and out through the back will not be restricted. Dirt and dust that can be drawn into the machine should be kept to a minimum. Failure to observe these precautions can result in excessive operating temperatures and nuisance shutdown of the machine.

OUTPUT CABLE CONNECTIONS

The output leads are connected to the output terminals marked “+” and “-”. They are located at the lower right and lower left corners of the front panel. Strain relief for the electrode and work cables is provided by routing the leads through the rectangular holes in the base before connecting them to the output terminals. Lift the output stud cover to gain access to the output studs. Lower stud cover after connecting output leads.

OUTPUT CABLES

Installation of Field Installed Options

CABLE SIZES FOR COMBINED LENGTH OF ELEC-

TRODE AND GROUND CABLE

MACHINE LOAD

500A (50%

DUTY

CYCLE)

2/0

87 mm

(2)

2/0

67 mm

(2)

3/0

85 mm

(2)

3/0

85 mm

(2)

4/0

107 mm

(2)

CABLE

LENGTHS

UP TO 50 ft

(15m)

50 to 100 ft

(15-30 m) 100-150 ft (30-46 m) 150-200 ft (46-61 m) 200-250 ft (67-76 m)

400A (100%

DUTY

CYCLE)

3/0

85 mm

(2)

3/0

85 mm

(2)

3/0

85 mm

(2)

3/0

85 mm

(2)

4/0

107 mm

(2)

REMOTE OUTPUT CONTROL

(K857 WITH K864 ADAPTER OR K775 )

CAUTION

DO NOT MOUNT OVER COMBUSTIBLE SURFACES.

Where there is a combustible surface directly under stationary or fixed electrical equipment, the surface shall be covered with a steel plate at least .06”(1.6mm) thick, which shall extend not more than 5.90”(150mm) beyond the equipment on all sides.

-------------------------------------------------------------------------------

INPUT POWER CONNECTIONS

By removing the rear access panel the three phase input power is connected to the three line terminals on the input contactor, and the earth grounding lead to the grounding terminal on the input box floor marked with the symbol . Install and reconnect panel for the proper input voltage per the diagram pasted inside the access panel cover. See Technical Data on A-1.

The K857 has a 6-pin MS-style connector. The K857 requires a K864 adapter cable which connects to the 14-pin connector on the machine.

An optional “remote output control” is available. This is the same remote control that is used on the Lincoln R3R, and DC-600 power sources (K775). The K775 consists of a control box with 28 ft (8.5m) of four conductor cable. This connects to terminals 75, 76, and 77 on the terminal strip and the case grounding screw so marked with the symbol on the machine. These terminals are located behind the control panel on the front of the power source. This control will give the same control as the output control on the machine.

DC-400

A-3

STRAIGHT PLUG (14 PIN) TO POWER SOURCE

CABLE RECEPTACLE (6 SOCKET)

CABLE RECEPTACLE (14 SOCKET)

TO: 1) K857 REMOTE CONTROL

2) K963 HAND AMPTROL

3) K870 FOOT AMPTROL

TO LN-7 WIRE FEEDER

The Amptrol provides remote current control through the full range of the power source.

The Amptrol provides remote current control from the minimum of the power source to a maximum set by the remote limit control.

POWER

SOURCE

75 76 77

K963*, K813* or

K870 Amptrol

Power source

terminal

strip

Black and white leads not used. Tape and insulate.

K843

Adapter

FIG. 1

POWER

SOURCE

K963*, K813* or K870 Amptrol

K775 Remote

Limit Control

K843

Adapter

Black and white leads not used. Tape and insulate.

Bolt and nut

connection.

Insulate

and tape.

FIG. 2

The Amptrol will start the Hi-Freq kit to turn on gas and high frequency starting for DC TIG welding. The Amptrol controls current through the full range of the power source.

The Amptrol switch will start the Hi-Freq kit to turn on gas and high frequency starting for DC TIG welding. The Amptrol controls current from the minimum of the power source to a maximum set by the remote limit control.

POWER

SOURCE

75 7776

{

K963*,K813* or K870 Amptrol

K799

Hi-Freq Kit

Arc start cable

(included with

K799)

K843 Adapter

CUT OFF ARC START SWITCH and connect black lead to black and white lead to white.

FIG. 3

POWER

SOURCE

75 7776

{

CUT OFF ARC START SWITCH and connect black lead to black and white lead to white.

K799

K843

K775

FIG. 4

Bolt and nut

connection.

insulate

and tape.

Arc start cable (included with K799)

K963*,K813* or K870 Amptrol

K843 Adapter

K775 Remote Limit Control

K799 Hi-Freq Kit

REMOTE CONTROL ADAPTER CABLE (K864)

A “V” cable 12” (.30m) long to connect a K857 Remote Control, K963 Hand Amptrol or K870 Foot Amptrol (6-pin connector) with a wire-feeder (14-pin connector) and the machine (14-pin connector). If a remote control or amptrol is used alone the wire-feeder connection is then not used.

------------------------------------------------------------------------

AMPTROL™ ADAPTER CABLE (K843)

A five wire cable, 12” (.30m) long, is available for easy connection of standard K963 Hand Amptrol or K870 Foot Amptrol. The cable has a 6-pin MS-style connector which connects to the Amptrol and terminals which connect to 75, 76 and 77 on the machine terminal strip and to the case grounding screw. The Amptrol will control the same range of output as the current control on the welder. (If a smaller range of control is desired for finer adjustment, a K775 Remote may be used in conjunction with the Amptrol Adapter Cable Kit.) The Amptrol arc start switch is nonfunctional unless used with a K799 Hi-Frequency Kit.

K843 AMPTROL™ ADAPTER INSTALLATION INSTRUCTION

For use with: DC-250, DC-400, R3R or Weldanpower 250 (D-10 and Pro) with remote control power sources.

INSTALLATION

WARNING

ELECTRIC SHOCK can kill.

• Turn the power switch of the welding power source “OFF” before installing plugs on cables or when connecting or disconnecting plugs to welding power source.

A-3

This K843 adapter is used to connect AMPTROL™ (K963*, K813* or K870), remote control (K775), and HI-FREQ™ (K799) accessories to DC-250, DC-400, R3R or Weldanpower 250 (D-10 and Pro) with remote control power sources. The power source "machine/remote" switch must be in "remote" for Amptrol™ to control current. Accessories may be combined and connected in four different ways, as shown in Figure 1,2,3, & 4.

AMPTROL™ ONLY

AMPTROL™ AND

HI-FREQ.™ KIT

AMPTROL™ PLUS

REMOTE LIMIT CONTROL

AMPTROL™ AND HI-FREQ.™ KIT

PLUS REMOTE LIMIT CONTROL

ELECTRIC SHOCK can kill.

• Turn the power switch of the welding power source “OFF” before installing plugs on cables or when connecting or disconnecting plugs to welding power source.

------------------------------------------------------------------------

WARNING

DC-400

A-4

INSTALLATION

HI-FREQUENCY KIT (K799 CODES 8634 AND ABOVE ONLY)

Kit supplies the high frequency plus gas valve for DC TIG welding. The DC-400 is shipped with proper R.F. bypass circuitry installed to protect the control circuit when welding with a HI-FREQ unit. K844 Water Valve Option Kit can be used with K799 when TIG welding with water cooled torches. See Hi-Frequency Kit Instruction Manual for installation information.

AMPTROL ADAPTER FOR K799 HI-FREQUENCY KIT (K915-1, REQUIRES K864 ADAPTER)

A “V” cable to connect a K799 Hi-Freq Kit (5-pin connector) with either a K963 Hand Amptrol or a K870 Foot Amptrol (6-pin connector) and the machine. The cable going to the machine has a 6-pin connector which requires a K864 adapter to connect with the 14pin connector on the DC-400. Refer to S20909 instructions for connection information.

A-4

3) DC-400 is used with any semiautomatic wire-feeder and possible small spark, if electrode touches work just after gun trigger is released, is objectionable.

Install per M17060 instructions included with the Kit.

UNDERCARRIAGES (K817, K817R, K841)

For easy moving of the machine, optional undercarriages are available with either steel (K817) or rubber tired (K817R) wheels or a platform undercarriage (K841) with mountings for two gas cylinder at rear of welder.

Install per instructions provided with undercarriage.

INSTALLATION OF EQUIPMENT REQUIRED FOR RECOMMENDED PROCESSES

WIRE FEEDER CONTROL CABLE CONNECTIONS

MULTIPROCESS SWITCH (K804-1)

Kit that mounts on the front of the DC-400, and includes hinged covers over its output studs. The switch has three positions: Positive semiautomatic/automatic, negative semiautomatic /automatic, and stick/air carbon arc. Required when using the DC-400 for both semiautomatic/automatic

stick/air carbon arc.

and Install per M17137 instructions included with the field

installed kit.

CAPACITOR DISCHARGE CIRCUIT (K828-1)

Circuit that mounts inside the DC-400. Recommended when:

1) DC-400 is used in conjunction with any LN-23P or older LN-8 or LN-9 semiautomatic wire-feeder. Eliminates possible arc flash re-start of weld when trigger interlock is used. Not required with current LN-8 (above Code 8700), or LN-9’s with serial numbers above 115187 (manufactured after 12/83), or any LN-9 having an L6043-1 Power PC Board.

2) DC-400 is used with an LN-22 equipped with an older K279 Contactor-Voltage Control Option. Eliminates electrode overrun when gun trigger is released. Not required when later K279 (above Code 8800) is used.

For control cable with 14-pin connector: Connect control cable to 14-pin connector on the front

panel of the machine. See the appropriate connection diagram for the exact instructions for the wire feeder being used. Refer to Section 2.4.1 for connector pin functions.

For control cable with terminal strip connectors: The control cable from the wire feeding equipment is

connected to the terminal strips behind the control panel*. A strain relief box connector is provided for access into the terminal strip section. A chassis ground screw is also provided below the terminal strip marked with the symbol for connecting the automatic equipment grounding wire. See the appropriate connection diagram for the exact instructions for the wire feeder being used.

A cover (Lincoln Electric Part Number S17062-3) is available for the unused 14-pin connector to protect it against dirt and moisture.

* See Terminal Strip Connections section for access

to the terminal strips.

DC-400

A-5

INSTALLATION

A-5

CONNECTION OF DC-400 TO LN-22 OR LN-25

a) Turn off all power. b) Place output terminals switch into the “ON” posi-

tion.

c) Connect the electrode cable to the output terminal

of polarity required by electrode. Connect the work lead to the other terminal.

d) Place the OUTPUT CONTROL Switch at “LOCAL”

position unless a Remote Control is connected to the DC-400.

e) Place MODE SWITCH in “CONSTANT VOLTAGE

(FCAW, GMAW)”.

NOTE: The output terminals are energized at all

times.

MULTIPROCESS SWITCH CONNECTION AND OPERATION

PURPOSE

A Multiprocess Switch has been designed for use with the DC-400 or DC-600. With this switch installed on the DC-400, it permits easy changing of the polarity of the wire feed unit connected and also provides separate terminals for connection of stick or air carbon arc. The Multiprocess Switch is available as either a factory installed or field installed option.

NOTE: IF THE DC-400 IS TO BE USED FOR BOTH

SEMIAUTOMATIC/AUTOMATIC AND STICK /AIR CARBON ARC, THEN A MULTIPROCESS SWITCH IS REQUIRED.

DESIGN

The Multiprocess Switch consists of a 3-position switch assembly that is mounted in a sheet metal enclosure that has two output terminals on each end of the box. The two terminals on the left side of the box are for connection of wire feed electrode and work leads. The two terminals on the right side of the box are for connection of work and electrode for stick or air carbon arc. The output terminals are protected against accidental contact by hinged covers.

The switch mounts to the front of the DC-400 by means of a bracket that fastens to the case sides. Two 4/0 (107 mm bly to each output stud.

) leads connect the switch assem-

1. Connect wire feed unit electrode and work cables through the rectangular strain relief holes in the base of the DC-400 to the output studs on the left side of the box.

2. Connect wire feeder control cable and make other

terminal strip connections as specified on the connection diagram for the Lincoln wire feeder being used. “Electrode” and “Work” are connected to the left side of the Multiprocess Switch.

3. Connect stick or air carbon arc electrode and work

cables through the rectangular strain relief holes in the base of the DC-400 to the output studs on the right side of the box.

OPERATION

The operation of the switch is as follows: A semiautomatic or automatic wire feed unit electrode

and work cables are connected to the terminals on the left side of the box. Stick or air carbon arc electrode and work leads are connected to the terminals on the right side of the box. There are three positions on the switch. With the switch in the left position, the wire feed terminals are electrode negative. In the center position, the wire feeder terminals are electrode positive. In both the left and center switch position, the right side stick terminals are disconnected. In the right switch position, the wire feed terminals are disconnected from the DC-400 and the stick terminals connected. The polarity of the stick terminals is marked on the end of the box. To change polarity, the electrode and work leads must be interchanged. In the stick position, the stick terminals are energized at all times.

CONNECTIONS

(For those applications where it is not have separate work cables for stick and semiautomatic welding.)

If both stick and semiautomatic welding is done on the same workpiece, only one work lead is required. To do this, connect a 4/0 (107 mm work terminal on the semiautomatic side to the terminal to be used for work on the stick side. The work lead from the semiautomatic side then serves as the work lead for both semiautomatic and stick welding.

necessary to

) jumper from the

DC-400

A-6

AUXILIARY POWER CONNECTIONS

INSTALLATION

SOLID STATE CONTROL SYSTEM

A-6

The power source is equipped to furnish nominally 110-115 volt AC and 40-42 volt AC auxiliary power for operating wire feeding equipment, etc. The auxiliary power is available at the 14-pin MS-style connector receptacle on the control panel and/or at a terminal strip behind the hinged control panel on the front of the power source. 110-115V AC is available at receptacle pins A and J (Domestic and Export models only), terminals 31 and 32 (all models) and at duplex receptacle. 40-42V AC is available only at receptacle pins I and K. The 110-115V AC and the 40-42V AC are isolated circuits and each is protected by circuit breakers, 15 amp on 115VAC circuit, and 10A on 42 Vac circuit.

REMOTE CONTROL CONNECTIONS

Remote control connections are available both at a 14-pin connector receptacle located on the control panel, and on terminal strips with screw connections located behind the hinged control panel on the front of the power source.

OUTPUT CONNECTIONS

The output terminals are recessed on the case front and labeled “+” and “-”.

INPUT CONNECTIONS

The control circuitry consists of six basic circuits: (1) the SCR snubber network, (2) the SCR firing circuit, (3) the control/fault protection circuit, (4) the starting circuit, (5) the power-up delay circuit, and (6) the power circuit.

The SCR snubber board consists of a capacitor and resistor connected across each SCR and across the entire bridge and MOV’s to protect the control circuitry and SCR’s from transient voltages. The snubber board is mounted on the back of the case front.

The SCR firing circuit, the control fault protection circuit, the power-up delay circuit, and the power circuit are mounted on the control PC board located behind the front control panel. (The front control panel hinges down for easy access to the board.) The starting circuit board is located on the back of the control box.

MACHINE COOLING

The fan pulls air in through the louvered front of the machine over the internal parts and exhausts out the louvered rear of the machine. The fan motor is fully enclosed, has sealed ball bearings, requires no lubrication, and operates when the power switch is turned on.

The three input lines are brought in through the rear panel of the power source and attached to the input contactor. Removal of the removable access panel makes the contactor accessible for the input cable connections.

INPUT LINE VOLTAGE COMPENSATION

The power source is equipped with input line voltage compensation as standard. For a line voltage fluctuation of ±10% the output will remain essentially constant. This is accomplished through the feedback network in the control circuit.

SOLID STATE OUTPUT CONTROL

The output of the welder is electronically controlled by SCR’s instead of mechanical contactors, providing extra long life for highly repetitive welding applications.

CASE FEATURES

The machine uses a 32” (813mm) long base. The low profile case facilitates installation of the machine under a workbench.

The case front incorporates a recessed control panel where all the machine controls are mounted. This recessed panel protects the controls and minimizes the possibilities of accidental contact. This control panel can be easily opened to permit access to the enclosed control section which contains the terminal strips, PC board, etc.

The output lead terminals are also recessed to avoid any object or person accidentally coming in contact with an output terminal. Strain relief is provided by holes in the front of the base. The leads are routed up through these holes to the output terminals. This prevents any damage of the output studs or insulation of same in the event the cables are pulled excessively. An output stud cover protects against accidental contact with the output studs. Cover hinges upward for access to the studs.

DC-400

A-7

INSTALLATION

A-7

The individual case sides are removable for easy access for internal service or inspection.

The case rear, top section, is equipped with a removable access panel. This provides easy access to the input contactor, easy connection and reconnection of input leads, and easy access for service or inspection.

The total construction of the machine permits outdoor operation. The enclosure is designed with air intake louvers that keep dripping water from being drawn into the unit. The transformer, SCR bridge assembly, and choke are double-dipped in a special corrosion resistant coating.

A permanent lifting hook is located at the top of the machine and is positioned so that it acts as nearly as possible through the center of gravity.

ARC FORCE SELECTOR (Effective only on CC for Stick and TIG Processes)

An ARC FORCE selector is provided similar to that used on the E500. This control allows the user to select the ideal arc force for the procedure and electrode being used.

ARC CONTROL (Effective Only When Using CVI Mode)

The ARC CONTROL is a five-position switch that changes the pinch effect of the arc. This results in the control of spatter, fluidity, and bead shape. The ARC CONTROL is set to provide optimum welding depending on the process being used, position, electrode, etc. The pinch effect is increased by turning the control clockwise and may be adjusted while the machine is in operation.

MODE SWITCH

PARALLELING

There are no provisions on the DC-400 to permit paralleling.

DIODE OPTION

The DC-400 Diode option is required to utilize the cold start and cold electrode sensing features of the NA-3, NA-5 or NA-5R. When this option is not used with an NA-3, NA-5 or NA-5R, see the DC-400/NA-3, DC400/NA-5 or DC-400/NA-5R connection diagram for instructions on how to disable this circuit. If the circuit is not disabled, the wire cannot be inched down.

Machine & Circuit Protection (Thermal Protection Light)

The power source is thermostatically protected with proximity thermostats against overload or insufficient cooling. One thermostat is located on the nose of the center bottom primary coil and a second thermostat is attached to the lead connecting the secondaries. Both thermostats are connected in a series with the 24 circuit. If the machine is overloaded, the primary thermostat will be open, the output will be zero, and the amber thermal protection light will be on. The fan will continue to run. The secondary thermostat will open either with an excessive overload or insufficient cooling. The output will be zero and the amber protection light will be on. When the thermostats reset the protection light will be off.

The power source is also protected against overloads on the SCR bridge assembly through an electronic protection circuit. This circuit senses an overload on the power source and limits the output to 550 amps by phasing back the SCR’s.

A MODE SWITCH selects between Constant Voltage (FCAW/GMAW), Constant Voltage (Submerged Arc), and Constant Current (Stick/TIG).

STICK WELDING

When the DC-400 is used for stick welding or air carbon arc, the control leads and welding cables to any semiautomatic or automatic wire feeders must be disconnected from the DC-400 for maximum safety (unless the Multiprocess switch option is installed).

Protection is provided to protect the circuitry from accidental grounds. If the customer accidentally “grounds” 75, 76, or 77 to the positive output lead, the DC-400 will be reduced to a low value, thus preventing any damage to the machine. If the ground occurs between 75, 76, 77 and the negative output lead, one of the PC board “self-restoring” fuses will blow, preventing any machine damage.

DC-400

A-8

MULTIPROCESS SWITCH

WORK

ELECTRODE

To semi-

auto or

auto

quipment

To stick electrode holder or air carbon arc torch

User supplied 4/0 (107 mm ) jumper

To change stick polarity, reverse the leads at the (+) and (-) terminals on the right side of the Multiprocess Switch.

NOTE: When a DC-400 equipped with Multiprocess

Switch is mounted on an undercarriage, the undercarriage handle in the resting position can hit the case of the Multiprocess Switch. This does no harm, but if the user desires, a 1/4” or 3/8” bolt and nut may be placed in the hole in the undercarriage tow bar to limit the travel of the undercarriage handle.

INSTALLATION

A-8

STICK, TIG OR AIR/CARBON ARC *

a) Turn off all power. b) Disconnect all wire feed unit control, electrode, and

work leads.

c) Place MODE SWITCH in the “CONSTANT CUR-

RENT (STICK/TIG)” for air carbon arc.

d) For stick, TIG or air carbon arc, place OUTPUT

TERMINALS switch into the “ON” position. With the DC-400 connected for stick, TIG or air carbon arc welding, the output terminals will be energized at all times.

*NOTE: If stick welding, TIG welding or air carbon arc

cutting is to be done on the DC-400 along with semi-automatic/automatic welding, then a K804-1 Multiprocess Switch is required. If the Multiprocess Switch is not used, then all control, electrode, and work leads to wire feed equipment must the DC-400 before connecting the DC-400 for stick or air carbon arc cutting.

be disconnected from

DC-400

B-1

OPERATION

B-1

SAFETY PRECAUTIONS

Read this entire section of operating instructions before operating the machine.

ELECTRIC SHOCK can kill.

• Have an electrician install and service this equipment.

• Turn the input power off at the fuse box before working on equipment.

• Do not touch electrically hot parts.

• This next section applies to DC-400’s without

the Capacitor Discharge Option:

---------------------------------------------------------------------FUMES AND GASES can be dangerous.

• Keep your head out of fumes.

• Use ventilation or exhaust to remove

fumes from breathing zone.

-----------------------------------------------------------------------WELDING SPARKS can cause fire or explosion.

• Keep flammable material away.

• Do not weld on containers that have

held combustibles.

------------------------------------------------------------------------

ARC RAYS can burn.

• Wear eye, ear, and body protection.

GRAPHIC SYMBOLS THAT APPEAR ON THIS MACHINE OR IN THIS MANUAL

POWER ON-OFF SWITCH

Input (Power)

Off

OUTPUT CONTROL DIAL

Output (Control)

------------------------------------------------------------------------

See additional waring information under Arc Welding Safety Precautions and in the front of this Operating Manual.

------------------------------------------------------------------------

Increase/Decrease of Output (Voltage or Current)

OUTPUT CONTROL “LOCAL-REMOTE” SWITCH

Remote Output Voltage or Current Control

Local Output Voltage or Current Control

CIRCUIT BREAKER

Circuit Breaker

THERMAL PROTECTION LIGHT

High Temperature

DC-400

B-2

OPERATION

B-2

ARC CONTROL SWITCH

Gas Metal Arc Welding

Increase/Decrease of Inductance

Low Inductance

High Inductance

OUTPUT TERMINALS SWITCH

Output (Voltage)

VOLTMETER SWITCH

Voltmeter

Positive Electrode

Negative Electrode

RATING PLATE

Three Phase Power

Transformer

ARC FORCE CONTROL DIAL

Shielded Metal Arc Welding

Gas Tungsten Arc Welding

Arc Force Current

Increase/Decrease of Current

Remote On/Off

NEMA EW 1

IEC 974-1

Rectifier

Rectified DC Output

Constant Voltage Characteristic

Designates welder complies with National Electrical Manufacturers Association requirements EW 1. (Export Model only)

Designates welder complies with International Electrotechnical commission requirements 974-1. (European model only)

Three Phase Power

DC-400

B-3

RATING PLATE (Continued)

OPERATION

Transformer

Rectifier

Rectified DC Output

Constant Voltage Characteristic

Constant Current Characteristic

B-3

IP21

Line Connection

Shielded Metal Arc Welding

Flux Cored Arc Welding

Submerged Arc Welding

Designates Welder can be used in environments with increased hazard of electric shock.

Degree of protection provided by the enclosure

(IEC model only)

DC-400

B-4

MODE SWITCH

OPERATION

Do not switch if output voltage or current is present.

Constant Voltage (Submerged Arc Welding)

Constant Voltage (Flux cored arc welding, gas metal arc welding).

B-4

WARNING IDENTIFICATION

Warning Identification

EARTH GROUND CONNECTION

Signifying the Earth (Ground) Connection

Constant Current (shield metal arc welding, gas tungsten arc welding).

DC-400

B-5

OPERATION

B-5

GENERAL MACHINE DESCRIPTION

The DC-400 is an SCR controlled three phase DC power source. It is designed with a single range potentiometer control.

When using a DC-400 power source with wire feeders which do not have an electrical trigger interlock (or with wire feeders with the electrical trigger interlock in the OFF position), there will be a small spark if the electrode contacts the work or ground within several seconds after releasing the trigger.

When used with some wire feeders with the electrical trigger interlock in the ON position, the arc can restart if the electrode touches the work or ground during these several seconds.

WARNING

• Be sure to select OUTPUT TERMINALS “REMOTE ON/OFF” for operation with wire feed-

ers that have leads numbered 2 and 4.

------------------------------------------------------------------------

RECOMMENDED PROCESSES & EQUIPMENT

The DC-400 model is designed for all open arc processes including Innershield gas procedures within the capacity of the machine, plus the capability of stick and TIG welding and air carbon arc gouging up to 5/16” (8mm) diameter. A mode switch selects CV (FCAW, GMAW), CV Submerged Arc, or CC (Stick/TIG). Stick welding performance is similar to that of the E500.

The DC-400 is designed to be used with the LN-7, LN-7 GMA, LN-8, LN-9, LN-9 GMA, LN-23P, LN-25, or LN-742 semiautomatic wire feeders, the NA-3, NA-5 and NA-5R automatics, and the LT-56 and LT-7 tractors, within the 400 ampere capacity of the machine. The DC-400 Diode Kit option is required to utilize the cold start and cold electrode sensing features of the NA-3, NA-5 and NA-5R.

OPERATIONAL FEATURES & CONTROLS

ARC CHARACTERISTICS

Through the unique combination of the transformer, three phase semiconverter rectifier, capacitor bank, arc control choke, and the solid state control system, outstanding arc characteristics are achieved on constant voltage.

In addition, an arc force control enables the DC-400 to stick weld as well as the E500.

and all solid wire and

OUTPUT CONTROL

The OUTPUT control, a small 2 watt potentiometer, is calibrated from 1 to 10. The OUTPUT control serves as a voltage control in the CV position and a current control in the CC position.

MACHINE OUTPUT CONTROL SWITCH “LOCAL” OR “REMOTE”

The machine output can be controlled by either the OUTPUT control on the machine control panel, the output control on the wire feed unit, or an optional “remote control” that is available. This switch selects the mode of control, either “LOCAL” or “REMOTE”.

OUTPUT TERMINALS “ON” OR OUTPUT TERMINALS “REMOTE”

This switch provides an alternative to the “2 to 4” jumpering function by energizing the machine’s output regardless of whether “2 or 4” is jumpered or not.

POLARITY SELECTION

Polarity selection is made by appropriately connecting the electrode and work welding cables to either the

+“ stud or to the “-” stud. Select “VOLTMETER”

“

switch for “ work sensing lead.

VOLTMETER SWITCH “+” ELECTRODE OR “-” ELECTRODE

This switch selects electrode polarity for the remote (#21) work sensing lead of automatic or semiautomatic equipment.

115 VOLT POWER SWITCH

The power input contactor operates from an auxiliary 115 volt transformer that is energized through the POWER toggle switch on the machine control panel. “ I “ is on and “0” is off.

PILOT LIGHT

A white light on the machine control panel indicates when the power source input contactor is closed. This means the main power transformer and all auxiliary and control transformers are energized.

THERMAL PROTECTION LIGHT

An amber light on the machine control panel indicates when either of the two protective thermostats have opened. Output power will be removed but input power will still be applied to the machine.

INPUT CONTACTOR

The power source is equipped with an input contactor.

+” or “-” electrode, for the remote (#21)

DC-400

B-6

POWER SOURCE OPERATION

OPERATION

OUTPUT CONTROL “LOCAL-REMOTE” SWITCH

B-6

WARNING

ELECTRIC SHOCK can kill.

• Have an electrician install and service this equipment.

• Turn the input power off at the fuse box before working on equipment.

• Do not touch electrically hot parts.

---------------------------------------------------------------------

Duty Cycle and Time Period

The DC-400 is rated at the following duty cycles:

DUTY CYCLE * AMPS VOLTS

100%

60% 50%

* Based upon 10 minute time period (i.e., for 60% duty cycle, it is 6 minutes on and 4 minutes off).

Overloading the DC-400 may result in opening of an internal protective thermostat as indicated by the amber thermal protection light turning on.

STARTING THE MACHINE

The POWER toggle switch at the extreme right side of the control panel in the “I“ position energizes and closes the three phase input contactor from a 115 volt auxiliary transformer. This in turn energizes the main power transformer.

The machine is de-energized when the POWER switch is in the “0” position.

The white light below the POWER switch indicates when the input contactor is energized.

OUTPUT CONTROL DIAL

The OUTPUT control to the right of the center of the control panel is a continuous control of the machine output. The control may be rotated from minimum to maximum while under load to adjust the machine output.

The machine is equipped with line voltage compensation as a standard feature. This will hold the output constant except at maximum output of the machine, through a fluctuation of ±10% input line voltage.

400 450 500

36 38 40

The OUTPUT CONTROL toggle switch on the control panel labeled “LOCAL-REMOTE” gives the operator the option of controlling the output at the machine control panel or at a remote station. For remote control, the toggle switch is set in the “REMOTE” position and controlled at the wire feed unit control, or by connecting a K775 control to terminals 75, 76, and 77 on the terminal strip at the front of the machine, or by connecting a K857 control to the 14-pin connector on the front of the machine. For control at the machine control panel, the toggle switch is set in the “LOCAL”.

(Exception: When used with an LN-9, LN-9 GMA or NA-5 wire feeder, the OUTPUT CONTROL switch must be in the “REMOTE” position or automatic shutdown of the LN-9 or NA-5 may occur.)

POLARITY SELECTION

Polarity selection is made by appropriately connecting the electrode and work welding cables to either the

+” stud or to the “-” stud. Select “VOLTMETER”

“

switch for “+” or “-” electrode for the remote (#21) work sensing lead.

VOLTMETER SWITCH

Select “+” for positive electrode or “-” for negative electrode polarity for the remote (#21) work sensing lead of automatic or semiautomatic equipment.

THERMAL PROTECTION LIGHT

The amber thermal protection light will be lit if either of the two protective thermostats have opened. The output power will be disabled but input power will still be applied to the welder. (Refer to Machine and Circuit Protection section).

MODE SWITCH

The large MODE SWITCH on the left side of the machine, labeled “Constant Voltage (Submerged Arc), Constant Voltage (FCAW/GMAW) and Constant Current (Stick/TIG)”, is used to select the proper welder characteristics for the process being used.

The CV (FCAW/GMAW) Mode permits the DC-400 to produce essentially a flat output characteristic that can be varied from approximately. 12 to 42 volts.

DC-400

B-7

F=76

G=75

H=21

N=SPARE

I=41

J=31

K=42

A=32

B=GND

C=2

D=4

E=77

L=SPARE

M=SPARE

OPERATION

In this position, the dynamic characteristics of the machine under welding conditions provide optimum welding characteristics for Innershield

welding, other open arc processes including short arc MIG welding, and air carbon arc. Most submerged arc welding can also be done in this mode.

The CV (Submerged Arc) Mode also produces an essentially flat output characteristic that can be varied from approximately 12 to 42 volts. The dynamic characteristics of the CV Submerged Arc Mode make possible improved submerged arc welding over that possible using the Constant Voltage Innershield Mode. The improvement is most noticeable on high deposition, slow travel speed welds.

There are no means provided to switch between any of the modes remotely. Do not change the position of the MODE SWITCH if output voltage or current is present as this may damage the switch.

The CC Mode permits the DC-400 to produce a constant current output characteristic through the range of 60-500 amps with an open circuit voltage of approximately 57 volts (54V on 50/60 Hz). Stick welding and TIG are done with this position of the Mode Switch.

ARC FORCE CONTROL DIAL (Effective only in CC mode)

The ARC FORCE control is calibrated from one to ten. For most welding, the dial should be set at approximately midrange, 5-6. Adjustments up or down can then be made depending on the electrode, procedures, and operator preference. Lower settings will provide less short circuit current and a softer arc. A setting that is too low may cause the electrode to stick in the puddle. Higher settings will provide a higher short circuit current and a more forceful arc. Excessive spatter may result if the control setting is too high. For most TIG welding applications adjust this control to a minimum for best operating characteristics.

B-7

OUTPUT TERMINALS SWITCH

The OUTPUT TERMINALS toggle switch on the control panel labeled “REMOTE - ON” allows the welder output to be activated remotely or to be always on. For remote operation, the toggle switch is set in “REMOTE” position and the welder output will be activated when 2 and 4 are closed when using a wirefeeder. For welder output to always be activated, set the switch to the “ON” position.

110-115V AC and 40-42V AC Auxiliary Power and Control Connections

14-PIN CONNECTOR The 14-pin connector receptacle supplies auxiliary power.

40-42V AC is available at receptacle pins I and K. A 10 amp circuit breaker protects this circuit.

On the Domestic and Export models 110-115V AC is available at receptacle pins A and J. A 10 amp circuit breaker protects this circuit. Note that the 40-42V AC and 110-115V AC circuits are electrically isolated from each other.

FRONT VIEW OF 14-PIN

CONNECTOR RECEPTACLE

ARC CONTROL SWITCH (Effective only in CV FCAW/GMAW mode)

The ARC CONTROL is a tapped switch numbered from 1 to 5 and changes the pinch effect of the arc. This control is most useful in processes that utilize a “shorting” metal transfer and controls the spatter, fluidity, and bead shape. The pinch effect is increased by turning the control clockwise.

For all applications, a good starting point for the ARC CONTROL is a midrange dial setting of 3. The control can be increased or decreased as desired.

DC-400

PIN LEAD NO.

A B C D E

F G H

J K

L M N

GND

4 77 76 75 21 41 31 42

---

FUNCTION

110 - 115V AC CHASSIS CONNECTION TRIGGER CIRCUIT TRIGGER CIRCUIT OUTPUT CONTROL OUTPUT CONTROL OUTPUT CONTROL WORK CONNECTION 40-42V AC 110-115V AC 40-42V AC

---

B-8

OPERATION

B-8

Terminal Strip Connections

Terminal strip TS2 located behind the hinged control panel on the front of the power source supplies 110-115V AC. A 15 amp circuit breaker protects this circuit. Note that this 110-115V AC is also available in the 14-pin connector on the Domestic and Export models.

To gain access to the terminal strips simply remote the #10 sheet metal screws from the perimeter of the welder nameplate. Tilt panel forward so it rests in a horizontal position. See Table showing Front View of 14-Pin Connector Receptacle for lead number functions.

Machine and Circuit Protection

NOTE: The GFCI receptacle is in a 115v circuit where the

neutral is floating with respect to ground. Consequently if a GFCI tester is plugged into the GFCI receptacle, the tester will show that there is an "open ground". This indication of an "open ground" is normal and the GFCI will function properly in the event of a ground fault current as the GFCI is designed to do.

The fan will continue to run. The secondary thermostat will open either with an excessive overload or insufficient cooling. The output will be zero and the amber protection light will be off.

115VAC GFCI RECEPTACLE

(Codes 11038 and higher) The GFCI receptacle is located near the output studs

and protected by a 15 amp circuit breaker. Testing the GFCI Receptacle

a.) Turn the welder ON. Press the reset button fully.

Plug a lamp or radio into the GFCI (and leave it plugged in) to verify that the power is ON. If there is no power, go to Troubleshooting.

b) Press the TEST button in order to trip the

device.This should stop the flow of electricity, making the lamp or radio shut OFF. Note that the RESET button will pop out. If the power stays on, go to troubleshooting. If the power goes OFF, the GFCI is working properly. To restore power, press the RESET button.

c) Press the TEST button (then RESET button) every

month to assure proper operation.

DC-400

C-1

STRAIGHT PLUG (14 PIN) TO POWER SOURCE

CABLE RECEPTACLE (6 SOCKET)

CABLE RECEPTACLE (14 SOCKET)

TO: 1) K857 REMOTE CONTROL

2) K963 HAND AMPTROL

3) K870 FOOT AMPTROL

TO LN-7 WIRE FEEDER

ACCESSORIES

C-1

Factory Installed Options

DIODE OPTION

This internally installed option allows the use of the cold start and cold electrode sensing features of the NA-3, NA-5 or NA-5R.

MULTIPROCESS SWITCH

Factory or field installed kit that mounts on the front of the DC-400, and includes hinged covers over its output studs. The switch has three positions: Positive semiautomatic / automatic, negative semiautomatic / automatic, and stick / air carbon arc. Required when using the DC-400 for both semiautomatic/automatic and stick/air carbon arc. The field installed kit equivalent is identified as K804-1. For details on the Multiprocess Switch, see the Installation of Equipment section.

Field Installed Options

REMOTE OUTPUT CONTROL (K857 WITH K864 ADAPTER OR K775 )

The K857 has a 6-pin MS-style connector. The K857 requires a K864 adapter cable which connects to the 14-pin connector on the machine.

AMPTROL™ ADAPTER CABLE (K843)

A five wire cable, 12” (.30m) long, is available for easy connection of standard K963 Hand Amptrol or K870 Foot Amptrol. The cable has a 6-pin MS-style connector which connects to the Amptrol and terminals which connect to 75, 76 and 77 on the machine terminal strip and to the case grounding screw. The Amptrol will control the same range of output as the current control on the welder. (If a smaller range of control is desired for finer adjustment, a K775 Remote may be used in conjunction with the Amptrol Adapter Cable Kit. Connection information is included with the Amptrol Adapter Cable Kit.) The Amptrol arc start switch is nonfunctional in this application.

REMOTE CONTROL ADAPTER CABLE (K864)

MULTIPROCESS SWITCH (K804-1)

Field installed kit that mounts on the front of the DC400, and includes hinged covers over its output studs. The switch has three positions:Positive semiautomatic/automatic,negative semiautomatic/automatic, and stick/air carbon arc. Required when using the DC-400 for both semiautomatic/automatic and stick/air carbon arc. The field installed kit is equivalent to the factory installed option. For details on the Multiprocess Switch, see the section for Installation of Equipment Required for Recommended Processes.

CAPACITOR DISCHARGE CIRCUIT (K828-1)

Circuit that mounts inside the DC-400. Recommended when:

3) DC-400 is used with any semiautomatic wire-feeder and possible small spark, if electrode touches work just after gun trigger is released, is objectionable.

DC-400

C-2

HI-FREQUENCY KIT (K799 CODES 8634 AND ABOVE ONLY)

OPTIONAL AMPTROL ADAPTER FOR K799 HIFREQUENCY KIT (K915-1 REQUIRES K864 ADAPTER OR K843 ADAPTER)

A “V” cable to connect a K799 Hi-Freq kit (5-pin connector) with either a K963 Hand Amptrol or a K870 Foot Amptrol (6-pin connector) and the machine. The cable going to the machine has a 6-pin connector which requires either a K864 adapter to connect with the 14-pin connector on the machine or a K843 adapter to connect to terminals 75, 76, 77 and the case grounding screw on the machine.

ACCESSORIES

C-2

UNDERCARRIAGES (K817, K817R, K841)

Install per instructions provided with undercarriage.

DC-400

D-1

MAINTENANCE

WARNING

ELECTRIC SHOCK can kill.

• Have an electrician install and service this equipment.

• Turn the input power off at the fuse box before working on equipment.

• Do not touch electrically hot parts.

----------------------------------------------------------------------

Routine Maintenance

1. The fan motor has sealed bearings which require no service.

2. In extremely dusty locations, dirt may clog the air channels causing the welder to run hot. Blow out the machine at regular intervals.

3. In extremely dusty locations, dirt may accumulate on the remote control terminal strip TS1. Wipe or blow this terminal strip off at regular intervals. This is particularly important in damp locations.

D-1

DC-400

E-1

TROUBLESHOOTING

HOW TO USE TROUBLESHOOTING GUIDE

WARNING

Service and Repair should only be performed by Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual.

__________________________________________________________________________

E-1

This Troubleshooting Guide is provided to help you locate and repair possible machine malfunctions. Simply follow the three-step procedure listed below.

Step 1. LOCATE PROBLEM (SYMPTOM).

Look under the column labeled “PROBLEM (SYMPTOMS)”. This column describes possible symptoms that the machine may exhibit. Find the listing that best describes the symptom that the machine is exhibiting.

Step 2. POSSIBLE CAUSE.

The second column labeled “POSSIBLE CAUSE” lists the obvious external possibilities that may contribute to the machine symptom.

Step 3. RECOMMENDED COURSE OF ACTION

This column provides a course of action for the Possible Cause, generally it states to contact your local Authorized Field Service Facility.

If you do not understand or are unable to perform the Recommended Course of Action safely, contact your local Authorized Field Service Facility.

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

DC-400

E-2

Observe all Safety Guidelines detailed throughout this manual

PROBLEMS

(SYMPTOMS)

TROUBLESHOOTING

POSSIBLE

CAUSE

E-2

RECOMMENDED

COURSE OF ACTION

Input contactor (CR1) chatters.

Machine input contactor does not operate.

Machine input contactor operates, but no output when trying to weld.

1. Faulty input contactor (CR1). Repair or Replace.

2. Low line voltage.

Check input power.

1. Supply line fuse blown. Replace if blown - look for reason first.

2. Contactor power circuit dead. Check control transformer T2 and associated leads.

3. Broken power lead. Check input voltage at contactor.

4. Wrong input voltage. Check voltage against instructions.

5. Open input contactor coil. Replace coil.

6. POWER “I/0” switch (S1) not closing. Replace switch.

1. Trigger circuit between #2 and #4 leads is not being closed. Make sure trigger circuit is being closed.

2. Electrode or work lead loose or broken. Repair Connection.

3. Open main transformer (T1) primary or secondary circuit. Repair.

4. Defective Control PC Board. Replace. See Procedure for Replacing PC Boards.

5. Primary or secondary thermostats open. Amber thermal protection light is on: Check for overheating; make sure fan is operating and there is no obstruction to free air flow.

If all recommended possible areas of misadjustment have been checked and the problem persists,

Contact your local Authorized Field Service Facility.

Machine has minimum output and no control.

1. Terminals 75, 76 or 77 grounded to positive

output.

CAUTION

DC-400

E-3

PROBLEMS

(SYMPTOMS)

TROUBLESHOOTING

Observe all Safety Guidelines detailed throughout this manual

POSSIBLE

CAUSE

RECOMMENDED

COURSE OF ACTION

E-3

Machine has high output or pulsing output and no control.

Machine has low output and no control.

Machine does not have maximum output.

1. Terminals 75, 76, or 77 grounded to negative

1. OUTPUT CONTROL “LOCAL- REMOTE” switch (S2) in wrong position. Check position of switch.

2. OUTPUT CONTROL switch faulty. Check switch & replace if faulty.

3. Open in feedback circuitry.

4. Faulty Control PC Board.

5. OUTPUT control potentiometer circuit open (lead 75).

1. One input fuse blows. Check and replace if blown after checking for reason for blown fuse.

2. One phase of main transformer open.

3. Faulty Control PC Board.

4. OUTPUT control potentiometer.

5. OUTPUT control potentiometer leads 210, 211 or 75 open.

output.

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

Machine will not shut off.

Variable or sluggish welding arc.

OUTPUT control not functioning on the machine.

1. Input contactor contacts frozen.

2. Defective POWER “1/0” switch, (S1).

1. Poor work or electrode connection. Place switch in “LOCAL”.

2. Welding leads too small.

3. Welding current or voltage too low.

4. Defective main SCR bridge.

5. Microswitch S4C or S4D actuator defective.

1. OUTPUT CONTROL switch in wrong position.

2. Faulty OUTPUT control switch.

3. Faulty OUTPUT control potentiometer.

4. Leads or connections open in control circuit.

5. Faulty Control PC Board.

CAUTION

DC-400

E-4

PROBLEMS

(SYMPTOMS)

TROUBLESHOOTING

Observe all Safety Guidelines detailed throughout this manual

POSSIBLE

CAUSE

RECOMMENDED

COURSE OF ACTION

E-4

OUTPUT control not functioning on “REMOTE” control.

Poor arc striking with semiautomatic or automatic wire feeders.

Poor arc characteristics.

1. OUTPUT CONTROL switch in wrong position. Place switch in “REMOTE”.

2. Faulty OUTPUT CONTROL switch.

3. Faulty remote control potentiometer.

4. Leads or connections open in control circuit.

5. Faulty Control PC Board.

1. Defective start circuit.

2. Poor work connection.

3. Improper procedures.

4. Defective Control PC Board.

1. Start circuit energized at all times (read switch CR3 not closing).

2. Defective Start PC Board.

3. Defective Control PC Board.

4. Capacitor(s) in output circuit failed. A failure is indicated if the small vent plug on top of a capacitor is raised or blown out.

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

ARC CONTROL has no effect in CV (FCAW/GMAW) mode with short circuit transfer processes.

115VAC Receptacle not working.

1. Defective R1, L1, S4C, S4D actuator or S5.

1. Circuit Breaker Tripped.

2. Defective Circuit Breaker.

3. Broken Connection in Wiring.

CAUTION

DC-400

E-5

PROCEDURE FOR REPLACING PC BOARDS

TROUBLESHOOTING

E-5

FAULT PROTECTION OPERATION

WARNING

ELECTRIC SHOCK can kill.

• Have an electrician install and service this equipment.

• Turn the input power off at the fuse box before working on equipment.

• Do not touch electrically hot parts.

---------------------------------------------------------------------

When a PC Board is suspected to be defective, the following procedure must be followed:

1. Visually inspect the PC Board. If the board has fuses, check to see if any are blown. Are any of the components damaged? Is a conductor on the back side of the board damaged? If electrical damage is visible on the PC Board, inspect the machine wiring for grounds or shorts to avoid damaging a new PC Board, Install a new PC Board only after a visual inspection of the PC Board and machine wiring is satisfactory.

2. If the problem is remedied by a new PC Board, install the old PC Board and see if the problem still exists. If the problem does not return with the old board: a) Check the PC Board harness plug and PC

Board plug for contamination, corrosion or oversize.

b) Check leads in the harness for loose connec-

tions.

CONNECTING THE REMOTE CONTROL TO THE MACHINE

The overload protection circuit, in the Control PC Board will limit the welding current (heat) to 550 amps if a short or overload is applied to the machine. (Refer to the Machine and Circuit Protection section).

CHECKING SNUBBER CIRCUIT

In case of an SCR malfunction or failure the snubber assembly should be checked. Turn the machine off and remove the sides of the machine. (See the instruction manual parts list for the exact location.)

1. Visually inspect the snubber assembly for overheated components or damaged components.

CHECKING OUTPUT CONTROL RHEOSTAT ON MACHINE

Turn machine off (“0” position). Remove the control panel screws and open the con-

trol panel (see the section on Terminal Strip Connections for screw locations).

Turn the OUTPUT CONTROL switch to “REMOTE”. Disconnect the harness plug from the Control PC

Board. With an ohmmeter on X1K, connect it to lead 210 and

75 on R4. Exercise caution to avoid damaging POT taps.

Extreme caution must be observed when installing or extending the wiring of a remote control. Improper connection of this unit can lead to failure of the output control rheostat or the control circuit. Only the green lead can and should be grounded to the machine case. When extending the standard remote control, make sure the leads are the same and the splice is waterproof. Be very careful not to ground the cable when in use and don’t let the lugs touch against the case.

OUTPUT VOLTAGE

The output circuit voltage of the machine should be adjustable from 10 to 46 volts in CV. In the CC mode, the open circuit voltage should be approximately 57 volts (54 volts on 50/60 Hz) except at near minimum settings of the output control where it may be lower. If any other condition exists, refer to the Troubleshooting Guide.

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

POWER “I/0” SWITCH CHECK

1. Turn off the machine power input (“0” position). S1 has 115V across it when the input power is connected.

2. Isolate the switch to be tested by removing all connecting leads.

3. Check to make sure the switch is making connections with an ohmmeter. The meter should read zero resistance.

4. Put the ohmmeter on X1K scale and measure the resistance between the terminal and the case of the machine (touch a self-tapping screw). Reading should be infinite.

5. If either step (3) or step (4) fails, replace the switch.

DC-400

E-6

REMOTE CONTROL CHECK

TROUBLESHOOTING

2. Power Diode Test

E-6

Disconnect the remote output control and connect an ohmmeter across 75 to 76 and rotate the rheostat in the remote control. The resistance reading should go from zero to 10K ohms. Repeat with ohmmeter across 75 and 76 with same results. Connect ohmmeter across 75 and 77. The reading should be 10K ohms. A lower reading will indicate a shorted or partially shorted rheostat. A very high reading will indicate an open rheostat. In either of the last two cases, replace rheostat. Check cable for any physical damage.

POWER RECTIFIER BRIDGE ASSEMBLY CHECKING PROCEDURE

WARNING

ELECTRIC SHOCK can kill.

• Have an electrician install and service this equipment.

• Turn the input power off at the fuse box before working on equipment.

• Do not touch electrically hot parts.

---------------------------------------------------------------------

1. Bridge and Device Isolation (See the instruction manual parts list for the exact location.)

Disconnect the following leads from the bridge, shown in Diagram 1:

a) Unplug P3 (G1, G2, G3 and 204) from the

Control PC Board.

a) Establish the polarity of the ohmmeter leads

and set to X10 scale.

b) Connect the ohmmeter positive lead to anode

and negative lead to cathode.

c) Reverse the leads of the ohmmeter from

Step b.

d) A shorted diode will indicate zero or an equally

low resistance in both directions. An open diode will have an infinite or high resistance in both directions and a good diode will have a low resistance in Step b and Step a much higher resistance in Step c.

3. Power Silicon Controlled Rectifier Test

a) Connect the ohmmeter (set to m X10 scale)

leads to the anode and cathode.

b) Reverse the leads of the ohmmeter from Step

c) A shorted SCR will indicate zero or an equally

low resistance in one or both directions.

d) Establish the polarity of the ohmmeter.

Connect the positive lead to the gate and the negative lead to the cathode.

b) Unplug P5 from the Snubber PC Board. c) Secondary leads X1, X2, and X3 from the

anodes of the SCR’s and cathodes of the diodes.

d) Disconnect positive bridge lead from shunt and

positive capacitor bank lead and from lug with triple 204 leads.

e) Perform the following steps 2 and 3. If diodes

and SCR’s are not shorted, bridge test is completed. If any device appears shorted, disconnect the cathode lead of each diode (4 total) and repeat Steps 2 and 3.

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

DC-400

e) An open gate circuit will have an infinite or high

resistance. A good gate circuit will read a low resistance, but not zero ohms. If gate circuit reads zero ohms, check gate harness for shorts between gate leads and 204 before replacing SCR.

L9107

13 14 15 16 17 18

H3 H4

ELECTRICAL SYMBOLS PER

E1537

CONNECTOR CAVITY NUMBERING SEQUENCE (COMPONENT SIDE OF P.C. BOARD)

NOTES

N.A.

CIRCUITRY PRESENT ON CAPACITOR DISCHARGE ONLY.

TO PROVIDE AT LEAST 600 V INSULATION.

CONTROL BOARD

206

205

225

206

231

232

PILOT LIGHT

SWITCH

POWER

225

209 214 217 204 206 206 208

1 2 3 4 5 6 7 8 9

205

212

213

201 202 203 204 225

220

AUXILIARY COILS

PRIMARY

TOP

BOTTOM

PRIMARY

P5 1 2

SNUBBER

BOARD

204

GREEN

224

225

223

222

221

220

SCR1

SCR2

204 G3 G2 G1

204

205

206

216

215

CR3

SHUNT

SWITCH

REED

204

RECTIFIER ASSEMBLY

C1 C2 C3 C4 C5

+ +

+ + +

31,000 MFD 50V EACH

254

204

0.5 /50W

10A SLOW BLOW

OPTION

T1 MAIN

TRANSFORMER

CAPACITOR DISCHARGE

RELAY

CR4

231

115V

232

32A

204

CONTACTOR

CR1

233

TO SUPPLY

LINES

3 9

8 2 7 1

RECONNECT PANEL

230/460/575V.

TO GROUND PER NATIONAL

ELECTRICAL CODE

X2 SEC

X1 SEC

X3 SEC

201

FAN MOTOR

CONNECT OR INSULATE AS SHOWN ON

INPUT CONNECTION DIAGRAM

DISCHARGE

CAPACITOR

SCR3

202

203

METERS

TAPE UP SEPARATELY

}

41 41

10 AMP CIRCUIT BREAKER

SECONDARY

PRIMARY

THERMOSTATS

42V

42A

21V

115V

21V

}

N.B.

233

LIGHT

240

241

L2L3

N.B.

N.A.

225

43132

TS1

TS2

C6 .0047MFD/1400V

10K /2W

218

204 208 209

228

204

219

217

204

GREEN

216

MODE SWITCH

S4A

S4B

S 216

219

15 /100W

ARC CONTROL

STARTING

BOARD

224

211

10K /2W

OUTPUT

CONTROL

OUTPUT CONTROL

SWITCH

212

211

213

SWITCH

MULTI-PROCESS

OPTIONAL

WORK

ELECTRODE

TERM.

TO POS.

TERM.

228

215 218

N.C.

N.O.

N.C.

N.O.

N.A.

2757677

218

214

218

204

216

CHOKE

OUTPUT

FRONT GANG

234

219

SWITCH

1 2 3

224

210

CONTROL

210

TO TERM.

STRIP

TO NEG.

N.A.

MIN. IND. (5)

MAX. IND.

(1)

ARC FORCE CONTROL

32A

SWITCH

10A CIRCUIT BREAKER

TERMINALS

OUTPUT

(SHOWN CONNECTED FOR 230 V.)

}

TO PRIMARY

COILS

6 PIN4 PIN 8 PIN 12 PIN

J6J3 J2

6 7 8

5 6

6 PIN4 PIN 12 PIN

J6J3 J2

6 7 8

15 6 7 8

10 PIN

J5 J1

STUD

GROUNDING

DIODE OPTION

N.C.

LEAD NOT PRESENT WITH

DIODE OPTION

CIRCUITRY PRESENT ON

N.C.

DIODE OPTION.

THERMAL PROTECTION

CONTROL

TRANSFORMER

12-9-94F

225

S4C ACTUATED

IN CC ONLY

224

VOLTMETER

SWITCH

227

204

7.5 /100W

40 /50W

CV-FCAW/GMAW

CV-SUB ARC

CV-FCAW/GMAW

CV-SUB ARC

S4D ACTUATED

ONLY

CV-FCAW/GMAW

F-1

WIRING DIAGRAM FOR CODE 10648

DIAGRAMS

DC-400

F-1

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..

F-2

13 14 15 16 17 18

H3 H4

ELECTRICAL SYMBOLS PER

E1537

CONNECTOR CAVITY NUMBERING SEQUENCE (COMPONENT SIDE OF P.C. BOARD)

NOTES

N.A.

CIRCUITRY PRESENT ON CAPACITOR DISCHARGE ONLY.

TO PROVIDE AT LEAST

600 V INSULATION.

CONTROL BOARD

206

205

225

206

231

232

PILOT LIGHT

SWITCH

POWER

225

209 214 217 204 206 206 208

1 2

7 8 9

10 11 12

205

212

213

201 202

203 204 225

220

AUXILIARY COILS

PRIMARY

TOP

BOTTOM PRIMARY

P5 1 2

3 4

5 6

7 8

SNUBBER

BOARD

204

GREEN

224

225

223

222

221

220

SCR1

204 G3 G2 G1

204

205

206

216

215

CR3

SHUNT

SWITCH

REED

204

RECTIFIER ASSEMBLY

C1 C2

C4 C5

+ +

+ + +

31,000 MFD 50V EACH

254

204

0.5 /50W

10A SLOW BLOW

OPTION

T1 MAIN TRANSFORMER

CAPACITOR DISCHARGE

RELAY

231

115V

232

204

CR1

233

TO SUPPLY

LINES

H3 H4

3 9

8 2 7 1

230/460/575V.

TO GROUND PER NATIONAL

ELECTRICAL CODE

X2 SEC

X1 SEC

X3 SEC

201

FAN MOTOR

CONNECT OR INSULATE AS SHOWN ON INPUT CONNECTION DIAGRAM

DISCHARGE

CAPACITOR

SCR3

202

203

METERS

TAPE UP SEPARATELY

41 41

10 AMP CIRCUIT BREAKER

SECONDARY PRIMARY

THERMOSTATS

42V

42A

21V

N.B.

233

LIGHT

240

241

L2L3

N.B.

N.A.

225

43132

TS1

TS2

C6 .0047MFD/1400V

10K /2W

218

204 208 209

228

204

219

217

204

GREEN

216

MODE SWITCH

S4A

S4B

S 216

219

15 /100W

ARC CONTROL

STARTING

BOARD

224

211

10K /2W

OUTPUT

CONTROLS2

OUTPUT CONTROL

SWITCH

212

211

213

SWITCH

MULTI-PROCESS

OPTIONAL

WORK

ELECTRODE

TERM.

228

215 218

N.C.

N.O.

N.C.

N.O.

N.A.

2757677

218

214

218

234

204

234

1 2

TO NEG.

N.A.

MIN. IND. (5)

MAX. IND.

(1)

TO PRIMARY

COILS

6 7 8

5 6

6 7 8

5 6 7 8

DIODE OPTION

CIRCUITRY PRESENT ON

N.C.

DIODE OPTION.

THERMAL PROTECTION

CONTROL

TRANSFORMER

VOLTMETER

SWITCH

227 204

7.5 /100W

40 /50W

CV-FCAW/GMAW

CV-SUB ARC

CV-FCAW/GMAW

CV-SUB ARC

32A

66V

32A

15A

GROUND STUD ON OUTPUT PANEL

SILVER

GROUND

(SHOWN CONNECTED FOR

230 V.)

S4C ACTUATED IN CC ONLY

S4D ACTUATED

ONLY

CV-FCAW/GMAW

L11460

DIAGRAMS

WIRING DIAGRAM FOR CODE 10699 AND ABOVE

F-2

DC-400

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..

F-3

DIAGRAMS

WIRING DIAGRAM FOR CODES 11038, 11085, 11128, 11347

F-3

DC-400

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..

F-4

DIAGRAMS

POWER RECTIFIER BRIDGE

DIAGRAM 1

F-4

PLUG TO SNUBBER BOARD

220

223

221 222

D1 D2 D3

SCR1 SCR2 SCR3

ANODE

CATHODE

GATE

204

CATHODE

ANODE

220

To (+) side

of capacitor

bank

SHUNT

Gate leads

plug to control

P.C. board

G1 G2 G3

DC-400

204

To T1 main

transformer

204

To mode switch

To plug

F-5

DIMENSION PRINT

F-5

Part No. Type ABCD F G H M12244-7 DC-400 32.00 15.39 30.92 1.44 30.02 +.11 30.02 +.11 .94

DC-400

NOTES

DC-400

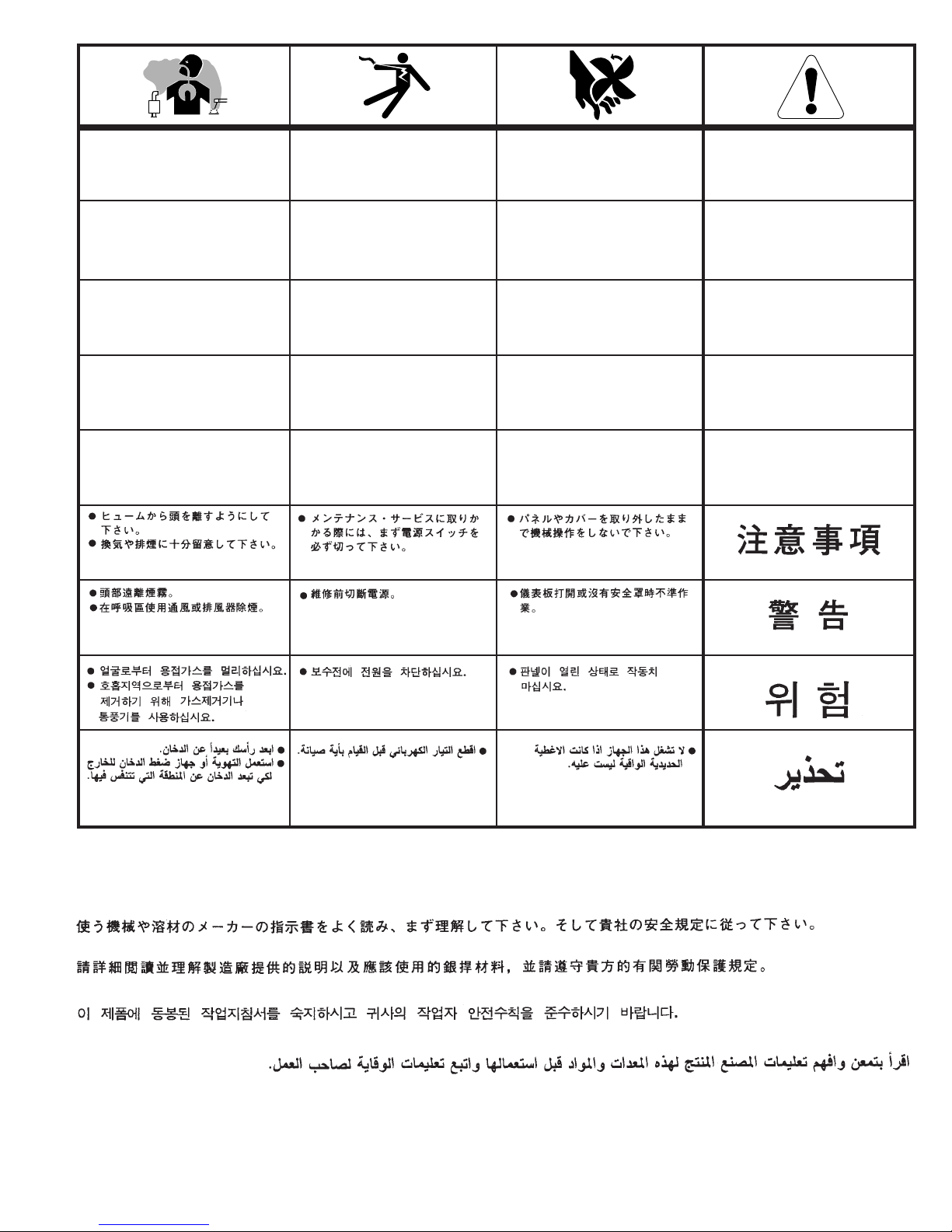

WARNING

Spanish

AVISO DE

PRECAUCION

● Do not touch electrically live parts or

electrode with skin or wet clothing.

● Insulate yourself from work and

ground.

● No toque las partes o los electrodos

bajo carga con la piel o ropa mojada.

● Aislese del trabajo y de la tierra.

● Keep flammable materials away.

● Mantenga el material combustible

fuera del área de trabajo.

● Wear eye, ear and body protection.

● Protéjase los ojos, los oídos y el

cuerpo.

French

ATTENTION

German

WARNUNG

Portuguese

ATENÇÃO

Japanese

Chinese

Korean

Arabic

● Ne laissez ni la peau ni des vête-

ments mouillés entrer en contact avec des pièces sous tension.

● Isolez-vous du travail et de la terre.

● Berühren Sie keine stromführenden

Teile oder Elektroden mit Ihrem Körper oder feuchter Kleidung!

● Isolieren Sie sich von den

Elektroden und dem Erdboden!

● Não toque partes elétricas e elec-

trodos com a pele ou roupa molhada.

● Isole-se da peça e terra.

● Gardez à l’écart de tout matériel

inflammable.

● Entfernen Sie brennbarres Material!

● Mantenha inflamáveis bem guarda-

dos.

● Protégez vos yeux, vos oreilles et

votre corps.

● Tragen Sie Augen-, Ohren- und Kör-

perschutz!

● Use proteção para a vista, ouvido e

corpo.

READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.

SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.

LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.
