Page 1

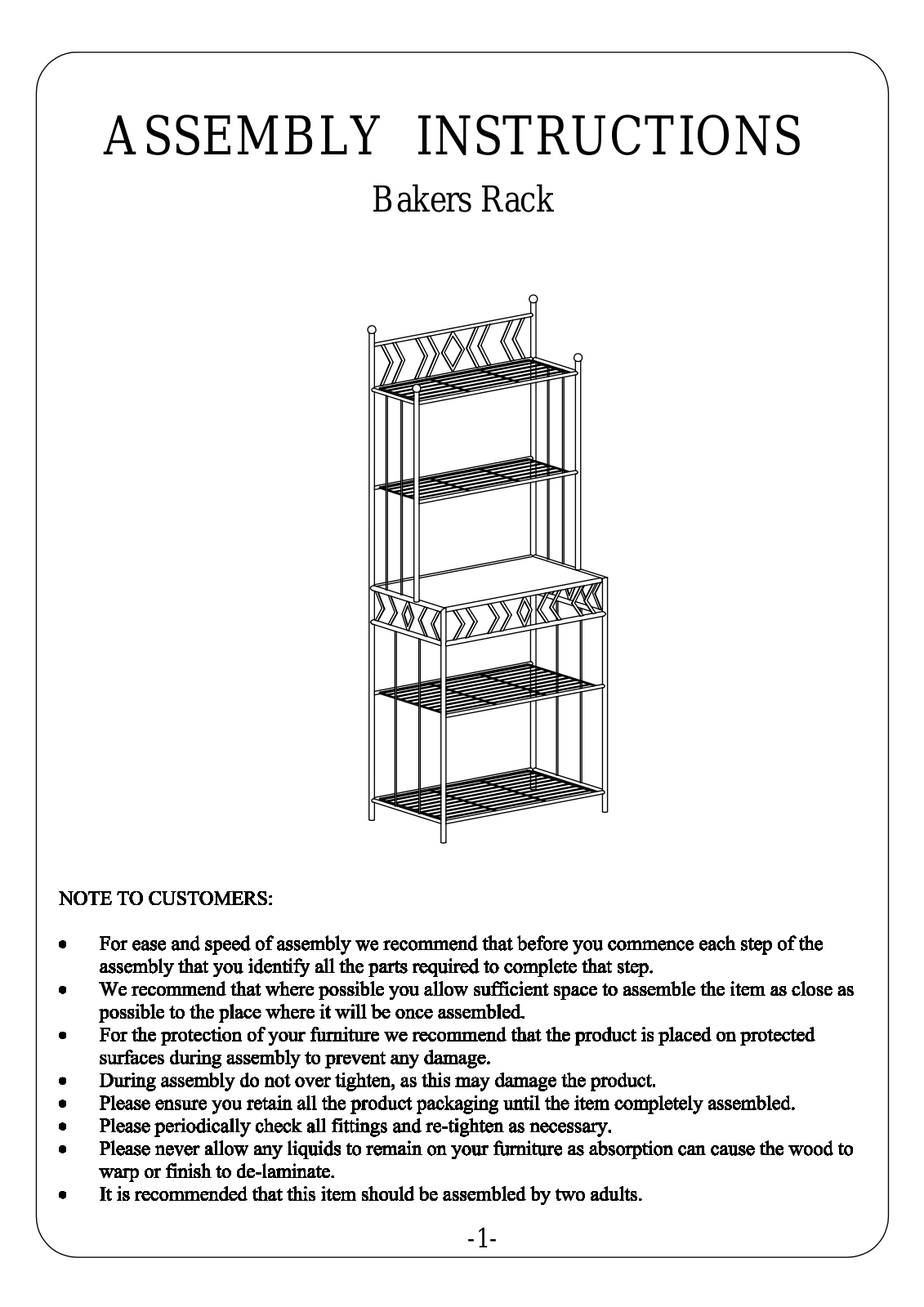

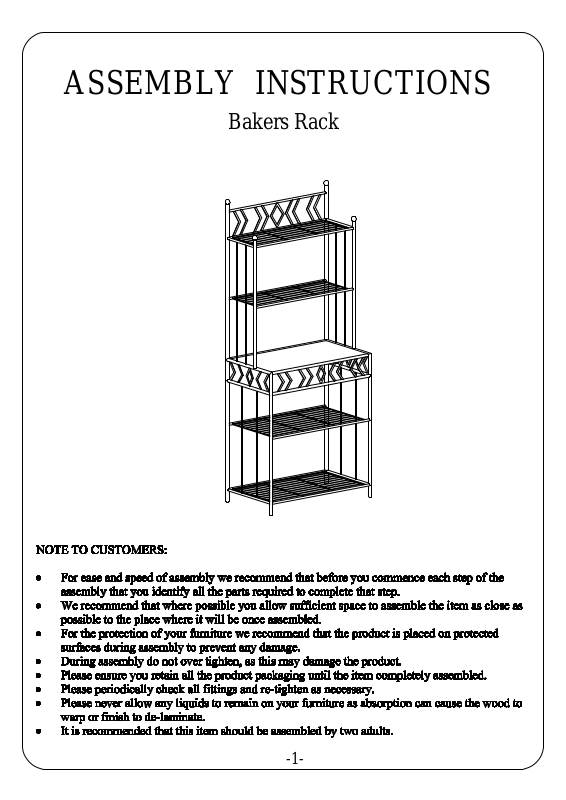

ASSEMBLY INSTRUCTIONS
Bakers Rack
-1-
Page 2

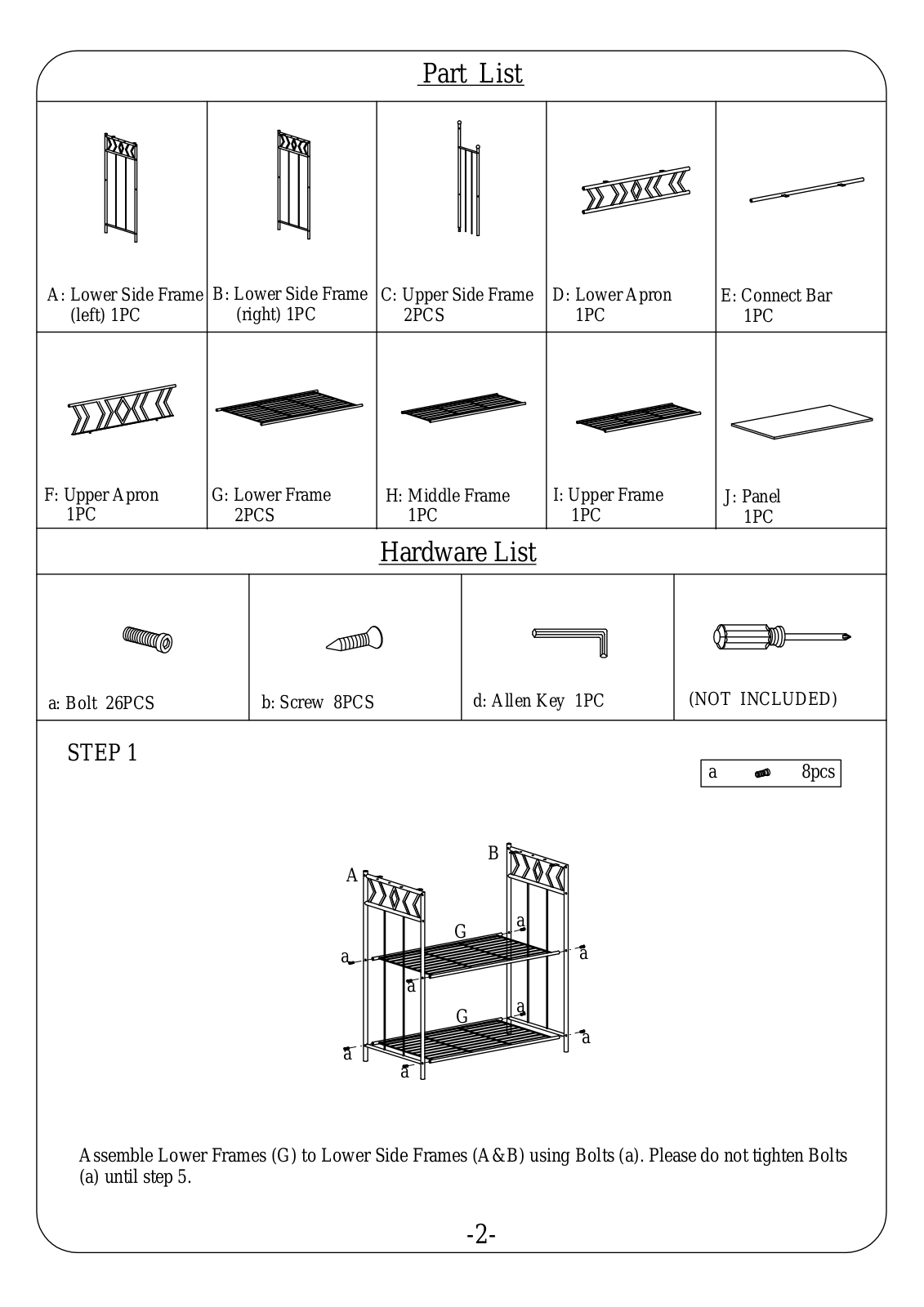

Part List
A: Lower Side Frame
(left) 1PC
F: Upper Apron
1PC
a: Bolt 26PCS
B: Lower Side Frame
(right) 1PC
G: Lower Frame
2PCS
b: Screw 8PCS
C: Upper Side Frame
2PCS
H: Middle Frame
1PC
Hardware List
d: Allen Key 1PC
D: Lower Apron
1PC
I: Upper Frame
1PC
E: Connect Bar
1PC
J: Panel
1PC
(NOT INCLUDED)
STEP 1
a 8pcs
B
A
G
a
a
G
a
a
Assemble Lower Frames (G) to Lower Side Frames (A&B) using Bolts (a). Please do not tighten Bolts
(a) until step 5.
a
a
a
a
-2-
Page 3

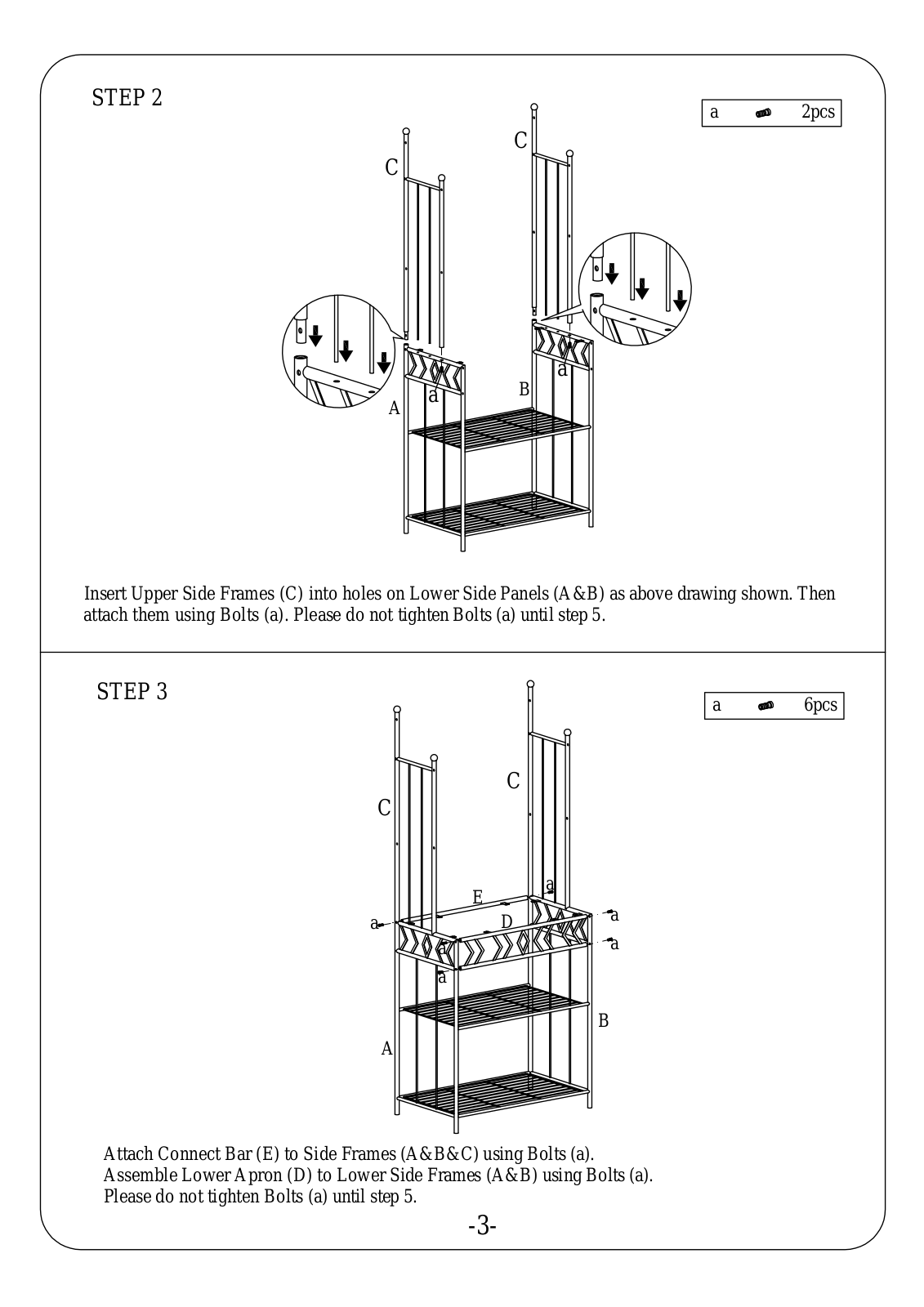

STEP 2
C
A
a 2pcs
C
a
a
B
Insert Upper Side Frames (C) into holes on Lower Side Panels (A&B) as above drawing shown. Then
attach them using Bolts (a). Please do not tighten Bolts (a) until step 5.
STEP 3
a 6pcs
C
C
D
a
a
a
B
E
a
a
a
A
Attach Connect Bar (E) to Side Frames (A&B&C) using Bolts (a).
Assemble Lower Apron (D) to Lower Side Frames (A&B) using Bolts (a).
Please do not tighten Bolts (a) until step 5.
-3-
Page 4

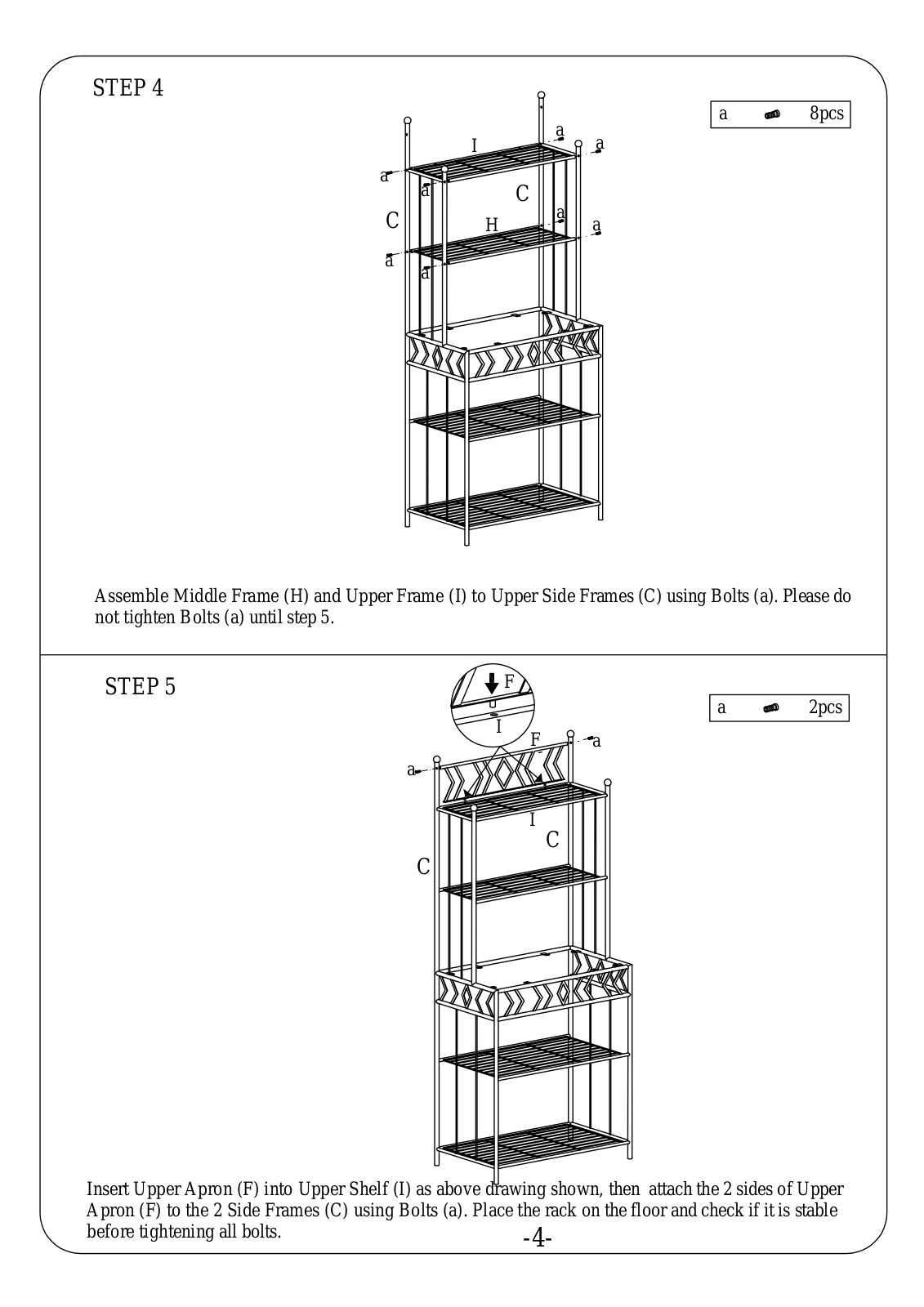

STEP 4
a 8pcs
a
I
a
a
C
a
a
C
H
a
a
a
Assemble Middle Frame (H) and Upper Frame (I) to Upper Side Frames (C) using Bolts (a). Please do
not tighten Bolts (a) until step 5.
STEP 5
a
F
a 2pcs
I
F
I
a
C
C
Insert Upper Apron (F) into Upper Shelf (I) as above drawing shown, then attach the 2 sides of Upper
Apron (F) to the 2 Side Frames (C) using Bolts (a). Place the rack on the floor and check if it is stable
before tightening all bolts.
-4-
Page 5

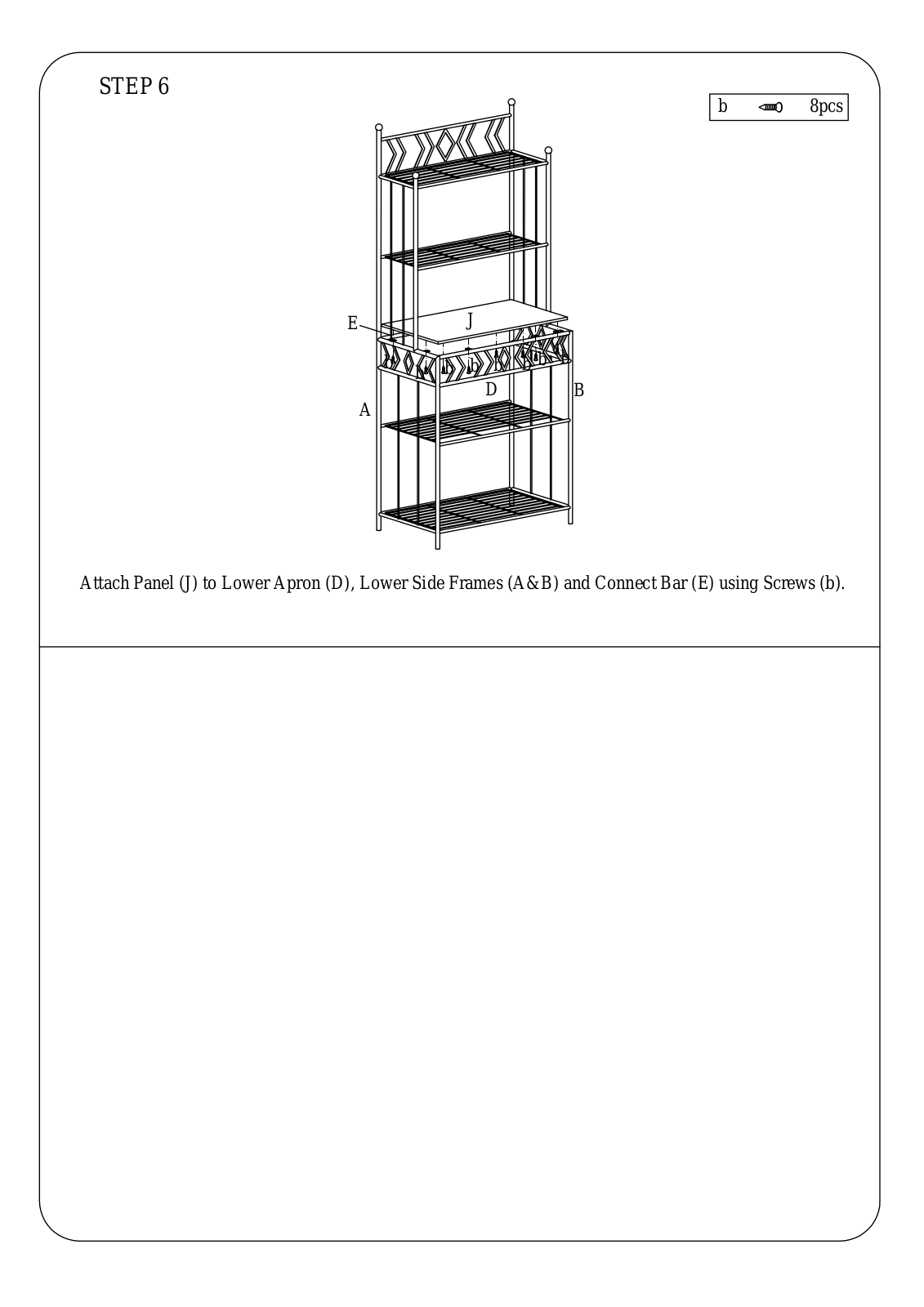

STEP 6
b 8pcs
E
b
b
A
Attach Panel (J) to Lower Apron (D), Lower Side Frames (A&B) and Connect Bar (E) using Screws (b).
J
b
b
b
b
b
b
D
B
