Page 1

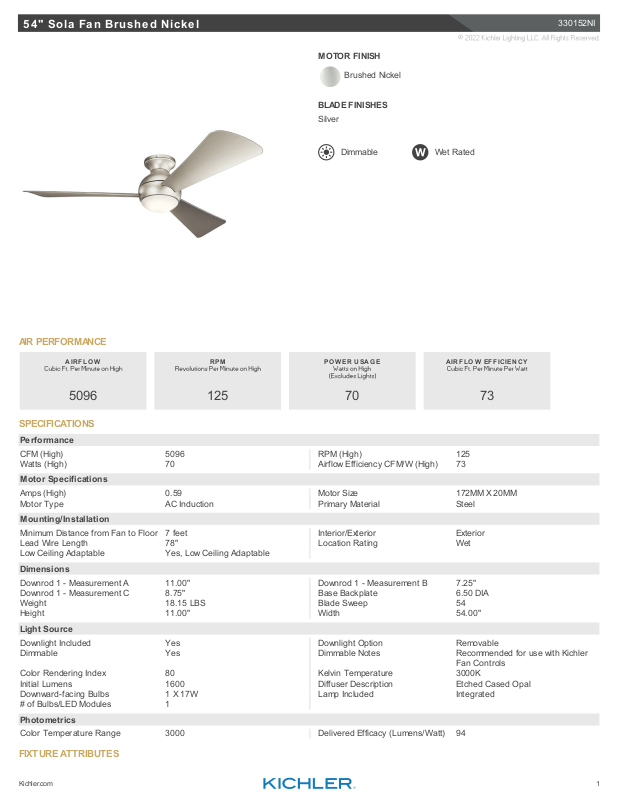

54" Sola Fan B rushed N ickel
330152NI
MOTOR FINISH
Brushed Nickel
BLADE FINISHES
Silver
Dimmable
Wet Rated
AIR PERFORMANCE
SPECIFICATIONS
Performance
CFM (High) 5096 RPM (High) 125
Watts (High) 70 Airflow Efficiency CFM/W (High) 73
Motor Spe cifications
Amps (High) 0.59 Motor Size 172MM X 20MM
Motor Type AC Induction Primary Material Steel
Mounting/Installation
Minimum Distance from Fan to Floor 7 feet Interior/Exterior Exterior
Lead Wire Length 78" Location Rating Wet
Low Ceiling Adaptable Yes, Low Ceiling Adaptable
Dimensions
Downrod 1 - Measurement A 11.00" Downrod 1 - Measurement B 7.25"
Downrod 1 - Measurement C 8.75" Base Backplate 6.50 DIA
Weight 18.15 LBS Blade Sweep 54
Height 11.00" Width 54.00"
Light Source
Downlight Included Yes Downlight Option Removable
Dimmable Yes Dimmable Notes Recommended for use with Kichler
Fan Controls
Color Rendering Index 80 Kelvin Temperature 3000K
Initial Lumens 1600 Diffuser Description Etched Cased Opal
Downward-facing Bulbs 1 X 17W Lamp Included Integrated
# of Bulbs/LED Modules 1
Photometrics
Color Temperature Range 3000 Delivered Efficacy (Lumens/Watt) 94
FIXTURE ATTRIBUTES
A IRF LO W
5096
R PM
125
PO W ER US AGE
70
A IRF LO W EF FIC IEN C Y
73
Kichl er.com 1
Page 2
Blade Finish & Specs
Blade Finish 1 Silver Blade Material ABS
Blade Pitch 14 Blades Included Yes
Number of Blades 3
Included Control
Wall Control Included Yes
Product/Ordering Information
SKU 330152NI Finish Brushed Nickel
UPC 783927520607 Style Contemporary
Warranty
www.kichler.com/warranty
ALSO IN THIS FAMILY
You can see all products in this family by searching Kichler.com
330152MWH 330152OZ 330152SBK
330150SBK 330151SBK
Kichl er.com 2
