Red Barrel Studio W006114899 Assembly Instructions

Label Picture Description QTY

A Chair Backrest 1

B

Chair Base with

Footrest

1

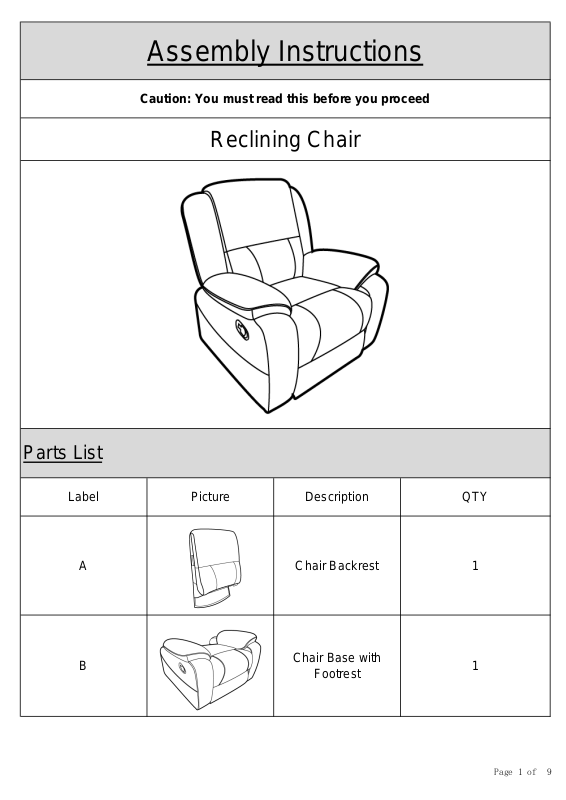

Assembly Instructions

Caution: You must read this before you proceed

Reclining Chair

Parts List

Page 1 of 9

C Right Wing 1

D Left Wing 1

Before Beginning

Assembly:

Assembly Preparation

Page 2 of 9

Step 1

Step 2

Take out the Chair Backrest(A) from the Chair Base with Footrest(B).

Assembly Steps

Overview

This Reclining Chair has multiple parts and may require up to 30 minutes to assemble. To give you an
overview of the Reclining Chair parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the parts and steps
before assembly.

Take out the 2 non-woven bags with the Left Wing(D) and Right Wing(C) inside from the bottom of the
Armrest.
Then take out the Wings from non-woven bags.

Right Wing(C)

Left Wing (D)

Chair Backrest(A)

Front Facing

Chair Base with Footrest(B)

D

Non-woven bag

Non-woven bag

A

B

C

A

Page 3 of 9

Step 3

Step 4

Step 5

Align the mounting brackets of the Right Wing(C) with those on the Right side of Chair Backrest(A).
Then slide Right Wing(C) downward by hand to make sure it locks into the position as shown in the picture.

Repeat the same process to attach the Left Wing(D) into the left side of Chair Backrest(A).

With assistance from your adult partner, hold up the Chair Backrest(A) while standing behind the Chair
Base with Footrest(B).
Insert the small metal arms on the sides of the Chair Backrest(A) into the prefabricated slide lock gadget
on the Chair Base with Footrest(B) as shown above.
Firmly but gently, push the Chair Backrest(A) downwards until the Backrest is fully slotted and locked into
position.

B

A

A

B

Insert

Velcro

C

B

C

D

A

Page 4 of 9

Step 6

Step 7

Make sure all parts are connected and securely locked into position.
Your Recliner Chair is ready for use.

This Reclining Chair can only be used on a flat, level surface.

Smooth down the fabric flap on the Chair Backrest(A).
Run your hands down both sides of the flap, from top to bottom, allowing the velcro tape to adhere to the
flap under the seat of the Chair.

Velcro

A

Page 5 of 9

Step 8

Step 9

To Disassemble Recliner:

Open the flap on the Backrest(A), use a screwdriver (Don't use your fingers) pressing outward on the metal
ear on the preattached Metal Bracket on one side of the Chair Base(B).
With assistance of your adult partner to keep the Chair Base(B) in place, pull the Backrest(A) upward at the
same time, repeat the same step for another side.

Push up on the Right Wing(C) and Left Wing(D) one by one until removed from the Chair Backrest(A).

A

B

C

D

B

A

Velcro

Page 6 of 9

Sit into the seat.
Open the trigger on the outside of the right armrest.
Use your body weight and push backwards into the seat into a fully reclined position.

Warning

Do not allow children to play on the Recliner.
Always leave the Recliner in an upright and closed position after use.
Keep hands and feet clear of the footrest mechanism and any gaps.
Don't sit any armrest of Recliner.

User Instructions

Recliner

Please read the Instruction Manual below carefully before use.

This is a Reclining Chair. At anytime in a reclined seat position or in the upright position. You may enjoy the
rocking motion by using your body weight in a back-front rocking motion, and also the swivel motion.

Supervise children, when in use of this Recliner.

To get into the Recline position:

Page 7 of 9

To Disassemble Recliner:

Open the flap on the Backrest(A), use a screwdriver (Don't use your fingers) pressing outward on the metal
ear on the preattached Metal Bracket on one side of the Chair Base(B).
With assistance of your adult partner to keep the Chair Base(B) in place, pull the Backrest(A) upward at the
same time, repeat the same step for another side.

To move the Chair back into the Upright Position:

Tilt your body weight slightly forward and upwards.
The seat back will come up to an upright position.
Use your feet to push the Footrest down.
The Chair will automatically lock when it is in the fully upright position.
Where necessary, use your arms help lift/push yourself out of the seat

Page 8 of 9
