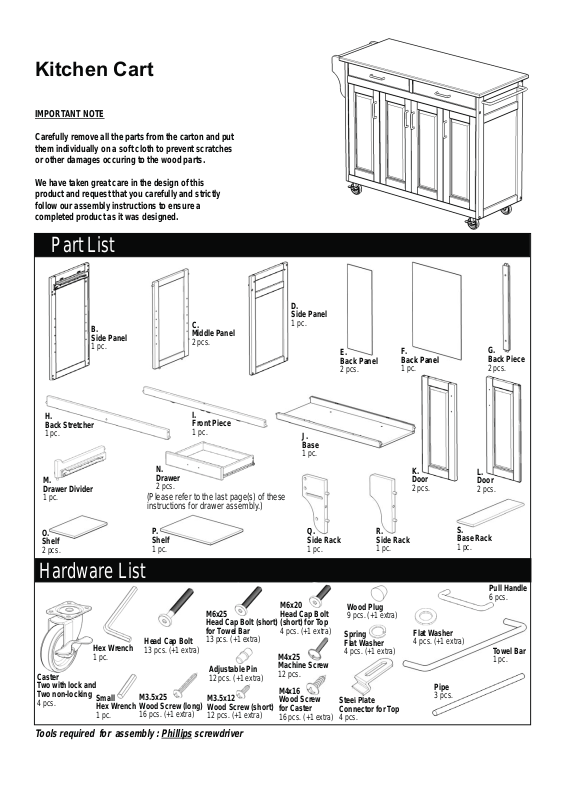

Kitchen Cart
P
Q.
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

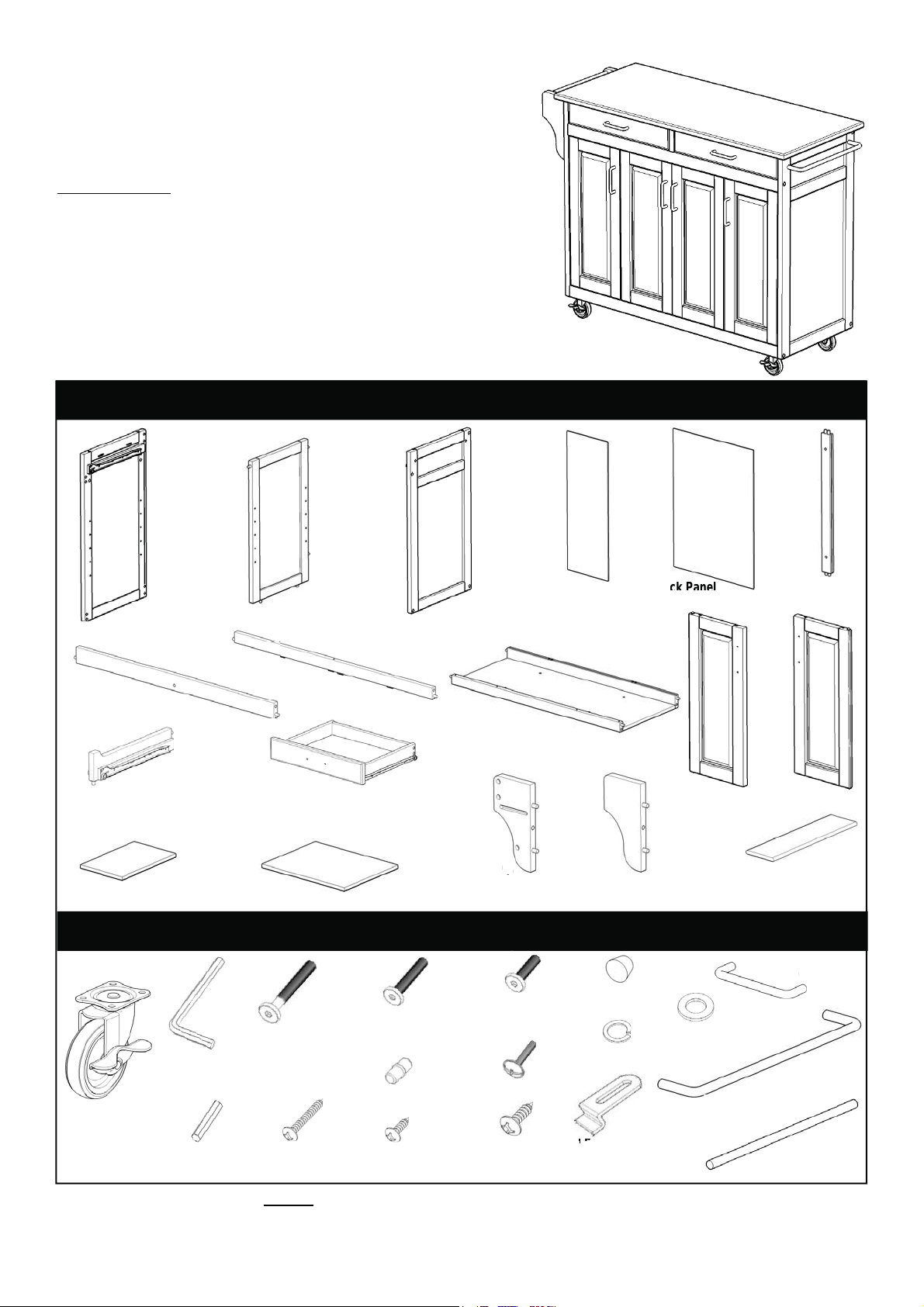

Part List
B.
Side Panel
1 pc.
C.
Middle Panel
2 pcs.
D.
Side Panel
1 pc.
E.
Back Panel
2 pcs.
F.
Back Panel
1 pc.
G.
Back Piece
2 pcs.
H.
Back Stretcher
1 pc.
M.
Drawer Divider
1 pc.
O.
Shelf
2 pcs.
Hardware List
Hex Wrench
1 pc.
Caster
Two with lock and
Two non-locking
4 pcs.
Small
Hex Wrench
1 pc.
I.
Front Piece
1 pc.
N.
Drawer
2 pcs.
(Please refer to the last page(s) of these
instructions for drawer assembly.)
P.
Shelf
1 pc.
M6x25
Head Cap Bolt (short)
Head Cap Bolt
13 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
16 pcs. (+1 extra)
for Towel Bar
13 pcs. (+1 extra)
Adjustable Pin
12 pcs. (+1 extra)
M3.5x12
Wood Screw (short)
12 pcs. (+1 extra)
J.
Base
1 pc.
Q.
Side Rack
1 pc.
M6x20
Head Cap Bolt
(short) for Top
4 pcs. (+1 extra)
M4x25
Machine Screw
12 pcs.
M4x16
Wood Screw
for Caster
16 pcs. (+1 extra)
R.
Side Rack
1 pc.
Wood Plug
9 pcs. (+1 extra)
Spring
Flat Washer
4 pcs. (+1 extra)
Steel Plate
Connector for Top
4 pcs.
K.
Door
2 pcs.
Flat Washer
4 pcs. (+1 extra)
Pipe
3 pcs.
L.
Door
2 pcs.
S.
Base Rack
1 pc.
Pull Handle
6 pcs.
6
Towel Bar
1 pc.
Tools required for assembly : Phillips screwdriver
Page 2
Assembly Instruction 2 / 5
Fig
IMPORTANT
* Do not tighten up all the screws and bolts until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Use a soft cloth between these parts and the fl oor.

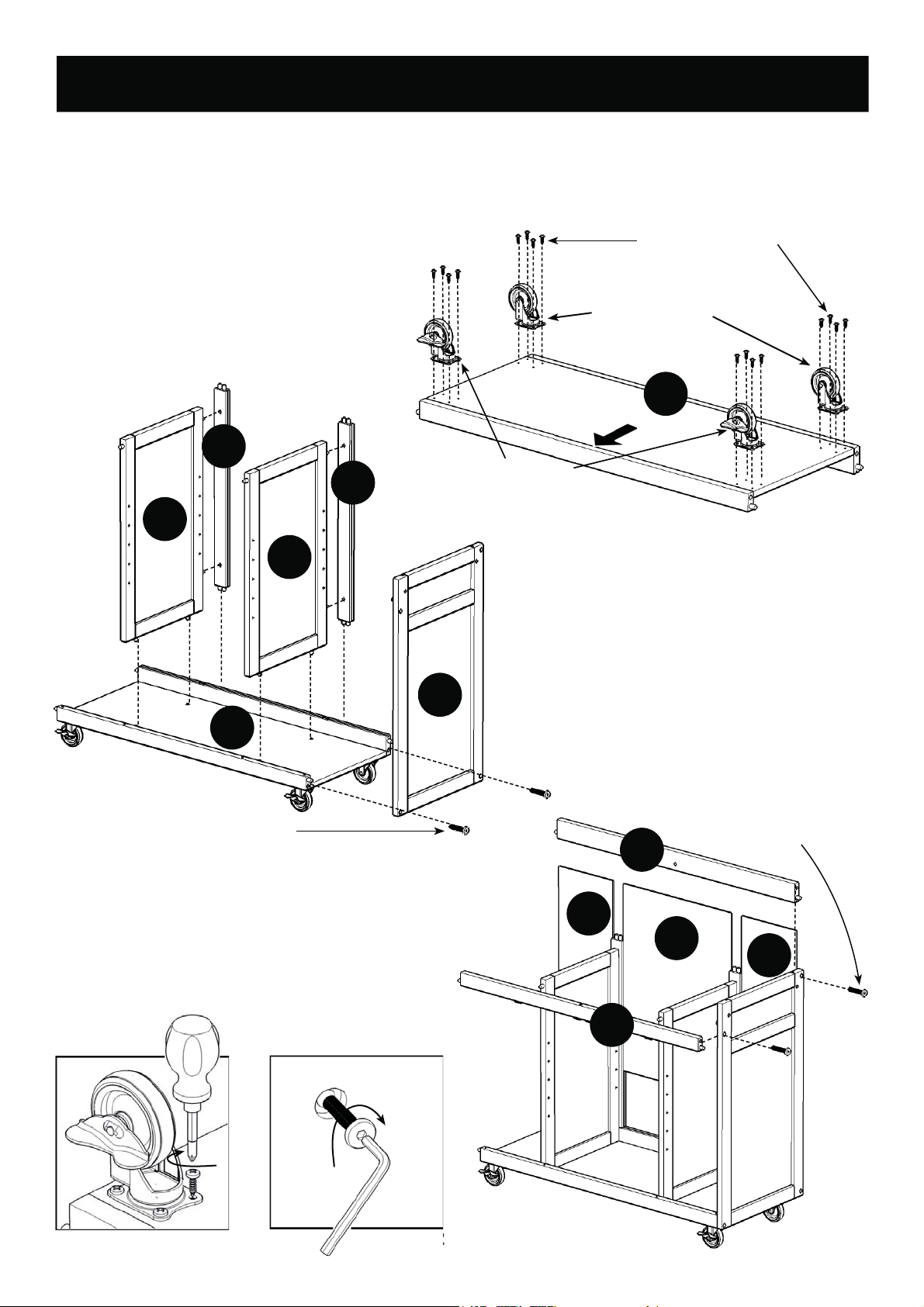

STEP 1
Attach 4X Casters to Base (J) with
Wood Screws for Caster, with the
Locking Casters at the front as indicated
by ‘Arrow’ sticker. (see Figure 1)
G
G
C
C
J
D
Wood Screw for Casters
Non-Locking Casters
J
Locking Casters
STEP 2
Attach Side Panel (D) to the unit with Head
Cap Bolts. (see Figure 2)
Attach Middle Panels (C) and Back Pieces
(G) to unit.
Head Cap Bolt
STEP 3
Slide Back Panels (E) and (F) into the unit.
Attach Back Stretcher (H) and Front Piece (I) to
the unit with Head Cap Bolts.
Figure 2
Figure 1
ure 2
Head Cap Bolt
H
E
F
E
I
Page 3
Head Cap Bolt
Assembly Instruction 3 / 5
M

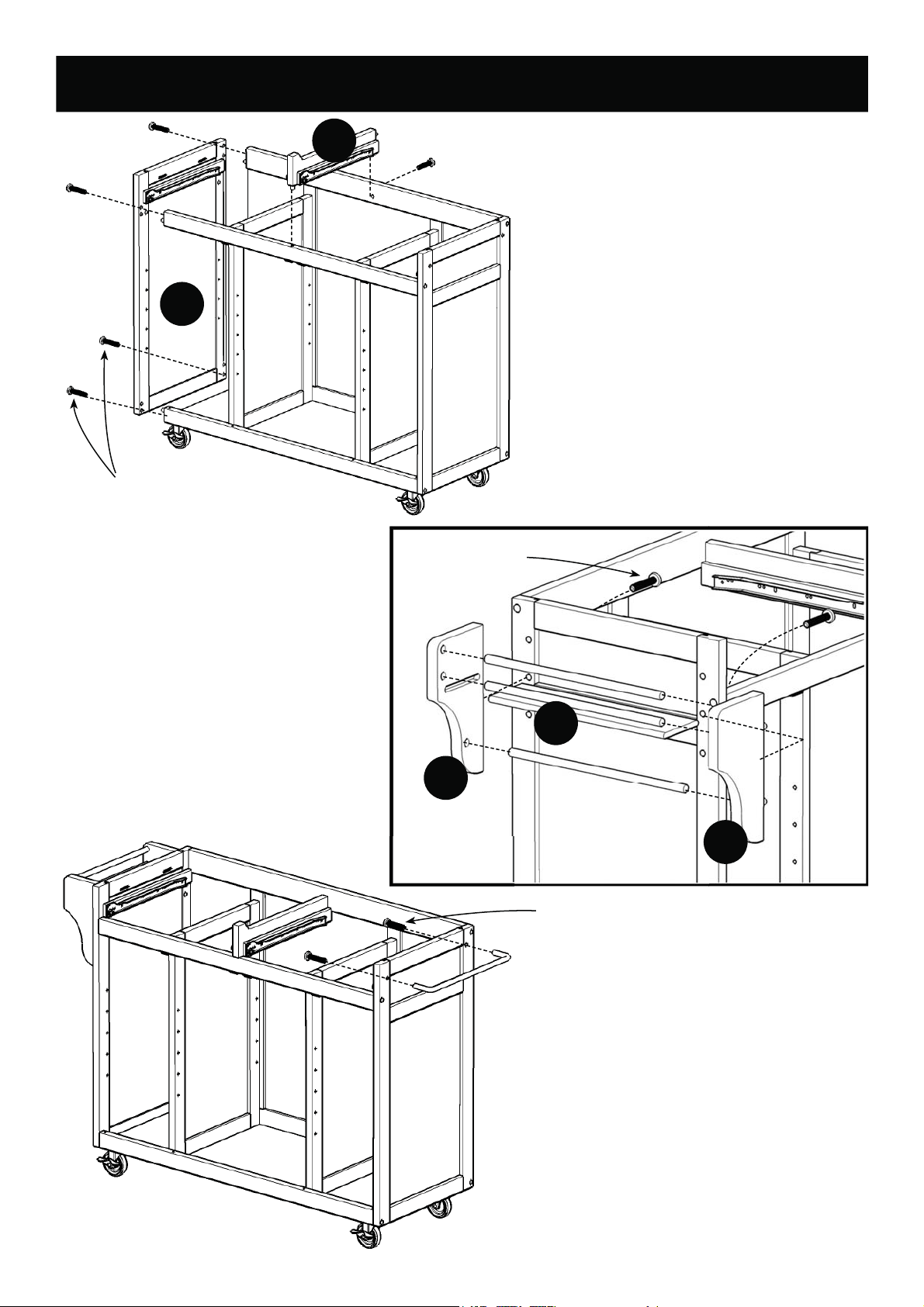

STEP 4
Attach Side Panel (B) and Divider (M) to
the unit with Head Cap Bolts.
B
STEP 5
Attach Side Rack (Q) to the unit with
Head Cap Bolt.
Slide Base Rack (S) and Pipes into Side
Rack (R).
Attach Side Rack (R) to unit with Head
Cap Bolt.
Head Cap Bolt
S
Q
R
Head Cap Bolt (short) for Towel Bar
STEP 6
Attach Towel Bar to the unit with Head Cap
Bolts (short) for Towel Bar.
Page 4
Assembly Instruction 4 / 5

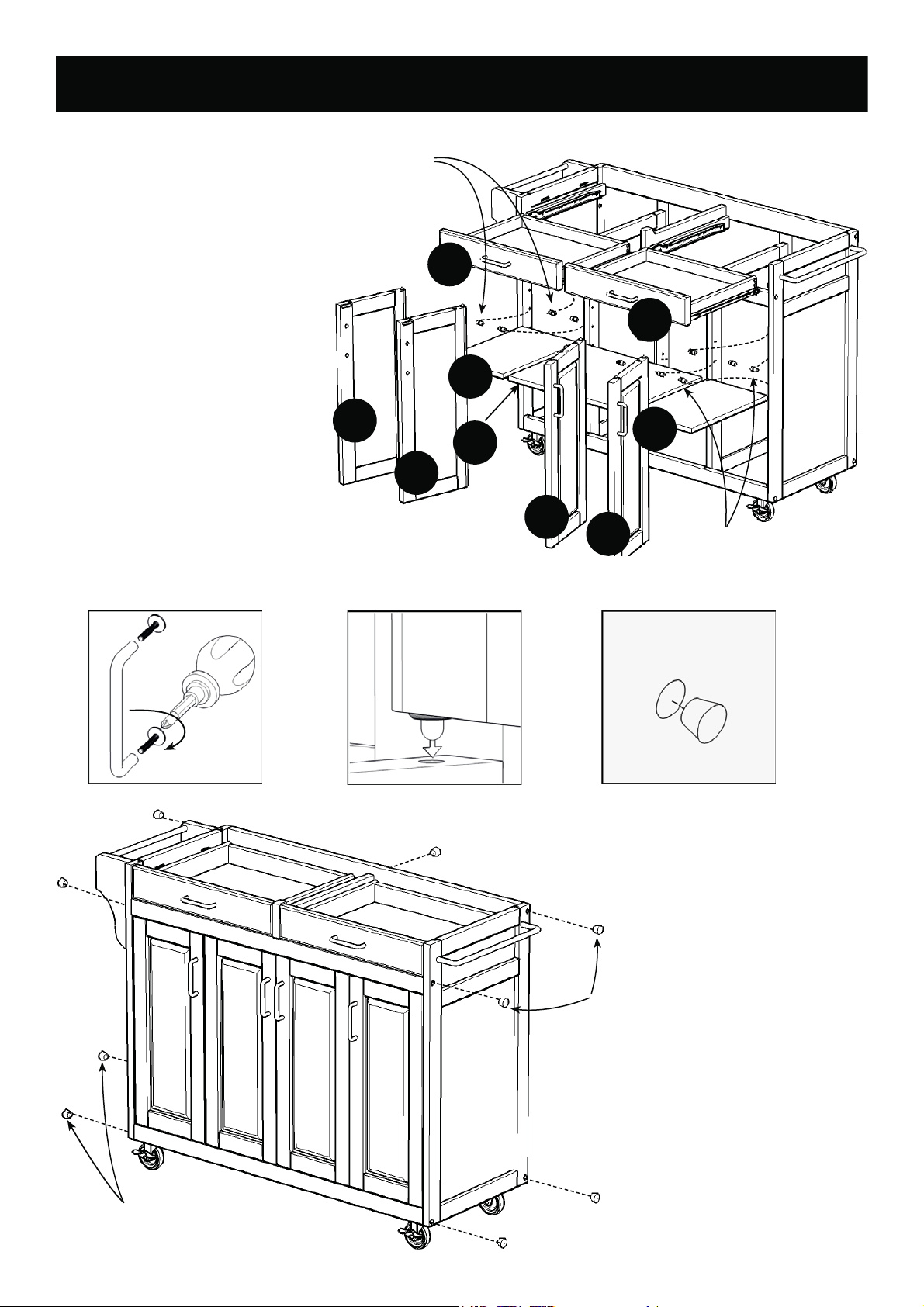

STEP 7
Insert Adjustable Pins into side
panels and middle panels at the
desired level and slide Shelves
(O) and (P) into place.
Assemble Pull Handles to Doors
(K) and (L) with Machine Screws.
(see Figure 3)
Attach Doors (K) and (L) by
inserting the lower Spring Pin
into the hole until it clicks (see
fi gure 4) and then do the same
for the upper Spring Pin.
Slide Drawers (N) into place.
Adjustable Pin
K
K
N
O
P
L
L
N
O
Adjustable Pin
Figure 3
Figure 4
Figure 5
Wood Plug
STEP 8
Cover all holes with Wood
Plugs. (see Figure 5)
Wood Plug
Page 5

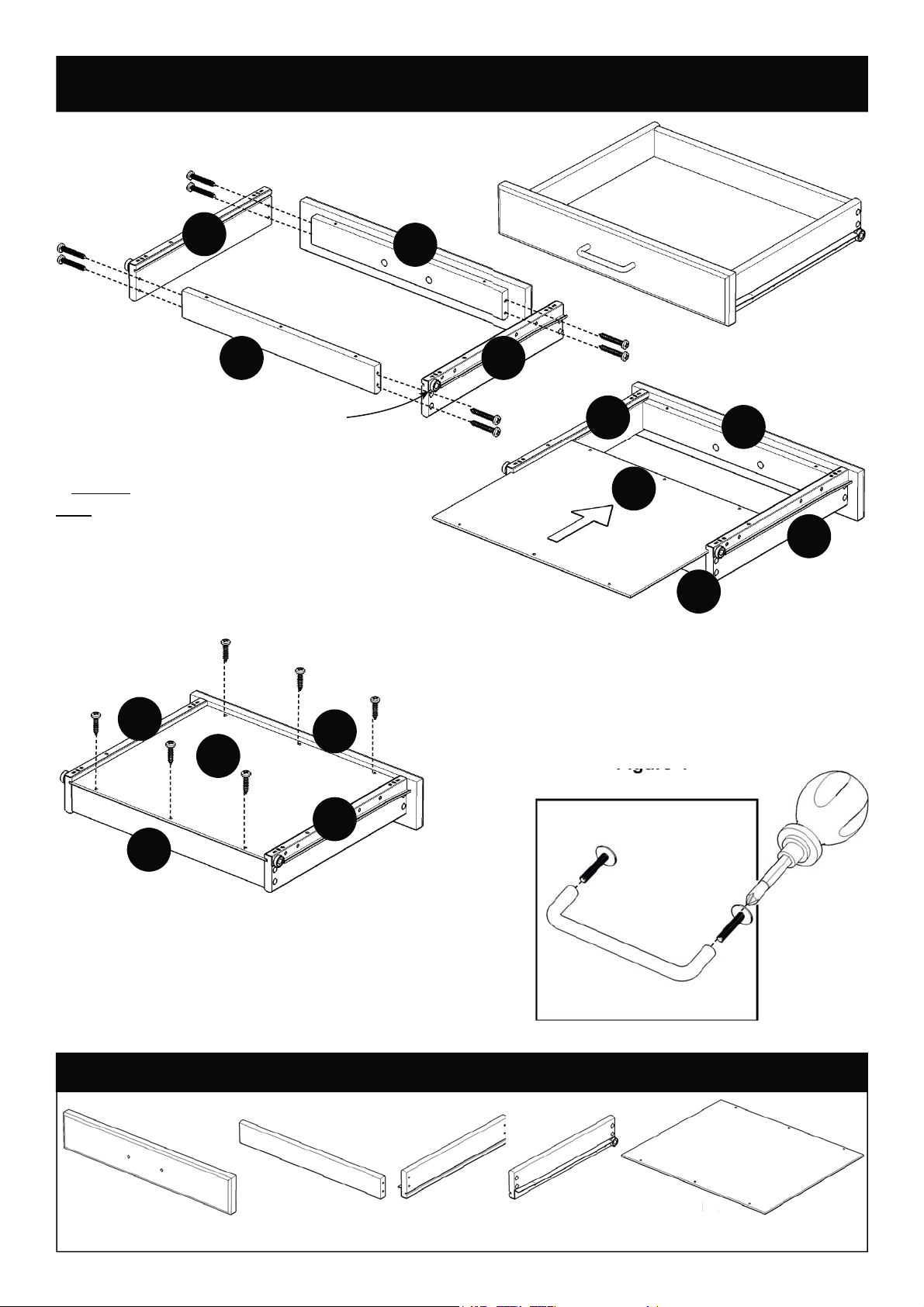

Drawer (N)
4
Assembly Instruction 5 / 5
N3
Figure 1
N2
MAKE SURE ROLLER
IS ON THE BACK
STEP 1
Attach N1 to N3 and N4, using
a Phillips screwdriver and
long wood screws (4X), tighten
halfway.
Attach N2 to N3 and N4 using
long wood screws (4X), tighten
halfway. (see Figure 1)
Figure 3
N3
N5
N1
N1
Figure 2
N4
N3
N1
N5
N4
N2
STEP 2
Slide N5 into the grooves in N3
and N4. Push N5 all the way
forward so it meets N1. (see
Figure 2)
Figure 4
N2
STEP 3
Insert short wood screws (6X)
into the pre-drilled holes in N5
and tighten. (see Figure 3)
Part List
N1.
Front Part
2 pcs.
N2.
Back Part
2 pcs.
N4
STEP 4
Assemble Pull Handle
with machine screws.
(see Figure 4)
Tighten all screws used in drawer assembly.
N3.
Side Part
2 pcs.
N4.
Side Part
2 pcs.
N5.
Base Part
2 pcs.
