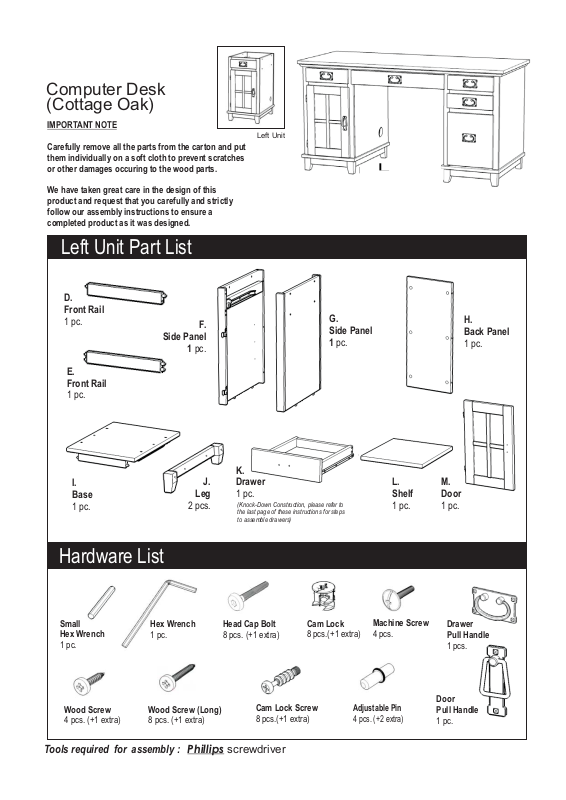

Page 1
Computer Desk
(Cottage Oak)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

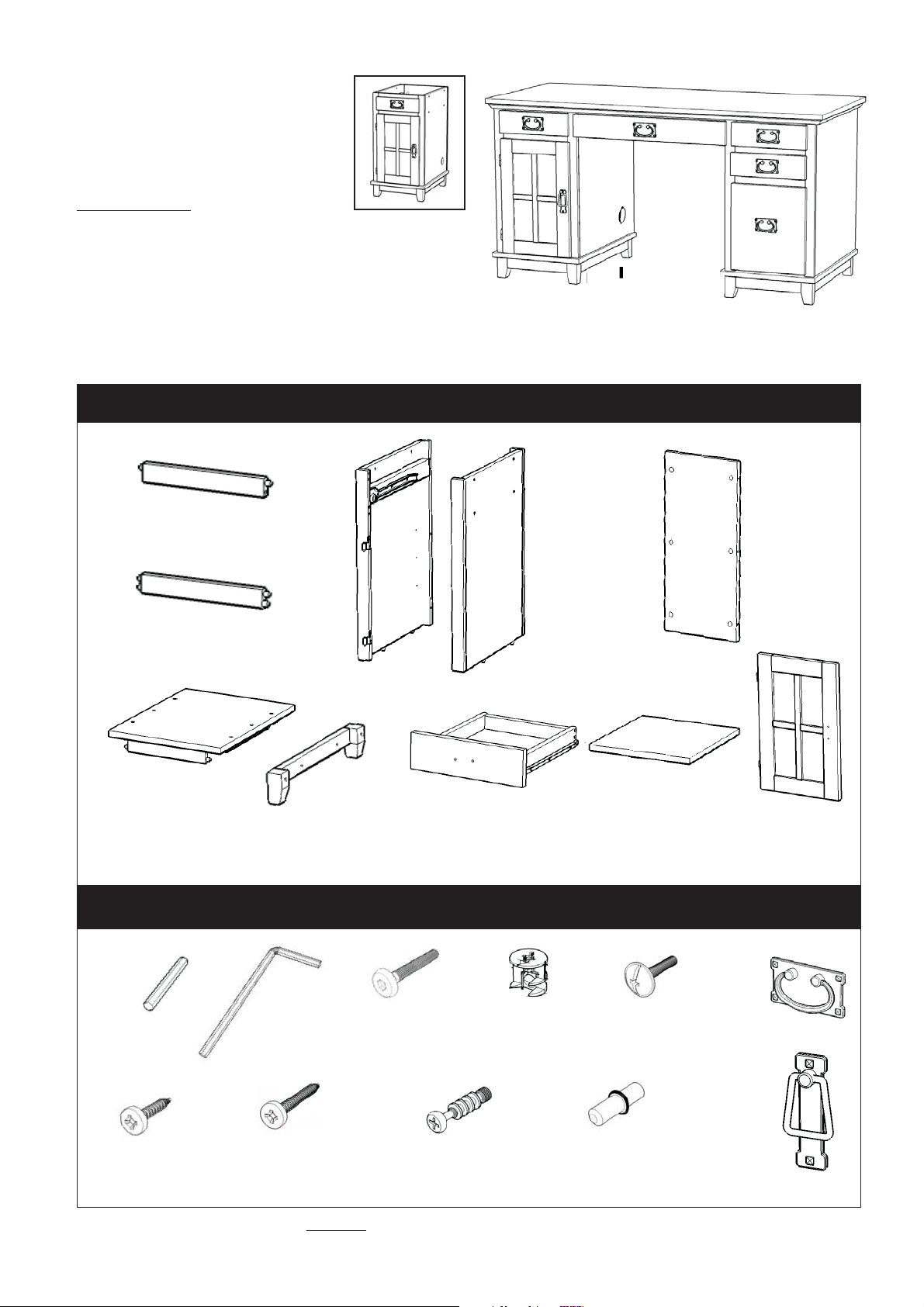

Left Unit Part List
D.
Front Rail
1 pc.
Side Panel
F.
1 pc.
Left Unit
G.
Side Panel
1 pc.
H.
Back Panel
1 pc.
E.
Front Rail
1 pc.
I.
Base
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Leg
2 pcs.
J.
Head Cap Bolt
8 pcs. (+1 extra)
K.
Drawer
1 pc.
(Knock-Down Construction, please refer to
the last page of these instructions for steps
to assemble drawers)
Cam Lock
8 pcs.(+1 extra)
L.
Shelf
1 pc.
Machine Screw
4 pcs.
M.
Door
1 pc.
Drawer
Pull Handle
1 pcs.
Wood Screw
4 pcs. (+1 extra)
Wood Screw (Long)
8 pcs. (+1 extra)
Cam Lock Screw
8 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
Adjustable Pin
4 pcs. (+2 extra)
Door
Pull Handle
1 pc.
Page 2
Assembly Instructions 2/4
IMPORTANT
Do not tighten up all the screws until each part is properly assembled.
You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future.

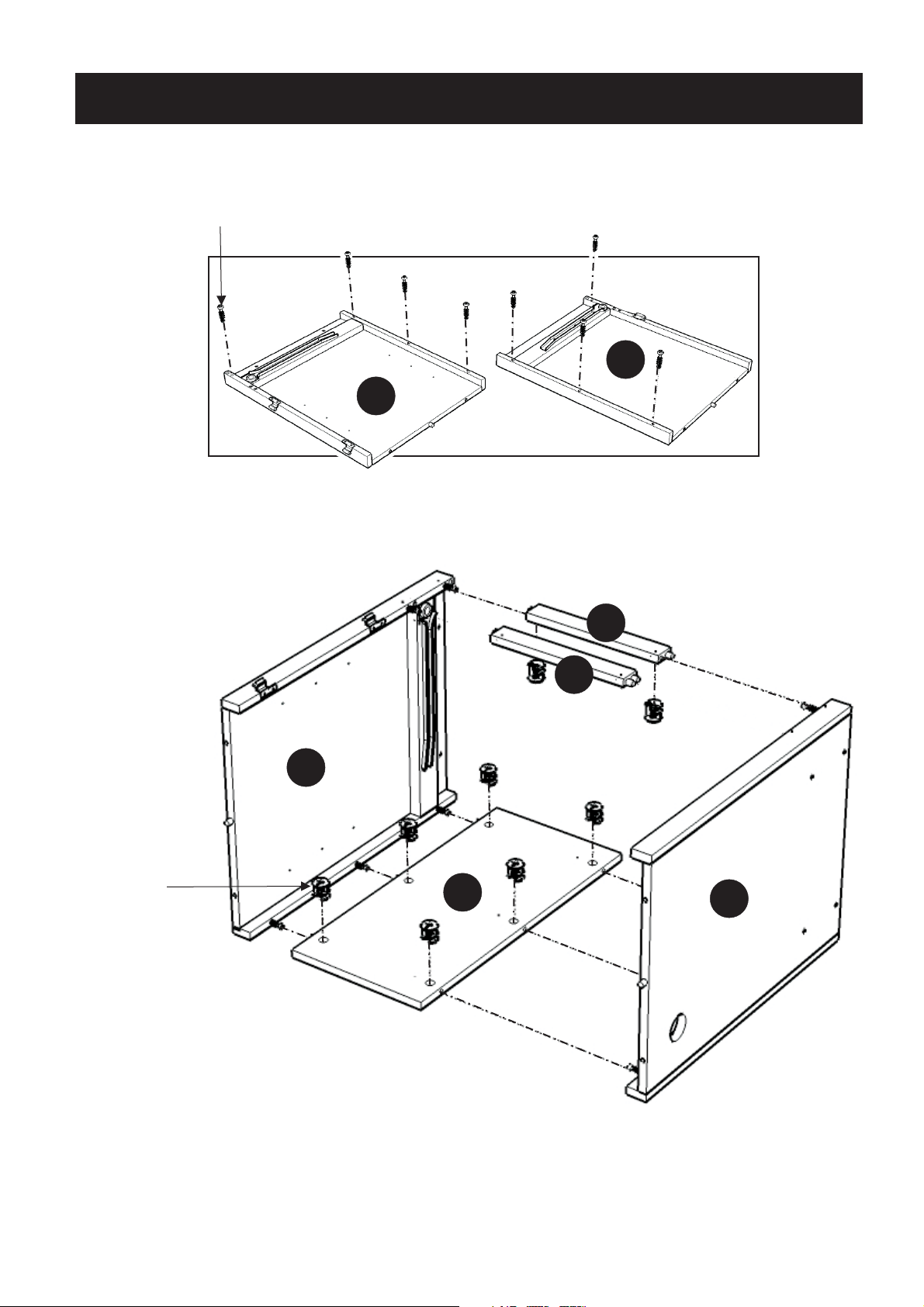

Cam Lock Screw
G
F
STEP 1
Put Cam Lock Screws into the pre-drilled holes of Side Panel (F),(G) and tighten.
Cam Lock
F
H
D
E
G
STEP 2
Attach Front Rails (D), (E) and to Side Panel (F) using Cam Locks.Back Panel (H)
Attach Side Panel (G) to the unit using Cam Locks.
Page 3

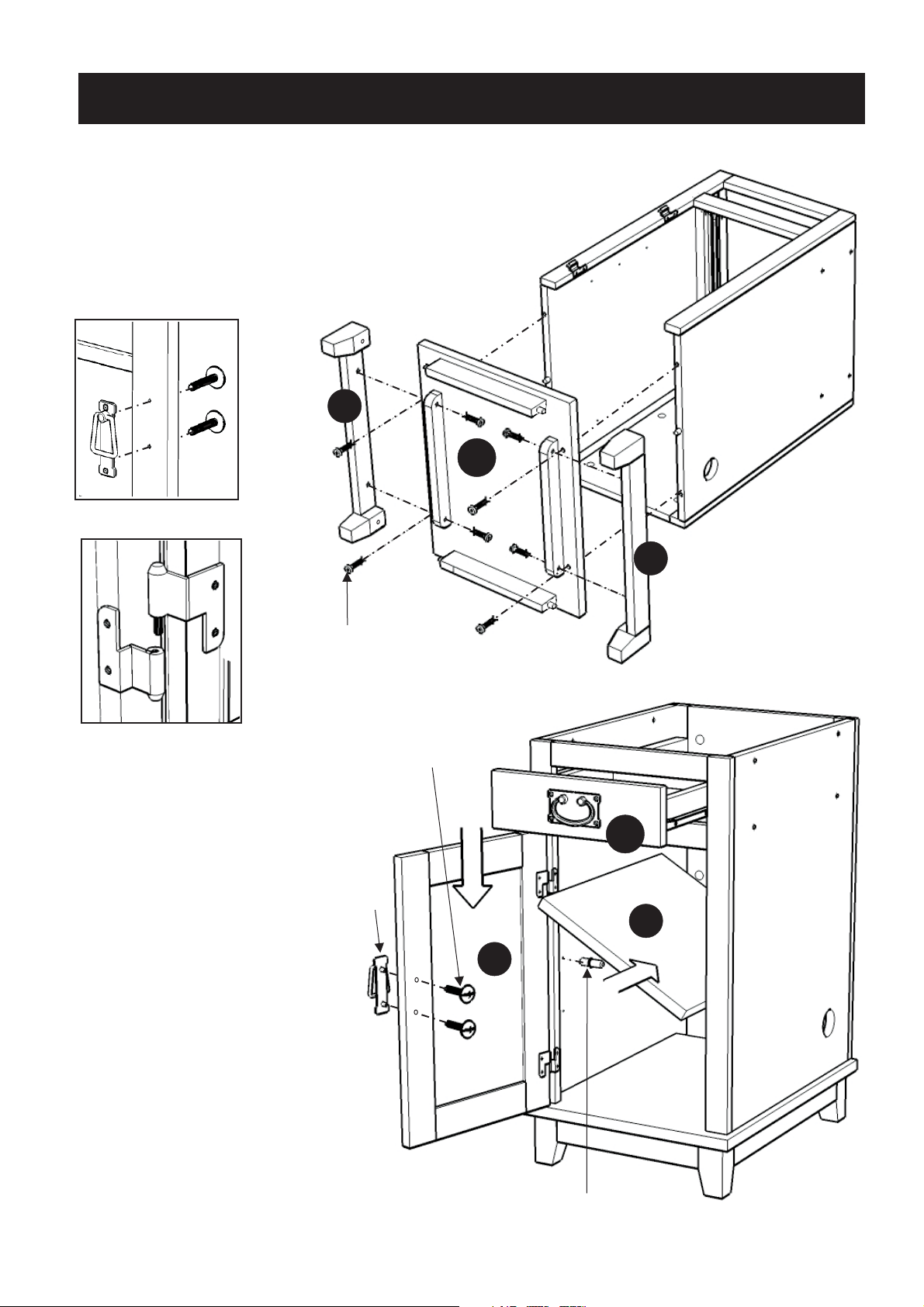

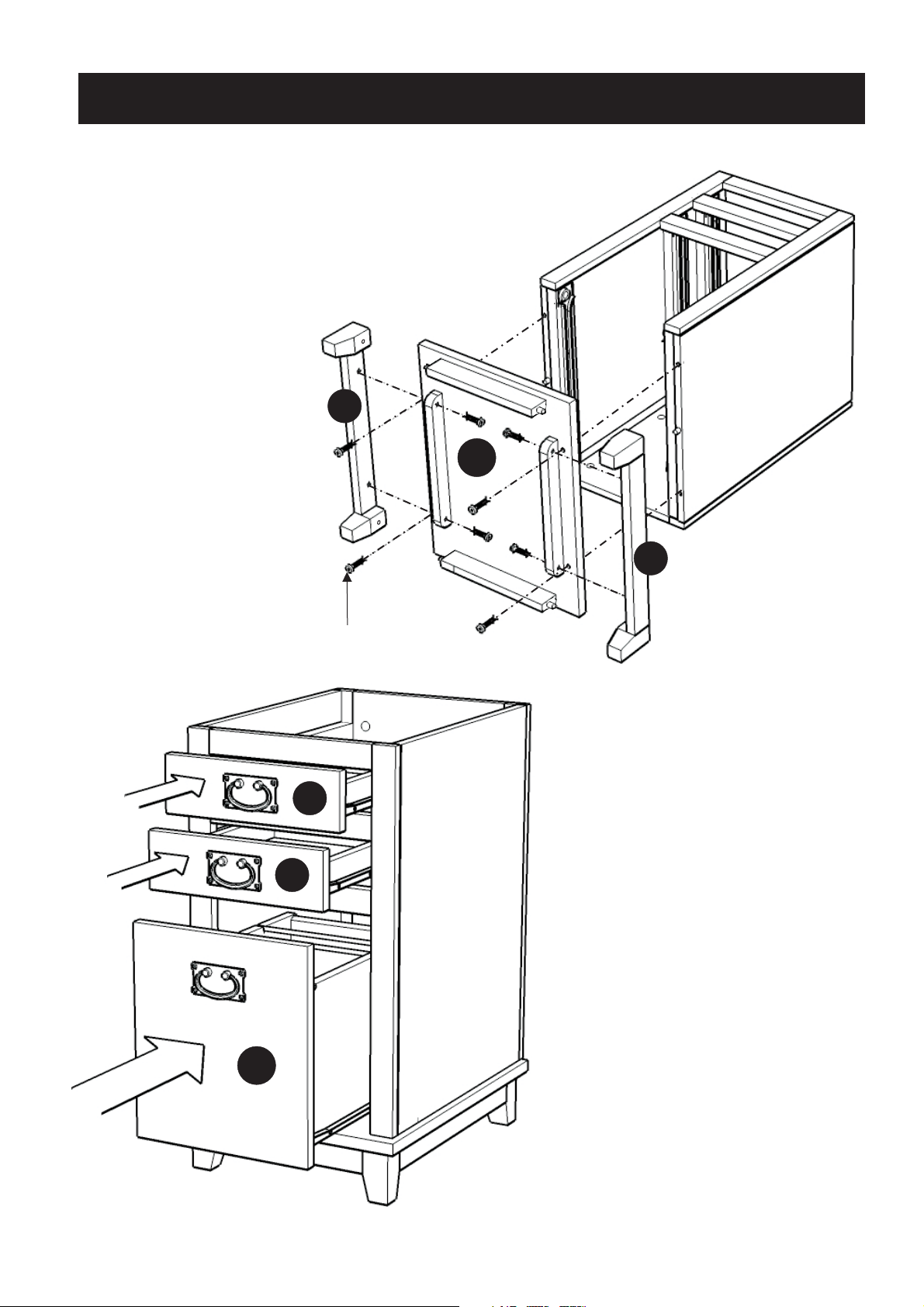

STEP 3
Attach Base (I) to the unit with Head Cap Bolts.
Attach Leg (J) to Base (I) with Head Cap Bolts.
J
(Figure 1)
Assembly Instructions 3/4
I
(Figure 2)
Machine Screw
STEP 4
Turn the unit to its upright position.
Slide Drawer (K) into place.
Insert Adjustable Pins
Into both side panels at
the desired level.
Slide Shelf (L) into place.
Pull Handle
J
Head Cap Bolt
K
L
M
Assemble Pull Handle
to Door (M) with Machine Screws.
(see Figure 1)
Attach Door (M) to the side panels
by sliding the door lift hinges into
the side panel lift hinges.
(see Figure 2)
Adjustable Pin
Page 4

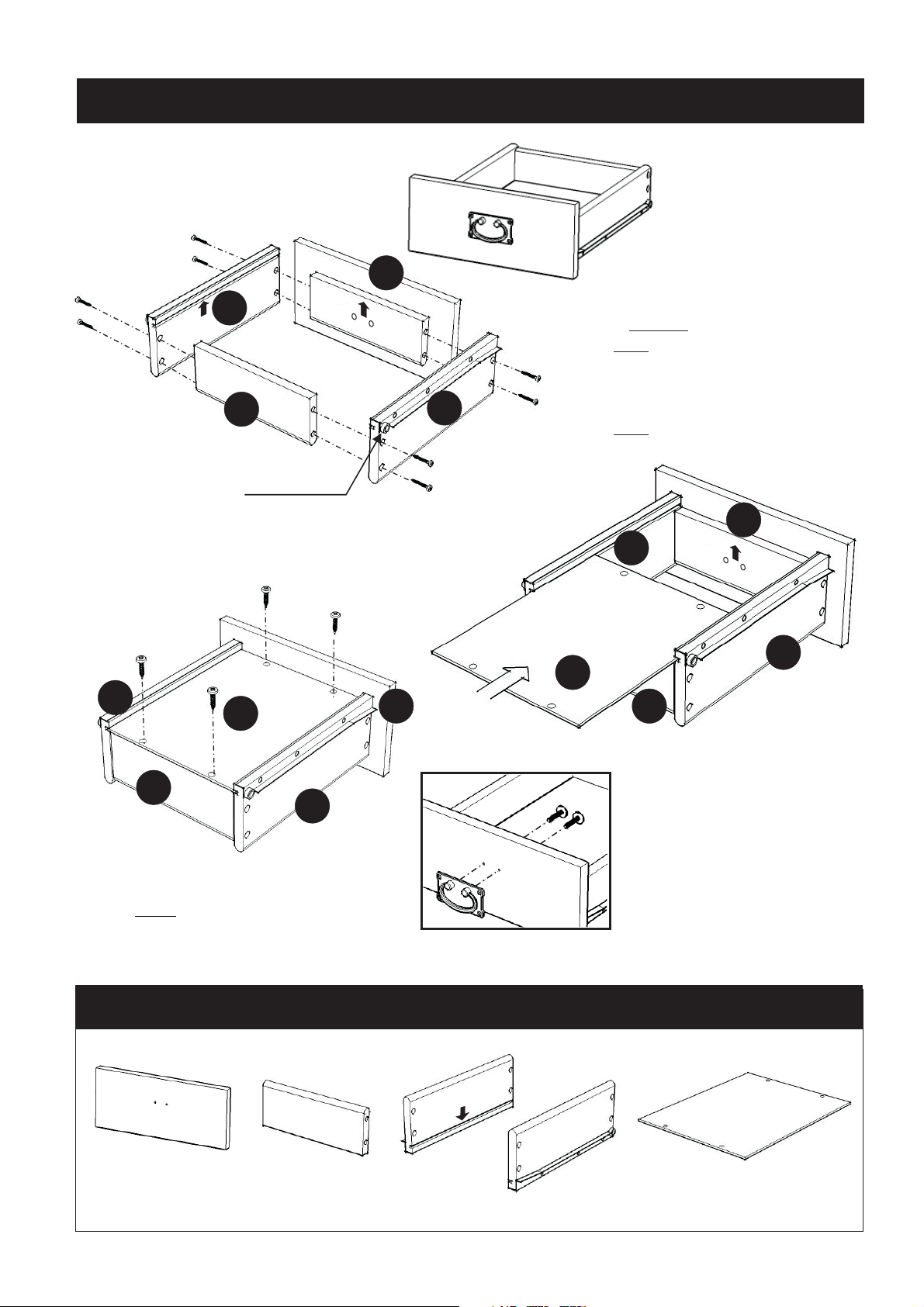

Drawer (K)
Assembly Instructions 4/4
K3
K2
Figure 1
MAKE SURE ROLLER
IS ON THE BACK
STEP 2
Slide K5 into the grooves in K3
and K4. Be sure to push K5 all
the way forward so it meets K1.
(see Figure 2)
K3
K5
K1
K1
K4
STEP 1
Figure 2
K5
Attach K1 to K3 and K4, using
a and
Phillips screwdriver
wood screws ,
long
tighten halfway.
Attach K2 to K3 and K4 using
wood screws ,
long
tighten halfway. (see Figure 1)
(4X)
(4X)
K1
K3
K4
K2
K2
K4
Figure 3
STEP 3
Insert wood screws (6X)
into the pre-drilled holes in K5,
tighten screws. (see Figure 3)
short
Part List
K1.
Front Part
1 pc.
K2.
Back Part
1 pc.
K3.
Side Part
1 pc.
Figure 4
Side Part
1 pc.
STEP 4
Attach hardware pulls with
machine screws.
(see Figure 4)
Tighten all screws used in
drawer assembly.
K4.
K5.
Base Part
1 pc.
Page 5
Computer Desk
(Cottage Oak)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

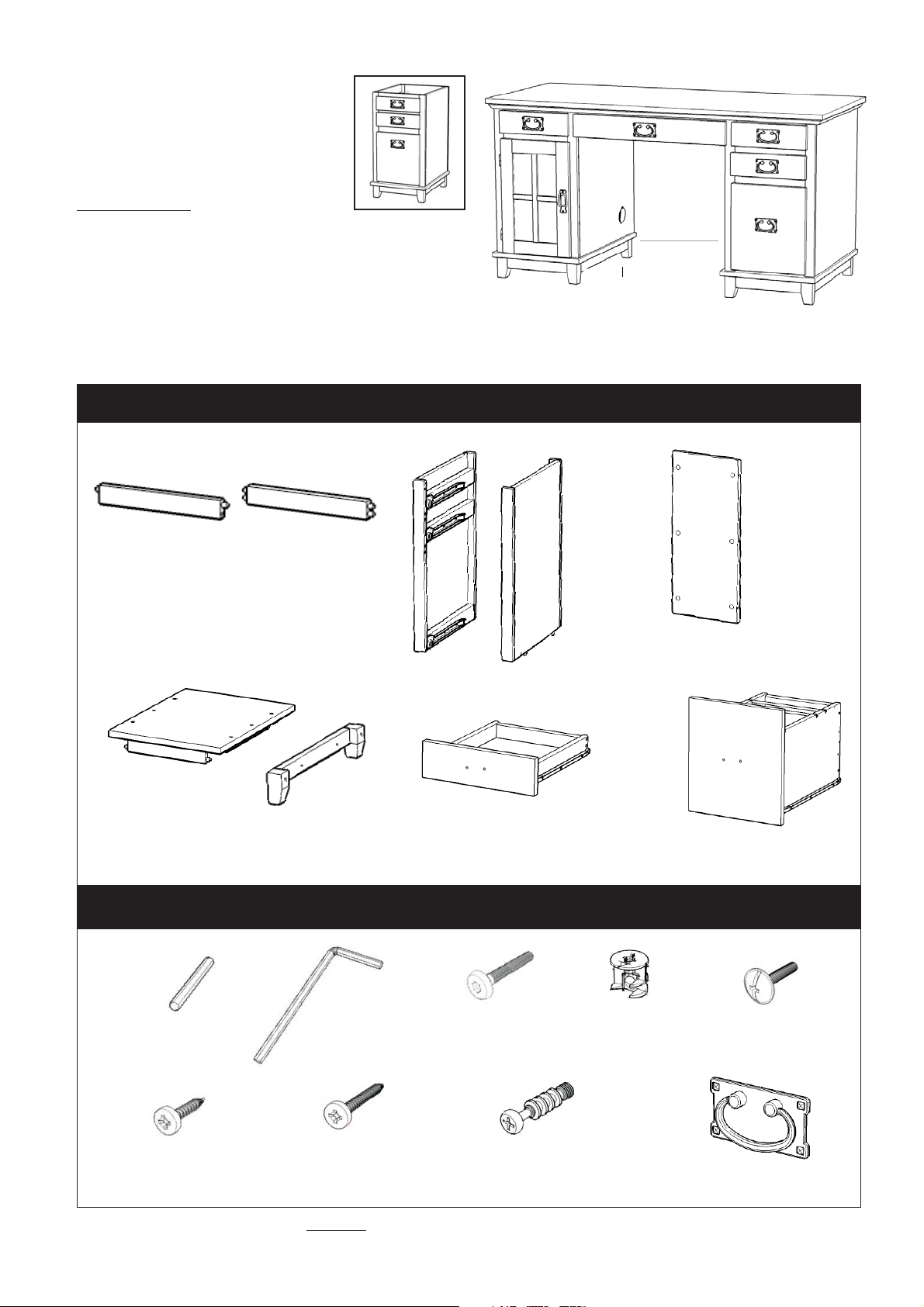

Right Unit Part List
D.
Front Rail
1 pc.
E.
Front Rail
2 pcs.
Right Unit
H.
Back Panel
1 pc.
I.
Base
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Side Panel
J.
Leg
2 pcs.
Hex Wrench
1 pc.
N.
1 pc.
Drawer
Head Cap Bolt
10 pcs. (+1 extra)
K.
2 pcs.
O.
Side Panel
1 pc.
Drawer
Cam Lock
8 pcs.(+1 extra)
P.
1 pc.
(Knock-Down Construction, please refer to
the last page of these instructions for steps
to assemble drawers)
Machine Screw
6 pcs.
Wood Screw
12 pcs. (+1 extra)
Wood Screw (Long)
28 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
Cam Lock Screw
8 pcs.(+1 extra)
Drawer
Pull Handle
3 pcs.
Page 6
Assembly Instructions 2/5
IMPORTANT
Do not tighten up all the screws until each part is properly assembled.
You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future.

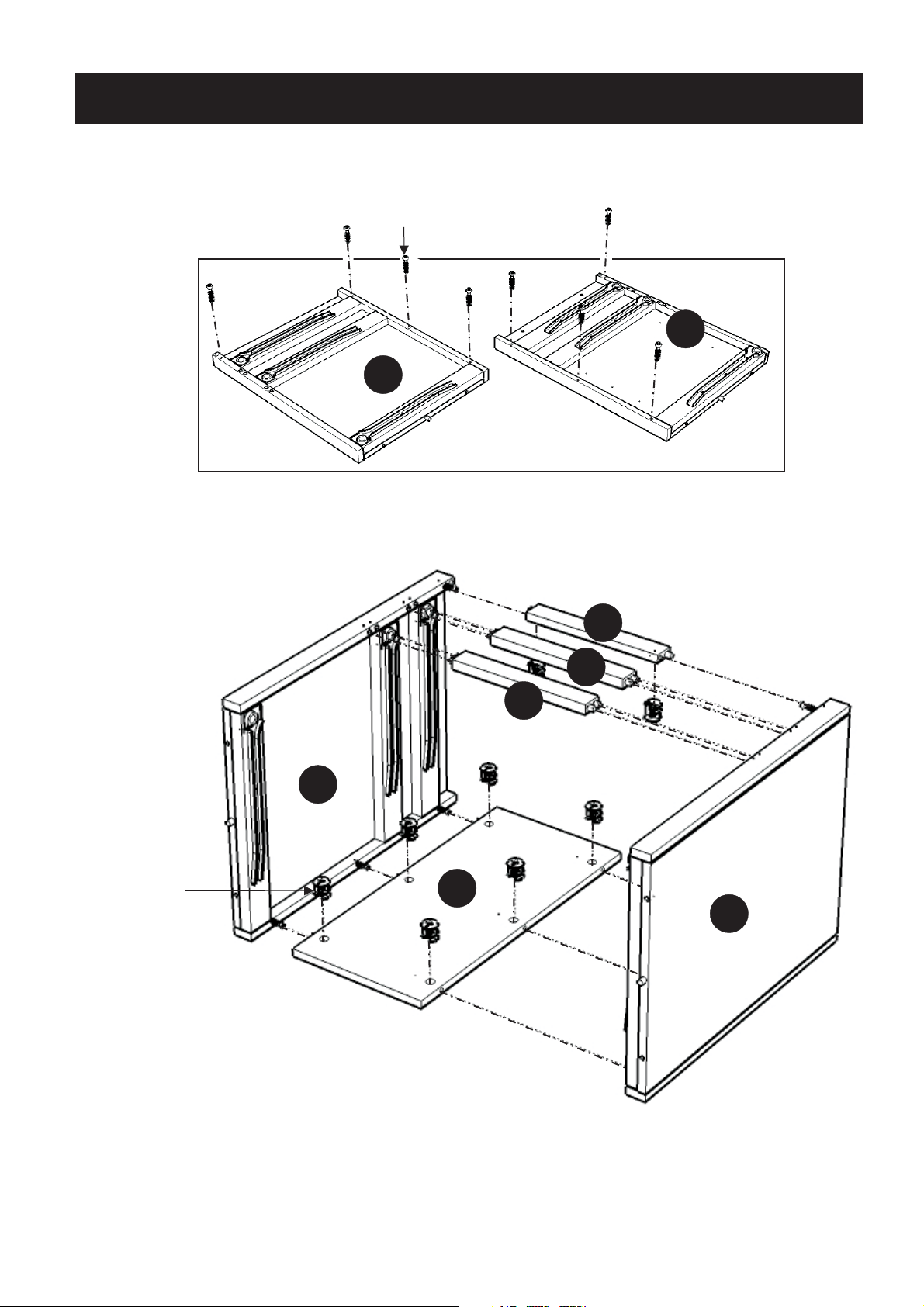

Cam Lock Screw
O
N
STEP 1
Put Cam Lock Screws into the pre-drilled holes of Side Panel (N), (O) and tighten.
Cam Lock
D
E
E
N
H
O
STEP 2
Attach Front Rail (D), (E) to Side Panel (N) using Cam Locks.Back Panel (H)
Attach Side Panel (O) to the unit using Cam Locks.
Page 7
STEP 3
Attach Base (I) to the unit with Head Cap Bolts.
Attach Leg (J) to Base (I) with Head Cap Bolts.
J
Assembly Instructions 3/5
I
K
H
J
Head Cap Bolt
K
STEP 4
Turn the unit to its upright position.
Slide Drawer (K) and (P) into place.
P
Page 8
Drawer (K)
Assembly Instructions 4/5
K3
K2
Figure 1
MAKE SURE ROLLER
IS ON THE BACK
STEP 2
Slide K5 into the grooves in K3
and K4. Be sure to push K5 all
the way forward so it meets K1.
(see Figure 2)
K3
K5
K1
K1
K4
STEP 1
Figure 2
K5
Attach K1 to K3 and K4, using
a and
Phillips screwdriver
wood screws ,
long
tighten halfway.
Attach K2 to K3 and K4 using
wood screws ,
long
tighten halfway. (see Figure 1)
(4X)
(4X)
K1
K3
K4
K2
K2
K4
Figure 3
STEP 3
Insert wood screws (6X)
into the pre-drilled holes in K5,
tighten screws. (see Figure 3)
short
Part List
K1.
Front Part
2 pcs.
K2.
Back Part
2 pcs.
K3.
Side Part
2 pcs.
Figure 4
Side Part
2 pcs.
STEP 4
Attach hardware pulls with
machine screws.
(see Figure 4)
Tighten all screws used in
drawer assembly.
K4.
K5.
Base Part
2 pcs.
Page 9

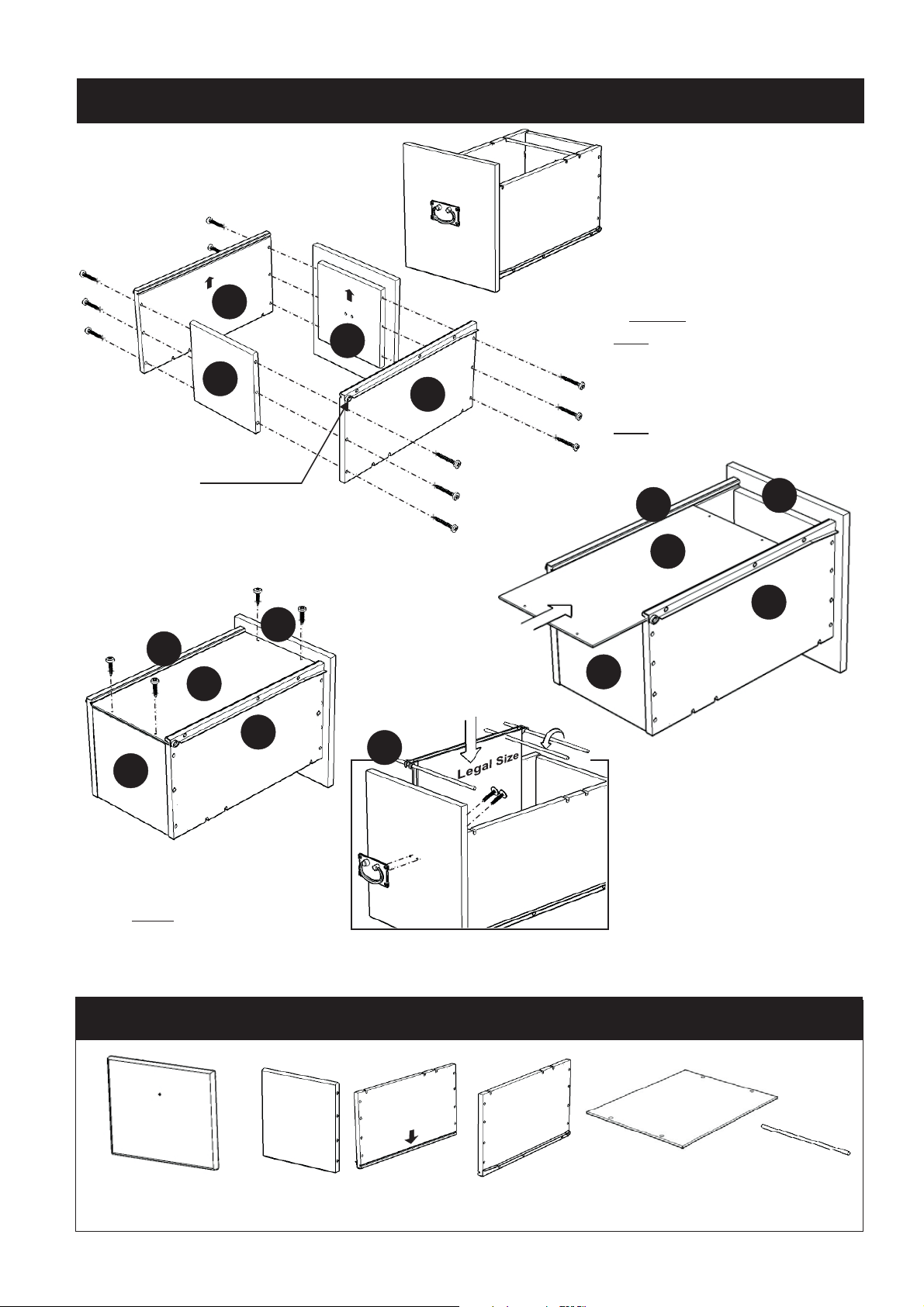

Drawer ( )P
Assembly Instructions 5/5
STEP 1
P3
P2
Figure 1
MAKE SURE ROLLER
IS ON THE BACK
STEP 2
Slide P5 into the grooves in P3
and P4. Be sure to push P5 all
the way forward so it meets P1.
(see Figure 2)
P1
P3
P5
P4
P2
P1
P6
P4
Attach P1 to P3 and P4, using
a and
long
tighten halfway.
Attach P2 to P3 and P4 using
long
tighten halfway. (see Figure 1)
Figure 2
P2
Phillips screw driver
wood screws ,
wood screws ,
P3
(8X)
(8X)
P1
P5
P4
STEP 4
Attach hardware pulls with
machine screws.
Figure 3
STEP 3
Insert wood screws (4X)
into the pre-drilled holes in P5,
tighten screws. (see Figure 3)
short
Part List
P1.
Front Part
1 pc.
P2.
Back Part
1 pc.
P3.
Side Part
1 pc.
Figure 4
P4.
Side Part
1 pc.
Remove the tape holding
the Metal Strips in place.
You can adjust the Metal Strip
for letter size or legal size
file as shown. (see Figure 4)
Tighten all screws used in
drawer assembly.
P5.
Base Part
1 pc.
P6.
Metal Strip
2 pcs.
Page 10
Computer Desk
(Cottage Oak)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

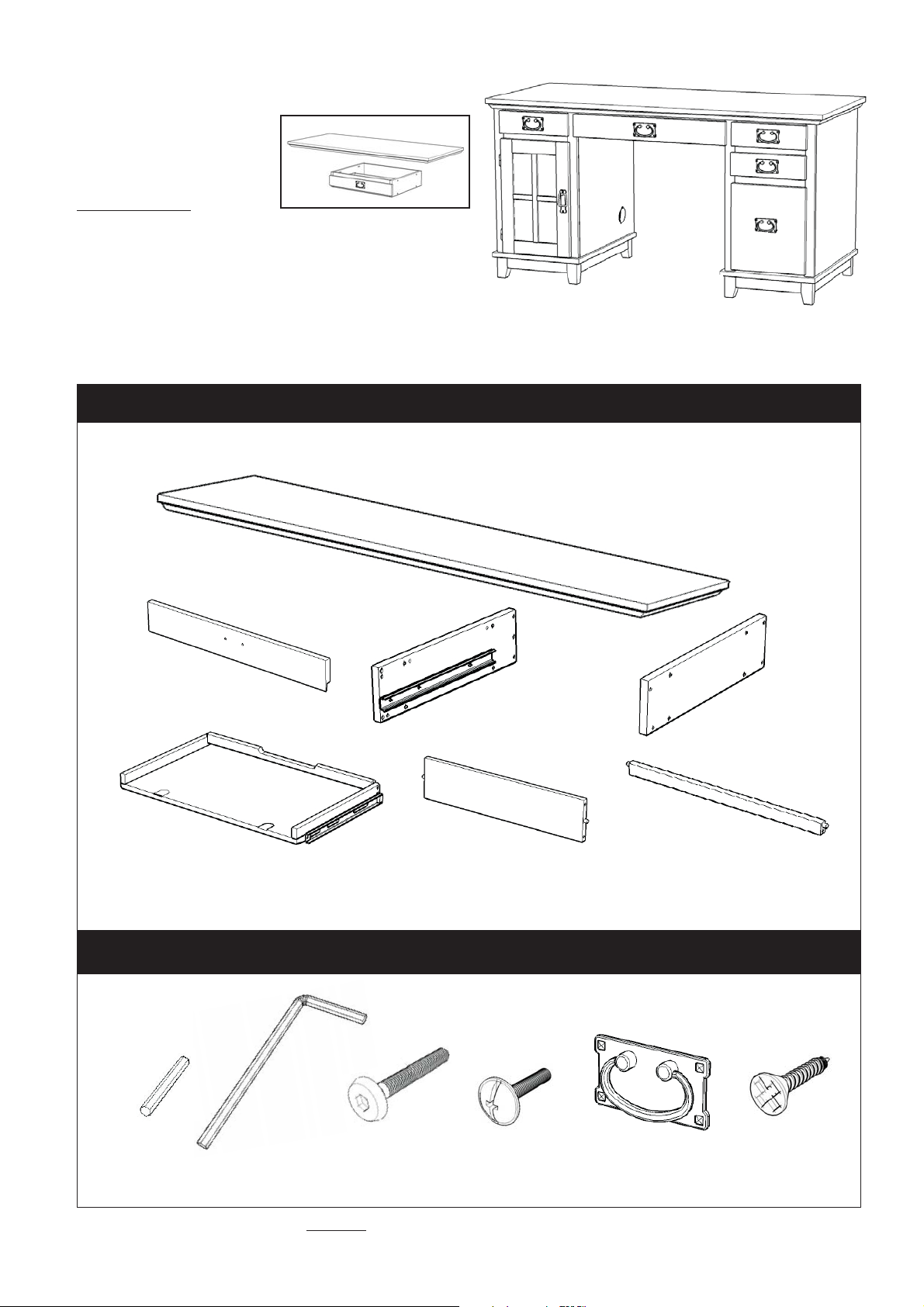

Top Unit Part List
A.
Top
1 pc.
Top Unit
B.
Front Part
1 pc.
C1.
Base
1 pc.
Hardware List
C4.
Back Part
1 pc.
C2.
Side Part
1 pc.
C3.
Side Part
1 pc.
C5.
Rail
2 pcs.
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Head Cap Bolt
24 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
Machine Screw
2 pcs.
Pull Handle
1 pcs.
Wood Screw
6 pcs. (+1 extra)
Page 11
Assembly Instructions 2/2
IMPORTANT
Do not tighten up all the screws until each part is properly assembled.
You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future.

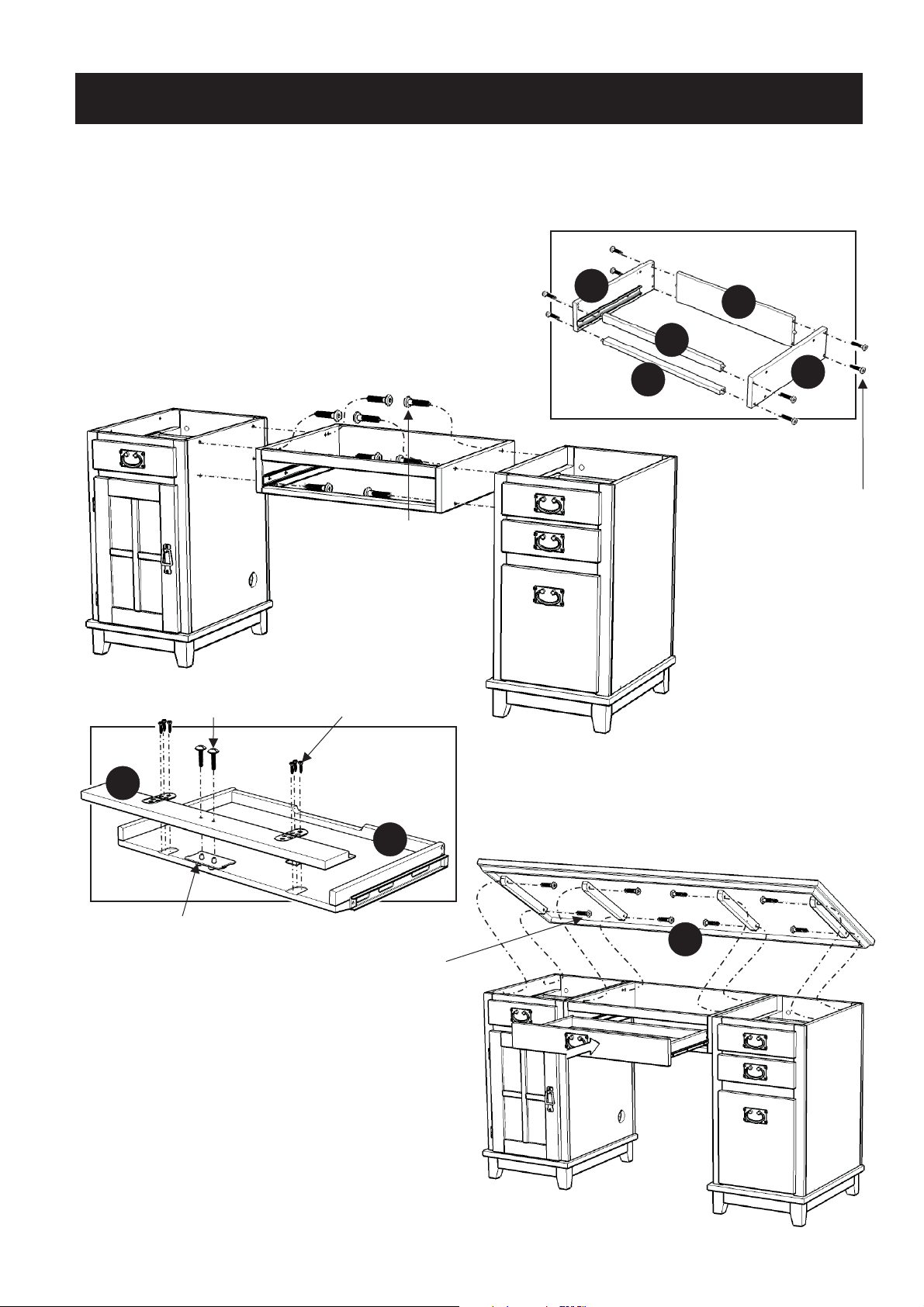

STEP 1
Attach Rail (C5) and Back Part (C4) to Side Part (C2)
with Head Cap Bolts, then attach Side Part (C3) to
the unit with Head Cap Bolts and tighten.
(see Figure 1)
C2
C4
Attach assembled drawer box in Step 1 to Left Unit
and Right Unit with Head Cap Bolts.
Head Cap Bolt
Left Units
Machine Screw
Wood Screw
B
C1
C5
C5
Figure 1
Right Unit
C3
Head Cap Bolt
STEP 2
Attach Pull Handle to Front Part (B) with
Machine Screws, then attach Front Part (B)
to Base (C1) with Wood Screws.
Pull Handle
Head Cap Bolt
STEP 3
Place Top (A) on the unit with Head Cap Bolts.
Slide drawer assembled in Step 2 into Place.
A
