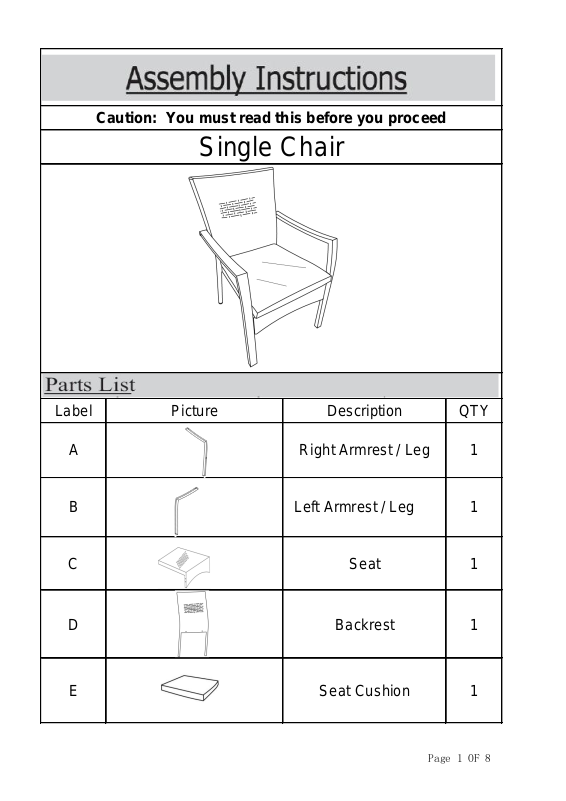

Red Barrel Studio W005486053 Installation & Assembly

Label Picture Description QTY

A Right Armrest / Leg 1

B Left Armrest / Leg 1

C Seat 1

D Backrest 1

E Seat Cushion 1

Caution: You must read this before you proceed

Single Chair

Page 1 OF 8

Label Picture Description QTY

①

Allen Key 1

②

Bolt

(M6*25mm)

5

③

Bolt

(M6*35mm)

3

④

Bolt

(M6*55mm)

3

⑤

Washer 15

⑥

Bolt

(M6*15mm)

3

⑦

PE Cap 3

Before Beginning Assembly:

Page 2 OF 8

Step 1

This Single Chair has multiple parts and may require up to 30 minutes to assemble.To
give you an overview of the Single Chair parts,the above picture is to help you put the
various parts into perspective.Please read through the instructions below to familiarise
yourself with the parts and steps before assembly.

Open the carton and place all the parts on a clean, non-marring surface.

ATTENTION: Occasionally some of the PE Wicker shifts and covers the mounting
positions preventing easy assembly.
The PE wicker should never be cut, but moved away from the mounting positions.

Attach Right Armrest / Leg(A) to the Seat(C) using Bolts(②) and Washers(⑤ ) with Allen
Key(①) as shown in the picture above.

Do not fully tighten the Bolts.

Overview

Backrest(D)

Right Armrest/Leg(A)

Seat cushion(E)

Seat (C)

Left Armrest/Leg(B)

FRONT FACING

Page 3 OF 8

Step 2

Attach Backrest(D) to Seat(C) using Bolts(③&⑥) and Washers(⑤) with Allen Key(①) as
pictured above.
Do not fully tighten the Bolts.

Step 3

Attach Left Armrest / Leg(B) to Seat(C) using Bolts(②) and Washers(⑤) with Allen
Key(①) as shown in the picture above.

Do not fully tighten Bolts.

Page 4 OF 8

Connect the Armrest(A&B) to Backrest(D) using Washers(⑤) and Bolts(④) with Allen
Key(①) as shown in the picture above.

Do not fully tighten the Bolts.

Step 4

Page 5 OF 8

Place the Single Chair on a LEVEL SURFACE to check for wobbles.
Check for stability and then tighten all Bolts at all joints.

If it wobbles, lift the Single Chair some 30cm to 50cm high from the ground.
Keep your feet and toes well away from the drop zone.
Drop the Single Chair freely and vertically with all four legs, hitting the ground, all at
the same time.
This Drop Test will help to ensure that all the Bolts and gaps reach full alignment
status.
Test again for evenness on a LEVEL SURFACE.
If no wobbles are found, slowly and steadily, place the Single Chair facedown.
Then, proceed to tighten all Bolts in a sequential manner.
When tightening the Bolts, tighten sequentially.
DO NOT tighten any Bolt fully and then move on towards the next one.
This could cause the frame to warp. If there are still wobbles, loosen the Bolts and
execute the same drop test.
If the Single Chair is not stable, it could lead to damage to the product.

Step 5

Page 6 OF 8

Place the Seat Cushion(E) on the Chair.
Your Single Chair is ready for use.

This Single Chair can only be used on a flat, level surface.

Step 6

And place PE Caps(⑦) on Bolts as shown.

Step 7

Page 7 OF 8
