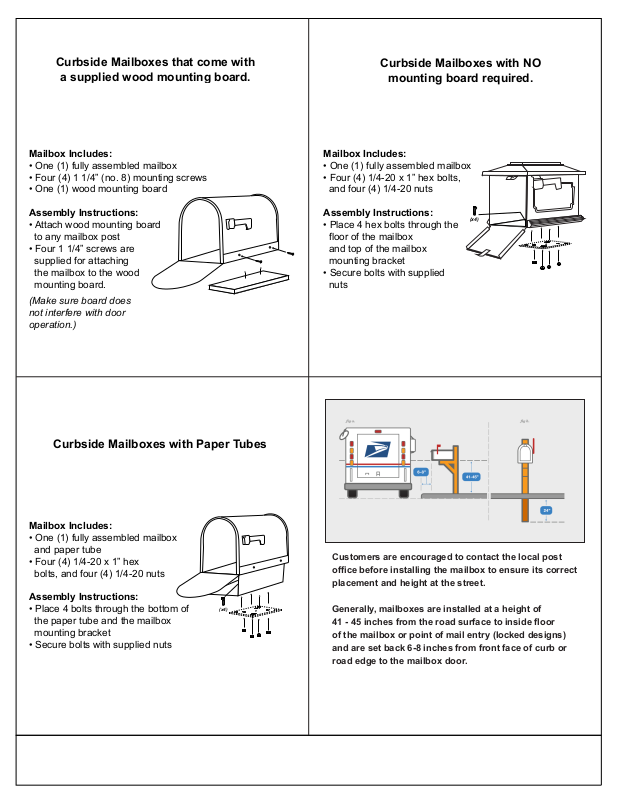

Page 1
Curbside Mailboxes that come with
a supplied wood mounting board.
Curbside Mailboxes with NO
mounting board required.
Mailbox Includes:
• One (1) fully assembled mailbox
• Four (4) 1 1/4” (no. 8) mounting screws
• One (1) wood mounting board
Assembly Instructions:
• Attach wood mounting board
to any mailbox post
• Four 1 1/4” screws are
supplied for attaching
the mailbox to the wood
mounting board.
(Make sure board does
not interfere with door
operation.)
Curbside Mailboxes with Paper Tubes
Mailbox Includes:
• One (1) fully assembled mailbox
• Four (4) 1/4-20 x 1” hex bolts,
and four (4) 1/4-20 nuts
Assembly Instructions:
• Place 4 hex bolts through the
floor of the mailbox
and top of the mailbox
mounting bracket
• Secure bolts with supplied
nuts
(x4)
Mailbox Includes:
• One (1) fully assembled mailbox
and paper tube
• Four (4) 1/4-20 x 1” hex
bolts, and four (4) 1/4-20 nuts
Assembly Instructions:
• Place 4 bolts through the bottom of
the paper tube and the mailbox
mounting bracket
• Secure bolts with supplied nuts
(x4)
Customers are encouraged to contact the local post
office before installing the mailbox to ensure its correct
placement and height at the street.
Generally, mailboxes are installed at a height of
41 - 45 inches from the road surface to inside floor
of the mailbox or point of mail entry (locked designs)
and are set back 6-8 inches from front face of curb or
road edge to the mailbox door.
