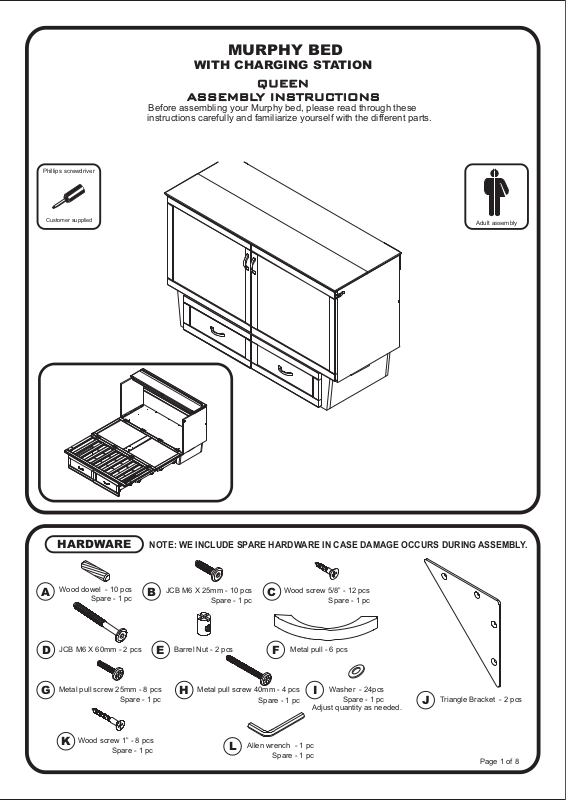

Page 1
Phillips screwdriver
MURPHY BED
WITH CHARGING STATION
QUEEN
ASSEMBLY INSTRUCTIONS
Before assembling your Murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
Customer supplied
Adult assembly
HARDWARE
Wood dowel - 10 pcs
JCB M6 X 60mm 2- pcs Barrel Nut 2- pcs
DE
Metal pull screw 25mm - 8 pcs
G
K
Spare - 1 pc
Spare - 1 pc
Wood screw ” - pcs18
Spare - 1 pc
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
JCB M6 X 25mm - 10 pcs
BA
H
Spare - 1 pc
Metal pull screw 40mm - 4 pcs
Spare - 1 pc
Allen wrench - 1 pc
L
Wood screw 5/8” - 12 pcs
C
Metal pull - 6 pcs
F
Spare - 1 pc
Spare - 1 pc
Washer - 24pcs
I
Adjust quantity as needed.
Spare - 1 pc
Triangle Bracket - 2 pcs
J
Page 1 of 8
Page 2
MURPHY BED
WITH CHARGING STATION
QUEEN
PARTS LIST
03
02
06
07
09
01
HARDWARE
02
TOP PANEL
03
LEFT SIDE PANEL
04
RIGHT SIDE PANEL
05
DOOR
06
BACK PANEL
07
MIDDLE BACK RAIL
08
DRAWER BASE
09
FOLDING MATTRESS
STEP 1
05
06
1 BOX
08
1 BOX
1 BOX
Insert all wooden dowels (A) into the locator holes on (03)(04) and (0 ) as shown below.8
A
A
04
01
A
A
A
A
08
03
A
04
Adult assembly
A
Wooden dowel
A
A
A
Page 2 of 8
Page 3
STEP 2
MURPHY BED
WITH CHARGING STATION
QUEEN
Attach left and right side panels (03) and (04) to the drawer base (0 ) as shown below.8
Using JCB (B) tighten with Allen wrench ( )L
03
Adult assembly
B
STEP 3
B
B
B
08
B
B
B
Guide the back panel (0 ) in carefully so that it won’t jump out of its grooves. Be sure6
it fits fully into its groove at the .top panel base
04
JCB M6 X 25mm
L
Allen wrench
06
Adult assembly
Page 3 of 8
Page 4
STEP 4
MURPHY BED
WITH CHARGING STATION
QUEEN
Guide the (0 ) in carefully so that it won’t jump out of its grooves.middle back rail 7
Using JCB (D) and barrel nut (E). Tighten with Allen wrench (L).
E
07
07
D
Adult assembly
E
D
STEP 5
E
JCB M6 X mm60
D
Allen wrench
Guide the back panel (0 ) in carefully so that it won’t jump out of its grooves. Be sure6
it fits fully into its groove at the .middle back rail Attach top panel (02) to cabinet
assembly as shown below. Use JCB (B). Tighten with Allen wrench (L).
02
E
Barrel Nut
L
B
B
BOTTOM VIEW
06
B
B
Adult assembly
B
B
JCB M6 X 25mm
L
Allen wrench
Page 4 of 8
Page 5
STEP 6
MURPHY BED
WITH CHARGING STATION
QUEEN
Install metal pull (F) to the locator holes on (05) as shown below. Using metal
pull screw (G) and washers (I) tighten with Phillips screwdriver (customer supplied).
I
I
G
G
G
F
F
STEP 7
G
I
I
G
G
Adult assembly
Back view
05
F
F
F
Metal pull screw
Adjust quantity
Phillips screwdriver
Customer supplied
Pull out drawer base as shown below. Install metal pull (F) Using metal pull screw (H),
and washers (I). Tighten with Phillips screwdriver (customer supplied).
Metal pull
G
I
Washer
as needed
Back view
I
I
H
Adult assembly
F
Metal pull
H
H
Metal pull screw
I
Washer
Adjust quantity
H
H
F
F
H
H
as needed
Phillips screwdriver
Customer supplied
Page 5 of 8
Page 6
MURPHY BED
WITH CHARGING STATION
QUEEN
STEP 8
Lay the door down flat as shown below. Attach door hinge to drawer base using wood
screw (C) and tighten with Phillips screwdriver (customer supplied ).
Note: Be sure to align door with side panels in this step.
Adult assembly
C
C
C
C
C
C
Wood screw 5/8”
Phillips screwdriver
Customer supplied
STEP 9
1
Lift the door and fold as shown below.
2
Lift the door and latch to side panel as
shown below.
Page 6 of 8
Page 7
MURPHY BED
WITH CHARGING STATION
QUEEN
STEP 10
Push the door closed and latch both sides as shown below.
Adult assembly
Lock
STEP 11
Attach triangle bracket (J) to the back of cabinet as shown below. Use wood screw (K)
tighten with Phillips head screwdriver. (customer supplied).
J
K
Adult assembly
J
K
J
Triangle bracket
K
Wood Screw 1”
Page 7 of 8
Page 8
MURPHY BED
WITH CHARGING STATION
QUEEN
STEP 12
Adult assembly
Pull the drawer out fully. Unlatch the door and open, folding down as shown.
Open
STEP 13
09
Install folding mattress (09) to the bed. Open top panel and push drawer base in as
shown below.
Adult assembly
09
Congratulations!
Your bed is now ready for use.
We recommend that you recheck that all screws are tight,
and that all parts are secure before use to ensure lasting Safety.
Page 8 of 8
