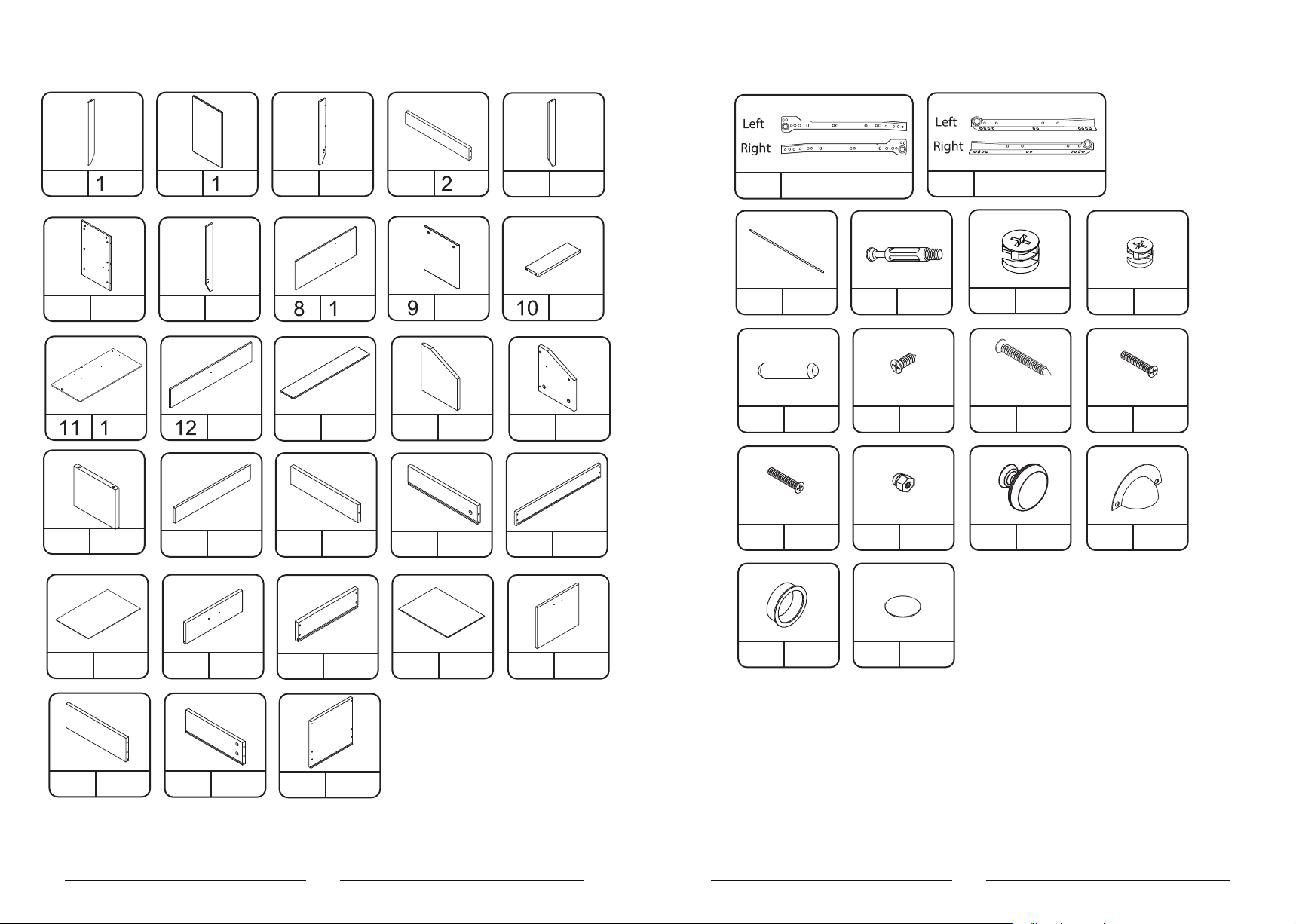

STEP 1
STEP
Insert twenty Dowels (C) into the boards shown below.
C 20PC
STEP

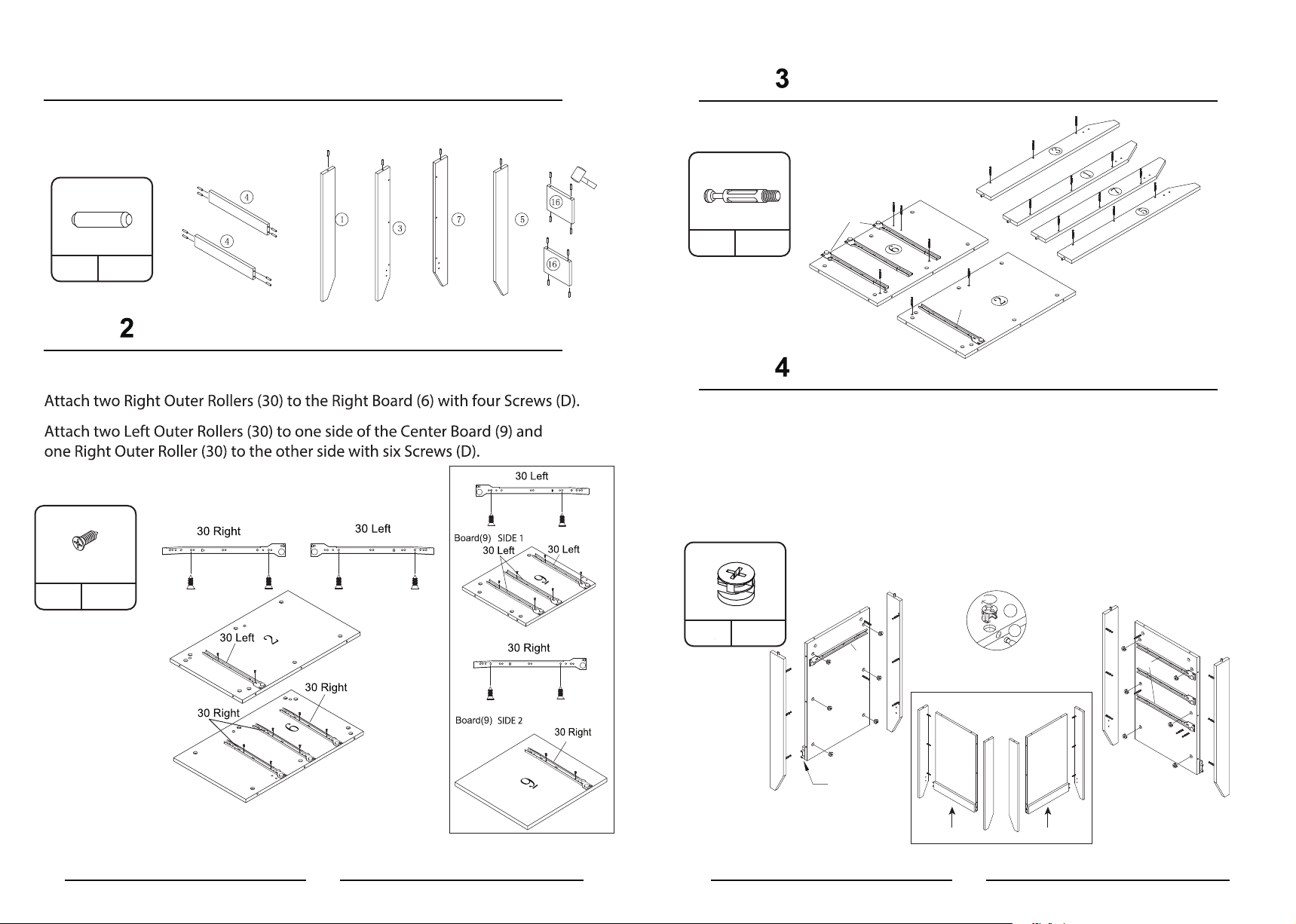

Attach a Left Outer Roller (30) to the Left Board (2) with two Screws (D).
Refer to the drawings for which holes in the rollers to use.
Fix eighteen Bolts (A) to the Boards shown below.
30 Right
A 18PC
30 Left
STEP
Insert twelve Large Cams (B1) into the Left (2) and Right (6) Boards. Make sure
the arrows are pointing toward the holes where the bolts go in.
Attach the Left Corner Boards, Front (1) and Back (3) to the Left Board (2) and
one Trim Board (4) by inserting the Bolts and turning the Cams clockwise half
a turn to lock into place. At the same time, insert the dowels of the Trim Board (4)
into the holes of the Front and Back Boards.
Attach the Right Corner Boards, Front (5) and Back (7) to the Right Board (6) and
the other Trim Board (4) in the same way.
M4 x 14MM
D 16PC
B1 12PC
B1
30 Left
1
2
4
3
PLACE PART 4 ON THE
3
2
4
A
CAUTION:
Do not overtighten
cams.
OPPOSITE SIDE
5
1
7
30 Right
6
5
7
6
4
43
Page 4
STEP 5

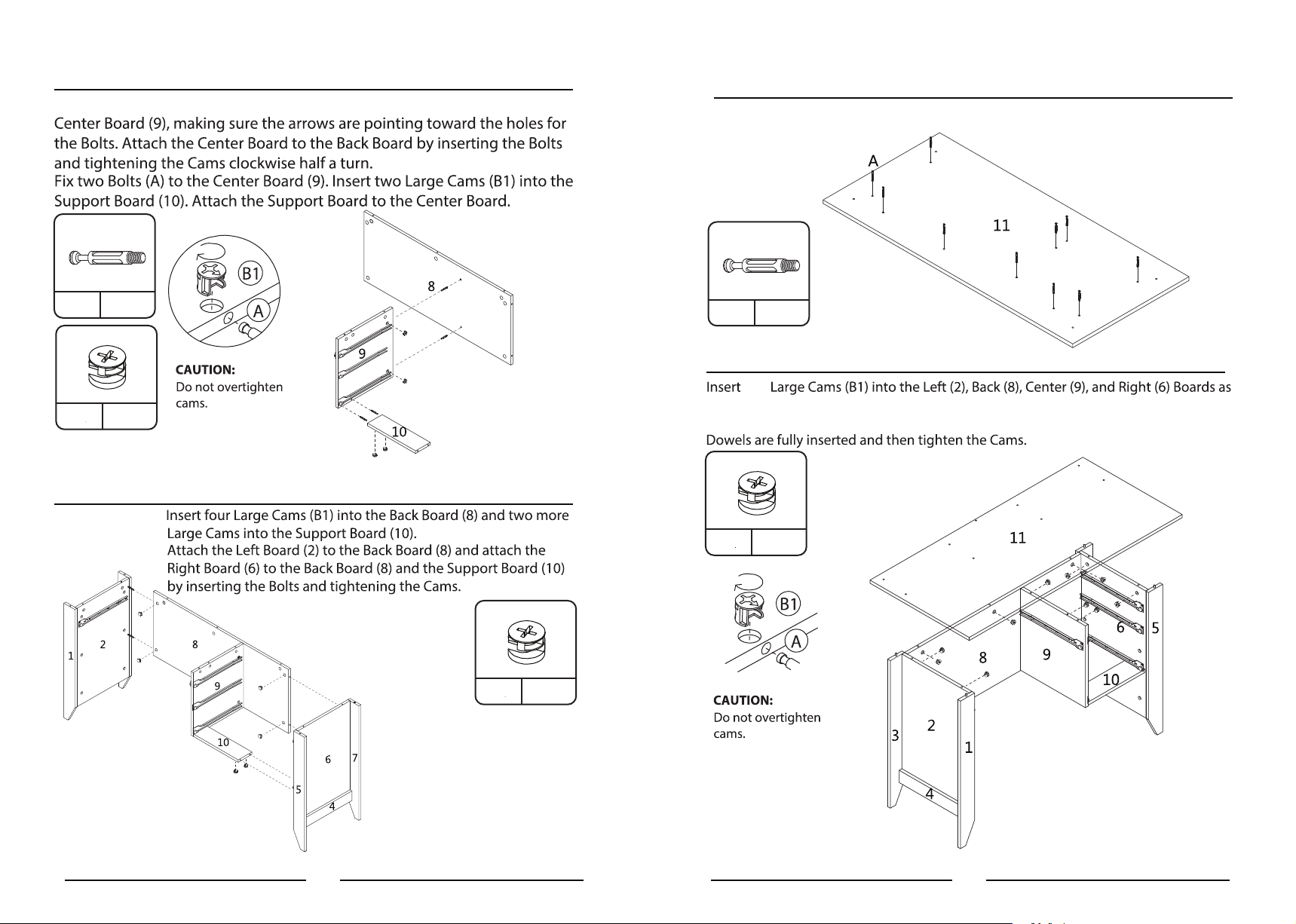

Fix two Bolts (A) to the Back Board (8). Insert two Large Cams (B1) into the
STEP 7
Fix ten Bolts (A) to the underside of the Desktop (11).
A 4PC
B1 4PC
STEP 6
A 10PC
STEP 8
ten
shown. Align the Bolts in the Desktop (11) with the holes and the Dowels in
the lower part of the desk. Lower the Desktop making sure all Bolts and
B1 10PC
B1 6PC
65
Page 5
STEP 9
STEP 11

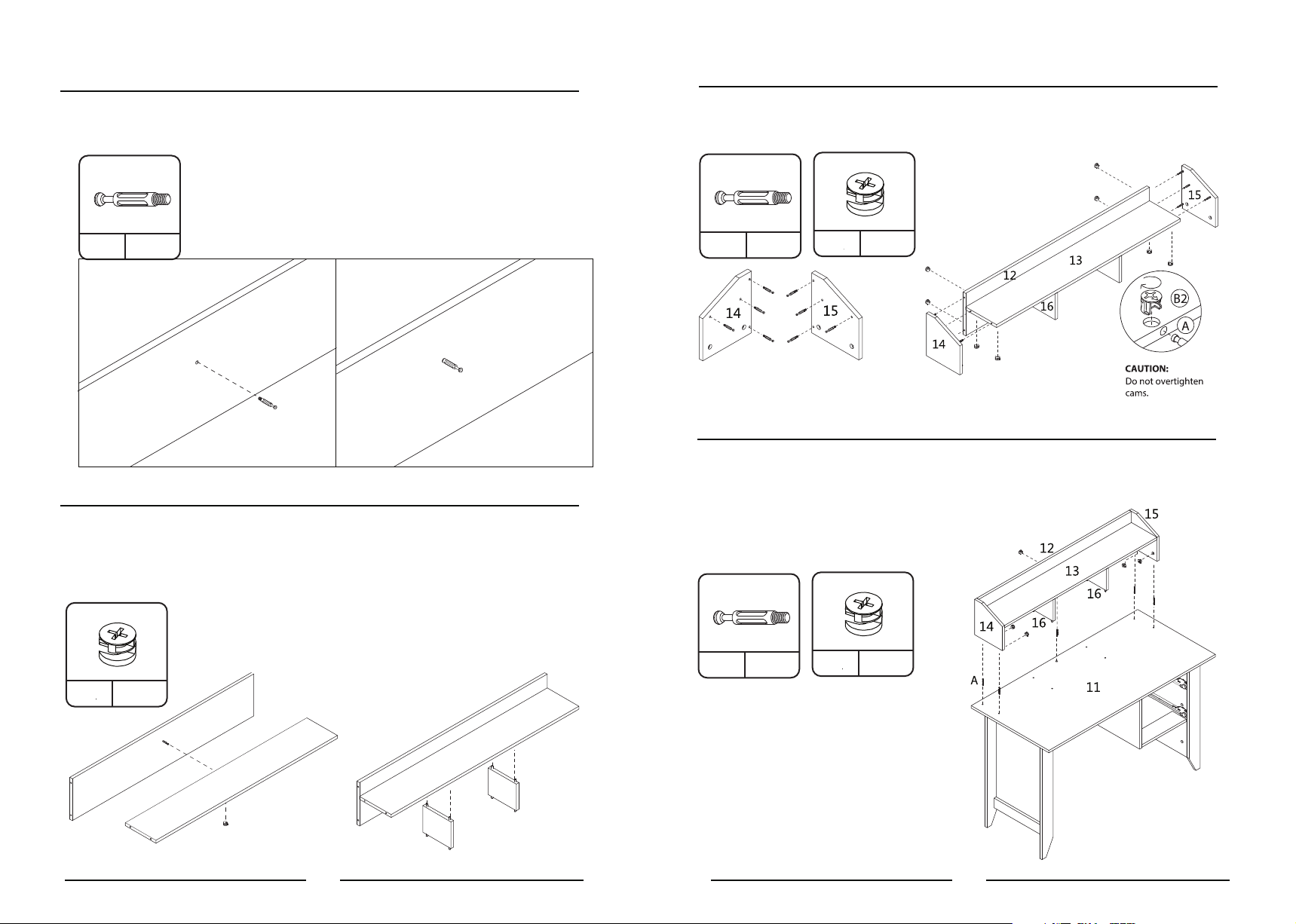

Fix one Bolt (A) to the center of the Hutch Back (12).
A 1PC
12
12
STEP 10
Insert a Small Cam (B2) into the Hutch Shelf (13). Attach the Hutch Back (12) to the
tightening the Cam. Attach the two Hutch
Hutch Shelf by inserting the Bolt and
Center Boards (16) to the underside of the Shelf (13) by aligning the Dowels with
the holes and pressing the boards together until tight.
Fix eight Bolts (A) to the Hutch Right (15) and Left (14) Boards. Insert eight Small
Cams (B2) into the Hut
Hutch Shelf (13).
Boards to the Back and the Shelf by inserting the Bolts and tightening the Cams.
A
8PC
ch Back (12) and
B2
8PC
Attach the Right and Left
STEP 12
Fix five Bolts (A) to the Desktop (11). Insert five Small Cams (B2) into the Hutch
Right Board (15), Hutch Left Board (14), and Hutch Back (12). Attach the Hutch
to the Desktop by lowering it onto the Bolts and tightening the Cams. At the
same time, make sure that the Dowels in the Hutch Center
Boards (16) are aligned and tight in the other
four holes on the Desktop.
B2 1PC
12
13
B2
12
16
13
16
A
5PC
B2 5PC
87
Page 6
STEP 13
STEP 15

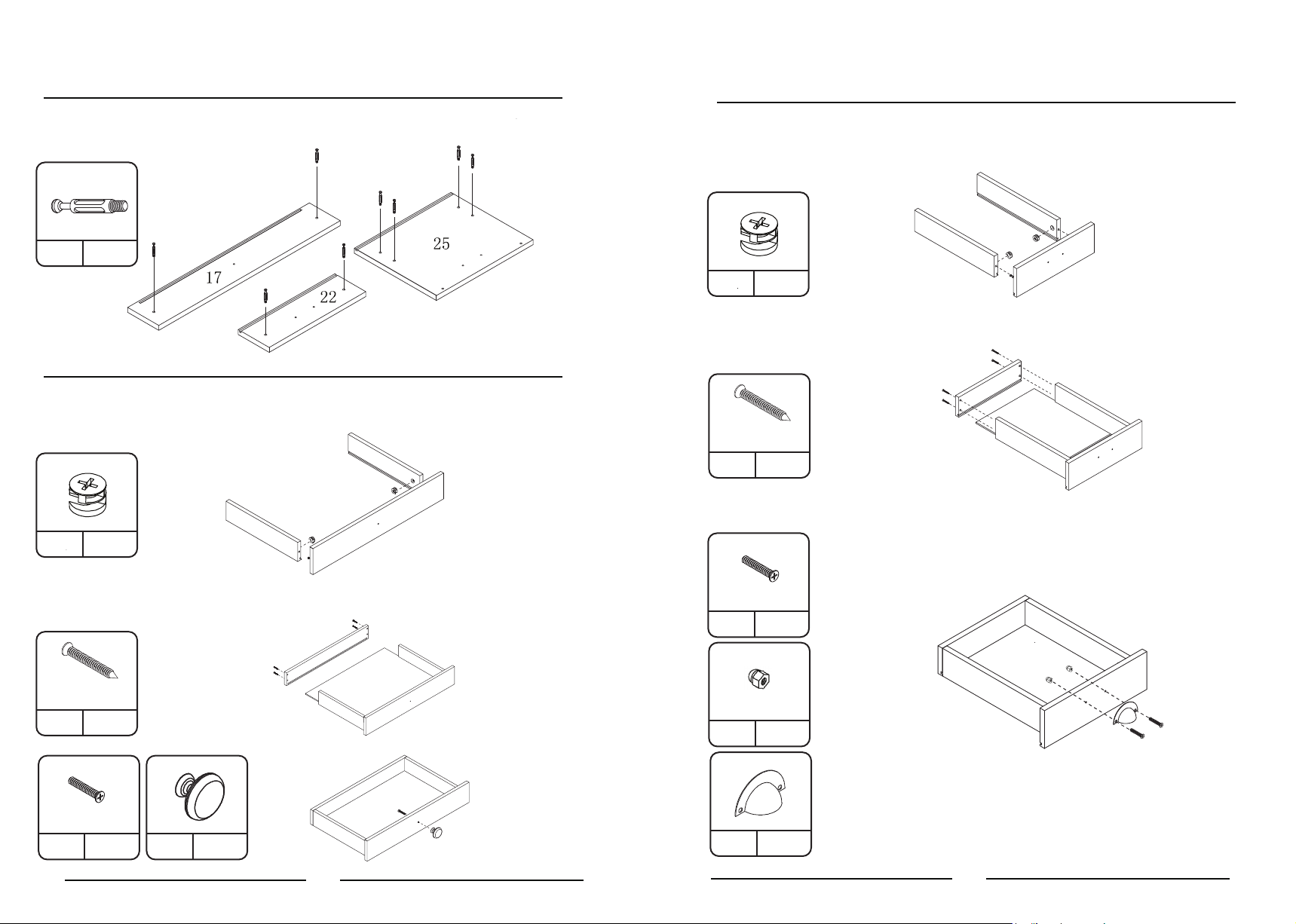

Fix two Bolts (A) to the Medium Drawer Front (17), four Bolts to the
Large Drawer Front (25), and two Bolts to the Small Drawer Front (22).
A
A 10PC
STEP 14
Insert one Small Cam (B2) into the Drawer Right Board (19) and one into
the Drawer Left Board (18). Making sure the grooves are aligned, attach the
Medium Drawer Front (17) to the Right and Left Boards by inserting the Bolts and
tightening the Cams.
19
18
B2 2PC
17
Insert one Small Cam (B2) into the Drawer Right Board (19) and one into the
Drawer Left Board (18). Making sure the grooves are aligned, attach the Small
Drawer Front (22) to the Right and Left Boards by inserting the Bolts and
tightening the Cams.
19
18
22
B2 4PC
Slide Drawer Bottom B (24) into the grooves. Align the groove in the Small
Drawer Back (23) with the Drawer Bottom and fasten it to the Right (19) and
Left (18) Boards using four Screws (E).
23
19
M5 x 40MM
18
24
22
E 8PC

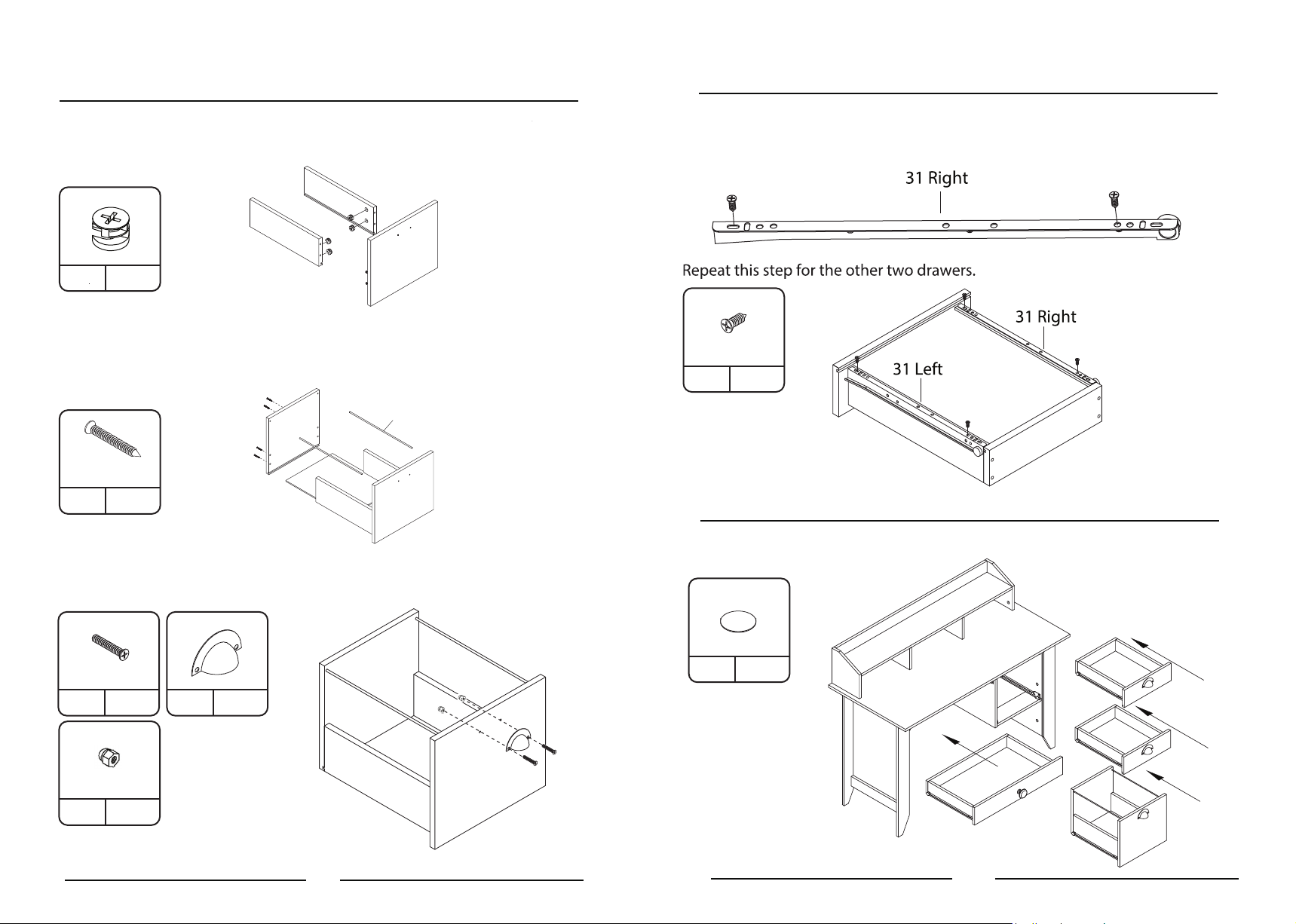

Attach a Large Handle (I) to the Drawer Front (22) using two Screws (F1) with
two Nuts (G).
Slide Drawer Bottom A (21) into the grooves. Align the groove in the Medium
Drawer Back (20) with the Drawer Bottom and fasten it to the Right (19) and Left (18)
Drawer Boards using four Screws (E).
20
21
M5 x 40MM
18
19
17
E 4PC
Attach the Small Handle (H) to the Drawer Front (17) using one Screw (F2).
M4 x 18MM
17
F2 1PC H 1PC
9
M4 x 22MM
F1 4PC
G 4PC
I 2PC
G
22
F1
10
Page 7
STEP 16
STEP 17
Insert two Small Cams (B2) into the Large Drawer Right (27) and two into the
Large Drawer Left (26). Making sure the grooves are aligned, attach the
Large Drawer Front (25) to the Right and Left Boards by inserting the Bolts
and tightening the Cams.
27
26
25
B2 4PC
Slide Drawer Bottom B (24) into the grooves. Align the groove in the
Large Drawer Back (28) with the Drawer Bottom and fasten it to the
Right (27) and Left (26) Boards using four Screws (E). At the same time,
insert the File Holders (32) into the holes at the top of the Front and
Back Boards.
28
M5 x 40MM
E 4PC
Attach a Large Handle (1) to the Drawer Front (22) using two Screws (F1)
with two Nuts (G).
24
26
32
27
25
Flip over the assembled drawer and attach a Right lnner Roller (31) and Left lnner
Roller (31) with four Screws (D).The wheels should be at the back of the drawer.
Use the outer holes for the screws as shown in the drawing.
M4 x 14MM
D 16PC
STEP 18
Align the inner and outer rollers and insert the drawers. Place the Stickers (K) over the
exposed Cams.
M4 x 22MM
F1 2PC
G 2PC
I 1PC
11
G
K 24PC
F1
12
Page 8

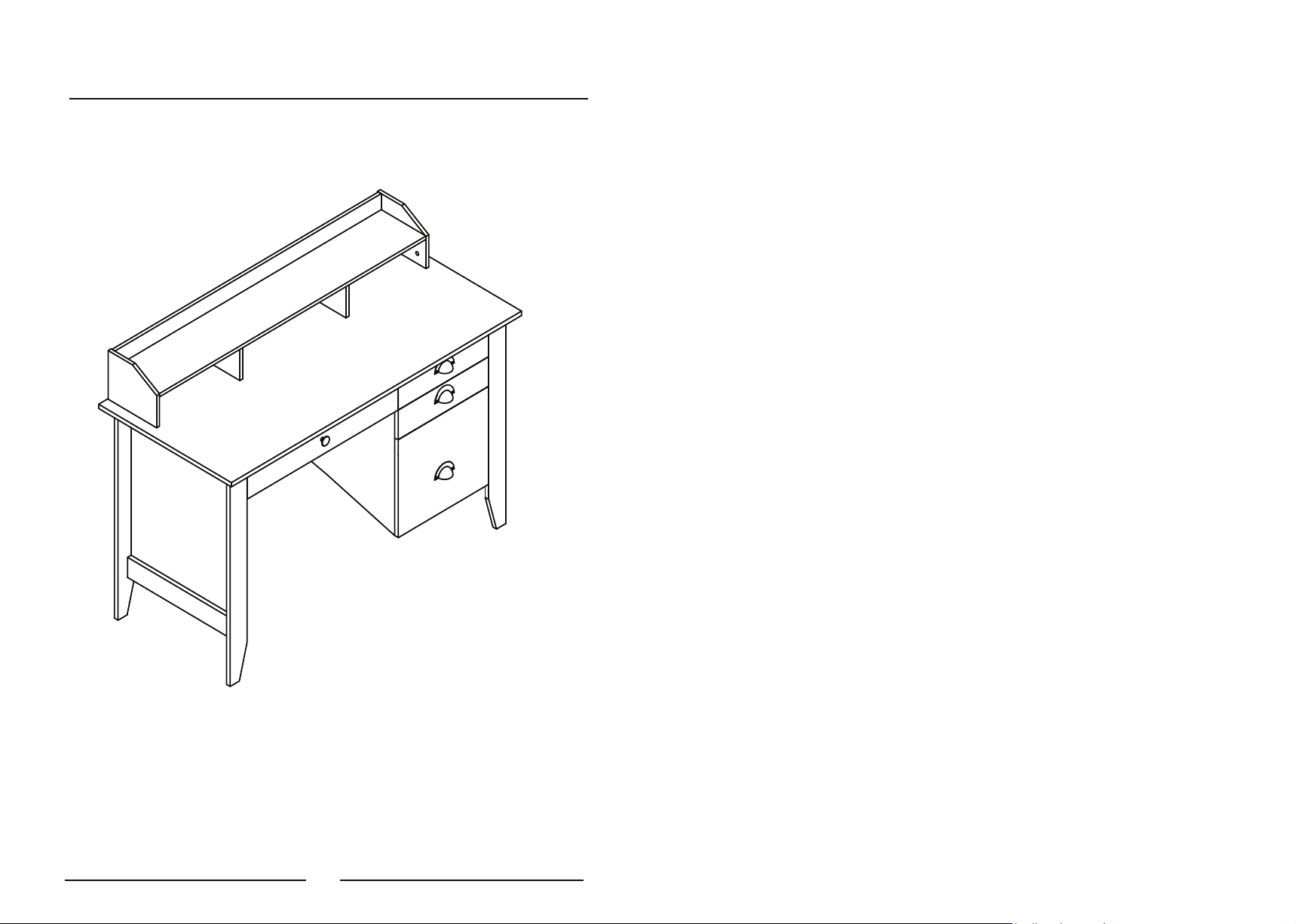

STEP 19
