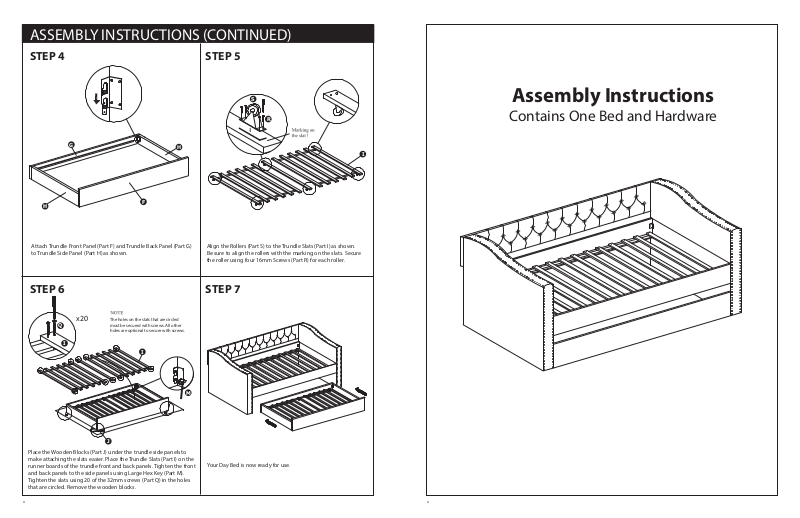

Page 1
ASSEMBLY INSTRUCTIONS (CONTINUED)
STEP 4
G
H
Attach Trundle Front Panel (Part F) and Trundle Back Panel (Part G)
to Trundle Side Panel (Part H) as shown.
F
H
STEP 5
S
R
Align the Rollers (Part S) to the Trundle Slats (Part I) as shown.
Be sure to align the rollers with the marking on the slats. Secure
the roller using four 16mm Screws (Part R) for each roller.
Assembly Instructions
Contains One Bed and Hardware
I
STEP 6
x20
Q
I
Place the Wooden Blocks (Part J) under the trundle side panels to
make attaching the slats easier. Place the Trundle Slats (Part I) on the
runner boards of the trundle front and back panels. Tighten the front
and back panels to the side panels using Large Hex Key (Part M).
Tighten the slats using 20 of the 32mm screws (Part Q) in the holes
that are circled. Remove the wooden blocks.
The holes on the slats that are circled
must be secured with screws. All other
holes are optional to secure with screws.
I
M
J
STEP 7
Your Day Bed is now ready for use.
A A
Page 2
IMPORTANT NOTE:
Carefully remove all the parts from the box. Arrange on a at
surface and verify you have all of the following parts and hardware.
PARTS LIST
A. Arm (2 pcs) B. Back Panel (1 pc) C. Roll Out Slats (1 pc)
TOOLS REQUIRED:
Phillips Screwdriver
D. Front Side Panel (1 pc)
ASSEMBLY INSTRUCTIONS
STEP 1
A2
A2
A1
E. Back Side Panel (1 pc)
H. Trundle Side Panel (2 pcs)
F. Trundle Front Panel (1 pc)
G.
Trundle Back Panel (1 pc)
I. Trundle Slats (1 pc) J. Wooden Block (4 pcs)
K
E
M
A1
Attach the Front Side Panel (Part D) and the Back Side Panel (Part E) to the Arms (Part A1 & A2) as shown.
Use 20mm Bolt (Part K) to secure the Side Rails to the Arms using Large Hex Key (Part M).
STEP 2
A1
STEP 3
D
HARDWARE LIST
K. 20mm Bolt
(8 pcs)
O. Spring Washer
(4 pcs)
L. 50mm Bolt
(8 pcs)
P. Flat Washer
(4 pcs)
M. Large Hex Key
(1 pc)
Q. 32mm Screw
(64 pcs)
R. 16mm Screw
(24 pcs)
N. Small Hex Key
(1 pc)
S. Roller
(6 pcs)
B
L
P
A2
Attach the Back Panel (Part B) to the Arms using four 50mm Bolts
(Part L), four Spring Washers (Part O), four Flat Washers (Part P) and
Small Hex Key (Part N).
O
N
M
C
Q
The holes on the slats that are circled
must be secured with screws. All other
C
Place the Roll Out Slats (Part C) on the runner boards of the siderails.
Tighten the side panels to the arms using Large Hex Key (Part M).
Secure the slats to the side panels using twelve 32mm Screws (Part Q)
in the holes that are circled.
holes are optional to secure with screws.
A A
(Continued on back)
