Page 1
Printed in Vietnam

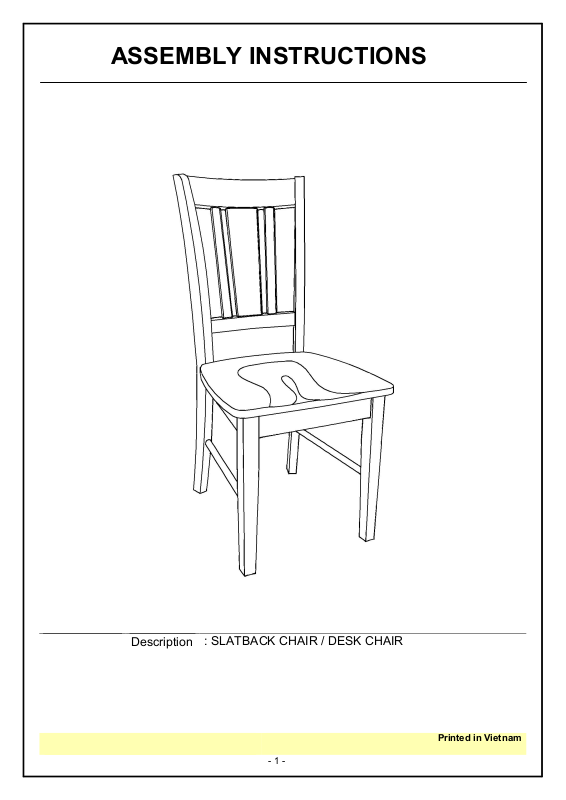

ASSEMBLY INSTRUCTIONS
- 1 -
Description
: SLATBACK CHAIR / DESK CHAIR
Page 2
Printed in Vietnam
BEFORE ASSEM
B
LY
PART
LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
NOT INCLUDED
Thank you for purchasing this quality product. This product has been designed for easy assembly and
constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning
assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is
missing or defective, please contact the store where purchased. If hardware is missing, or you need help with
assembly.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from
being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
ASSEMBLY TOOLS REQUIRED
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have the following parts:
A Back 1
Side stretcher
C
E Seat 1
(L-R)
2
B Seat frame 1
D Front leg (L-R) 2
- 2 -
Page 3
Printed in Vietnam
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
STEP 1
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
1
Short bolt
(M6x40mm)
3
2
3
Long bolt
(M6x80mm)
4
4
Medium bolt
(M6x60mm)
Flat washer
(6.5x19mm)
4
11
5
7
Screw
(M4x35mm)
Lock washer
(6.5x11mm)
8
11
6
Allen key
(4x80mm)
1
Attach seat frame (B) to back (A) with bolts (3) and (1), washers (4) and (7) as shown below. Tighten
with allen key (6).
Note: DO NOT fully tighten any of the bolts, until the chair is assembled, then put on a flat level
surface to make sure the chair is level and then tighten the bolts.
- 3 -
Page 4
Printed in Vietnam
STEP 2
STEP 3
Attach front legs (D) to the seat frame with bolts (2), washers (4) and (7). Tighten with allen key (6).
Place side stretchers (C) between front and back legs. Attach stretchers with the screws (5) as shown
below. Tighten with a screwdriver.
Attach the seat (E) to top of the seat frame (from Step 2) with screws (5) as shown below. Tighten with
a screwdriver.
- 4 -
