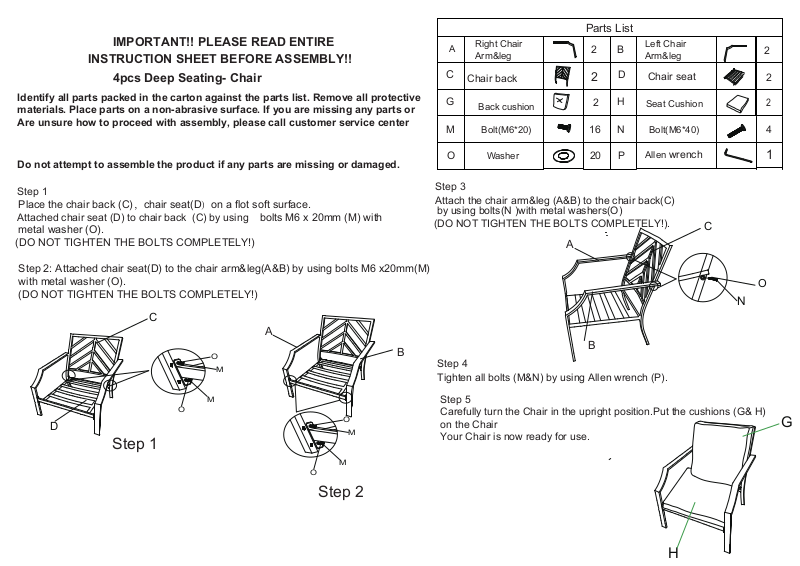

Page 1
IMPORTANT!! PLEASE READ ENTIRE
INSTRUCTION SHEET BEFORE ASSEMBLY!!
4pcs Deep Seating- Chair
A
C
Chair back
Right Chair
Arm&leg
Parts List
2 B
D
2
Left Chair
Arm&leg
Chair seat
2
2
Identify all parts packed in the carton against the parts list. Remove all protective
materials. Place parts on a non-abrasive surface. If you are missing any parts or
Are unsure how to proceed with assembly, please call customer service center
Do not attempt to assemble the product if any parts are missing or damaged.
Step 1
Place the chair back (C)，chair seat(D) on a flot soft surface.
bolts M6 x 20mm (M) with
Attached chair seat (D) to chair back (C) by using
metal washer (O).
(DO NOT TIGHTEN THE BOLTS COMPLETELY!)
Step 2: Attached chair seat(D) to the chair arm&leg(A&B) by using bolts M6 x20mm(M)
with metal washer (O).
(DO NOT TIGHTEN THE BOLTS COMPLETELY!)
C
A
O
M
B
G
M
O
Step 3
Attach the chair arm&leg (A&B) to the chair back(C)
by using bolts(N )with metal washers(O)
(DO NOT TIGHTEN THE BOLTS COMPLETELY!).
Back cushion
Bolt(M6*20)
Washer
2
16
20
H
N
P
Seat Cushion
Bolt(M6*40)
Allen wrench
A
B
Step 4
Tighten all bolts (M&N) by using Allen wrench (P).
2
4
1
C
O
N
D
Step 1
M
O
O
M
M
O
Step 5
Carefully turn the Chair in the upright position.Put the cushions (G& H)
on the Chair
Your Chair is now ready for use.
G
Step 2
H
Page 2
IMPORTANT!! PLEASE READ ENTIRE
INSTRUCTION SHEET BEFORE ASSEMBLY!!
NO.
Description
Sketch
PART LIST
Qty
NO.
Description
Sketch
Qty
4PC SEATING SET-COFFEE TABLE
Identify all parts packed in the carton against the parts list. Remove all protective materials.
Place parts on a non-abrasive surface. If you are missing any parts or are unsure how to proceed
with assembly, please call our customer service center
Do not attempt to assemble the product if any parts are missing or damaged.
Step 2:
Attach the leg connector(J) to the leg(K) by using M6 allen bolts (L)
and washers (O).Ensure all bolts are aligned and assembled correctly.
Tighten all M6 bolts (L) with the wrench (P).
Step 1:
Place the table top(I)on a soft, flat non-abrasive surface. Attach the leg (K) to
the table top(A) using M6 allen bolts (L) and M6 washers (O).
L
O
L
O
I J
Table top
Table
K L
Leg
O
washer
1
2
10
J
Table
connector
P
K
M6x15mm
allen bolt
Allen wrench
I
1
10
1
o
L
Step 3:
With the assistance of another person,
carefully turn the table over right sideup.
The coffee table is ready for your enjoyment.
I
K
Page 3
IMPORTANT!! PLEASE READ ENTIRE
INSTRUCTION SHEET BEFORE ASSEMBLY!!
4pcs deep seating-Loveseat
Right Loveseat
A
Arm&leg
E
Loveseat seat
Parts List
1 B
F
1
Left Loveseat
Arm&leg
Loveseat back
1
1
Identify all parts packed in the carton against the parts list. Remove all protective
materials. Place parts on a non-abrasive surface. If you are missing any parts or
Are unsure how to proceed with assembly, please call customer service center
Do not attempt to assemble the product if any parts are missing or damaged.
Step 1
Place the loveseat seat ( E)，loveseat back(F) on a flot soft surface.
bolts M6 x 20mm ( M ) with
Attached lovesea seat ( E ) to loveseat back (F) by using
metal washer ( O ) .
(DO NOT TIGHTEN THE BOLTS COMPLETELY!)
Step 2:
Attached loveseat seat(E) to the loveseat arm&leg(A&B) by using bolts
M6 x20mm(M) with metal washer (O).
(DO NOT TIGHTEN THE BOLTS COMPLETELY!)
M
F
E
A
G
M
O
Step 3
Attach the loveseat arm&legs (A&B) to the loveseat back (F)
by using bolts(N )with metal washers(O)
(DO NOT TIGHTEN THE BOLTS COMPLETELY!).
Back cushion
Bolt(M6*20)
Washer
2
8
10
H
N
P
Seat Cushion
Bolt(M6*40)
Allen wrench
F
A
Step 4
Tighten all bolts (M&N) by using Allen wrench (P).
2
2
1
O
N
B
O
M
Step 1 Step 2
M
O
Step 5
Carefully turn the loveseat in the upright position.Put the cushions (G& H)
on the loveseat.
Your loveseat is now ready for use.
G
H
