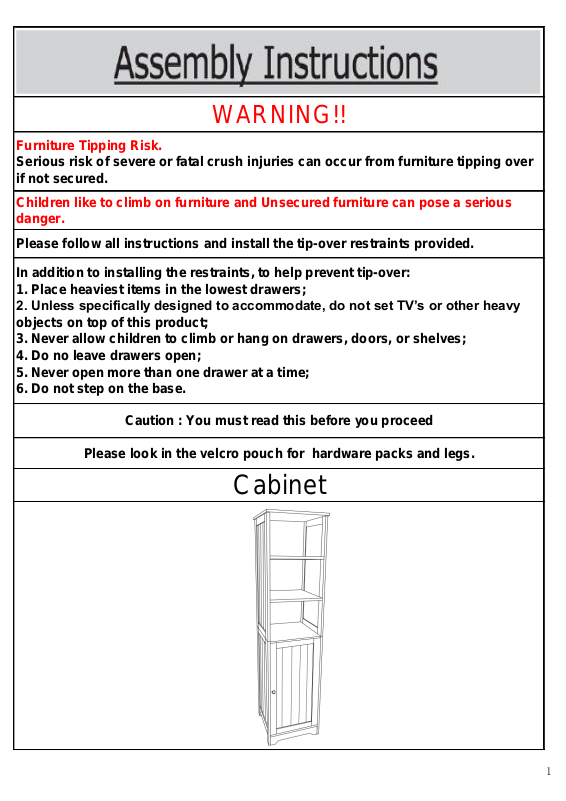

Page 1
WARNING!!
Furniture Tipping Risk.
Serious risk of severe or fatal crush injuries can occur from furniture tipping over
if not secured.
Children like to climb on furniture and Unsecured furniture can pose a serious
danger.
Please follow all instructions and install the tip-over restraints provided.
In addition to installing the restraints, to help prevent tip-over:
1. Place heaviest items in the lowest drawers;
2. Unless specifically designed to accommodate, do not set TV’s or other heavy
objects on top of this product;
3. Never allow children to climb or hang on drawers, doors, or shelves;
4. Do no leave drawers open;
5. Never open more than one drawer at a time;
6. Do not step on the base.
Caution : You must read this before you proceed
Please look in the velcro pouch for hardware packs and legs.
Cabinet
1
Page 2
Label Picture Description QTY
A Upper Left Side Panel 1
B
Immovable Shelf
Panel
1
C
Upper Right side
Panel
1
D Top Panel 1
E Lower Left Side Panel 1
F Cabinet Top Panel 1
G Door Panel 1
H Bottom Panel 1
2
Page 3
I Bottom Base 1
J
Lower Right Side
Panel
1
K Upper Back Panel 1
L Plastic Bar 1
M Lower Back Panel 1
N Upper Shelf Panel 1
O Cabinet Shelf Panel 1
Label Picture Description QTY
①
Dowel
(6X30mm)
21
3

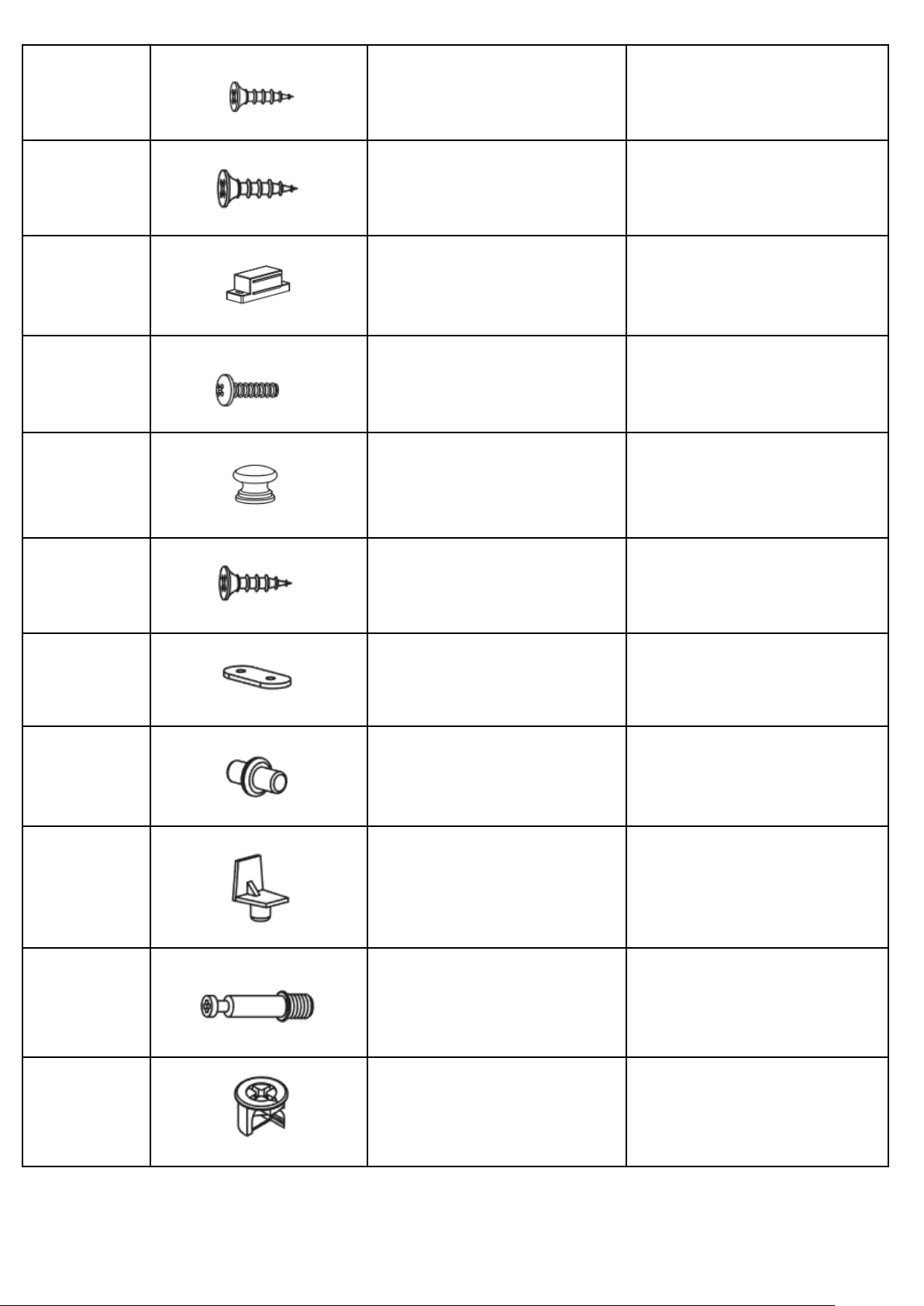

Page 4
②
Screw
(M2.5x10mm)
25
③
Screw
(M3x14mm)
3
④
Magnet 1
⑤
Screw
(M4x16mm)
2
⑥
Door Knob 1
⑦
Screw
(M3x12mm)
3
⑧
Magnetic Bar 1
⑨
Iron Shaft 2
⑩
Shelf Support 9
⑪
Cam Bolt
(M6X35mm)
17
⑫
Cam Nut
(M9X15mm)
21
4
Page 5
⑬
Cam Bolt
(M6X40mm)
5
⑭
Cam Lock
(M10X10mm)
5
⑮
Screwdriver
(Not Provided)
1
⑯
Pad 5
⑰
Cover 5
⑱
Screw
(M4x40mm)
3
⑲
Wall Anchor 3
⑳
Hammer
(Not Provided)
1
㉑
Power Drill
(Not Provided)
1
Restraint Device Hardware
5
Page 6
㉒
Screw
(M3x14mm)
3
㉓
Restraint Strap 3
Before
Beginning
Assembly:
2
9
*17
*21
3
333
*5
*5
6
Page 7
Step 1
Overview
This Cabinet has multiple parts and may require up to 30 minutes to
assemble.
To give you an overview of the Cabinet parts, the above picture is to help you
put the various parts into perspective.
Please read through the instructions below to familiarise yourself with the
parts and steps before assembly.
Unpack and place all parts on a clean, non-marring surface.
Top Panel(D)
Upper Right side
Panel(C)
Upper Left Side
Panel(A)
Bottom Base(I)
Immovable
Shelf Panel(B)
Lower Left Side
Panel(E)
Cabinet Top
Panel(F)
Door Panel(G)
Upper Shelf
Pane(N)
FRONT FACING
7
Page 8
Step 2
Step 3
2.1) Attach Cam Bolt(⑪) to the Upper Left Side Panel(A) Using
Screwdriver(⑮) as shown.
2.2) Attach Cam Bolt(⑪) to Right Side Panel(C) Using Screwdriver(⑮) as
shown.
3.1)Attach Cam Bolt(⑪)to Top Panel(D) Using Screwdriver(⑮) as shown.
Insert Dowel(①) into the mounting positions on Top Panel(D).
3.2) Attach Magnetic Bar(⑧) to the Door Panel(G) Using Screw(⑦) with
Screwdriver(⑮) as shown. Attach Door Knob(⑥) to the Door Panel(G) Using
Screw(⑤) with Screwdriver(⑮). Attach Iron Shaft(⑨) to the mounting
positions on Door Panel(G) as shown.
3.1
2.1
2.2
⑮
⑮
⑮
⑮
⑮
⑮
⑨
⑨
3.2
8
Page 9
Step 4
Step 5
Attach Upper Left Side Panel(A) to the Cam Bolt and Dowel on Top Panel(D),
then insert the Cam Nut(⑫) into the mounting positions Upper Left Side
Panel(A), lock by Cam Nut(⑫) with Screwdriver(⑮). Attach Immovable Shelf
Panel(B) to the Cam Bolt on Upper Left Side Panel(A), lock by Cam Nut(⑫)
with Screwdriver(⑮).
Attach Upper Right Side Panel(C) to the Top Panel(D) and Immovable Shelf
Panel(B), lock by Cam Nut(⑫) with Screwdriver(⑮).
⑮
⑮
⑮
⑮
9
Page 10
Step 6
Step 7
6.1) Insert Dowel(①) into the mounting positions on Lower Left Side Panel(E),
attach Cam Bolt(⑪) to the Lower Left Side Panel(E) using Screwdriver(⑮).
Insert Cam Lock(⑭) into the mounting positions on Lowe Left Side Panel(E).
6.2) Insert Dowel(①) into the mounting positions on Lower Right Side
Panel(J), attach Cam Bolt(⑪) to the Lower Right Side Panel(J) using
Screwdriver(⑮). Insert Cam Lock(⑭) into the mounting positions on Lower
Right Side Panel(J) .
7.1) Attach Magnet(④) to the Cabinet Top Panel(F) using Screw(③) with
Screwdriver(⑮).
7.2) Attach Cabinet Top Panel(F) and Bottom Panel(H) to the Lower Left Side
Panel(E), lock by Cam Nut(⑫) with Screwdriver(⑮).
6.1
6.2
H
⑮
⑮
⑮
⑮
⑮
⑮
7.1
7.2
⑮
⑮
10
Page 11
Step 8
Step 9
Insert Iron Shaft on the Door Panel(G) into the mounting positions on Cabinet
Top Panel(F) and Bottom Panel(H), then attach Bottom Base(I) to the dowel
on Lower Left Side Panel(E).
Attach Lower Right Side Panel(J) to the mounting positions on Cabinet Top
Panel(F) and Bottom Panel(H)，then open the Door Panel(G), insert Cam
Nut(⑫) into the mounting positions on Cabinet Top Panel(F) and Bottom
Panel(H), lock by turning Screwdriver(⑮).
⑮
⑮
⑮
11
Page 12
Step10
Insert Dowel(①) into Lower Right Side Panel(J) and Lower Left Side Panel(E)
as shown, attach Cam Bolt(⑬) to the Lower Right Side Panel(J) and Lower
Left Side Panel(E), lock by turning Screwdriver(⑮).
Attach Upper Left Side Panel(A) and Upper Right Side Panel(C) to the Cam
Bolt and Dowel on Lower Right Side Panel(J) and Lower Left Side Panel(E),
locked by Cam Nut(⑫) with Screwdriver(⑮) as shown.
Step11
⑮
J
⑮
12
Page 13
Step12
Step13
Attach Upper Back Panel(K),Plastic Bar(L) and Lower Back Panel(M) to the
back of Cabinet using Screw(②) with Screwdriver(⑮).
⑮
⑮
⑮
⑮
⑮
⑮
⑮
⑮
⑮
A
C
⑩
⑩
⑩⑩⑩
E
J
N
O
⑯⑯⑯
⑯
⑰
13
Page 14
Insert Shelf Support(⑩) into the mounting positions inside of Upper Left Side
Panel(A), Upper Right Side Panel(C), Lower Left Side Panel(E) and Lower
Right Side Panel(J), Place Upper Shelf Panel(N) onto the Shelf Support(⑩)
on Upper Left Side Panel(A) and Upper Right Side Panel(C).Place Cabinet
Shelf Panel(O) onto the Shelf Support(⑩) on Lower Left Side Panel(E) and
Lower Right Side Panel(J).
Peel a Pad(⑯) off the backing and apply it squarely to a leg as shown in the
picture.Repeat this step with the remaining three feet.
Use Cover(⑰) to cover the mounting position of Cam Nut(⑫) on Left Side
Panel(A) and Upper Right Side Panel(C).
！ WARNING
Serious or fatal crushing injuries can occur from tipping furniture.
To help prevent tip-over: ALWAYS secure this furniture to the wall using Cabinet
Restraint Device.
See product instructions for more ways to help prevent furniture tip-over.
Usage For Cabinet Restraint Device：
14
Page 15
Attach Restraint Strap(㉓) to the Upper Back Panel(K) using Screw(㉒) with
Screwdriver(⑮).
Step 15
15.1) Drill two mounting positions on the wall with Power Drill(㉑)，insert Wall
Anchor(⑲) into drilled mounting positions on the wall with Hammer(⑳)
15.2) Move the cabinet back to the wall, lock by Screw(⑱) with
Screwdriver(⑮).
Step 14
⑮
15.1
15.2
⑲
⑮

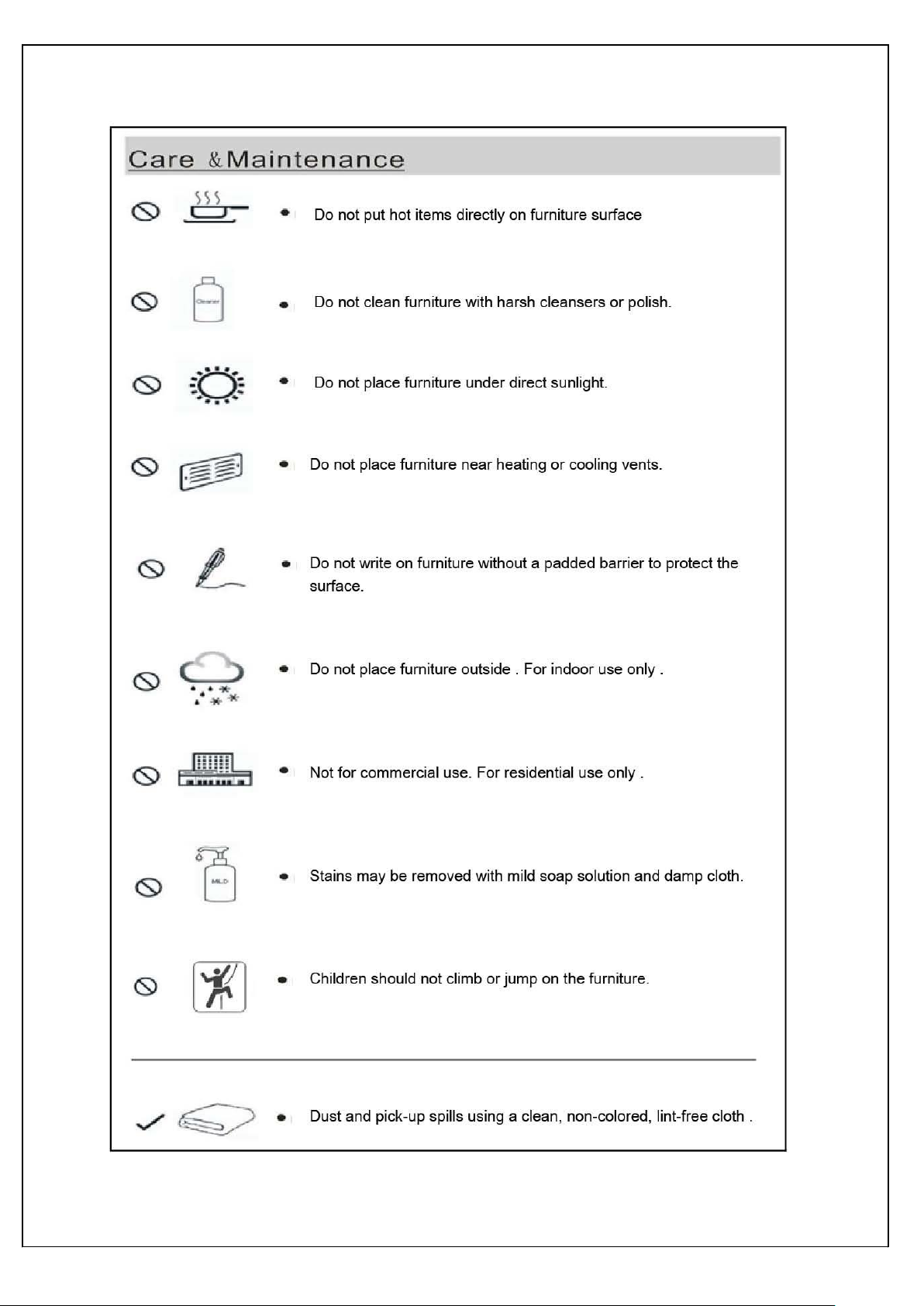

15
