Page 1
1
Your recliner comes packaged in two boxes. Carefully remove all
Package Contents
E 1* Remote
A 1*Seat
B 1*Seat Back
C 1*Right Armrest
D 1* Left Armrest
F 1* Plug
CAUT
ION
:
DO NOT
use any sharp objects
to open plastic wrapped
components as damage to
product or components may
result.

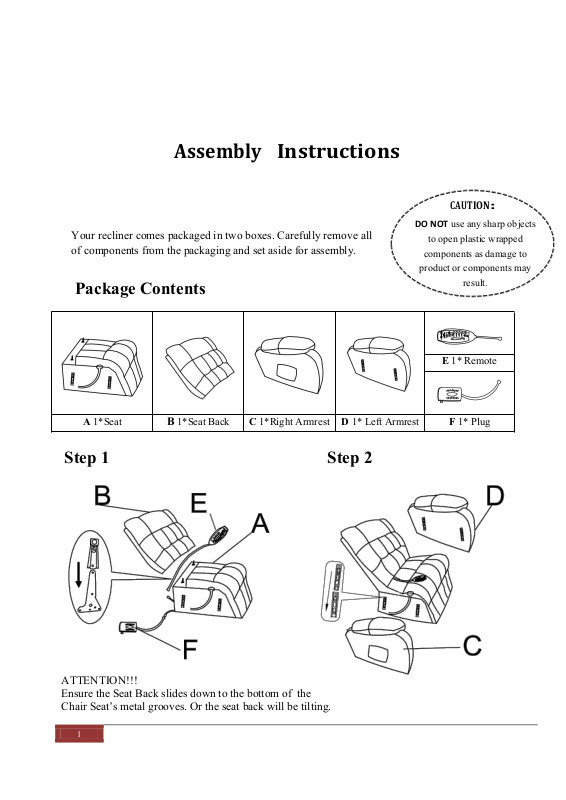

Assembly
Instructions
ATTENTION!!!
Ensure the Seat Back slides down to the bottom of the
Chair Seat’s metal grooves. Or the seat back will be tilting.
of components from the packaging and set aside for assembly.
Step 1 Step 2
Page 2
2
Product Display
◎Press POWER to turn on the power.
◎Press HEAT to turn on the heat.
◎Press INTENSITY to adjust the massage intensity.
◎Press MODE to select different massage modes
(5 modes to select).
◎Press BACK, LUMBAR, THIGH or LEG to choose the
Certain massage zone.
◎ Press TIMER to set up running time, 15 minutes, 30
minutes or 60 minutes.
Remote Operation Instruction
Page 3
3
Warnings
1.
Please check if the components of the chair are all included and can be used normally.
2.
Please DO NOT sit on the armrests and footrest to eliminate the risk of tipping over.
3.
If the sofa is damaged or doesn’t match the website product, please send clear pictures of
the product and label of the carton to our service team, and we’ll help you to solve the
problem.
4.
If the massage function isn’t working, please check if the remote and plug connect well.
5.
When you pull the switch loop open, but the footrest does not open, please check if the
buckle line at the bottom of the sofa is loose.
① Lay down the recliner chair. Find the buckle line which connects with the switch loop.
② Put the buckle cable into the inner hole of the iron piece.
③ Turn back the iron piece
6.
If the chair still doesn’t work, please feed the information back to the customer service in
time. We will help solve the problem for you as soon as possible.
7.
If you have any questions with the product, please contact us.
