Assembly instruction
Please read these instructions carefully before starting assembly. We suggest you carry out the assembly on a
soft surface like a carpet, so as to avoid scratching the paint. Please note because of the nature of cast metal,
you may find roughness on the surface which enhances the beauty of the product and is not a defect.
*Do not discard any of packaging until you have checked that you have all parts and pack of fittings.
*Keep children away during assembly.This item contains small parts which can be swallowed by children.
*Retain the assembly instructions for future reference.

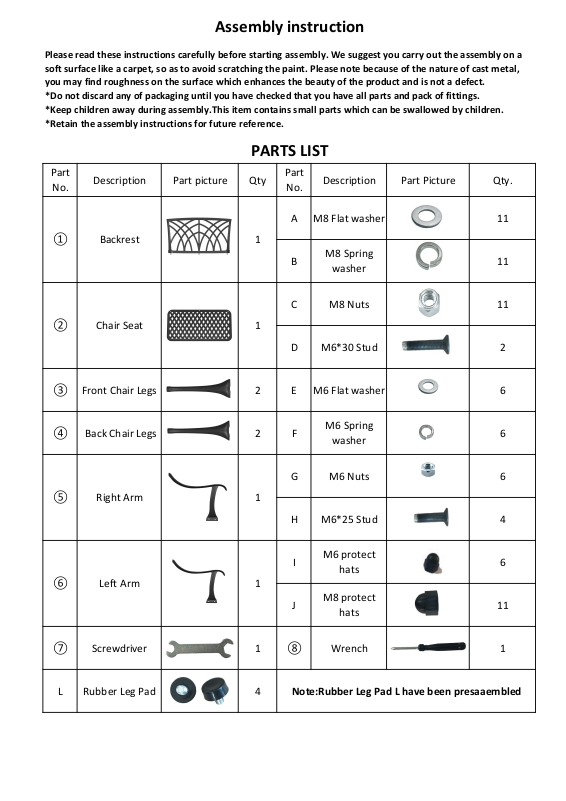

PARTS LIST
Part
No.
Description Part picture Qty
Part
No.
Description Part Picture Qty.
① Backrest 1
A M8 Flat washer
11
B
M8 Spring
washer
11
② Chair Seat 1
C M8 Nuts 11
D M6*30 Stud 2
③ Front Chair Legs 2 E M6 Flat washer
6
④ Back Chair Legs 2 F
M6 Spring
washer
6
⑤ Right Arm 1
G M6 Nuts 6
H M6*25 Stud 4
⑥ Left Arm 1
I
M6 protect
hats
6
J
M8 protect
hats
11
⑦ Screwdriver 1 ⑧ Wrench 1
L Rubber Leg Pad 4 Note:Rubber Leg Pad L have been presaaembled
Page 2
INSTRUCTIONS
Step 1
Place all parts on a clean and soft
surface
Step 2
Attach the front and back Legs (③,④) to the Studs on
the Chair Seat (②) using Wahers and Nuts
(A,B,C).Tighten the Nuts using the wrench.
Step 3
Attach the Backrest (①) to the Chair
Seat (②) using Washers and Nuts
(A,B,C).Tighten the Nuts using the
wrench ..DO NOT over tighten.
Step 4
Attach the Right and Left Arm(⑤,⑥) ,using the studs (D)
and washer,nuts (E,F,G) ,DO NOT over tighten .and then
using Studs (H) and Wahers and Nuts (E,F,G).Adjust to a
correct place ,then tighten D&H.
Step 5
Adjust the pre-installed Rubber Pad
(L) until the chair is level with the
ground , Upon
completion of full assembly and
bolted up-all screws can be tightened
down.Tighten all the nuts and cover
them with nut caps(I&J).
C
B
A
D
H
I
J
