ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Green Grounding
Mounting Strap (A)
Fig.1
Fig.3
“S” Clip
Short Screw (B)
Bottom
Glass Panel
Fig.2
Screw (C)
Long Screw (D)
Side Glass
Panel
Metal Stop
Wire Nut (E)
Lock Nut (F)
Outlet Box
House Grounding Wire
Wire Nut (E)
Long Screw (D)
Mounting Strap (A)
Lock Nut (F)
Short Screw (B)
Green Grounding Screw (C)
Ball Nut (G)

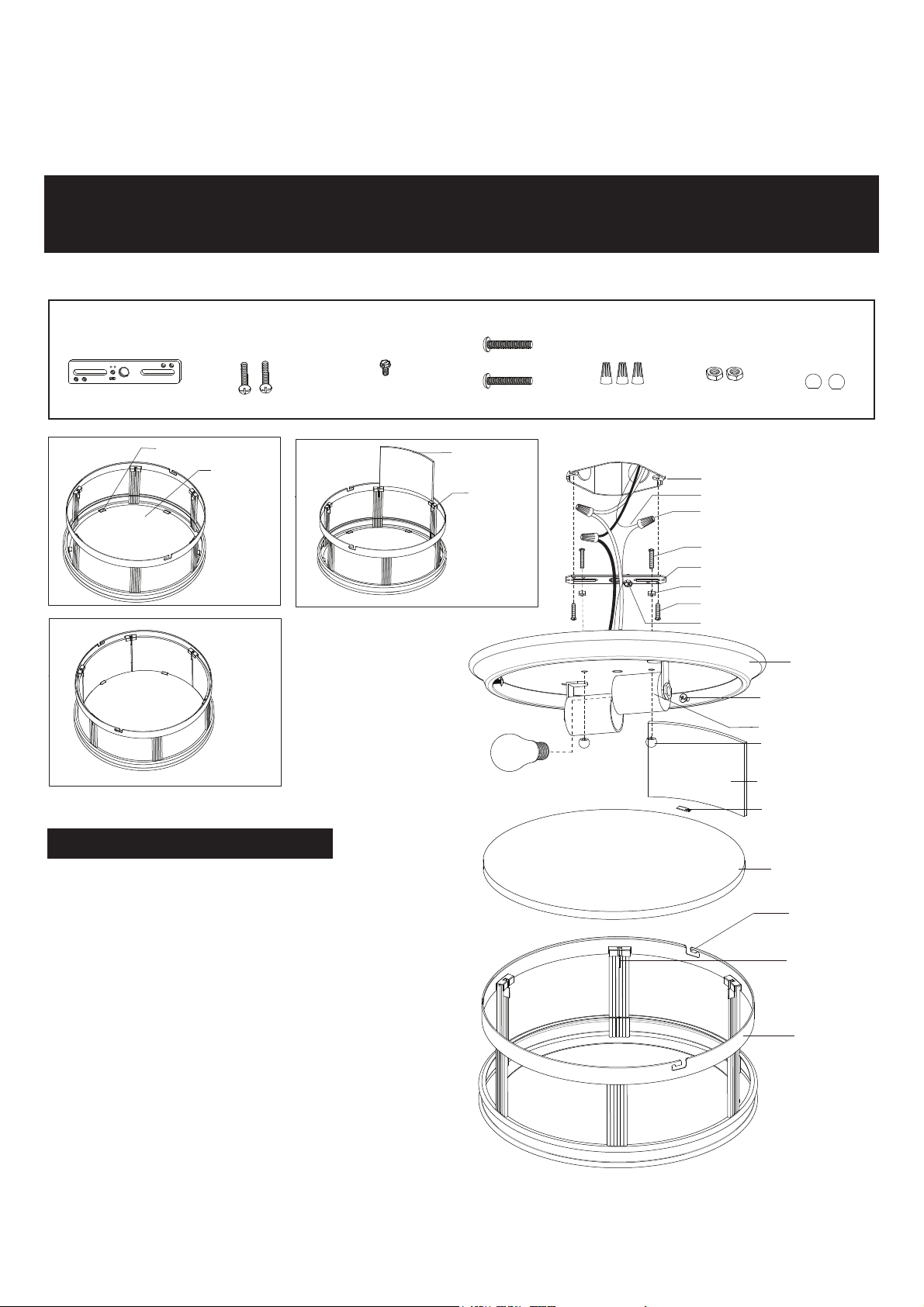

Assembly Instructions:
Turn off the power at fuse or circuit box.
1. Thread two long screws to the mounting strap, and secure
with two lock nuts. Adjust the length of the long screws if
necessary.
2. Attach the mounting strap to the outlet box using two short
screws.
3. Pull out the source wires from the outlet box. Make wire
connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the
fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from
the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually bare wire) to the
mounting strap with the green grounding screw, then
connect it to the house grounding wire with a wire nut. If your
outlet box does not have a house grounding wire, then wrap
the fixture grounding wire around the green grounding screw.
Carefully put the wires back into the outlet box.
Bulb Type A Max.60W
(not included)
Canopy
Set screw
Socket
Ball Nut(G)
Side Glass Panel
“S” Clip
Bottom Glass panel
“L” Slot
Metal Stop
Metal Frame
Page 1
Page 2
4. Attach the canopy to the mounting strap: insert the long screws through the two holes, and secure it with two ball nuts.
CAUTION: With silicone caulking compound, caulk completely around where back of canopy meets with the ceiling
surface to prevent water from seeping into the outlet box.
5. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed wattage.
6. Place the bottom glass panel into the metal frame, and set the six "S" clips on the slot and fix the bottom glass panel
by inserting the side glass panels onto the “S”clips, then press the top clips of the metal frame to secure the side
glass panels. (See Fig 1. / Fig 2. / Fig 3.)
7. Attach the metal frame to the ceiling pan by locationg set screws into the “L” slots, then turn it clockwise until it is locked
in place.
Turn on the power at fuse or circuit box.

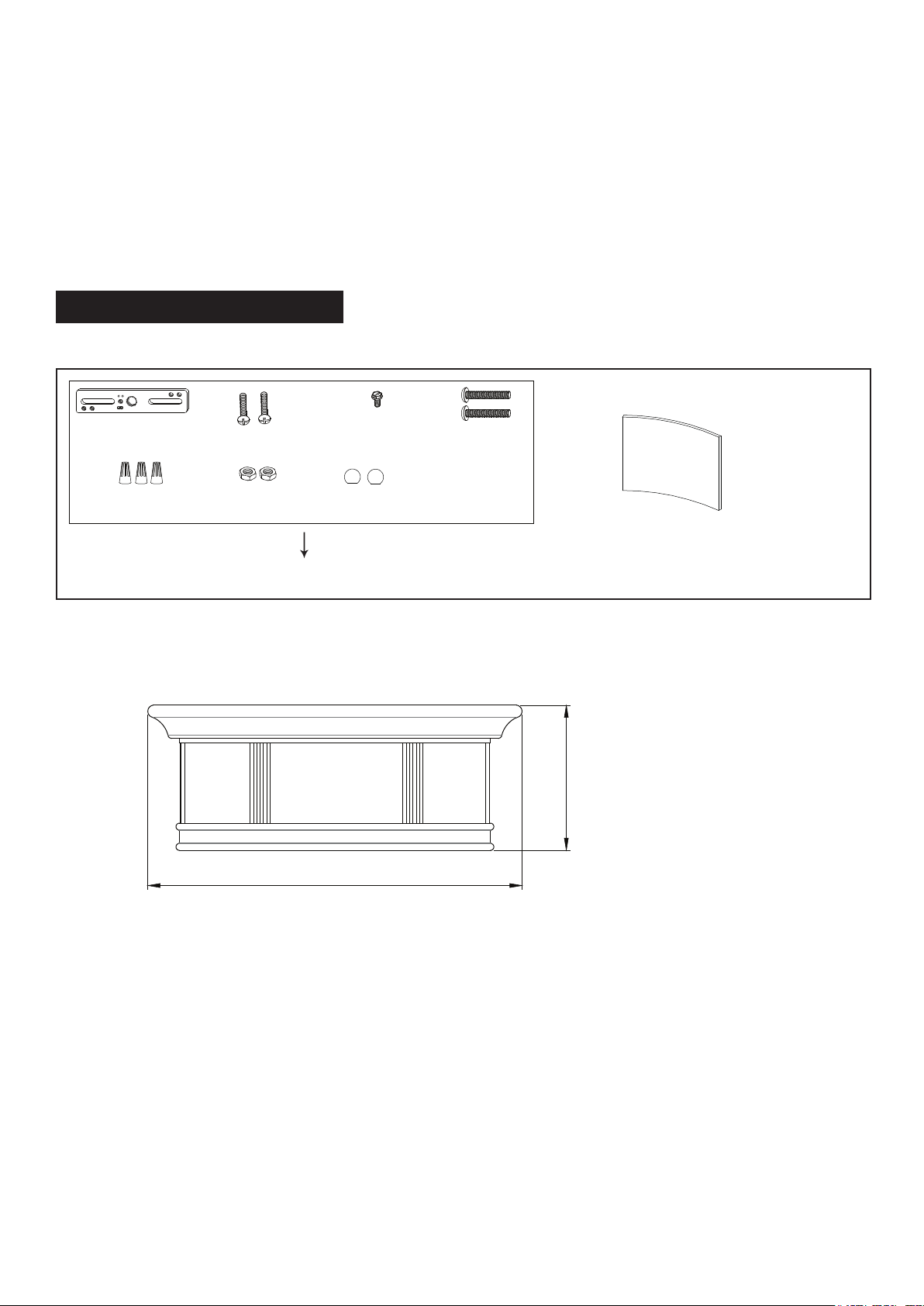

The following parts are available for re-order if damaged or missing.
Mounting Strap (A)
Wire Nut (E)
Short Screw (B)
Lock Nut (F)
Mounting Hardware
Green Grounding
Screw (C)
Ball Nut (G)
1SET
Long Screw (D)
B
Glass Panel
6PCS
A: 12"
B: 4-3/4"
A
Page 2
