Assembly Instructions
Caution: You must read this before you proceed
Please look in the velcro pouch for hardware packs and legs
LEFT ARM SOFA
Page 1 OF 13
Page 2
Part List
Label Picture Description QTY
A Backrest 1
B Left Armrest 1
C Right Side Rail 1
D Seat 1
E Front Rail 1
F Seat Cushion 2
G
Leg 4
Page 2 OF 13
Page 3
Hardware List
Label Picture Description QTY
①
②
③
④
⑤
Assembly Preparation
Before Beginning
Assembly:
Bolt(M8*25MM) 11
Flat Washer (M8) 13
Spring Washer (M8) 13
Allen Key (S5) 1
Bolt M8*40MM 3
X2
X4
X11
X3
X13
X13
Page 3 OF 13
X1
Page 4
Assembly Steps
OVERVIEW
Left Armrest(B)
Backrest(A)
Right Side Rail(C)
Seat(D)
Front Rail(E
)
Seat Cushion(F)
Seat Cushion(F)
Leg(G)
FRONT FACING
This Left Arm Sofa has multiple parts and may require up to 60 minutes to assemble. To give you an
overview of the Left Arm Sofa parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the parts and steps
before assembly.
Note: It is recommended that you have an adult partner to assist during the entire assembly
process.
Step 1
④
Left Armrest(B)
Open the carton and place all the parts on a clean, non-marring surface.
Loosen the 3 bolts in Left Armrest(B) around half inch by Allen Key(④).
Page 4 OF 13
Page 5
Step 2
Right Side Rail(C)
②
③
Front Rail(E)
①
④
Attach the Front Rail(E) to the Right Side Rail(C) using Bolts(①), Flat Washer Rings(②), Spring Washer
Rings(③) with Allen Key(④).
Tighten all Bolts(①) by Allen Key(④).
Step 3
Front Rail(E)
④
Left Armrest(B)
With the assistance of your partner,slide the hook in the eng of Front Rail(E) into the bolts on the Left
Armrest(B), as shown above.
Tighten the Bolts in the Left Armrest(B) by Allen Key(④).
Page 5 OF 13
Page 6
Step 4
④
Loosen the 1 bolt in Backrest(A) around half inch by Allen Key(④).
Backrest(A)
Step 5
Slide the Tapered Connectors on the Backrest(A) into the Tapered Connectors on the Left Armrest(B) as
shown in the picture.
Note: Make sure the Tapered Connectors on Backrest(A) lock into the Tapered Connectors on the Left
Armrest(B).
Keep the Backrest(A) and the back of the Left Armrest(B) flat.
Assistance from an adult partner is necessary for this assembly process.
During this assembly process - do exercise caution. You may need to use your hand to press down and
or pave away the padded surface to facilitate the 'slip and slide' assembly.
Caution: Ensure that your fingers do not get caught or pinched in the assembly process.
Backrest(A)
Keep the Backrest(A) and
the back of the Left
Left Armrest(B)
Armrest(B) flat.
Page 6 OF 13
Page 7
Step 6
Right Side Rail(C)
⑤
②
Backrest(A)
③
⑤
④
Attach the Right Side Rail(C) to the Backrest(A) using Bolts(⑤), Flat Washer Rings(②), Spring Washer
Rings(③) with Allen Key(④).
Tighten all Bolts(⑤) by Allen Key(④).
Right Side Rail(C)
④
Loosen the 1 bolt in Right Side Rail(C) around half inch by Allen Key(④).
Page 7 OF 13
Page 8

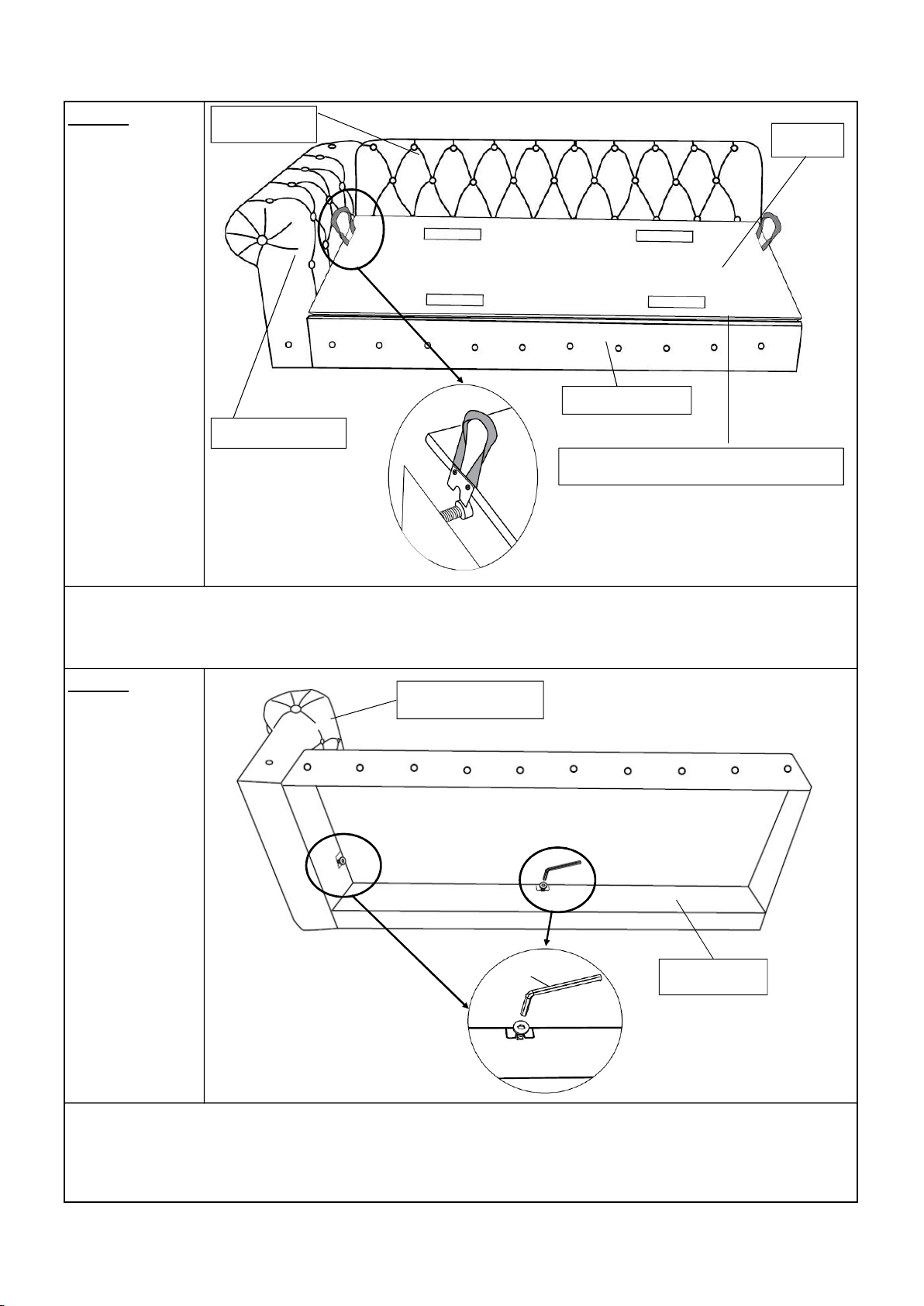

Step 8
Backrest(A)
Left Armrest(B)
Seat(D
Front Rail(E)
Wood bar of the Front Rail(E)
)
With the assistance of your partner,lift the rope on the two sides of Seat(D) by hand.
Put the Seat(D) on the wood bar of the Front Rail(E) and then slowly place it down as shown above.
Note:All the u-shaped iron sheet need clamped to the bolt.
Step 9
Left Armrest(B)
④
Backrest(A)
Tilt and lay the Left Arm Sofa onto a flat surface.
Tighten the Bolts in the bottom of Backrest(A),Left Armrest(B) by Allen Key(④) as pictured above.
Tighten the Bolts fully in a sequential manner.
Page 8 OF 13
Page 9
Step 10
Right Side Rail(C)
Tighten the Bolt in the Right Side Rail(C) fully by Allen Key(④).
④
Step 11
Left Armrest(C)
④
Change tilt and lay the Left Arm Sofa another side onto a flat surface.
Tighten all the Bolts at the end of bottom Left Armrest(B) by Allen Key(④) as pictured above.
Tighten the Bolts fully in a sequential manner.
Page 9 OF 13
Page 10
Step 12
Leg(G)
Backrest(A)
Right Side Rail(C)
Left Armrest(C)
Front Rail(E)
Leg(G)
Align the mounting positions on the Leg(G) to the mountings on Left Armrest(B), Backrest(A), Front
Rail(E) and Right Side Rail(C).
Attach the Leg(G) to the Left Armrest (B), Backrest(A), Front Rail(E) and Right Side Rail(C) using Bolts
(①), Flat Washer Rings(②), Spring Washer(③) with Allen Key(④) as shown.
Tighten all the bolts by Allen Key(④).
Step 13
Seat Cushion(F)
Seat Cushion(F)
Turn the Left Arm Sofa to its upright position.
Place the Seat Cushions(F) onto the Left Arm Sofa.
Page 10 OF 13
Page 11
Step 14
Your Left Arm Sofa is ready for use.
This Left Arm Sofa can only be used on a flat, level surface.

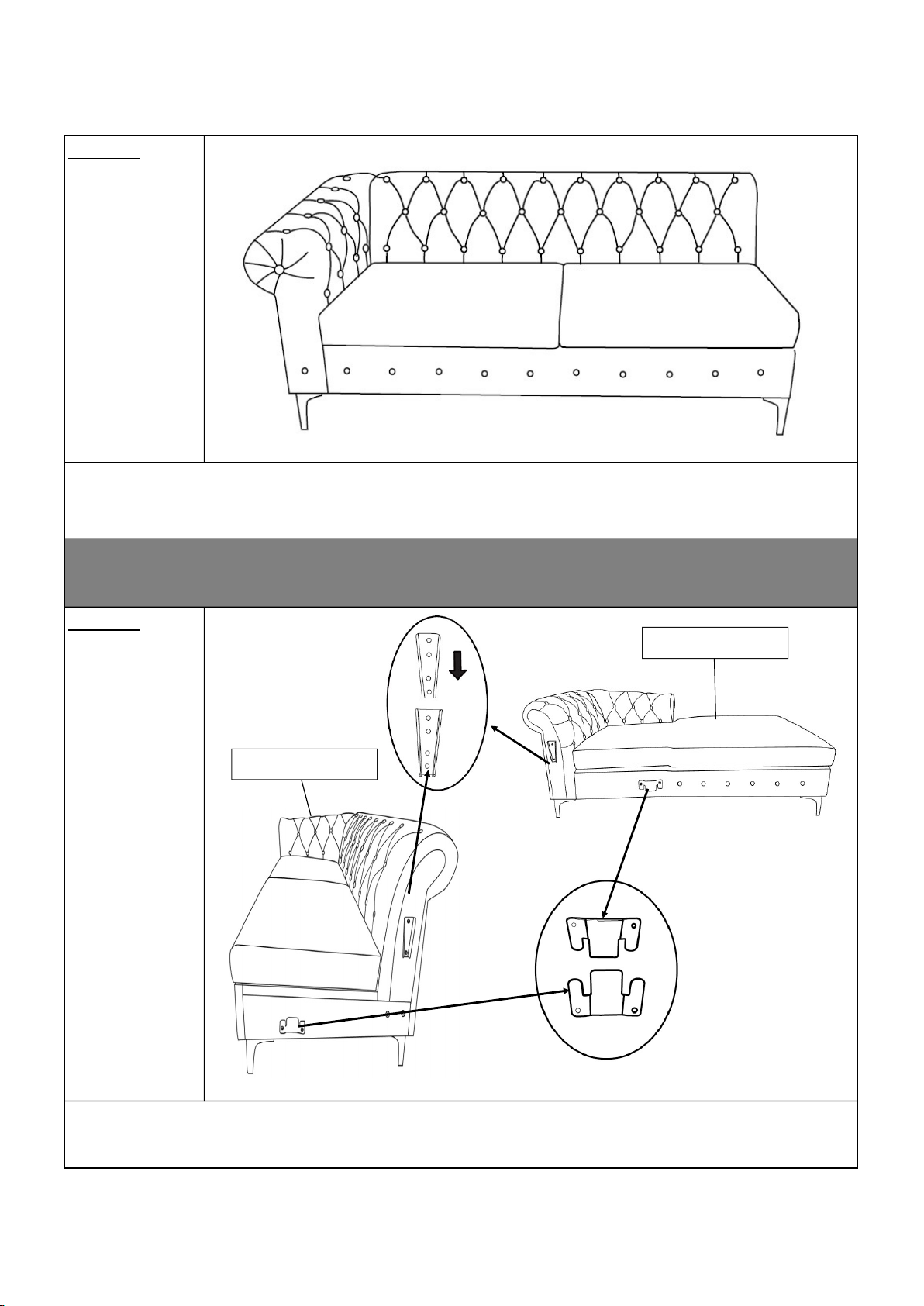

This Left Arm Sofa can be combined with a Chaise Lounge into a sectional sofa. If you bought a
Chaise Lounge at the same time, read on.
Step 15
Chaise Lounge
Left Arm Sofa
Please check that all Tapered Connectors are as above shown before connect Left Arm Sofa and
Chaise Lounge.
Page 11 OF 13
Page 12
Step 16
Chaise Lounge
Left Arm Sofa
Slide the Tapered Connectors on the Chaise Lounge into the Tapered Connectors on the Left Arm Sofa
as shown in the picture.
Note: Make sure the Tapered Connectors on Chaise Lounge lock into the Tapered Connectors on the
Left Arm Sofa.
Assistance from an adult partner is necessary for this assembly process.
During this assembly process - do exercise caution. You may need to use your hand to press down and
or pave away the padded surface to facilitate the 'slip and slide' assembly.
Caution: Ensure that your fingers do not get caught or pinched in the assembly process.
Step 17
Your Sectional Sofa can be used as picture showned.
Page 12 OF 13
Page 13
Page 13 OF 13
