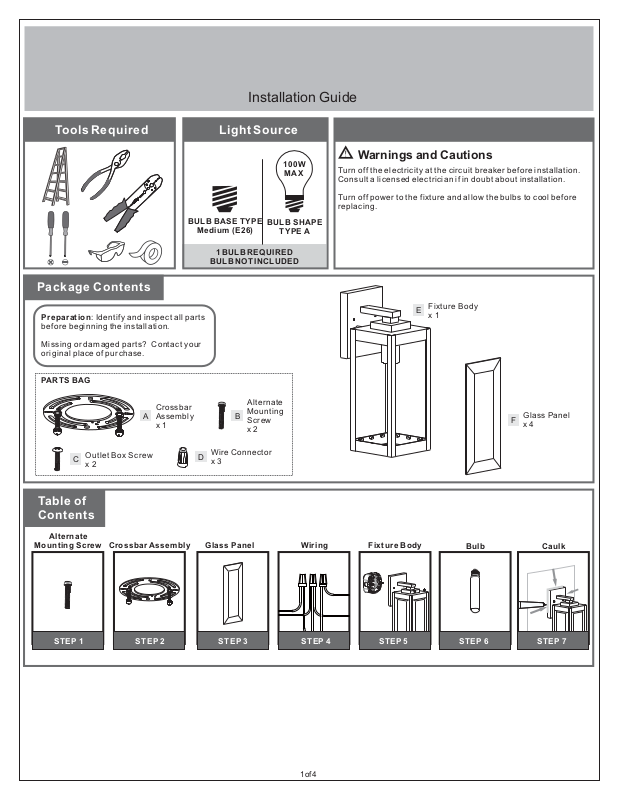

I
nstallation Guide
LightSourceToolsRequired
BULB BASE TYPE
Package Contents
Preparation: Identify and inspect all parts
before beginning the installation.
Missing or damaged parts? Contact your
original place of purchase.
PARTS BAG
Crossbar
A
Assembly
x1
Medium (E26)
1BULBREQUIRED
BULBNOTINCLUDED
Alternate
Mounting
B
Screw
x2
100W
MAX
BULB SHAPE
TYPE A
Warnings and Cautions
Turn off the electricity at the circuit breaker before installation.
Consult a licensed electrician if in doubt about installation.
Turn off power to the fixture and allow the bulbs to cool before
replacing.
Fixture Body
E
x1
Glass Panel
F
x4
Outlet Box Screw
C
x2
Table of
Contents
Alternate
Mounting Screw
STEP 1
Wire Connector
D
x3
Crossbar Assembly Glass Panel Wiring
STEP 2 STEP 3 STEP 4 STEP 6
Fixture Body
STEP 5
Bulb
Caulk

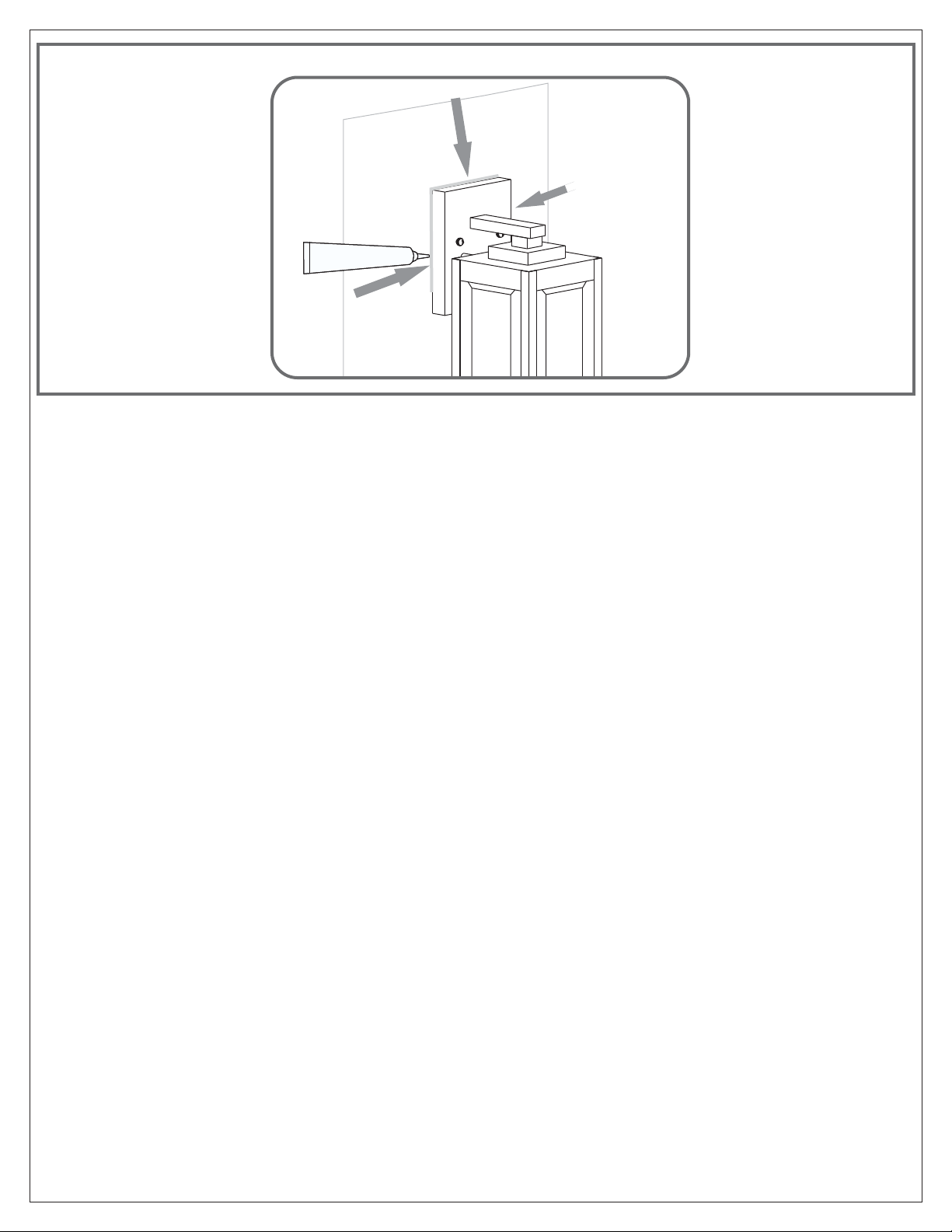

STEP 7
1of4

STEP 1
Standard
OPTION 1 OPTION 2
Mounting
Screw
Included
(Pre-assembled)
Alternate
Mounting
Screw
Included
STEP 2
1 2
Install crossbar assembly
Step 1
skip to next page
1 2 3
Steps 1-3 to remove standard mounting screws
4
Steps 4-6 to reassemble with alternate mounting screws
56
3
Step2-3
Test fitting backplate to mounting screws
STEP 3
Slot
Tab
*Glass Panels
are varies
according to
purchased*
2of4

STEP 4
STEP 5
White wire (neutral)
from outlet box
Black or Red wire (hot)
from outlet box
Bare or Green ground wire
from outlet box
*Green Ground Screw
on crossbar optional
White wire
from fixture
Black wire
from fixture
Ground wire
from Fixture
STEP 6
3of4
