Power Reclining-Chaise Bed
Assembly Manual

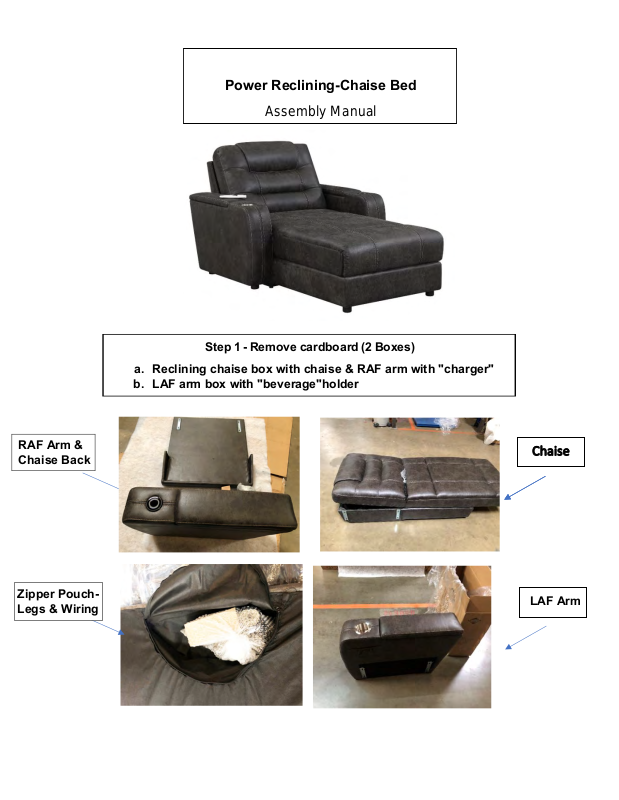

Step 1 - Remove cardboard (2 Boxes)
a. Reclining chaise box with chaise & RAF arm with "charger"
b. LAF arm box with "beverage"holder
RAF Arm &
Chaise Back
Zipper PouchLegs & Wiring
Chaise Chaise Chaise
LAF Arm
Page 2
Step 2 – Install legs on RAF & LAF arms (2 Legs each) & 2 legs on reclining chaise front.
Legs
RAF Arm
Under Side
Step 3 – Attach RAF & LAF arms to chaise:
Slide male guides on arm to female guides on chair.
Chaise
Chair Guide
Chaise Guide
Page 3
Step 4 – Attach back piece to chaise recliner:
Slide male guides on back to female guides on chaise
Chaise Guides
Step 5 – Attach electrical connection to chaise
Recliner: plug power cord to wall electrical plug
Chaise Back
Guides
Wire Assembly Connect wire assembly to arm
and chaise
Page 4
Set up instruction for the Power Reclining Chaise Lounge Chair 1- Unpacking &
Assembly
T
he Product comes in 2 Boxes, the Big box includes the chaise bed, the headboard panel & the RAF arm
and the small box includes the LAF arm only.
a
- Unwrap all pieces
b- Screw in the legs
c- On each arm there are 2 metal brackets, consider them and then carefully slide them down to
their pair piece attached to the body of the chaise-bed
d- Connect the wireless charger power cable to the wall
e- On the headboard panel there are 2 metal brackets as well that attaches the headboard to th
chaise
2- Powering on/off
a- Find the plug-in socket on the back of the piece and make sure it is on the off position
b- Use the cable to connect it to 110-volt power outlet
c- Turn on the red-key on the socket and make sure the red light is on (if not go to
troubleshooting)
d- While sitting on the chaise push the key with forward arrow sign / reclining sign to recline and
backward arrow sign/closing
3- Troubleshooting
• If the red light on the back socket does not light up while it is in “ON” position make sure all the
connections are not loose otherwise reach us for further assistant.
• If the red light is ON and the remote does not work, check the batteries / control wire
