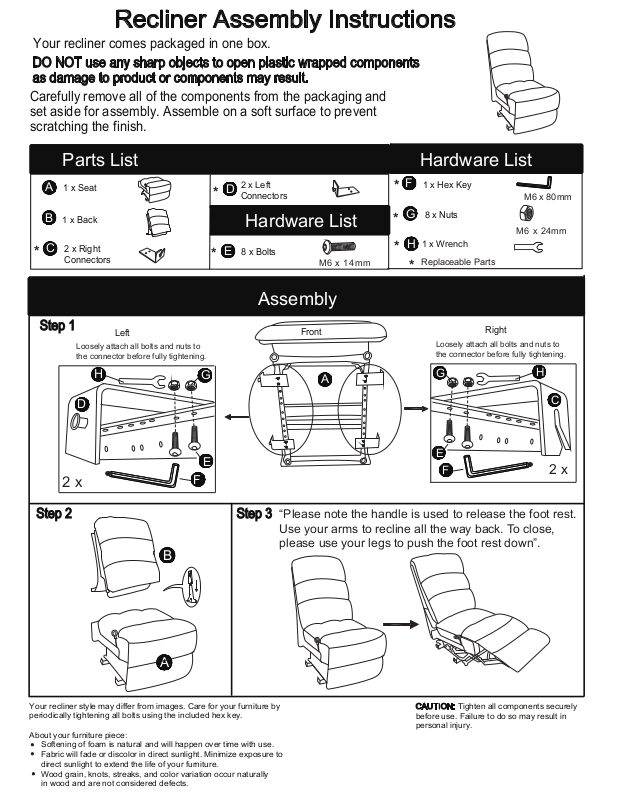

Recliner Assembly Instructions
Your recliner comes packaged in one box.
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
Parts List
1 x Seat
A
B
1 x
2 x Right
C
*
Connectors
Step 1
2 x
Back
Left
Loosely attach all bolts and nuts to
the connector before fully tightening.
H
D
F
G
E
*
*
2 x Left
D
Connectors
Hardware List
8 x Bolts
E
Assembly
Front
M6 x 14mm
A
Hardware List
F
1 x
*
G
*
*
Hex Key
8 x
Nuts
1 x Wrench
H
Replaceable Parts
*
Loosely attach all bolts and nuts to
the connector before fully tightening.
G
E
F
M6 x 80mm
M6 x 24mm
Right
H
C
2 x
Step 2
Step 3
B
A
Your recliner style may differ from images. Care for your furniture by
periodically tightening all bolts using the included hex key.
About your furniture piece:
.
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
direct sunlight to extend the life of your furniture.
.
Wood grain, knots, streaks, and color variation occur naturally
in wood and are not considered defects.
“Please note the handle is used to release the foot rest.
Use your arms to recline all the way back. To close,
please use your legs to push the foot rest down”.
CAUTION:
before use. Failure to do so may result in
personal injury.
Tighten all components securely
