Page 1
A

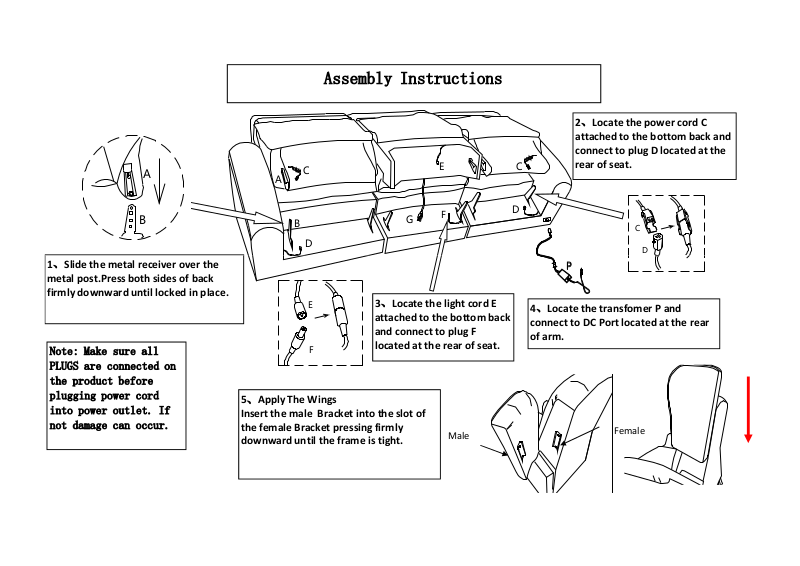

Assembly Instructions
C
A
E
2、Locate the power cord C
attached to the bottom back and
connect to plug D located at the
C
rear of seat.
B
1、Slide the metal receiver over the
metal post.Press both sides of back
firmly downward until locked in place.
Note: Make sure all
PLUGS are connected on
the product before
plugging power cord
into power outlet. If
not damage can occur.
B
D
E
3、Locate the light cord E
G
attached to the bottom back
and connect to plug F
F
located at the rear of seat.
5、Apply The Wings
Insert the male Bracket into the slot of
the female Bracket pressing firmly
downward until the frame is tight.
F
Male
D
C
D
P
P
4、Locate the transfomer P and
connect to DC Port located at the rear
of arm.
Female
Page 2
A
D
metal post.Press both sides of back
Assembly Instructions
C
A
3、Locate the power cord C
attached to the bottom back and
connect to plug D located at the
rear of seat.
C
B
2、Slide the metal receiver over the
firmly downward until locked in place.
1、Remove the console back from the
bottom of loveseat console
B
4、Locate the transfomer P and
connect to DC Port located at the rear
of arm.
5、Apply The Wings
Insert the male Bracket into the slot of the
female Bracket pressing firmly downward until
the frame is tight.
Male
C
D
D
P
Note: Make sure all
PLUGS are connected on
the product before
plugging power cord
into power outlet. If
not damage can occur.
Female
Page 3
A
firmly downward until locked in place.
Assembly Instructions
2、Locate the power cord C
attached to the bottom back and
connect to plug D located at the
rear of seat.
C
A
B
1、Slide the metal receiver over the
metal post.Press both sides of back
Note: Make sure all
PLUGS are connected on
the product before
plugging power cord
into power outlet. If
not damage can occur.
B
D
3、Locate the transfomer P and
connect to DC Port located at the rear
of arm.
4、Apply The Wings
Insert the male Bracket into the slot of the
female Bracket pressing firmly downward until
the frame is tight.
Male
C
D
P
Female
Page 4
INSTRUCTION
A. Structure
HOME
USB PORT
BUTTON
BUTTON
MEMORY
BUTTON
BUTTON
Picture2(without panel)
B. Fixing Method
1. Direction：Put the rut side upside.
2. Use the countersink screws .
C. Usage
1. The switch distinguishes by left & right side based on sitting on sofa.
2. The usage of memory function:
When the sofa being adjusted to a comfortable position you fell, press the memory button for
3s till the 4-button blue lights (as picture 2) flashing for 3 times. Then the comfortable position
is recorded. Next time, by pushing the memory button one time ,the sofa will go to the
comfortable position that you set before ,if you want to stop the memory function right now,
just press any buttons on the product. We set the memory function which only can open but
can not close the seat and head motor to make sure safety. The memory will not work if any
motor stop position is over the position which recored before .
3. HOME function: by pushing and hold the HOME button, the sofa will be all closed, if you
release the HOME button, the sofa will stop close.
4.USB charging port:The output Voltage on the USB port is 5V and the output current is 2A.
PLEASE DO NOT USE A MULTI-BOARD OR MORE THAN TWO USB DEVICES AT
ONE TIME, OR DAMAGE COULD OCCUR.
