Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A

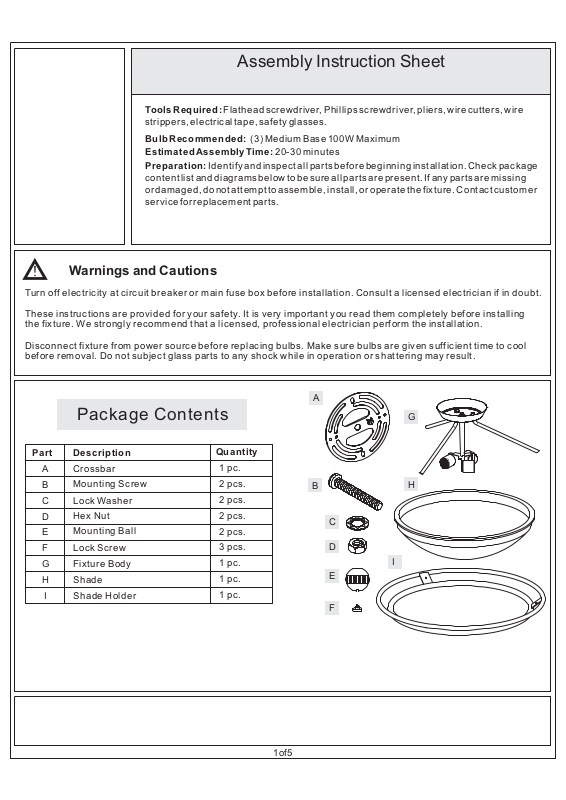

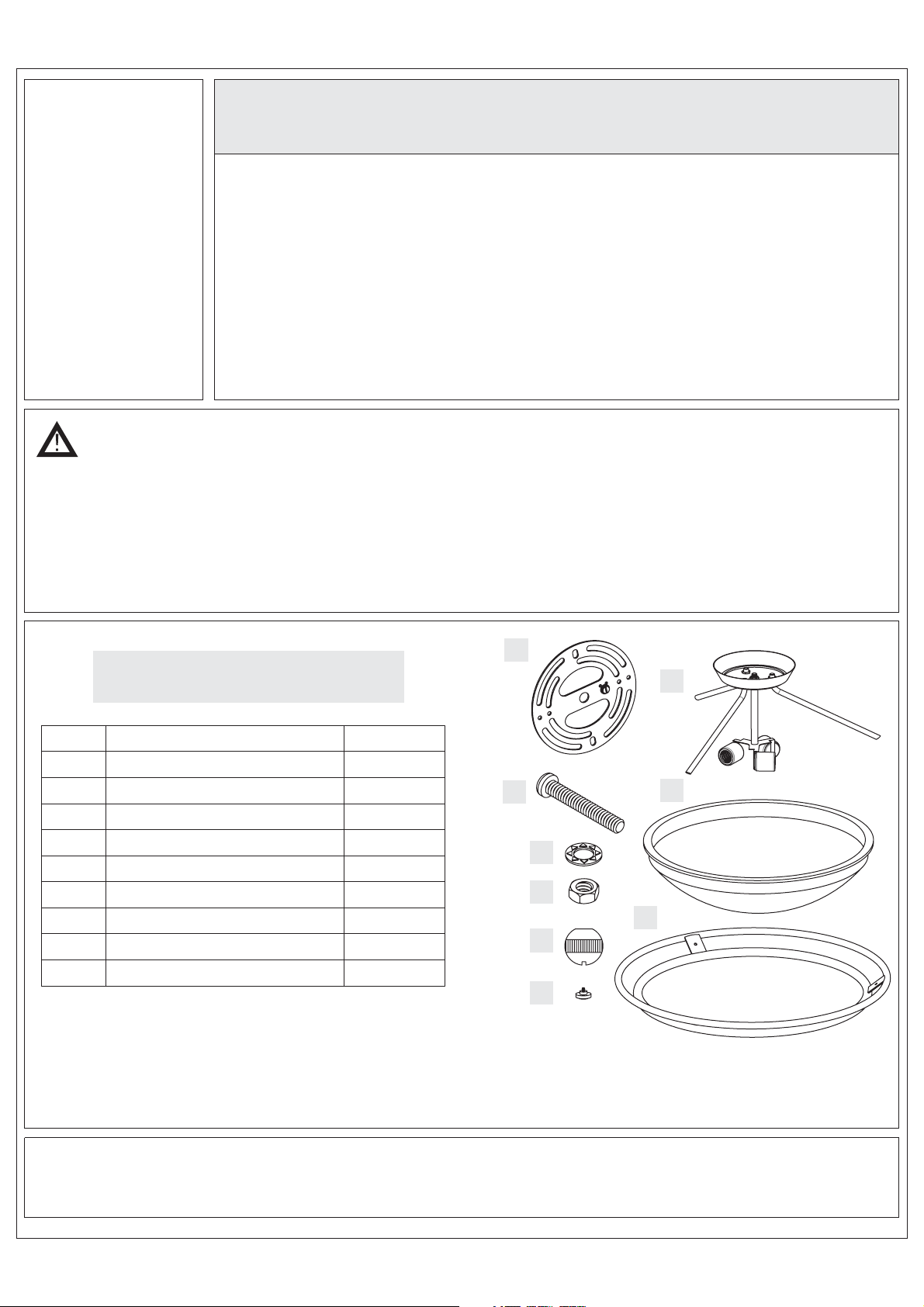

Package Contents
Part
ACrossbar
B
C
D
E
F
G
H
I
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Lock Screw
Fixture Body
Shade
Shade Holder
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
3 pcs.
1pc.
1pc.
1pc.
B
C
D
E
F
G
H
I
1of5
Page 2

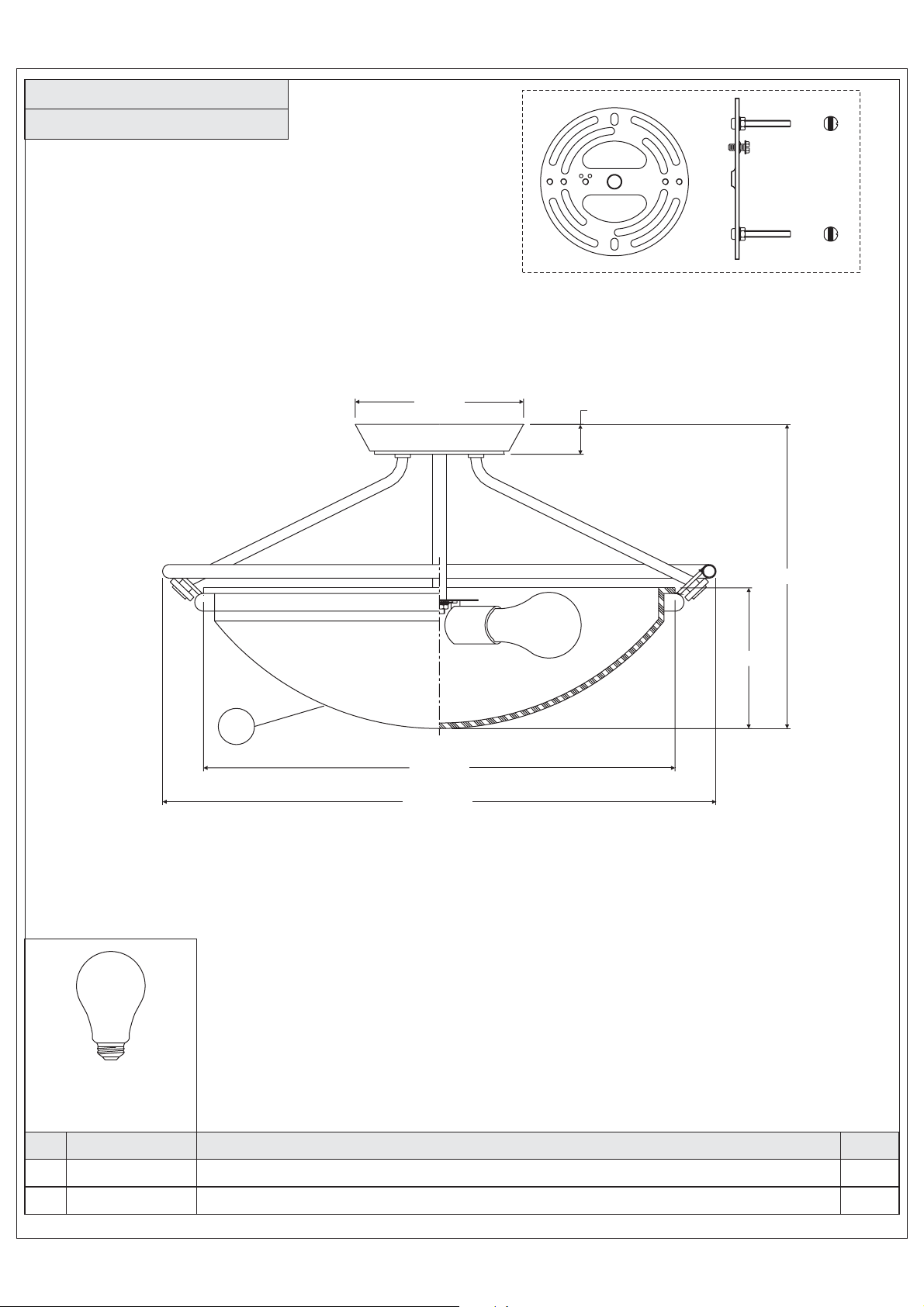

FINISH: POLISHED CHROME
2.4mm
13Ga
1
6" Dia.
17" Dia.
20" Dia.
1"
11"
5"
(3)100W A19
Medium Base Bulbs
(Not Supplied)
PART NUMBER
NO.
1
2
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
SHADE ETCHED W/PNTD WHTE INSID1
2of5
Page 3

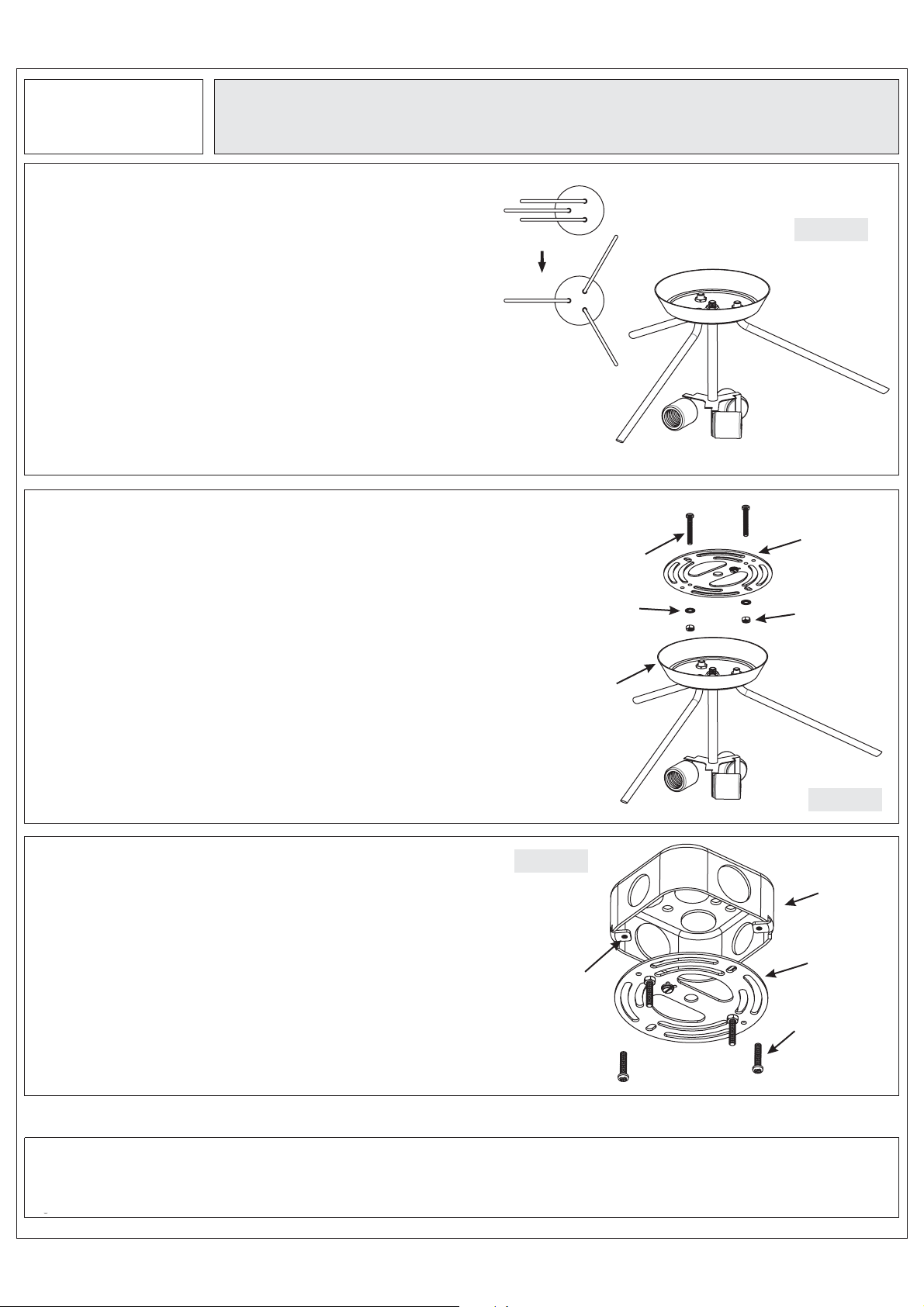

STEP 1Adjust Fixture Assembly-
Assembly Instruction Sheet
A. Unfold support arms on fixture assembly to proper
locations.
STEP 2 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy.
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
Mounting Screw
Lock Washer
Ceiling
Canopy
Figure 1
Crossbar
Hex Nut
STEP 3 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Figure 2
Figure 3
Outlet
Box
Crossbar
Mounting
Hole
Outlet Box
Screw
3of5
Page 4
Assembly Instruction Sheet
STEP 4Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supplyWhite wire from fixture
Figure 4
Black wire from supply
(or Red)
Ground wire from supplyGround wire from fixture
Figure 5
Black wire from fixture
STEP 5 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy on the top of the Fixture Body
(G) over the Mounting Screws (B) and secure with
Mounting Balls (E). Hand tighten until snug.
Ceiling
Canopy
Fixture Body
Figure 6
Mounting Screw
Mounting
Ball
4of5
Page 5
Assembly Instruction Sheet

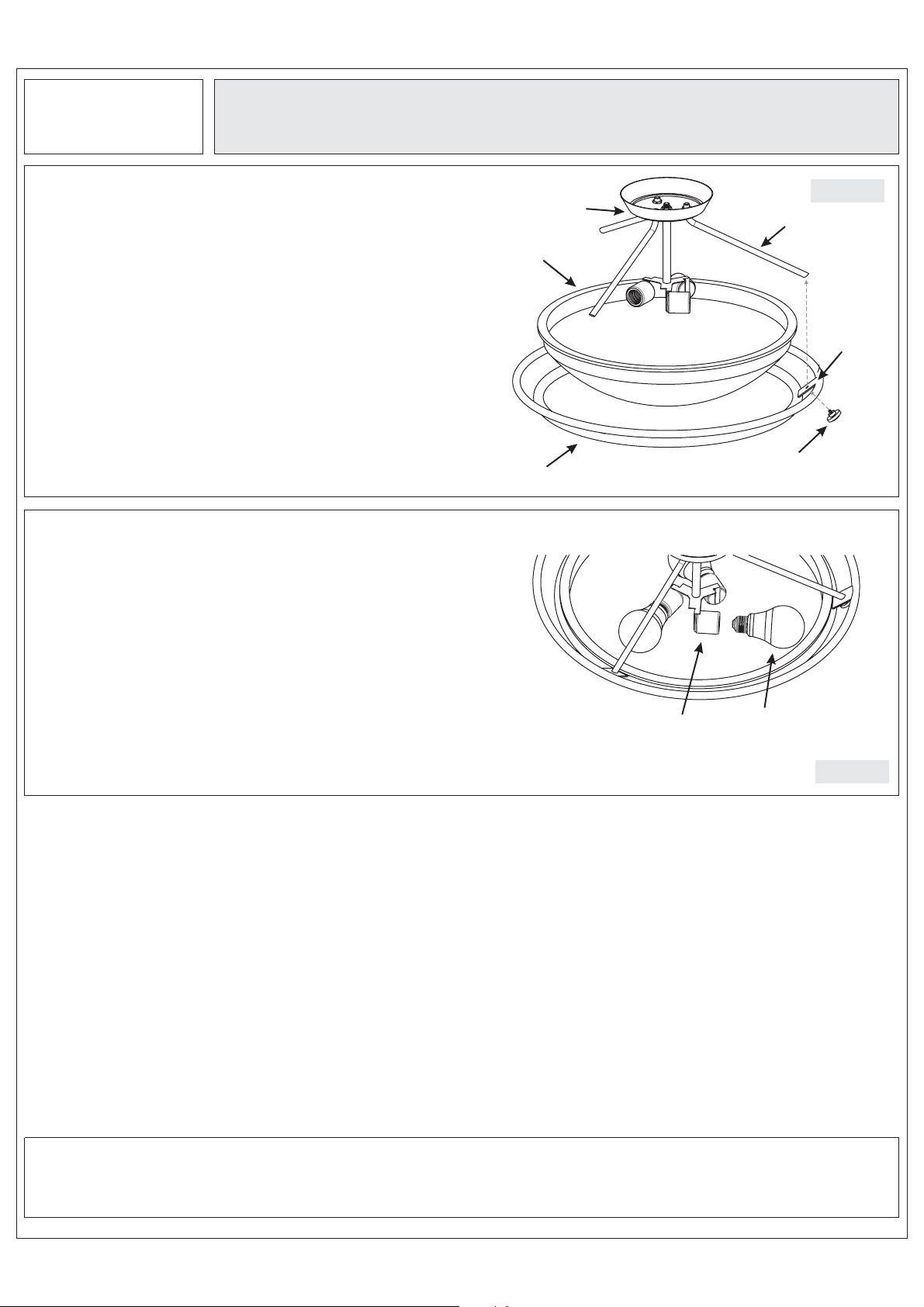

STEP 6Attach Shade to Fixture Body-
A. Place Shade(H) inside Shade Holder(I).
B. Lift the Shade Holder (I) with shade (H) upward and
align rings of the Shade Holder (I) with the ends of the
Side Arms of the Fixture Body (A).
C. Pass Lock Screws (F) through Tab of the Shade Holder
(I) and thread into Side Arm of the Fixture Body (A).
Hand tighten until snug
.
STEP 7Install Bulb-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Fixture Body
Shade
Shade Holder
Figure 7
Side Arm
Tab
Lock Screw
Your lamp semi-flush fixture is now assembled and ready to
use. Enjoy!
Socket
Bulb
Figure 8
5of5
