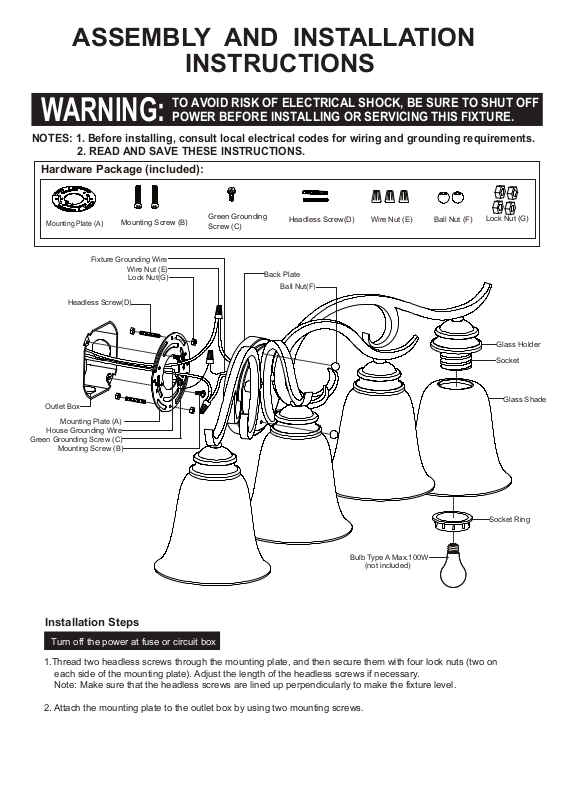

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Plate (A)
Fixture Grounding Wire
Headless Screw(D)
Outlet Box
Mounting Plate (A)
House Grounding Wire
Green Grounding Screw (C)
Mounting Screw (B)
Mounting Screw (B)
Wire Nut (E)
Lock Nut(G)
Green Grounding
Screw (C)
Headless Screw(D)
Back Plate
Ball Nut(F)
Wire Nut (E)
Ball Nut (F)
Lock Nut (G)
Glass Holder
Socket
Glass Shade
Bulb Type A Max.100W
(not included)
Socket Ring
Installation Steps
Turn off the power at fuse or circuit box
1.Thread two headless screws through the mounting plate, and then secure them with four lock nuts (two on
each side of the mounting plate). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up perpendicularly to make the fixture level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green
grounding screw, and then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting two headless screws, and then secure it with two ball nuts.
5. Attach the glass shades to the glass holders, and then secure them with socket rings.
6. Install bulbs(not included). Check relamping label at socket area or packaging for maximum allowed wattage.
Turn on the power at fuse or circuit box
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Plate (A)
Wire Nut (E)
Mounting Screw (B)
Ball Nut (F)
Green Grounding
Screw (C)
Lock Nut (G)
Glass Shade
(4PCS)
Headless Screw(D)
Assembly Kit
(1 SET)
A
A: 32-3/4"
B: 8-1/2"
C: 8-1/4"
B
C
