Page 1
Label Picture Description QTY (pc)
A Backrest 1
B
Loveseat Base With
Footrest
1

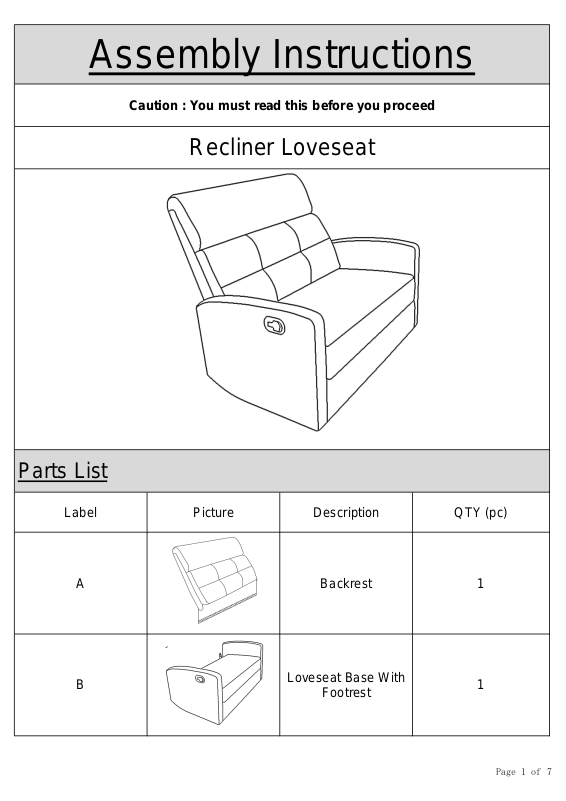

Assembly Instructions
Caution : You must read this before you proceed
Recliner Loveseat
Parts List
Page 1 of 7
Page 2
Before Beginning
Assembly:
Assembly Steps
Parts Introduction
This product has multiple parts and may require up to some 30 minutes to
assemble. To give you an overview of the product parts, the above picture is to
help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before
assembly.
Assembly Preparation
Front Facing
Backrest(A)
Loveseat Base with
Footrest(A)
Page 2 of 7
Page 3
Step 1
Step 2
Step 3
Take out the Backrest(A) from the Loveseat Base with Footrest(B).
With assistance from your adult partner, hold up the fully assembled Backrest(A),standing
behind the Recliner Loveseat.
Insert the small metal arms on the sides of the Backrest(A)into the prefabricated slide lock
gadget on the Loveseat Base with Footrest(B)as shown above.
Firmly but gently, push the Backrest(A)downwards until the Backrest(A) is fully slotted and
locked into position.
A
B
A
B
Valcro
Valcro
A
B
Velcro
A
Page 3 of 7
Page 4
Step 4
Step 5
Make sure all parts are connected and securely locked into position.
your Recliner Loveseat is ready for use.
Smooth down the fabric flap on the Backrest(A).
Run your hands down both sides of the flap,from top to bottom,allowing the
velcro tape to adhere to the flap under the seat of the Recliner Loveseat.
Disassembly Note:open the flap on the Backrest(A),use a screwdriver(Donยดt use
fingers) pressing outward on the metal ear on the preattached Metal Bracket on
one side of the Loveseat Base(B),with assistance of you adult partner to keep
the Loveseat Base(B) in place,pull out the Backrest(A) upward at the same
time,repeat the same step for another side.Then the Backrest(A) can be taken
out.
Page 4 of 7
Page 5
Please read the Instruction Manual below carefully before use.
Supervise children,when in use of this Recliner Loveseat.
Do not allow children to play on the Loveseat.
Always leave the Loveseat in an upright and closed position after use.
Keep hands and feet clear of the footrest mechanism and any gaps.
Do not open trigger when you want to close the footrest,
just push it by your feet.
Don't sit any armrest of Loveseat
To get into a open position-To push the Loveseat Backrest
Sit into the seat.
Open the trigger on the outside of right armrest,The Loveseat Backrest will fall
down and footrest will open when push the Loveseat Backrest by your back.So
do must put your feet on footrest well when you push down the Loveseat
Backrest.
Use your body weight and push backwards into the seat into a fully reclined
position.
User Instructions.
Recliner Loveseat
Page 5 of 7
Page 6
To get out of Loveseat-move Seatback into Upright Position
Tilt your body weight slightly forward and upwards.
The seat back will come up to an upright position.
Use your feet to push the footrest down.
The Loveseat will automatically lock when it is in the fully upright position.
Where necessary,use your arms help lift/push yourself out of the seat
Page 6 of 7
Page 7
Page 7 of 7
