TOOLS REQUIRED:
1. Check the parts against the parts list to make sure all items are present.
2. Assemble your furniture on a soft, flat surface to avoid scratching the finish.
3. CAUTION: Do not over tighten screws, nuts or bolts during assembly.
4. Your furniture may require occasional tightening.

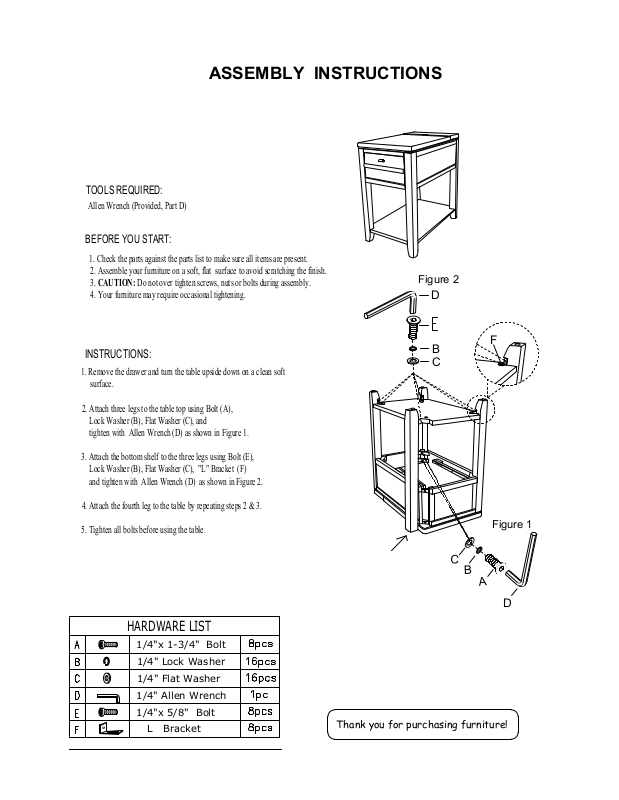

ASSEMBLY INSTRUCTIONS
BEFORE YOU START:
INSTRUCTIONS:
1/4" Allen Wrench
1/4" Lock Washer
1/4" Flat Washer
1/4"x 1-3/4" Bolt
HARDWARE LIST
Allen Wrench (Provided, Part D)
1/4"x 5/8" Bolt
1. Remove the drawer and t urn the table upside down on a clean soft
surface.
2. Attach th re e legs to the table top using Bolt ( A ),
Lock Washer (B), Flat Washer (C), and
tighten with Allen Wrench (D) as shown in Figure 1.
3 . A ttach the bottom shelf to the three legs using Bolt ( E ),
Lock Washer (B), Flat Washer (C), "L" Bracket (F)
and tighten with Allen Wrench (D) as shown in Figure 2 .
4. Attach the fourth leg to the table by repeating steps 2 & 3.
5. Tighten all bolts before using the table.
C
B
D
Figure 2
L Bracket
F
Figure
1
C
B
A
D
Thank you for purchasing furniture!
