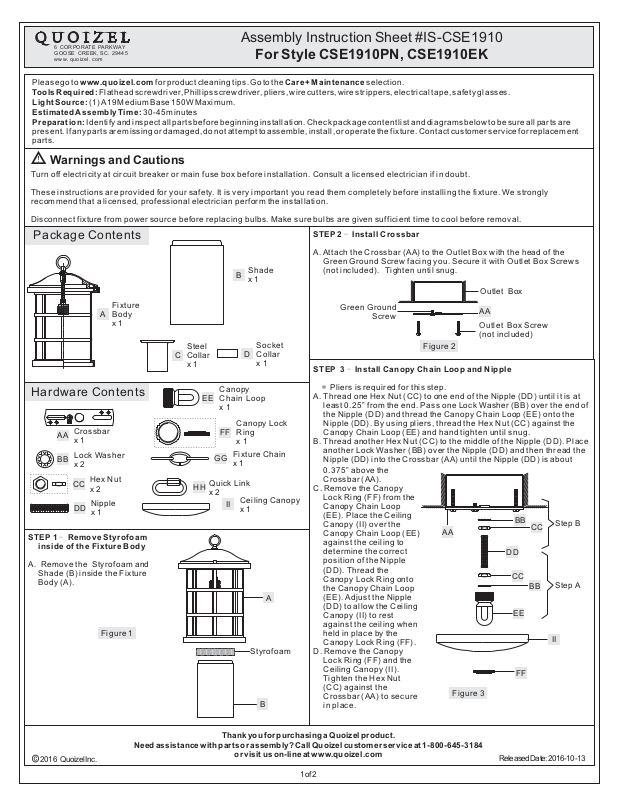

Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CSE1910
For Style CSE1910PN, CSE1910EK
Pleasegoto forproductcleaningtips.Gotothe selection.
ToolsRequired: Flathead screwdriver,Phillipsscrewdriver,pliers, wire cutters, wire strippers, electrical tape, safety glasses.
LightSource:
EstimatedAssembly Time:
Preparation:
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care+Maintenance
(1)A19 Medium Base 150W Maximum.
30-45minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
Fixture
Body
A
x1
C
Steel
Collar
x1
B
Shade
x1
Socket
D
Collar
x1
STEP 2 Install Crossbar-
A. AA)Attach the Crossbar ( to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included) Tighten until snug..
Outlet Box
Green Ground
Screw
Figure 2
STEP 3 Install Canopy Chain Loop and Nipple-
AA
Outlet Box Screw
(not included)
Hardware Contents
Crossbar
AA
x1
Lock Washer
BB
x2
Hex Nut
CC
x2
Nipple
DD
x1
STEP 1 - Remove Styrofoam
inside of the Fixture Body
A. Remove the Styrofoam and
Shade (B) inside the Fixture
Body (A).
Figure 1
EE
Quick Link
HH
x2
Canopy
Chain Loop
x1
Canopy Lock
FF
Ring
x1
Fixture Chain
GG
x1
Ceiling Canopy
II
x1
A
Styrofoam
B
* Pliers is required for this step.
A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at
least 0.25” from the end. Pass one Lock Washer (BB) over the end of
the Nipple (DD) and thread the Canopy Chain Loop (EE) onto the
Nipple (DD). By using pliers, thread the Hex Nut (CC) against the
Canopy Chain Loop (EE) and hand tighten until snug.
B. Thread another Hex Nut (CC) to the middle of the Nipple (DD). Place
another Lock Washer (BB) over the Nipple (DD) and then thread the
Nipple (DD) into the Crossbar (AA) until the Nipple (DD) is about
0.375” above the
Crossbar (AA).
C. Remove the Canopy
Lock Ring (FF) from the
Canopy Chain Loop
(EE). Place the Ceiling
Canopy (II) over the
Canopy Chain Loop (EE)
against the ceiling to
determine the correct
position of the Nipple
(DD). Thread the
Canopy Lock Ring onto
the Canopy Chain Loop
(EE). Adjust the Nipple
(DD) to allow the Ceiling
Canopy (II) to rest
against the ceiling when
held in place by the
Canopy Lock Ring (FF).
D. Remove the Canopy
Lock Ring (FF) and the
Ceiling Canopy (II).
Tighten the Hex Nut
(CC) against the
Crossbar (AA) to secure
in place.
AA
Figure 3
DD
BB
CC
EE
FF
CC
BB
Step B
Step A
II
2016 Quoizel Inc.
Need assistance with parts orassembly? CallQuoizel customerservice at1-800-645-3184
Thank you for purchasinga Quoizelproduct.
or visit us on-lineat www.quoizel.com
1of2
ReleasedDate:2016-10-13
Page 2
STEP 4 - Install Fixture Chain and Ceiling Canopy
A. Adjust the Fixture Chain (GG) to your desired length by removing
links if needed.
*
Pliers is required for this step.
B. With the Fixture Chain (GG) not attached to the Fixture Loop and the
Canopy Chain Loop (EE), pull the supply wires through the Fixture
Chain (GG) alternating links.After the wires are through the Fixture
Chain (GG), pull the Supply Wires and the Ground Wire through the
Canopy Lock Ring (FF) and the Ceiling Canopy (II) in order.
C. Attach one end of the Fixture
Chain (GG) to the Fixture
Loop with one Quick Link
(HH). Lift the fixture and
Fixture Chain (GG) up and
attach the other end of the
Fixture Chain (GG) onto the
Canopy Chain Loop (EE) with
another Quick Link (HH). The
fixture will now hang safely.
Close the chain loop at the
Ceiling Canopy Loop (EE).
D. Feed the Supply Wires and
Ground Wire through the
Supply
Wires and
Ground Wire
GG
DD
EE
HH
Canopy Chain Loop (EE) and
Nipple (DD) into the Outlet
Box. Cut the wires leaving
II
Approximately 8” of wire
extending from the Outlet
Box.
FF
E.RefertoStep5forwire
connections.
F. Raise the Ceiling Canopy (II)
HH
and Canopy Lock Ring (FF) up
the Fixture Chain (GG) and
over the Canopy Chain Loop
(EE). Tighten the Canopy
Fixture
Body
Lock Ring (FF) onto the
Canopy Chain Loop (EE) until
tight.
STEP 5 Install Shade
-
and Bulb
A. Place Shade (B) and
Steel Collar (C) over
the Socket, secure by
threading Socket
Collar (D) onto Socket.
Hand tighten until
sung.
B. Insert bulb and screw
snugly into place.
Your fixture is now
assembled and ready
to use. Enjoy!
Figure 5
CSE1910PN,CSE1910EK
FINISH: PALLADIAN BRONZE
EARTH BLACK
Socket
B
C
D
Bulb (not
Supplied)
5” Dia.
1”
Figure 4
STEP 5 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into outlet box.
Note: If the electrical wire is going to be cut shorter than provided
you will need to identify the "L" line wire and the "N" neutral wire
before you cut the excess wire off. One is labeled N and the other
labeled L. To do this separate the "L" line wire and the "N" neutral
wire as far as you need to. Re-label the wire near where you want to
make the cut. Be sure to mark the wire on the side of the fixture and
not on the excess wire being cut and removed.
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
Ribbed side of wire from fixture
identified with the Label “N”
Smooth side of wire from fixture
identified with the label “L”
Ground wire
from fixture
Figure 5
116” OVERALL
HEIGHT INCLUDES
96” CHAINSAND
(2) QUICK LINKS
15.5”
11”
7” Dia.
10” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
2016 Quoizel Inc.
Need assistance with parts orassembly? CallQuoizel customerservice at1-800-645-3184
Thank you for purchasinga Quoizelproduct.
or visit us on-lineat www.quoizel.com
2of2
ReleasedDate:2016-10-13
