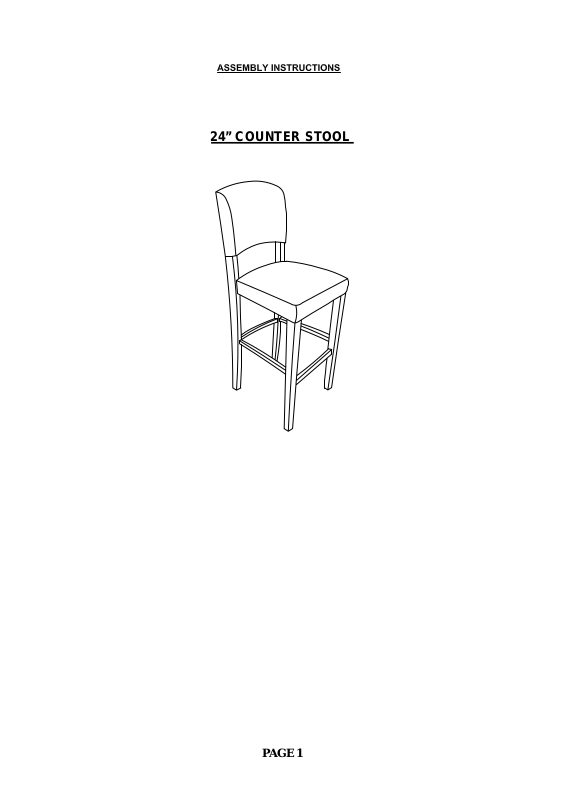

24” COUNTER STOOL
PAGE 1
Page 2
1B
PARTS LIST
PARTS GRAPHICS DESCRIPTION QUANTITY
1A
1B
3C
2D
FRONT LEG ASSEMBLY 1
RIGHT SIDE STRETCHER 1
1A
SEAT ASSEMBLY 1
BACK ASSEMBL Y 1
2E
F
G
H
I
J
K
L
M
LEFT SIDE STRETCHER 1
SHORT BOLT 2
BACK LEG BOLT 4
FRONT LEG BOLT 4
SPRING WASHER 10
FLAT WASHER 10
ALLEN HEXAGONAL WRENCH 1
WOOD SCREW 4
ADHESIVE PADS 4
PAGE 2
Page 3
PREPARATION:
SELECT A WORK SURFACE. WE RECOMMEND A TABLE TOP. PLEASE PROTECT IT VERY WELL,
INCLUDING THE EDGES TO PREVENT ANY DAMAGES; YOU MAY USE A BLANKET AND THE
CARDBOARD FROM THE STOOL BOX．
YOU WILL NEED TO USE YOUR OWN PHILLIPS SCREWDRIVER WITH #2 SIZE HEAD．
STEP-1: CONNECT SEAT-1A TO BACK-1B AS SHOWN IN FIGURE-1
FIGURE-1
1.1 POSITION BACK-1B ON THE WORK SURFACE AS SHOWN IN FIGURE-1.
1.2 LOOK FOR TWO WOODEN DOWELS OUTSIDE SEAT-1A; INSERT THEM INTO THE
CORRESPONDING HOLES IN THE RAIL OF BACK-1B.
1.3 INSERT ONE SPRING WASHER-J, THEN ONE FLAT WASHER-I OVER ONE BACK LEG
BOLT-G; INSERT THE BOLT-G THROUGH ANY OF THE FOUR HOLES IN THE CORNER
BRACKETS ADJACENT TO THE BACK LEGS; IF NECESSARY, MOVE THE BOLT-G AROUND TO
FIND THE HOLE IN THE BACK LEG. TIGHTEN BY HAND.
1.4 REPEAT PROCEDURE 1.3 TO INSTALL THE REMAINING THREE SETS G+J+I.
1.5 REPEAT PROCEDURE 1.4 TO INSTALL TWO SHORT BOLTS WITH HARDWARE F+J+I TO
SECURE SEAT–1A TO BACK-1B.
PAGE 3
Page 4
STEP-2 : CONNECT THE SIDE STRETCHER TO THE BACK-1B AS SHOWN IN FIGURE-2
2.1 FOLLOW THE LABELS ON STRETCHERS 2D AND 2E INSERT THEM IN THE BACK LEGS AS
SHOWN. SECURE CONNECTION WITH TWO WOOD SCREWS-L.
FIGURE-2
PAGE 4
Page 5
STEP-3 : CONNECT THE FRONT LEG TO SEAT-1A AND SIDE STRETCHER AS SHOWN IN FIGURE-3
3C
FIGURE-3A FIGURE-3B
3.1 REMOVE THE SHIPPING CLEAT FROM END OF FRONT LEG ASSEMBLY-3C.
3.2 TURN CHAIR AROUND WITH SEAT IN THE WORK SURFACE AS SHOWN IN FIGURE-3B.
3.3 CONNECT FRONT ASSEMBLY-3C TO STRETCHERS 2D AND 2E USING TWO WOOD
SCREWS-G,THEN CONNECT IT TO SEAT-1A USING FOUR FRONT LEG BOLTS-H WITH FOUR
SPRING WASHERS-I, AND FOUR FLAT WASHERS-J AS SHOWN IN FIGURE-3B.
3.4 PLACE FOUR FOOT PAD-M TO THE LEGS OF THE STOOL AS SHOWN.
PAGE 5
Page 6
MAINTENANCE:
4.1 YOUR STOOL ASSEMBLY IS NOW COMPLETED. ENJOY USING IT !
4.2 DO NOT DISCARD THE ALLEN HEXAGONAL WRENCH-D; KEEP IT FOR FUTURE USE.
4.3 PERIODICALLY CHECK ALL CONNECTIONS AND RE-TIGHTEN BOLTS AND WOOD SCREWS IF
NECESSARY. DO NOT OVER-TIGHTEN TO AVOID STRIPPING WOOD OR METAL NUTS.
4.4 CLEAN THE LACQUER FINISH IF NECESSARY WITH CLEAN WATER DAMP CLOTH. IF YOU DO
NOT MIND A CHANGE OF LACQUER SHEEN THEN YOU MAY USE A NON-ABRASIVE FURNITURE
CLEANER. DO NOT USE HOUSEHOLD CLEANING CHEMICALS.
4.5 CLEAN THE UPHOLSTERY WITH A WATER DAMP CLOTH. DO NOT USE HOUSEHOLD
CHEMICALS.
PAGE 6
