ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.

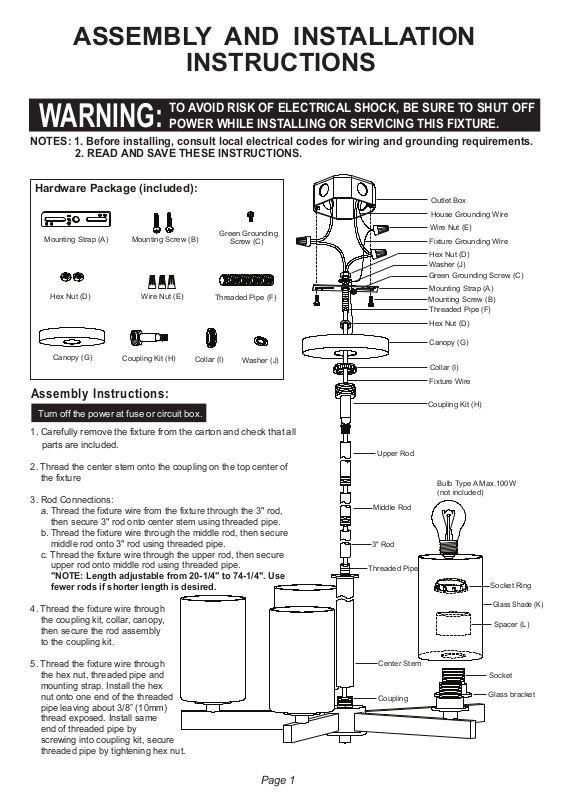

Hardware Package (included):
Mounting Strap (A)
Hex Nut (D)
Mounting Screw (B)
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Outlet Box
House Grounding Wire
Wire Nut (E)
Fixture Grounding Wire
Hex Nut (D)
Washer (J)
Green Grounding Screw (C)
Mounting Strap (A)
Mounting Screw (B)
Threaded Pipe (F)
Hex Nut (D)
Wire Nut (E)
Green Grounding
Screw (C)
Threaded Pipe (F)
Canopy (G)
Coupling Kit (H)
Collar (I)
Washer (J)
Assembly Instructions:
Turn off the power at fuse or circuit box.
1. Carefully remove the fixture from the carton and check that all
parts are included.
2. Thread the center stem onto the coupling on the top center of
the fixture
3. Rod Connections:
a. Thread the fixture wire from the fixture through the 3" rod,
then secure 3" rod onto center stem using threaded pipe.
b. Thread the fixture wire through the middle rod, then secure
middle rod onto 3" rod using threaded pipe.
c. Thread the fixture wire through the upper rod, then secure
upper rod onto middle rod using threaded pipe.
"NOTE: Length adjustable from 20-1/4" to 74-1/4". Use
fewer rods if shorter length is desired.
4. Thread the fixture wire through
the coupling kit, collar, canopy,
then secure the rod assembly
to the coupling kit.
Canopy (G)
Collar (I)
Fixture Wire
Coupling Kit (H)
Upper Rod
Bulb Type A Max.100W
(not included)
Middle Rod
3" Rod
Threaded Pipe
Socket Ring
Glass Shade (K)
Spacer (L)
5. Thread the fixture wire through
the hex nut, threaded pipe and
mounting strap. Install the hex
nut onto one end of the threaded
pipe leaving about 3/8” (10mm)
thread exposed. Install same
end of threaded pipe by
screwing into coupling kit, secure
threaded pipe by tightening hex nut.
Page 1
Center Stem
Coupling
Socket
Glass bracket
6. Attach the threaded pipe to the mounting strap, then secure it with a washer and hex nut.
(1 SET)
(4 PCS)
(1 PC)
(1 PC)
7. Attach the mounting strap to outlet box by using two mounting screws.
8. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the hot wire (usually black insulation) from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the neutral wire (usually white insulation) from the power
source.
---Attach the fixture grounding wire (usually bare wire) to the mounting strap with the green grounding screw. Then connect
it to the house grounding wire with a wire nut. If your outlet box does not have a house grounding wire, then wrap the
fixture grounding wire around the green grounding screw.
Carefully put the wires back into the outlet box.
9. Attach the canopy to the mounting strap: insert the coupling kit through hole, then secure by tightening collar.
10. Place the glass shades onto the glass
bracket
s, then secure them
by tightening the spacers and socket rings.
11. Install bulbs (not included). See relamping label at socket area or
packaging for maximum allowed wattage.
12. Angled mounting recommended for a vaulted or angled
ceiling. (See Fig. 1)
Turn on the power at the main fuse or circuit breaker box.
The following parts are available for re-order if damaged or missing.
Mounting Strap (A)
Hex Nut (D)
Mounting Screw (B)
Wire Nut (E)
Green Grounding
Screw (C)
Threaded Pipe (F)
Spacer (L)
(5 PCS)
Fig.1
Support Brace
Outlet Box
Canopy
Coupling Kit
Glass Shade (K)
(5 PCS)
Canopy (G)
Coupling Kit (H)
Assembly Kit
Collar (I)
Washer (J)
12”Rod (M)
6”Rod (N) 3”Rod (O)
A: 19-1/4"
B: 20-1/4~74-1/4"
