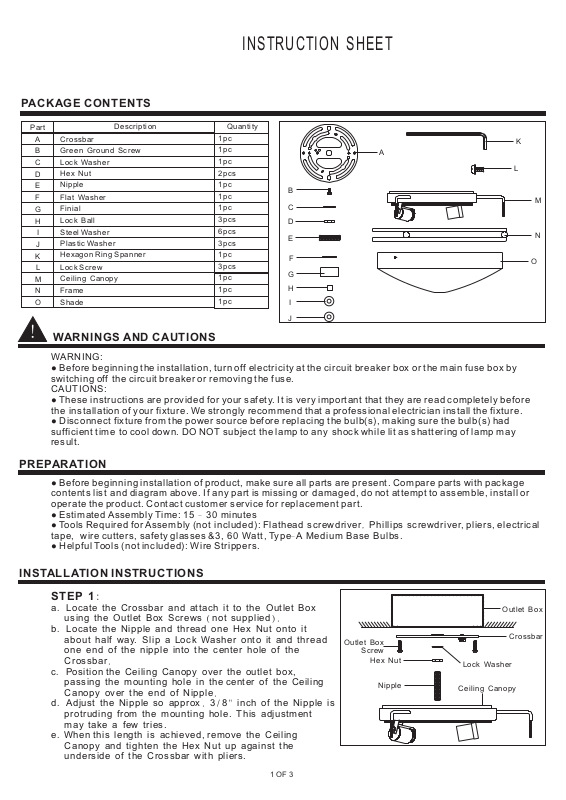

Page 1
PACKAGE CONTENTS
INSTRUCTION SHEET
Part
A
Crossbar
Green Ground Screw
B
Lock Washer
C
Hex Nut
D
Nipple
E
Flat Washer
F
Finial
G
Lock Ball
H
Steel Washer
I
Plastic Washer
J
Hexagon Ring Spanner
K
Lock Screw
L
Ceiling Canopy
M
Frame
N
O Shade
!
WARNINGS AND CAUTIONS
Description
Quantity
1pc
1pc
1pc
2pcs
1pc
1pc
1pc
3pcs
6pcs
3pcs
1pc
3pcs
1pc
1pc
1pc
A
B
C
D
E
F
G
H
I
J
WARNING:
● Before beginning the installation, turn off electricity at the circuit breaker box or the main fuse box by
switching off the circuit breaker or removing the fuse.
CAUTIONS:
● These instructions are provided for your safety. It is very important that they are read completely before
the installation of your fixture. We strongly recommend that a professional electrician install the fixture.
● Disconnect fixture from the power source before replacing the bulb(s), making sure the bulb(s) had
sufficient time to cool down. DO NOT subject the lamp to any shock while lit as shattering of lamp may
result.
K
L
M
N
O
PREPARATION
● Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement part.
● Estimated Assembly Time: 15 30 minutes
● Tools Required for Assembly (not included): Flathead screwdriver Phillips screwdriver, pliers, electrical
tape, wire cutters, safety glasses &3, 60 Watt, Type A Medium Base Bulbs.
● Helpful Tools (not included): Wire Strippers.
INSTALLATION INSTRUCTIONS
STEP 1:
.
a Locate the Crossbar and attach it to the Outlet Box
using the Outlet Box Screws not supplied
.
b Locate the Nipple and thread one Hex Nut onto it
about half way. Slip a Lock Washer onto it and thread
one end of the nipple into the center hole of the
Crossbar
.
c Position the Ceiling Canopy over the outlet box,
passing the mounting hole in the center of the Ceiling
Canopy over the end of Nipple
d Adjust the Nipple so approx 3 8 inch of the Nipple is
.
protruding from the mounting hole. This adjustment
may take a few tries.
e When this length is achieved, remove the Ceiling
.
Canopy and tighten the Hex Nut up against the
underside of the Crossbar with pliers.
.
-
-
().
.
./"
,
Outlet Box
Screw
Hex Nut
Nipple
Outlet Box
Crossbar
Lock Washer
Ceiling Canopy
1OF3
Page 2
INSTALLATION INSTRUCTIONS
STEP 2:
a. Thread another Hex Nut onto the other end of the
nipple. Thread this Hex Nut on just enough so the
inside surface of the pan rests against it.
You may have to trial fit the Ceiling Canopy one more
times to insure this distance also. This Hex Nut is
needed here to prevent you from crushing down the
center of the Ceiling Canopy*.
STEP 3:
Use Wire Connectors not supplied to connect the
*()
wires
.
a Connect the House Ground Wire to the Fixture Ground
.
Wire.
b Connect the House White or Ribbed Wire to the
.()
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
.()
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
.
().
carefully stuff all of the connected wires into the Outlet
Box
.
()
Nipple
Ceiling Canopy
WHITE OR RIBBED
FROM HOUSE
BLACK OR RED WIRE()
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
Hex Nut
WHITE OR RIBBED
FROM FIXTURE
BLACK OR SMOOTH
FROM FIXTURE
STEP 4:
a Position the Ceiling Canopy to the ceiling by. passing
the Nipple through the center hole
.
b Slip on the Flat Washer and then thread the Finial to the
bottom end of the Nipple Snug down assembly until the
.
Ceiling Canopy is flush against the ceiling
Be sure that there are no trapped or pinched wires
*
along the edge of the pan.
STEP 5
a Install correct Bulbs referring to fixture markings and/or labels for maximum wattage.
.
:
STEP 6:
.
a Place the Shade onto a flat work surface. Locate the
Frame over the Shade and match Mounting Holes on it onto
holes on the side of the Shade.
b. Pass the Steel Washers and the Plastic Washer over the
Lock Screw. Using Hexagon Ring Spanner, thread Lock
Screws with Washers into Mounting Holes to secure the
Frame and the Shade together.
d. M
ake sure that Lock Screw doesn't penetrate opening of
the Ball, this will allow the Support Arms to pass through
Ball to attach Shade to Base.
.
Nipple
.
Frame
Lock Screw
Hexagon Ring Spanner
Shade
Ceiling Canopy
Flat Washer
Finial
Mounting Hole
Steel Washer
Plastic
Washer
2OF3
Page 3
INSTALLATION INSTRUCTIONS
STEP 7
.
a Lift the Shade with Frame upward and make the holes on
the Frame over the Nipple on the ends of SupportArms
:
.
Thread Lock Balls onto Nipples and hand tighten until
snug to secure the Shade with Frame
.
.. .Your installation is completed now Restore electricity Keep this sheet for future reference
Shade with Frame
Support Arm
Hole
Lock Ball
3OF3
