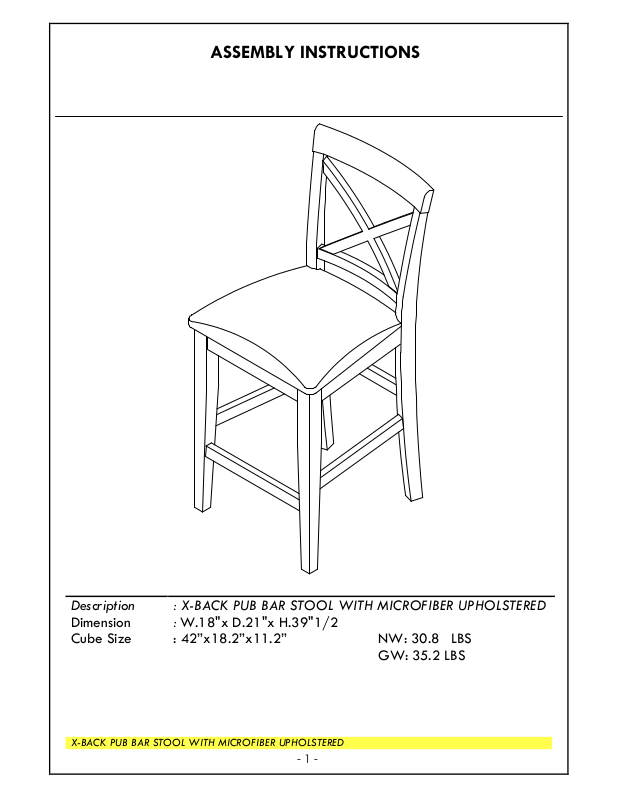

X-BACK PUB B
AR STOOL WITH MICROFIBER UPHOLSTERED
ASSEMBLY INSTRUCTIONS
Description
: X-
BACK PUB B
AR STOOL WITH MICROFIBER UPHOLSTERED
Dimension
: W.18"x D.21"x H.39"1/2
Cube Size : 42”x18.2”x11.2” NW: 30.8 LBS
- 1 -
GW: 35.2 LBS
X-BACK PUB B
AR STOOL WITH MICROFIBER UPHOLSTERED
NOT INCLUDED
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
ASSEMBLY TOOLS REQUIRED
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A
C-R
C-L
Chair back 1
Front Leg
1
D-R
1
D-L
Seat Frame 1
B
Side stretcher
1
1
Front Stretcher
E
1
- 2 -
X-BACK PUB B
AR STOOL WITH MICROFIBER UPHOLSTERED
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
Long bolt
1
3
5
7
(M6x80mm)
Short bolt
(M6x40mm)
Flat Washer
(Ф6.5x19)
Screw
(M4x40mm)
4
2
10
6
Medium bolt
2
4
6
(M6x60mm)
Lock Washer
(Ф6.5x9)
Allen Key
(4mm)
4
10
1
STEP 1
Attach frame (B) to the back (A) by using bolts (3) and (1) and washers (4) and (5). Tighten with Allen
Key (6).
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts.
B
X4
- 3 -
A
X2
X-BACK PUB B
AR STOOL WITH MICROFIBER UPHOLSTERED
STEP 2
Attach front legs (C-L) and (C-R) to the seat frame. Use bolts (2), washers (4) and (5) .Tighten with Allen
Key (6).
Place front stretcher (E), side stretchers (D-L) and (D-R) between front and back legs, use the screw
driver to tighten the screws (7) as shown below.
Note: DO NOT tighten any of the bolts, until Place front stretcher (E), side stretchers (D-L) and (D-R)
between front and back legs the chair is assembled, then tighten the bolts and the screws.
C-L
- 4 -
