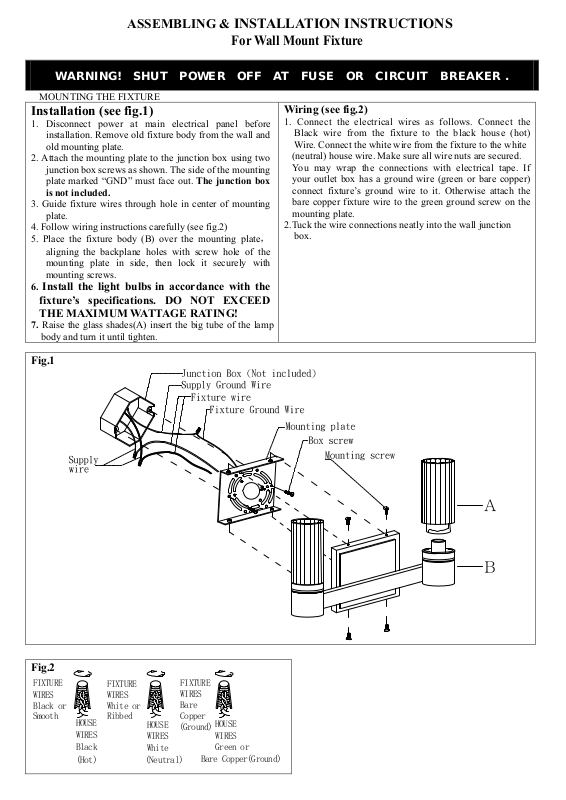

ASSEMBLING & INSTALLATION INSTRUCTIONS
For Wall Mount Fixture
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
MOUNTING THE FIXTURE
Installation (see fig.1)
1. Disconnect power at main electrical panel before
installation. Remove old fixture body from the wall and
old mounting plate.
2. Attach the mounting plate to the junction box using two
junction box screws as shown. The side of the mounting
plate marked “GND” must face out. The junction box
is not included.
3. Guide fixture wires through hole in center of mounting
plate.
4. Follow wiring instructions carefully (see fig.2)
5. Place the fixture body (B) over the mounting plate，
aligning the backplane holes with screw hole of the
mounting plate in side, then lock it securely with
mounting screws.
Install the light bulbs in accordance with the
6.
Wiring (see fig.2)
1. Connect the electrical wires as follows. Connect the
Black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the white
(neutral) house wire. Make sure all wire nuts are secured.
You may wrap the connections with electrical tape. If
your outlet box has a ground wire (green or bare copper)
connect fixture’s ground wire to it. Otherwise attach the
bare copper fixture wire to the green ground screw on the
mounting plate.
2.Tuck the wire connections neatly into the wall junction
box.
fixture’s specifications. DO NOT EXCEED
THE MAXIMUM WATTAGE RATING!
7. Raise the glass shades(A) insert the big tube of the lamp
body and turn it until tighten.
Fig.1
wire
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
