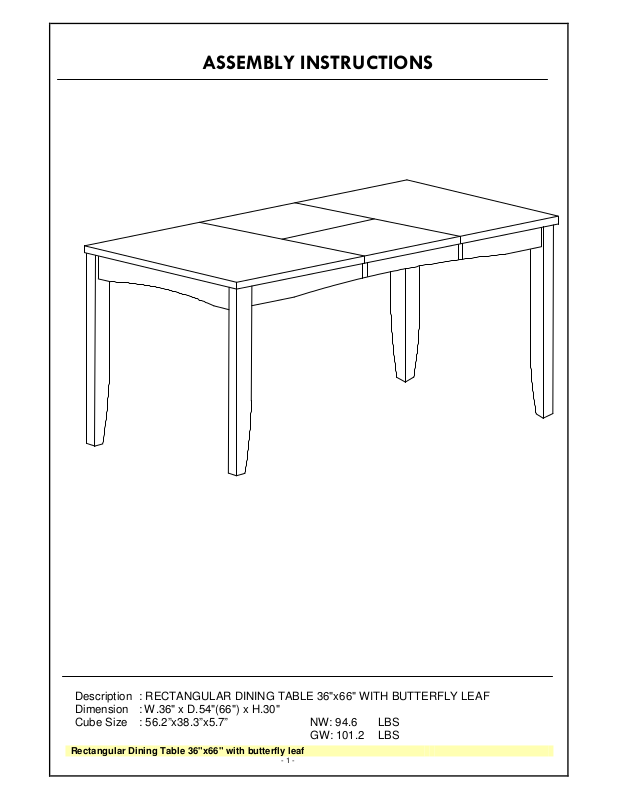

ASSEMBLY INSTRUCTIONS
Description : RECTANGULAR DINING TABLE 36"x66" WITH BUTTERFLY LEAF
Dimension : W.36" x D.54"(66") x H.30"
Cube Size : 56.2”x38.3”x5.7” NW: 94.6 LBS
GW: 101.2 LBS
Rectangular Dining Table 36"x66" with butterfly leaf
- 1 -
Page 2
BEFORE ASSEMB
LY
PART
LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the
time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate,
identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts:
A Top 1
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following
hardware:
1
3
Bolt
(M8x70)
Flat Washer
( Φ8.5xΦ19mm)
8
8
B Table Leg 4
Lock washer
2
( Φ8.5xΦ11mm)
Allen key
4
(M4mm)
8
1
Rectangular Dining Table 36"x66" with butterfly leaf
- 2 -
Page 3
STEP 1
Attach legs (B) to the top (A) with Bolts (1) and washers (2), (3). Tighten with the Allen Key (4).
B
B
B
B
A
STEP 2
Unlock the table top from both sides underneath of the top as show below. Pull the 2 parts of the table top apart..
x2
Rectangular Dining Table 36"x66" with butterfly leaf
- 3 -
Page 4
STEP 3
Place the leaves in the center of the open table top. Push the table top closed. Lock the mechanism underneath
2 sides of the table top as shown below.
x4
Rectangular Dining Table 36"x66" with butterfly leaf
- 4 -
