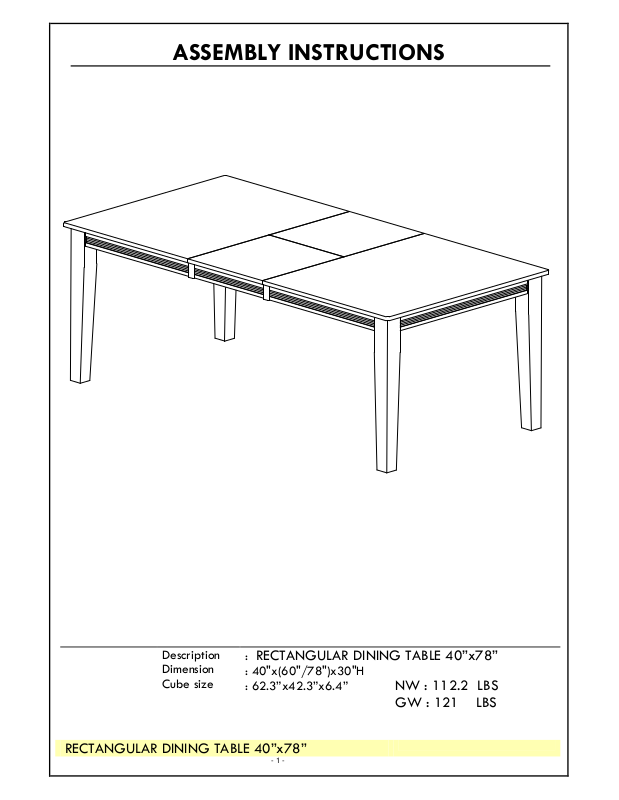

ASSEMBLY INSTRUCTIONS
Description
NW
: 112.2
LBS
GW : 121
LBS
Dimension
Cube size
:
RECTANGULAR DINING TABLE 40”x78”
: 40"x(60"/78")x30"H
: 62.3”x42.3”x6.4”
RECTANGULAR DINING TABLE 40”x78”
- 1 -
Page 2
BEFORE ASSEMB
LY
PART
LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
Thank you for purchasing this Whitewood Industries Inc.’s quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. Please separate,
identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws, bolts until all completely assembled.
- Keep all hardware parts out of reach of children
When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following
parts:
A Top 1
When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following
hardware:
1
Bolt
(M8x70mm)
8
B Leg 4
Lock washer
2
( Φ8.5xΦ13mm)
8
Flat washer
3
( Φ8.5xΦ19mm)
RECTANGULAR DINING TABLE 40”x78”
8
4
Allen key
(4mm)
1
- 2 -
Page 3
STEP 1
Place legs (B) in position as shown below. Use bolts (1) and washers (2),(3) to attach legs, tighten with the Allen key (4).
B
STEP 2
Unlock the table top underneath, at two sides. And then pull the table top apart.
RECTANGULAR DINING TABLE 40”x78”
- 3 -
Page 4
STEP 3
Place the leaf in the center of the open table top. Push the table top closed.
STEP 4
Lock the mechanism underneath 2 sides of the table top as shown below.
RECTANGULAR DINING TABLE 40”x78”
- 4 -
