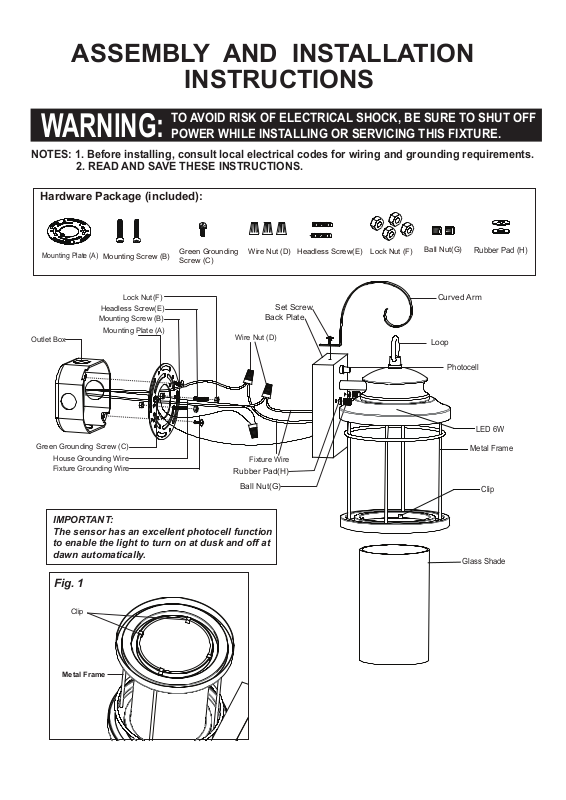

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Plate (A)
Outlet Box
Green Grounding Screw (C)
House Grounding Wire
Fixture Grounding Wire
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Mounting Screw (B)
Lock Nut(F)
Headless Screw(E)
Mounting Screw (B)
Mounting Plate (A)
Fig. 1
Green Grounding
Screw (C)
circuit box.
Wire Nut (D)
Set Screw
Back Plate
Wire Nut (D)
Fixture Wire
Rubber Pad(H)
Ball Nut(G)
Headless Screw(E)
Lock Nut (F)
Ball Nut(G)
Curved Arm
Loop
Photocell
Rubber Pad (H)
LED 6W
Metal Frame
Clip
Glass Shade
Clip
Metal Frame
Installation Steps
Turn off the power at fuse or circuit box.
1. Thread two headless screws through the mounting plate, then secure them with four lock nuts ( two on each side of the
mounting plate). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally to ensure that the fixture will be level.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Hook the curved arm to the loop, and then attach the curved arm to the back plate by using the set screw.
4. Place the glass shade into the metal frame carefully, and then secure it by pressing the clips from the bottom side.
(See Fig.1)
5. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follow:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green grounding
screw. Then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
6. Attach the back plate to the mounting plate by inserting the headless screws, then secure it with two rubber pads and two
ball nuts.
CAUTION: With silicone caulking compound, caulk completely around where the back plate meets with the wall
surface to prevent water from seeping into the outlet box.
Turn on the power at fuse or circuit box.
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Plate (A)
Mounting Screw (B)
Curved Arm
Green Grounding
Screw (C)
Wire Nut (D)
Set Screw
Headless Screw(E)
Lock Nut (F)
Assembly Kit
5172AA (1 SET)
Ball Nut(G)
Rubber Pad (H)
Mounting Hardware
5165MM (1 SET)
Glass Shade
9645CK (1PCS)
A: 6-1/8"
B: 13-1/8"
C: 7-1/4"
