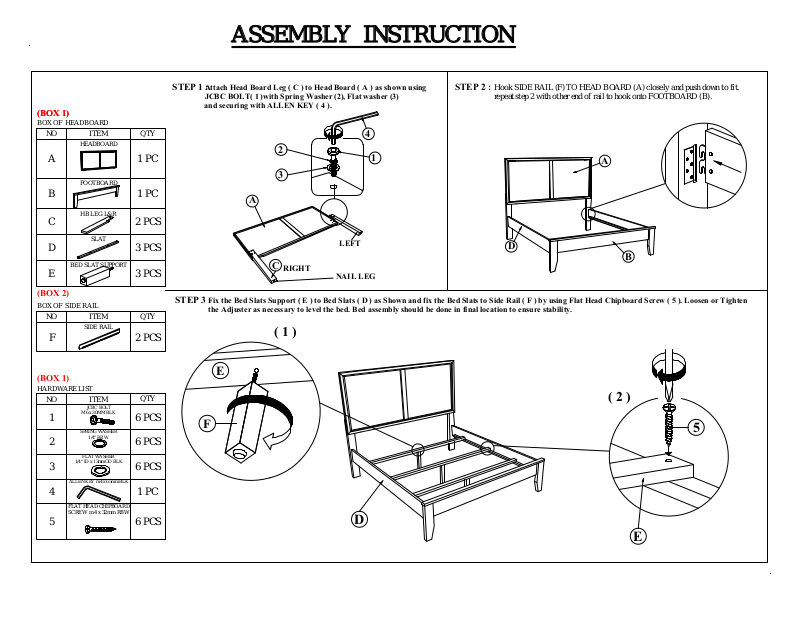

ASSEMBLY INSTRUCTION
(BOX 1)
(BOX 1)
BOX OF HEADBOARD
NO ITEM
HEADBOARD
A
FOOTBOARD
B
C
HB LEG L&R
D
SLAT
BED SLAT SUPPORT
E
(BOX 2)
BOX OF SIDE RAIL
NO ITEM
SIDE RAIL
F
(BOX 1)
HARDWARE LIST
NO
1
2
3
ITEM
JCBC BOLT
M6 x 30MM BLK
SPRING WASHER
1/4" RBW
FLAT WASHER
1/4" ID x 13mmOD BLK
ALLEN KEY m4 x 65mm BLK
4
FLAT HEAD CHIPBOARD
SCREW m4 x 32mm RBW
5
QTY
1 PC
1 PC
2 PCS
3 PCS
3 PCS
QTY
2 PCS
QTY
6 PCS
6 PCS
6 PCS
1 PC
6 PCS
STEP 1 : Hook SIDE RAIL (F) TO HEAD BOARD (A) closely and push down to fit.
Attach Head Board Leg ( C ) to Head Board ( A ) as shown using
JCBC BOLT( 1 )with Spring Washer (2), Flat washer (3)
and securing with ALLEN KEY ( 4 ).
STEP 2 :
repeat step 2 with other end of rail to hook onto FOOTBOARD (B).
4
2
1
A
3
A
LEFT
D
B
C
STEP 3 :
RIGHT
Fix the Bed Slats Support ( E ) to Bed Slats ( D ) as Shown and fix the Bed Slats to Side Rail ( F ) by using Flat Head Chipboard Screw ( 5 ). Loosen or Tighten
the Adjuster as necessary to level the bed. Bed assembly should be done in final location to ensure stability.
NAIL LEG
( 1 )
E
( 2 )
F
5
D
E
