ARMLESS SOFA

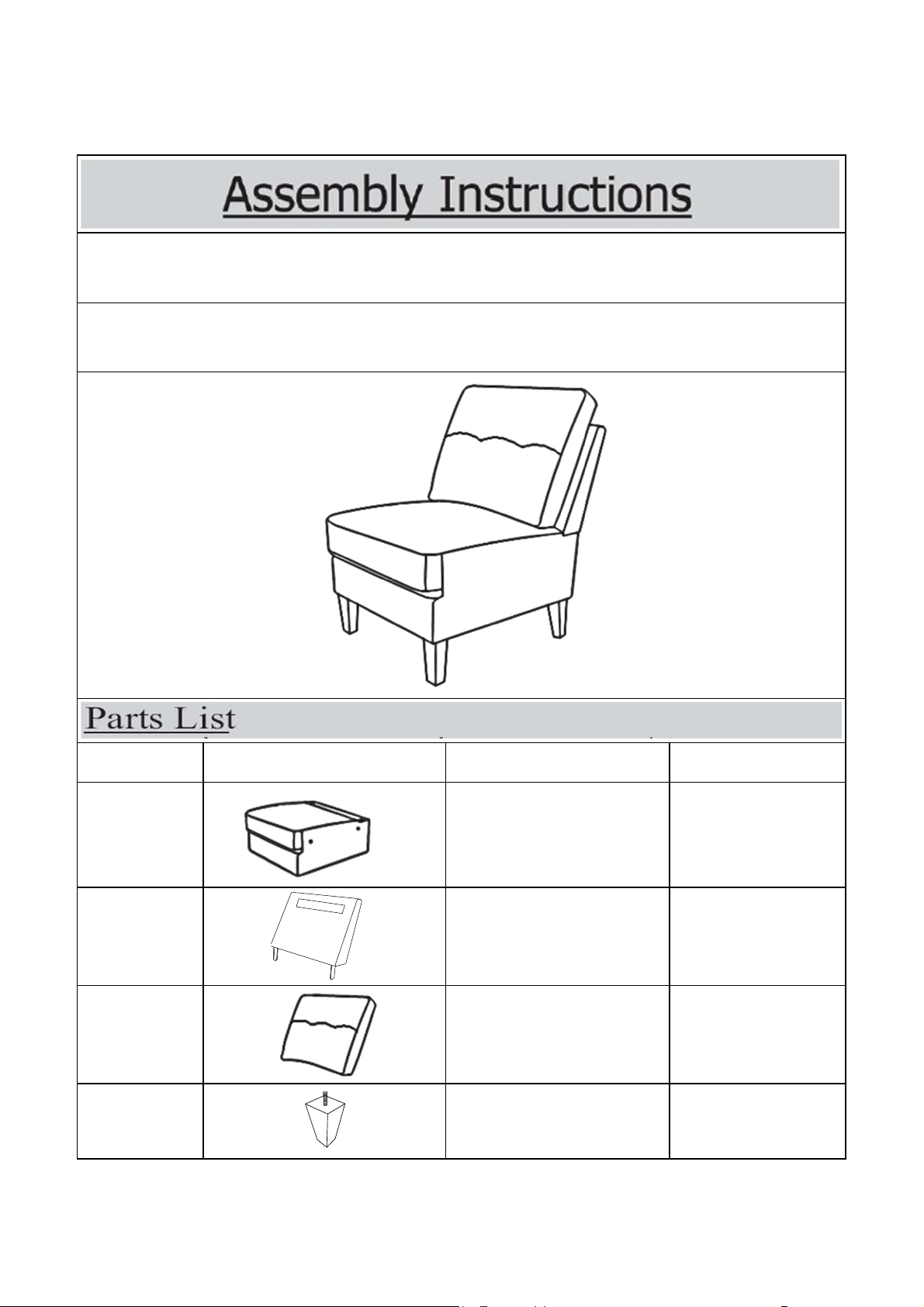

Label Picture Description QTY
A Seat Frame 1
B Backrest 1
C Back Cushion 1
D Leg 4
1 of 7
Label Picture Description QTY
①
②
③
④
⑤
⑥

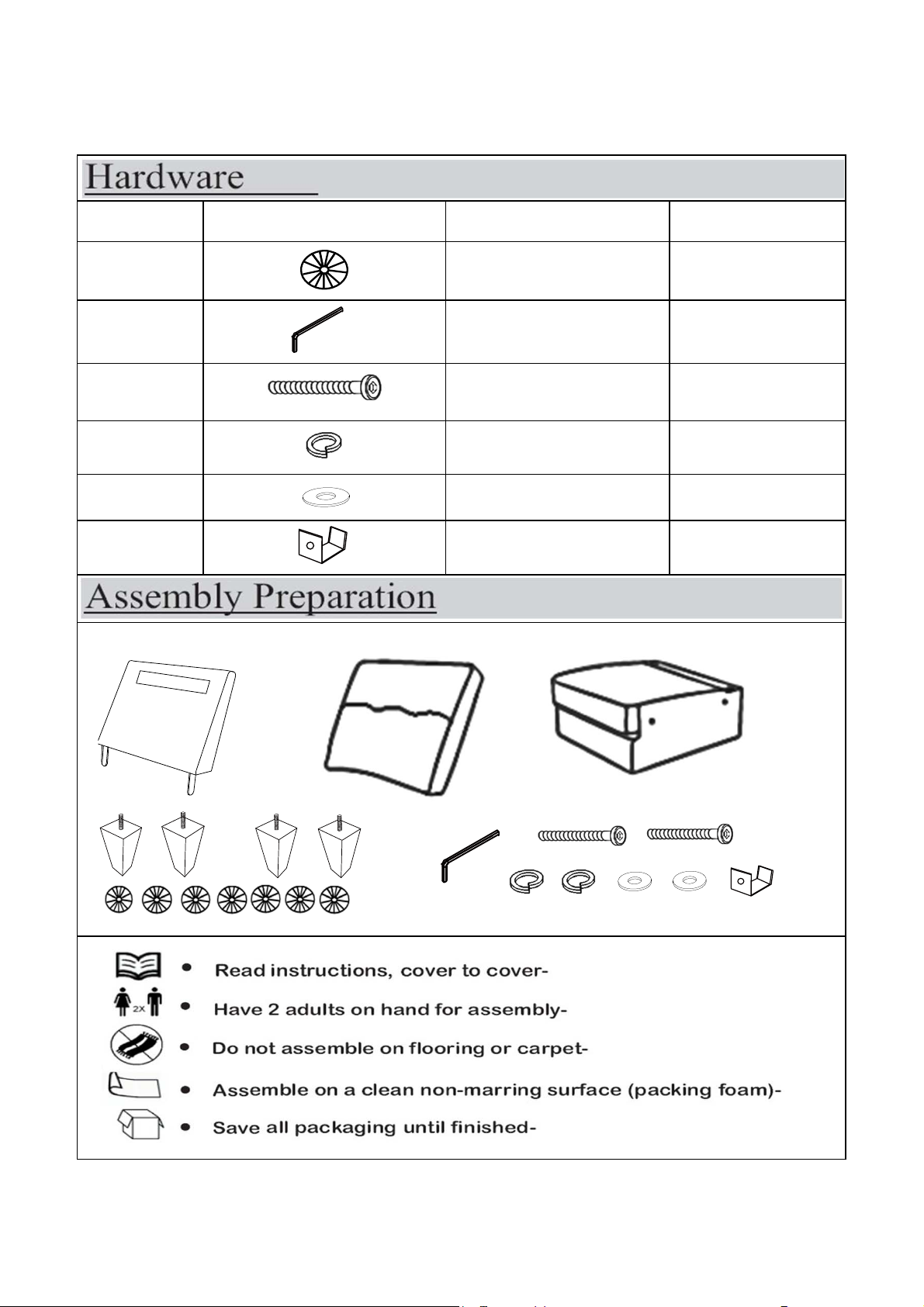

Before Beginning Assembly:
Washer Ring 7
Allen key 1
Bolt M8*20mm 2
Spring Washer 2
Flat Washer 2
Connecting Piece 1
2 of 7
OVERVIEW
Back Cushion (C)
Leg (D)
Leg (D)
Backrest(B)
Seat Frame (A)
FRONT FACING
This ARMLESS SOFA has multiple parts and may require up to some 30 minutes
to assemble.
To give you an overview of the ARMLESS SOFA parts, the above picture is to help
you put the various parts into perspective.
Please read through the instructions below to familiarise yourself with the parts
and steps before assembly.
Step 1
A
C
Position the Seat Frame (A) on its back,as shown.
Unzip to open pouch and remove the 4 wooden legs , Back Cushion(C) and
hardware, close the pouch.
Step 2
D
A
Washer Ring(①)
D
D
3 of 7
Install the Legs(D) into the bottom of the Seat Frame (A) by placing a Washer
Rings(①) onto the threaded stem of the Legs.
And then insert the threaded stem into the threaded mounting position at each
Corner of the Bottom Seat Frame (A)).
Tighten by turning the Legs clockwise.
Note: The use of Washer Rings(①) are OPTIONAL and are especially useful to
help alleviate slight wobbles.
Some Legs may need more than one Washer Ring whilst some Legs may not
need any.
Position Sofa right side up and test for stability on a Level Surface.
Add or remove Washer Rings(①) where needed to achieve stability.
Step 3
A
Cover the bottom of the Seat Frame (A) with the non-woven fabric.
Smooth down the Magic Tape on all four sides of the Seat by hand.
Step 4
B
A
4 of 7
Position ARMLESS SOFA right side up.
Align the mounting positions on the Seat Frame (A) .
Insert the Backrest (B) into the Seat Frame (A) as shown in above picture.
Step 5
Back Cushion (C)
Put the Back Cushion(C) on the ARMLESS SOFA.
Step 6
Your ARMLESS SOFA is ready for use.
Your ARMLESS SOFA can only be used on a flat, level surface.
If you already purchased 2 or more than 2 products, Please read on
Step 1
Position the ARMLESS SOFA on level surface,as shown.
Attach the Connecting Piece(⑥) to Seat Frame(A) using Bolts(③), Spring
Washers(④), and Flat Washer (⑤) with Allen Key(②) as shown in the right picture.
5 of 7
Step 2
⑥
⑥
Connecting the two sofas by using the pre-fixed Connecting Piece (⑥) as shown in the
picture.
Step 3
Step3.1
⑥
⑥
Step3.2
Step3.3
Step3.4
Step3.5
Note: This is optional step in case we want to connect all sofas in a set
together and to match the environment of your home.
6 of 7
7 of 7
