Red Barrel Studio RDBA3069 Assembly Instructions

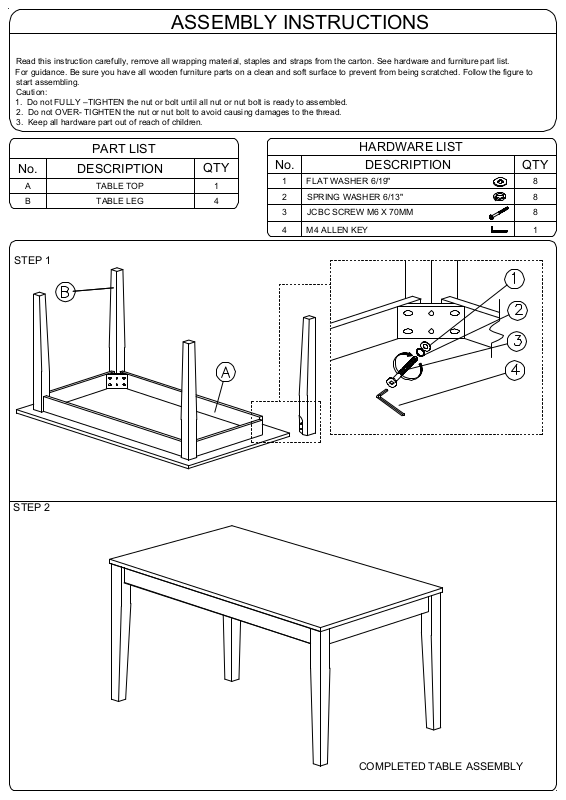

ASSEMBLY INSTRUCTIONS
Read this instruction carefully, remove all wrapping material, staples and straps from the carton. See hardware and furniture part list. For guidance. Be sure you have all wooden furniture parts on a clean and soft surface to prevent from being scratched. Follow the figure to start assembling. Caution:
1. Do not FULLY –TIGHTEN the nut or bolt until all nut or nut bolt is ready to assembled.
2. Do not OVER- TIGHT
3. Keep all hardware part out of reach of children.
PART LIST
No. DESCRIPTION
A
B
STEP 1
TABLE TOP
TABLE LEG
QTY
1
4
HARDWARE LIST
No. DESCRIPTION
1
FLAT WASHER 6/19"
2
SPRING WASHER 6/13"
3
JCBC SCREW M6 X 70MM
4
M4 ALLEN KEY
QTY
8
8
8
1
STEP 2
COMPLETED TABLE ASSEMBLY
