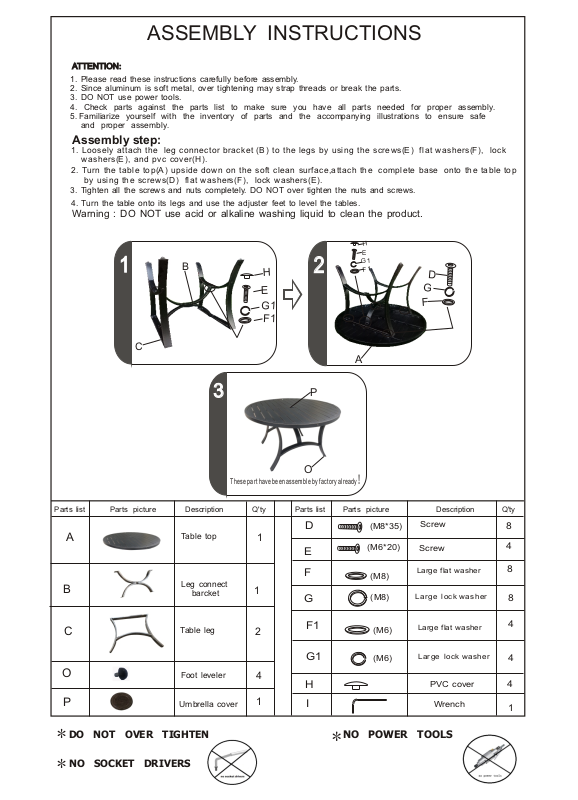

ASSEMBLY INSTRUCTIONS
ATTENTION:ATTENTION:
1. Please read these instructions carefully before assembly.
2. Since aluminum is soft metal, over tightening may strap threads or break the parts.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure safe
and proper assembly.
Assembly step:
1. Loos ely attach the leg conne ctor bra ck et (B ) to the legs by usi ng the screw s(E ) flat wa shers(F), lock
washe rs(E), and pvc cover(H ).
2. Turn the table to p(A ) upside down on th e soft clean surf ace ,attach the com ple te base onto the ta ble top
by using the scre ws(D) fl at wash ers (F), lock washe rs(E).
3. Tighten all the screws and nuts completely. DO NOT over tighten the nuts and screws.
4. Turn the table onto its legs and use the adjuster feet to level the tables.
Warning : DO NOT use acid or alkaline washing liquid to clean the product.
H
E
11
B
H
22
E
G1
F1
G1
F1
D
G
F
C
33
These p art have bee n assem ble b y facto ry al ready !
Parts list Parts picture Description
A
B
C 2
Table top
Leg connect
barcket
Table leg
Q'ty
1
1
A
P
O
Parts list Parts picture Description
D
E
F
G
F1
(M8*35)
(M6*20)
(M8)
(M8)
(M6)
Screw
Screw
Large flat washer
Large l ock w ash er
Large flat washer
Q'ty
8
4
8
8
4
O
Foot leveler
P
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Umbrella cover
G1
(M6)
4
H
1
I
NO POWER TOOLS
*
Large l ock w ash er
PVC cover
Wrench
4
4
1
