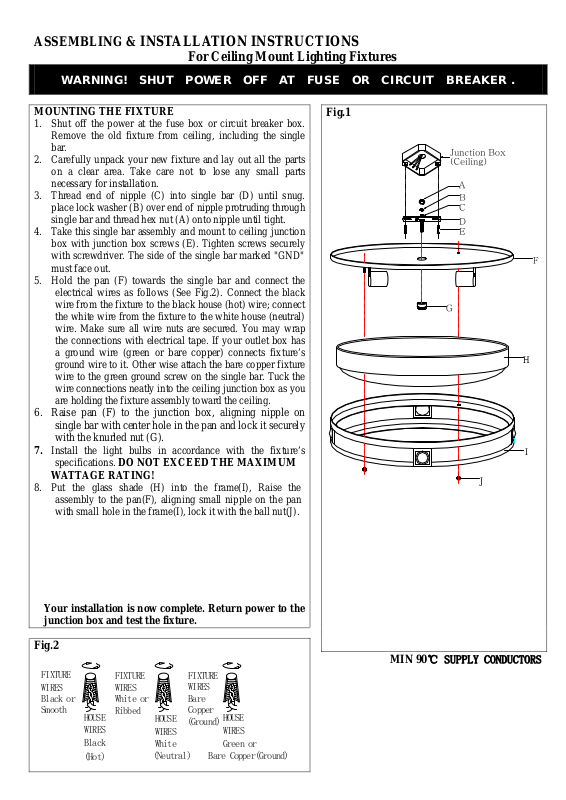

Page 1
ASSEMBLING &
INSTALLATION INSTRUCTIONS
For Ceiling Mount Lighting Fixtures
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
MOUNTING THE FIXTURE
1. Shut off the power at the fuse box or circuit breaker box.
Remove the old fixture from ceiling, including the single
bar.
2. Carefully unpack your new fixture and lay out all the parts
on a clear area. Take care not to lose any small parts
necessary for installation.
3. Thread end of nipple (C) into single bar (D) until snug.
place lock washer (B) over end of nipple protruding through
single bar and thread hex nut (A) onto nipple until tight.
4. Take this single bar assembly and mount to ceiling junction
box with junction box screws (E). Tighten screws securely
with screwdriver. The side of the single bar marked "GND"
must face out.
5. Hold the pan (F) towards the single bar and connect the
electrical wires as follows (See Fig.2). Connect the black
wire from the fixture to the black house (hot) wire; connect
the white wire from the fixture to the white house (neutral)
wire. Make sure all wire nuts are secured. You may wrap
the connections with electrical tape. If your outlet box has
a ground wire (green or bare copper) connects fixture’s
ground wire to it. Other wise attach the bare copper fixture
wire to the green ground screw on the single bar. Tuck the
wire connections neatly into the ceiling junction box as you
are holding the fixture assembly toward the ceiling.
6. Raise pan (F) to the junction box, aligning nipple on
single bar with center hole in the pan and lock it securely
with the knurled nut (G).
7.
Install the light bulbs in accordance with the fixture’s
specifications.
DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
8. Put the glass shade (H) into the frame(I), Raise the
assembly to the pan(F), aligning small nipple on the pan
with small hole in the frame(I), lock it with the ball nut(J).
Your installation is now complete. Return power to the
junction box and test the fixture.
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
Fig.1
MIN 90℃ SUPPLY CONDUCTORS
H
I
J
