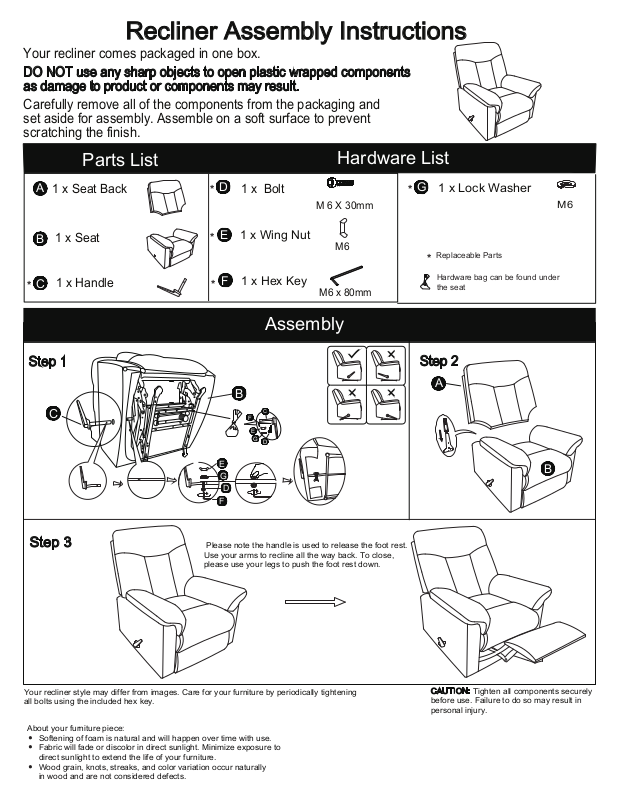

Recliner Assembly Instructions
Your recliner comes packaged in one box.
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
Parts List
Hardware List
A
1 x Seat Back
1 x Seat
B
1 x Handle
C
*
Step 1
C
D
*
1 x Bolt
M 6 X 30mm
1 x Wing Nut
E
*
M6
1 x Hex Key
F
*
M6 x 80mm
G
1 x Lock Washer
*
Replaceable Parts
*
Hardware bag can be found under
the seat
M6
Assembly
Step 2
A
B
C
C
F
E
G
D
E
G
D
F
B
Step 3
Your recliner style may differ from images. Care for your furniture by periodically tightening
all bolts using the included hex key.
About your furniture piece:
.
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
direct sunlight to extend the life of your furniture.
.
Wood grain, knots, streaks, and color variation occur naturally
in wood and are not considered defects.
Please note the handle is used to release the foot rest.
Use your arms to recline all the way back. To close,
please use your legs to push the foot rest down.
CAUTION: Tighten all components securely
before use. Failure to do so may result in
personal injury.
