adults are needed to execute these actions.

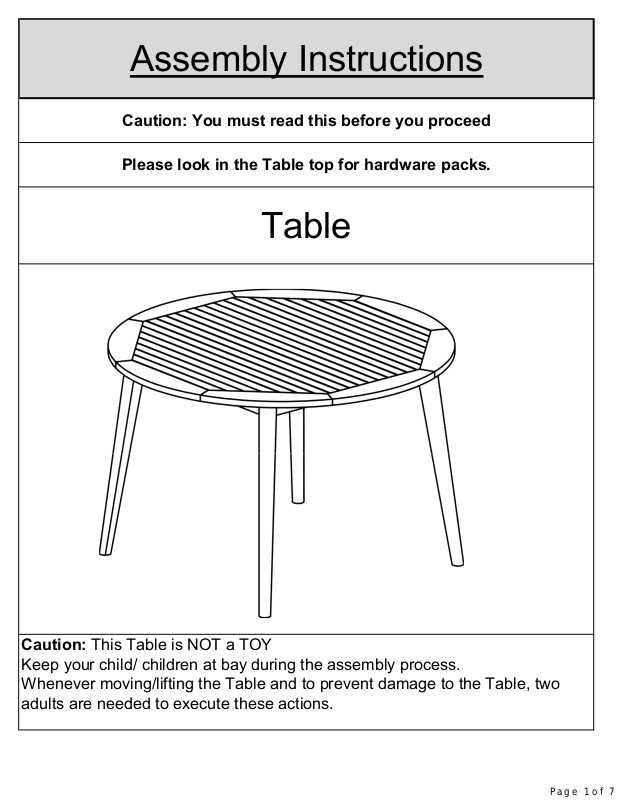

Assembly Instructions
Page 1 of 7
Caution: You must read this before you proceed
Please look in the Table top for hardware packs.
Table
Caution: This Table is NOT a TOY
Keep your child/ children at bay during the assembly process.
Whenever moving/lifting the Table and to prevent damage to the Table, two
①
②
③
Parts List
Page 2 of 7
Label Picture Description QTY
A
B Leg 4
Table Top
1
Hardware
Label Picture Description QTY
Bolt
(M8x50mm)
Washer
Allen Key
9
9
1
Assembly Preparation
Page 3 of 7
Before Beginning Assembly:
Assembly Steps
Table Top (A)
Leg (B)
This Table has multiple parts and may require up to 30 minutes to assemble. To give you
an overview of the Table parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the
parts and steps before assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 4 of 7
Step 2
B
A
Page 5 of 7
2
1
3
Attach Leg(B) to the Table Top(A) using Bolts(①), and Washers(②) with Allen Key(③).
Do not fully tighten the Bolts.
Repeat the same process with the remaining three Legs(B).
Step 3
Page 6 of 7
Stand the Table up, with assistance from your adult partner.
Exert pressure floorwards, onto the Table with both your hands.
This pressure will help the Legs and Table Top reach full alignment status.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten the Bolts in a sequential manner, until evenly
secured.
When tightening the Bolts tighten sequentially.
Do not tighten any Bolt fully and then move on towards the next one.
If there are still wobbles, loosen the Bolts and excute the same above process.
If the Table is not Stable it could lead to damage to the product.
Your Table is ready for use.
This Table can only be used on a flat, level surface.
Page 7 of 7
