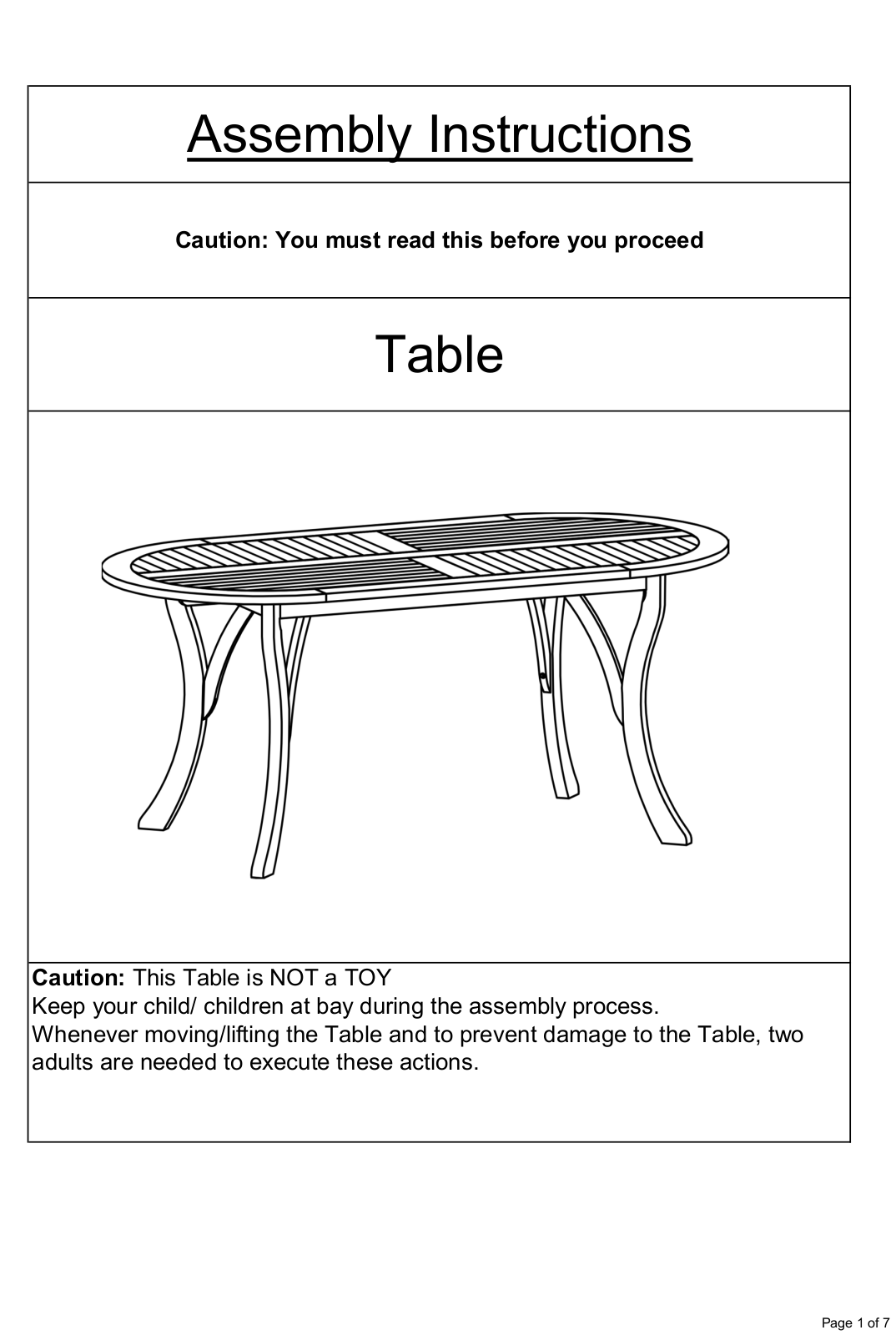

Assembly Instructions
adults are needed to execute these actions.
Caution: You must read this before you proceed
Table
Caution: This Table is NOT a TOY
Keep your child/ children at bay during the assembly process.
Whenever moving/lifting the Table and to prevent damage to the Table, two

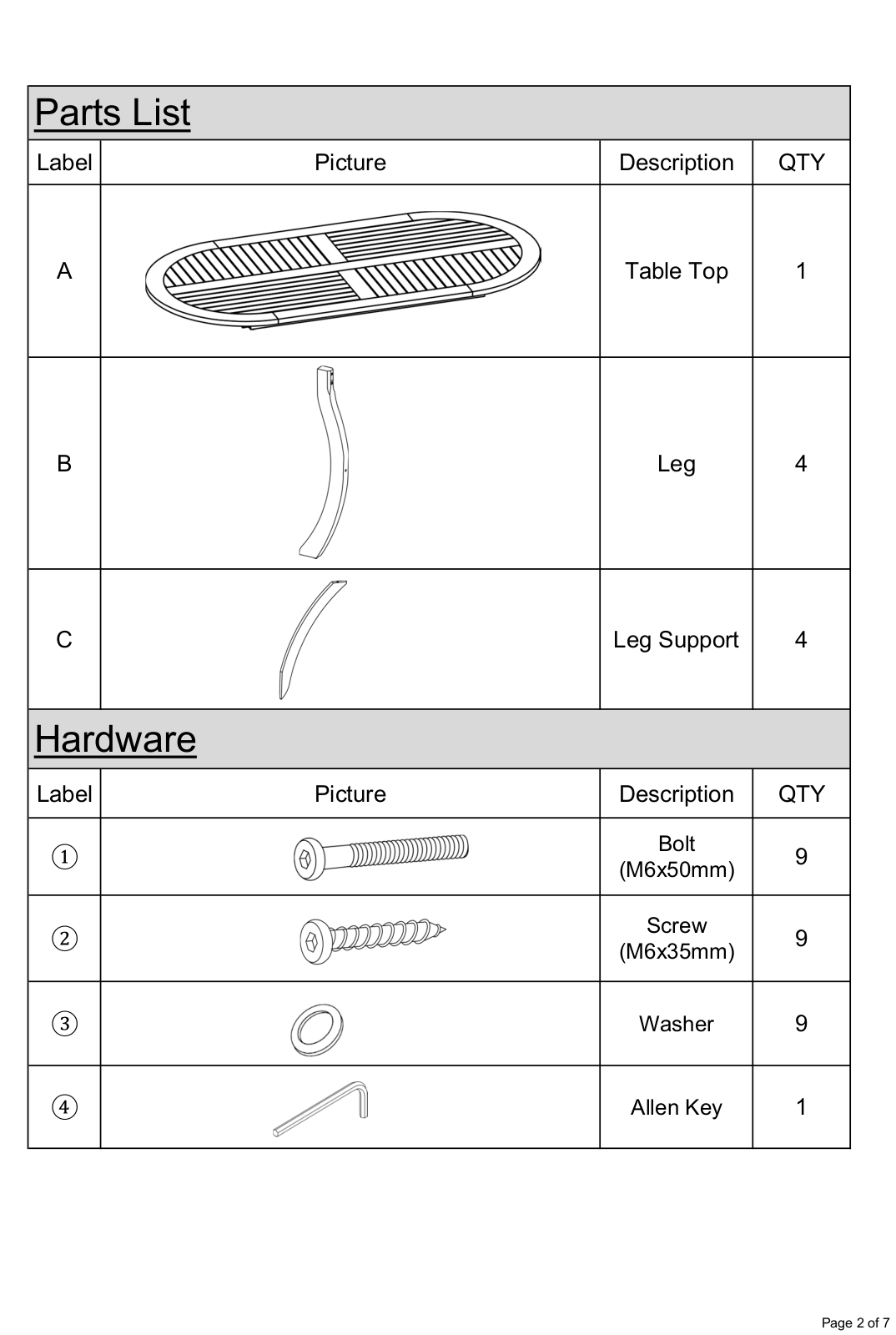

Parts List
Label Picture Description QTY
A Table Top 1
B Leg 4
C Leg Support 4
Hardware
Label Picture Description QTY
Bolt
(M6x50mm)
Screw
(M6x35mm)
Washer
9
9
9
Allen Key
1
Page 2 of 7

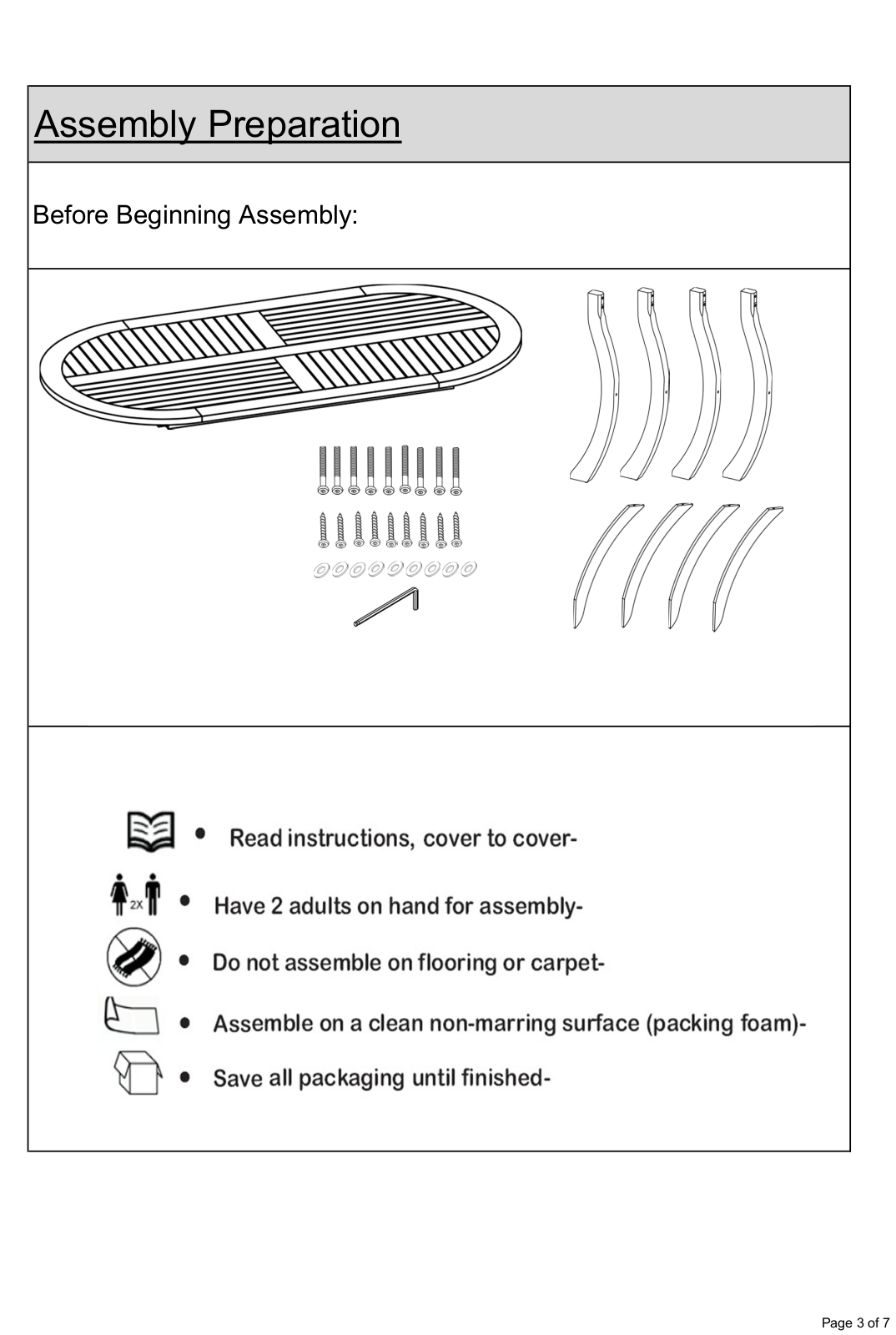

Assembly Preparation
Before Beginning Assembly:
Page 3 of 7

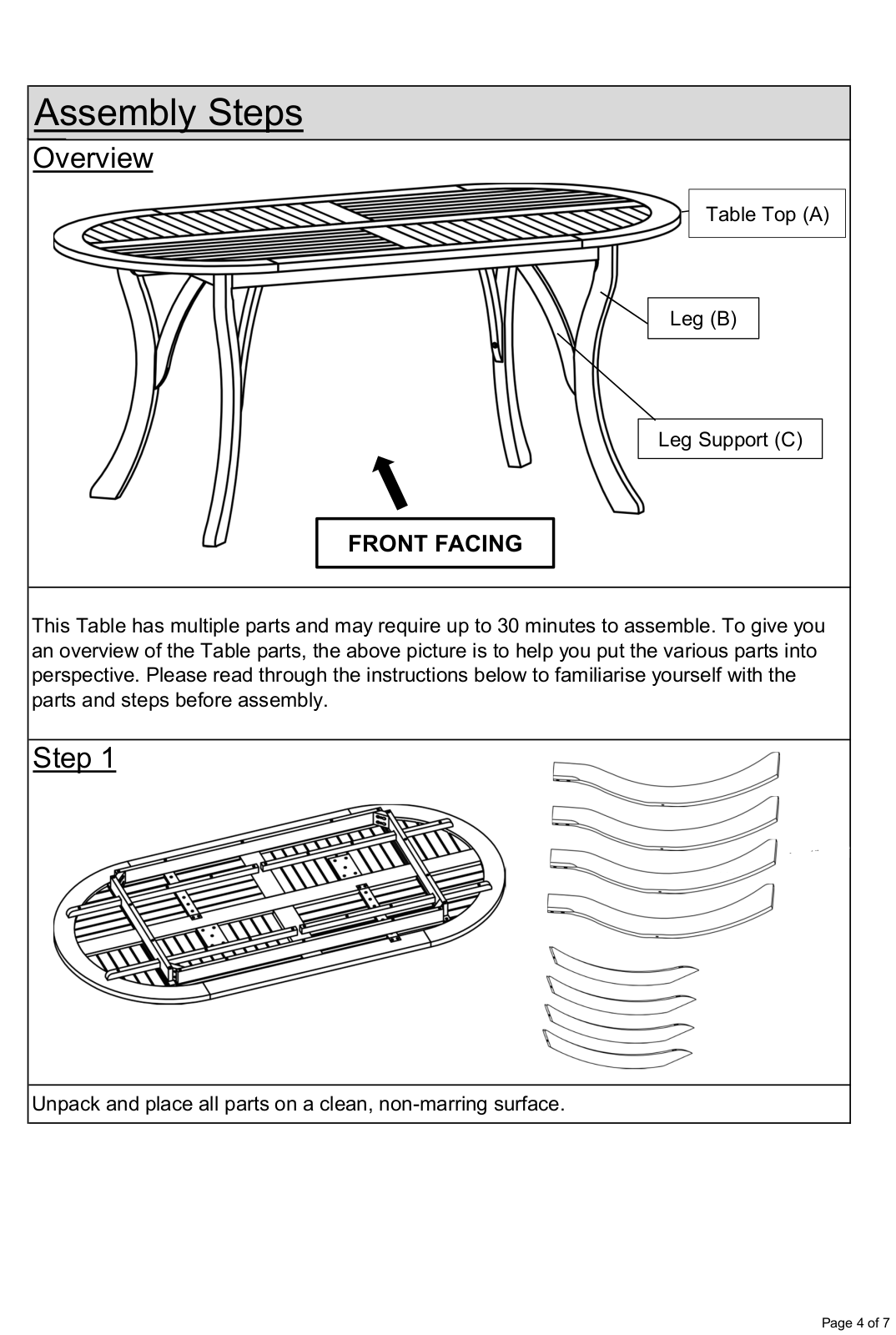

Assembly Steps
Overview
Table Top (A)
Leg (B)
Leg Support (C)
FRONT FACING
This Table has multiple parts and may require up to 30 minutes to assemble. To give you
an overview of the Table parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the
parts and steps before assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.

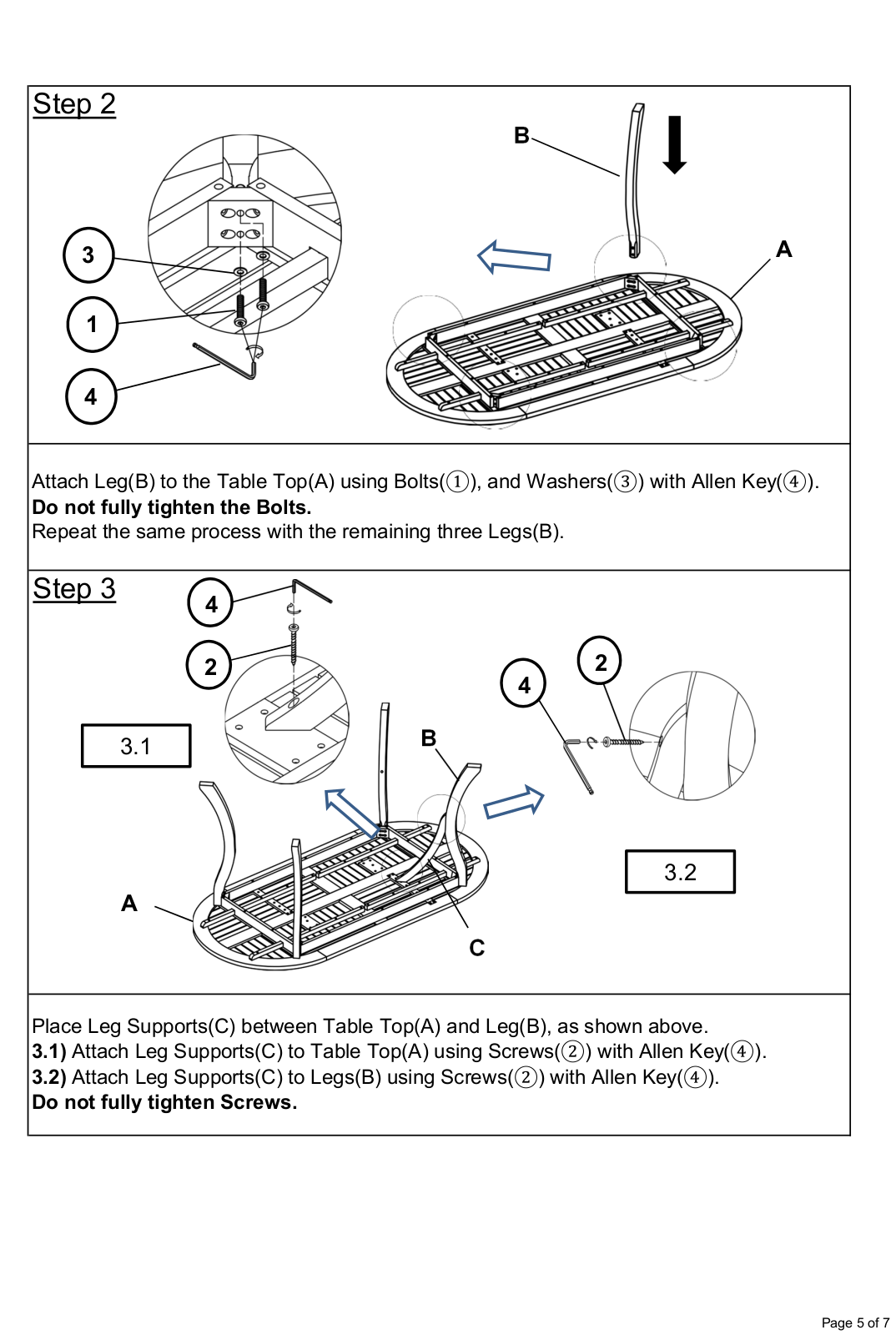

Step 2
3
1
4
Attach Leg(B) to the Table Top(A) using Bolts(①), and Washers(③) with Allen Key(④).
Do not fully tighten the Bolts.
Repeat the same process with the remaining three Legs(B).
Step 3
4
2
4
3.1
Place Leg Supports(C) between Table Top(A) and Leg(B), as shown above.
3.1) Attach Leg Supports(C) to Table Top(A) using Screws(②) with Allen Key(④).
3.2) Attach Leg Supports(C) to Legs(B) using Screws(②) with Allen Key(④).
Do not fully tighten Screws.
2
3.2

If the Table is not Stable it could lead to damage to the product.

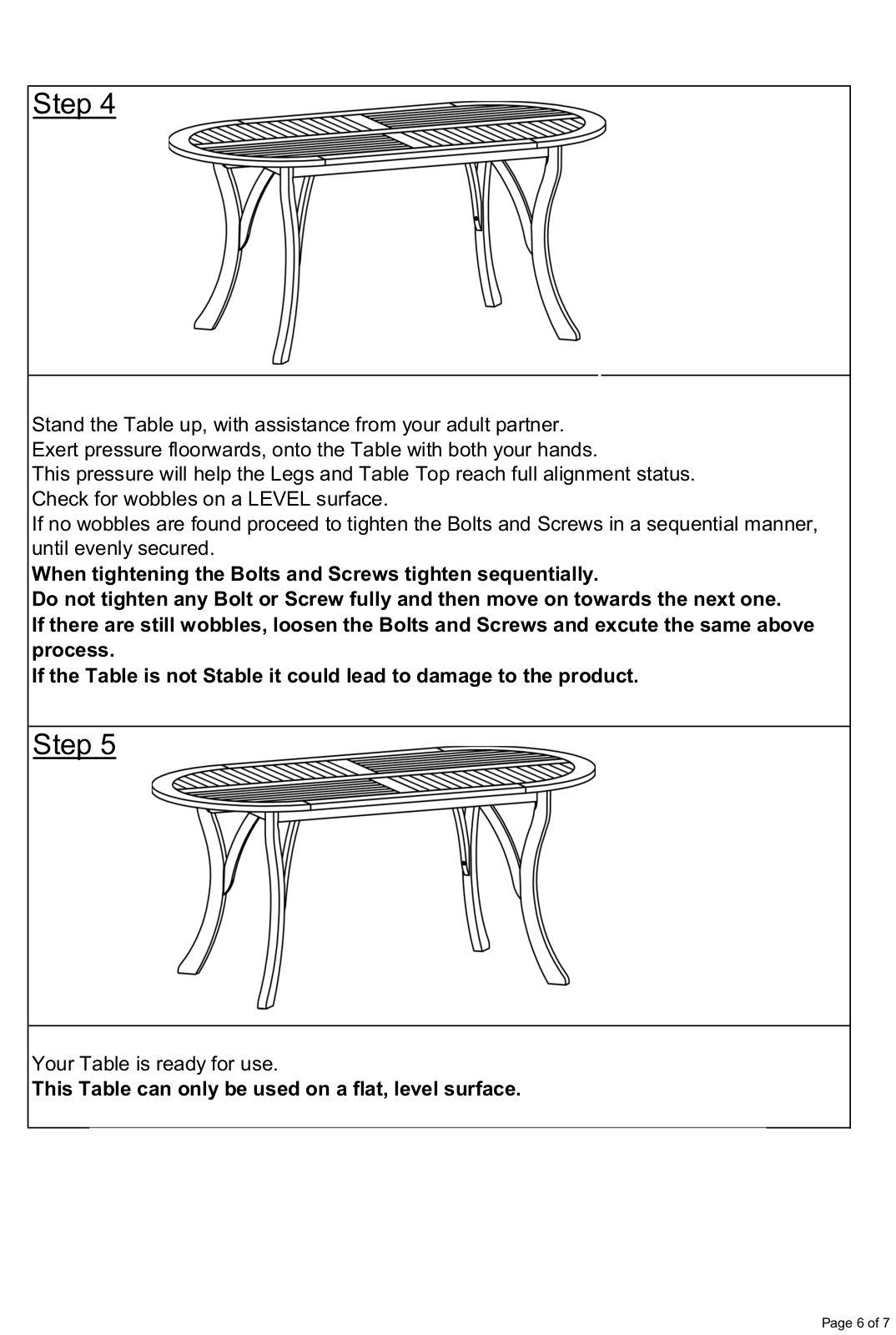

Step 4
Stand the Table up, with assistance from your adult partner.
Exert pressure floorwards, onto the Table with both your hands.
This pressure will help the Legs and Table Top reach full alignment status.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten the Bolts and Screws in a sequential manner,
until evenly secured.
When tightening the Bolts and Screws tighten sequentially.
Do not tighten any Bolt or Screw fully and then move on towards the next one.
If there are still wobbles, loosen the Bolts and Screws and excute the same above
process.
Step 5
Your Table is ready for use.
This Table can only be used on a flat, level surface.
Page 6 of 7
