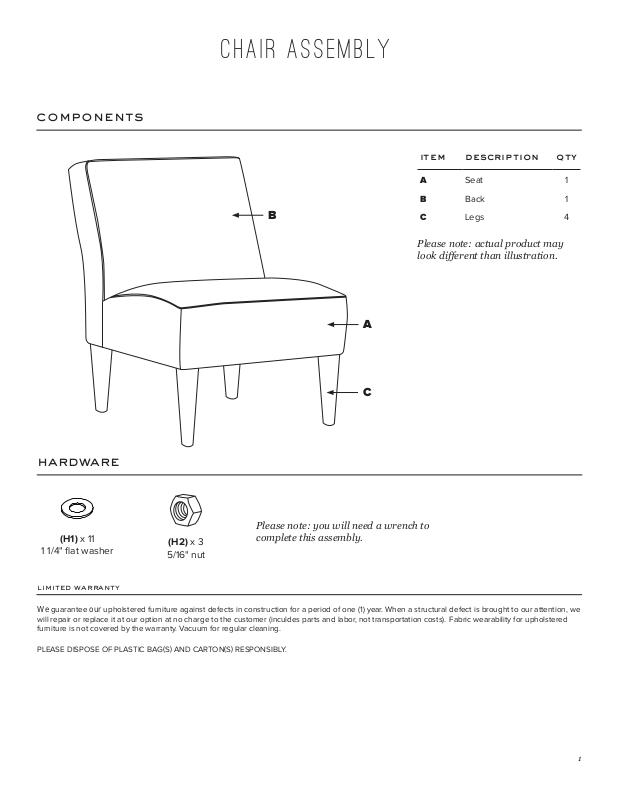

components
Chair assembly
item description qty
A Seat 1
B Back 1
hardware
B
C Legs 4
Please note: actual product may
look dierent than illustration.
A
C
Please note: you will need a wrench to
(H1) x 11
1 1/4" flat washer
limited warranty
We guarantee our upholstered furniture against defects in construction for a period of one (1) year. When a structural defect is brought to our attention, we
will repair or replace it at our option at no charge to the customer (inculdes parts and labor, not transportation costs). Fabric wearability for upholstered
furniture is not covered by the warranty. Vacuum for regular cleaning.
PLEASE DISPOSE OF PLASTIC BAGS AND CARTONS RESPONSIBLY.
(H2) x 3
5/16" nut
complete this assembly.
1
step 1
Chair assembly
1.1
Fit (A) seat onto bolts of (B) back,
aligning sides and bottoms of both
pieces.
1.2
Attach (A) seat to (B) back using (H1)
washers and (H2) nuts.
Tighten with wrench.
step 2
2.1
Remove plastic caps from (C) legs,
and attach to (A) seat using one (H1)
washer per leg.
Once legs are secure, turn the chair
upright to check if level.
If the item is not level, unscrew the
shortest leg and add an additional
(H1) washer.
Repeat as needed.
Please note: you may have extra (H1)
washers depending on how many
you use to level the chair.
2
