Zone Selection P anel
®
REDBACK
A 2080 PA Speaker Zone Selection Panel
Proudly Assembled in Australia
OPERATING INSTRUCTIONS
Distributed by Altronic Distributors Pty. Ltd. Perth. Western Australia.
The REDBACK A 2080 Public Address Speaker Zone
Selection Panel allows you to select either;
1. One speaker zone only.
2. A combination of speaker zones.
3. All speaker zones
This allows great flexibility when paging.
By connecting together one or more Zone Selection
Panels in a ‘Daisy Chain’ fashion, any number of speaker
zones are available (eg Three Zone Selection Panels will
give you a total of 30 speaker zones).
I
NSTALLATION
We recommend the Zone Selection Panels for use only
with 70 Volt or 100 Volt line amplifiers with a maximum
load of 50 watts per zone (at 100V). Connecting these
units to a 4Ω or 8Ω amplifier system may damage your
amplifier.
We have supplied an identification strip (with double
sided tape) which can be attached to the front panel of
the unit. The identification strip can be engraved to help
identify your speaker zones.
PA Amplifier
100V
Output
Amp Input
Zone Selector
All Call
Zone 1 to 10 Outputs
to Speakers
Speakers
Max Load
50W Per
Zone
Connecting one zone
selection panel.
PA Amplifier
100V
Output
}
To Next Slave
Zone Selector
Amp Input
Master Zone
Selector
All Call
Zone 1 to 10 Outputs
to Speakers
Speakers
Max Load
50W Per
Zone
Amp Input All Call
Zone 1 to 10 Outputs
to Speakers
Slave Zone
Selector 1
Speakers
Max Load
50W Per
Zone
Connecting two
or more zone
selection panels.
REDBACK
A 2080 PA Speaker Zone Selection Panel
Page 2
Doc. PS1292

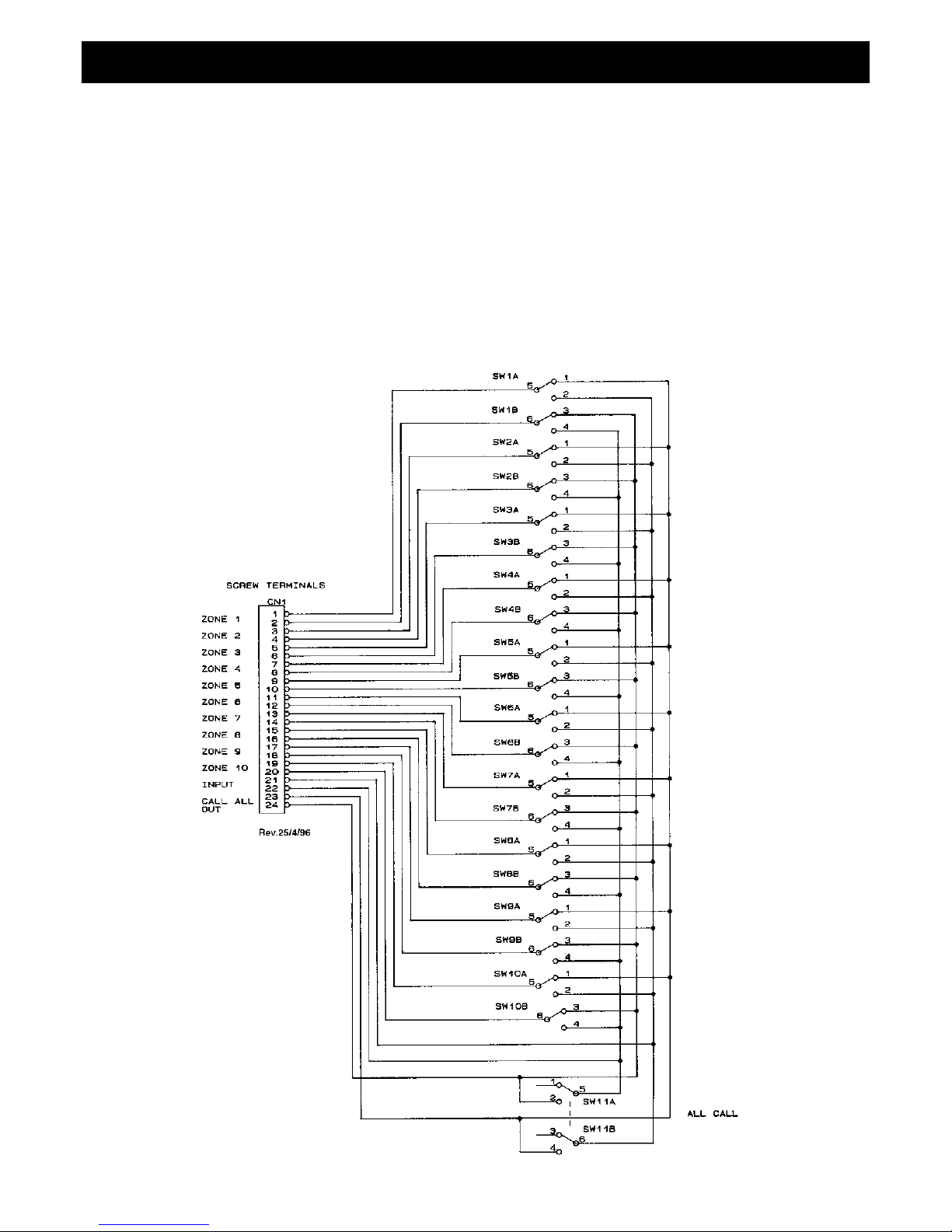

OPERATION
1. Press switches for zones required. As mentioned, any
combination of zones is possible. A coloured button
indicates that the zone is activated.
2. For paging to all zones, press the ‘All Call’ button.
This is the same as pressing all the zone buttons in at
the same time. If you have one or more Zone
Selection Panels chained together, only one ‘All Call’
button on any panel is required to be activated.
