Redarc Monocrystalline Instruction Manual

Monocrystalline

Solar Panels

THE MONOCRYSTALLINE SOLAR PANEL

REDARC Monocrystalline Solar Panels are highly effi cient with a robust design. A tempered glass
coating and a sturdy double channel aluminium frame ensure that our panels will withstand harsh
road conditions and extreme weather conditions.
Each panel is tested at time of manufacture to conform to CE standards, so you can be sure that the
panel output is exactly as described in its specifi cation.

WARNING & SAFETY INSTRUCTIONS

This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been
instructed on how to use the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.

Do NOT use the Solar Panel to charge non-rechargeable batteries. Doing so may result in harm to
the user and/or damage to the Regulator and/or Solar Panel. Only use the Solar Panel for charging
Standard Lead Acid, Calcium content, Gel & AGM type 12V batteries.

All lead acid batteries produce harmful, explosive gases. The Battery should be mounted in a well
ventilated area, as far as possible from any ignition sources. Do NOT smoke when in the vicinity of
the battery under charge.

Battery acid is a harmful substance. Care should be taken when working with lead acid batteries,
if the acid comes into contact with your eyes or skin, immediately wash the affected area with cold
running water and seek medical assistance. Eye protection and gloves should be worn when handling
lead acid batteries.

The Solar Panel will achieve best results when proper battery maintenance is regularly performed.
This includes but is not limited to checking water and specifi c gravity levels of the battery.

Warning! Check the manufacturers data for your battery and ensure that the ‘Absorption’ voltage of
the profi le you select does not exceed the manufacturers recommended maximum charging voltage.
If the ‘Absorption’ voltage for your battery type is too high, please select another charging profi le.

SAL.FOR.Instruction Manual Monocrystalline Solar Panels – DOC389 – Version3

1

CONTENTS

The Monocrystalline Solar Panel 1
Panel Features 2
50watt Monocrystalline Solar Panel 3
Specifi cations 3
80watt Monocrystalline Solar Panel 4
Specifi cations 4
120watt Monocrystalline Solar Panel 5
Specifi cations 5
150watt Monocrystalline Solar Panel 6
Specifi cations 6
150watt Monocrystalline SlimLine Solar Panel 7
Specifi cations 7
System Installation 8

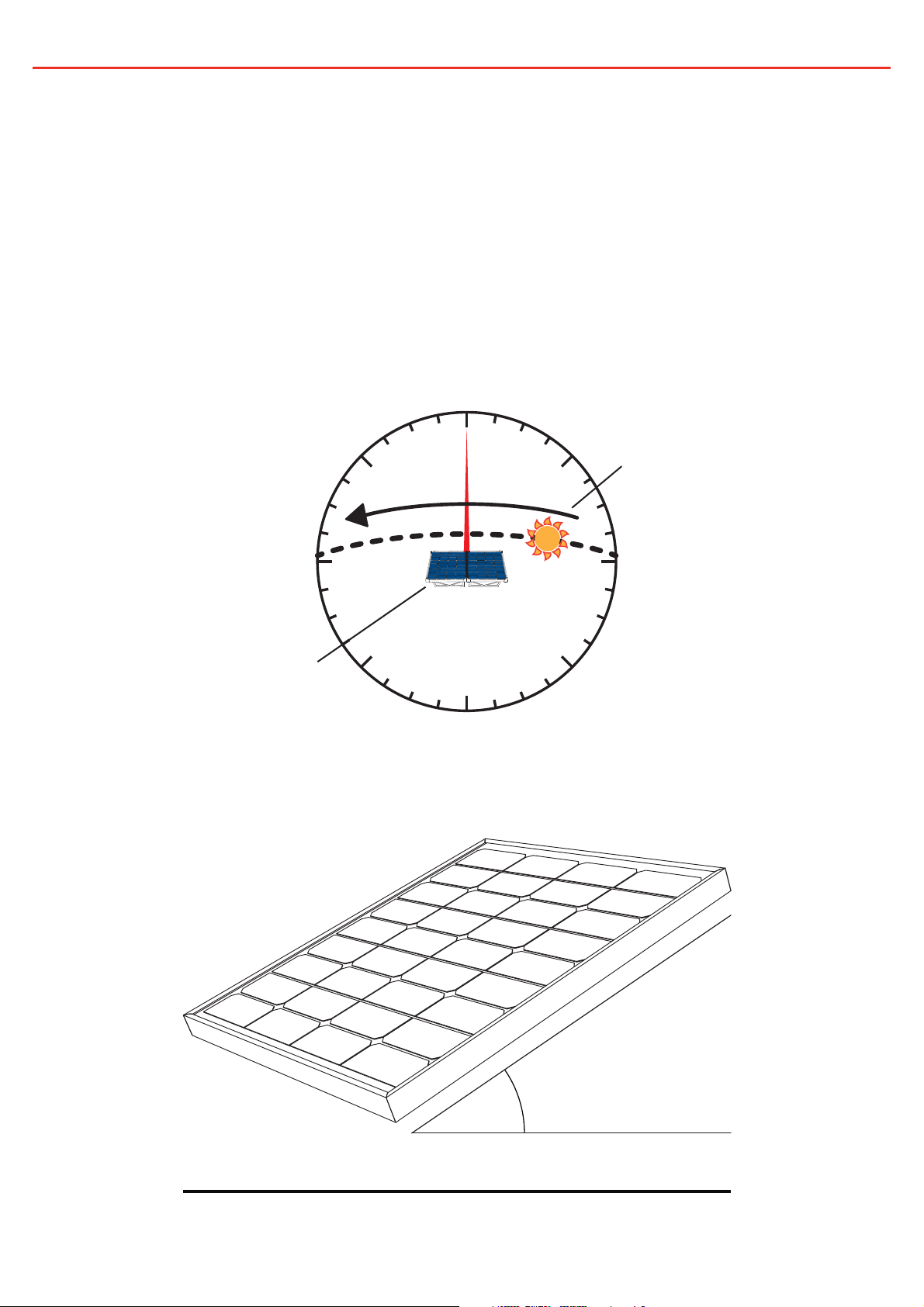

Angle to the Sun 8
Aluminium Adjustable Mounts 9
ABS Plastic Mountings 10
System Wiring 13

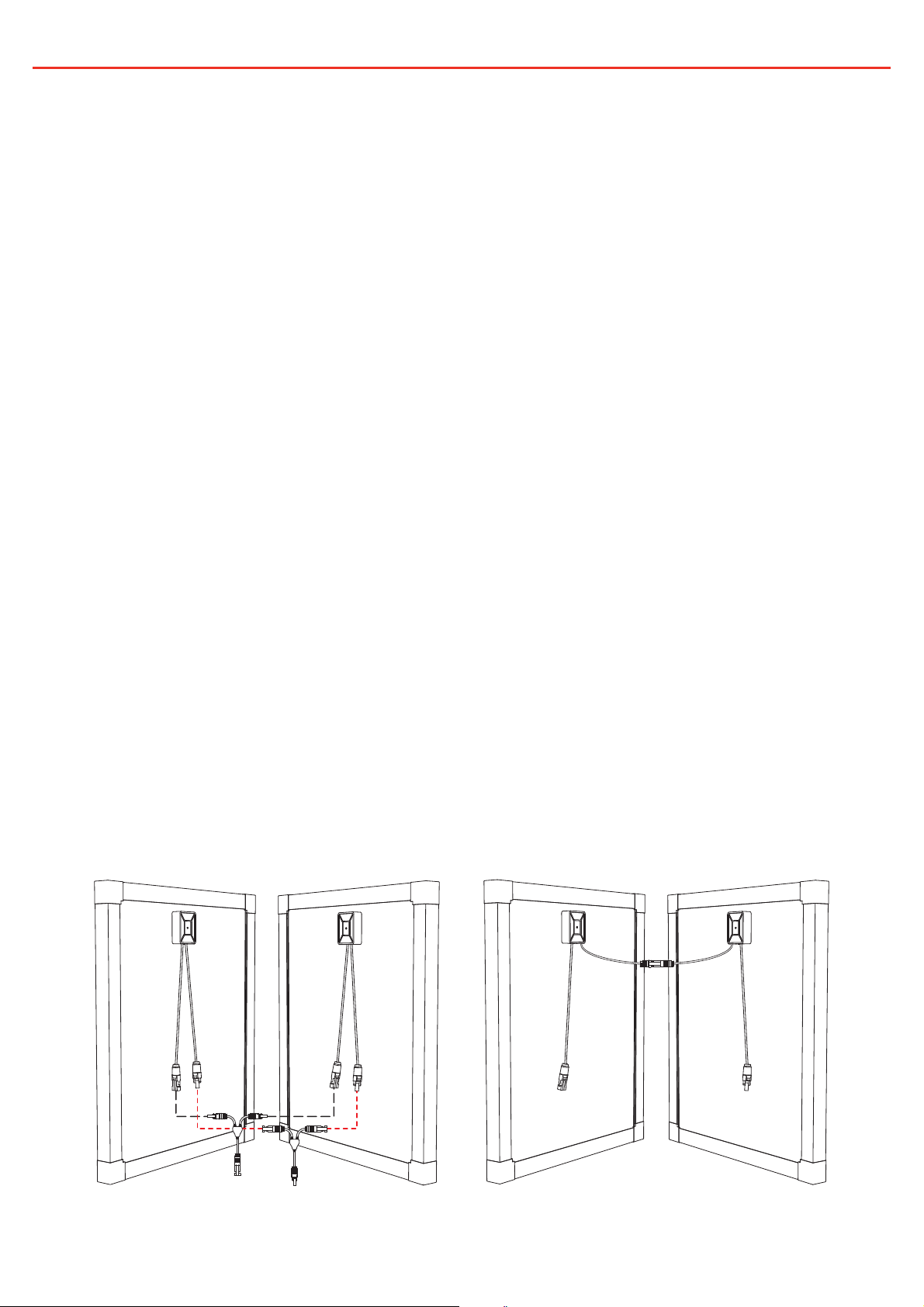

Wiring Multiple Panels 13
Wiring Multiple Panels of Different Types 13
Standard BMS Installation 14
Wiring Precautions 15
Parallel and Series Connections 15

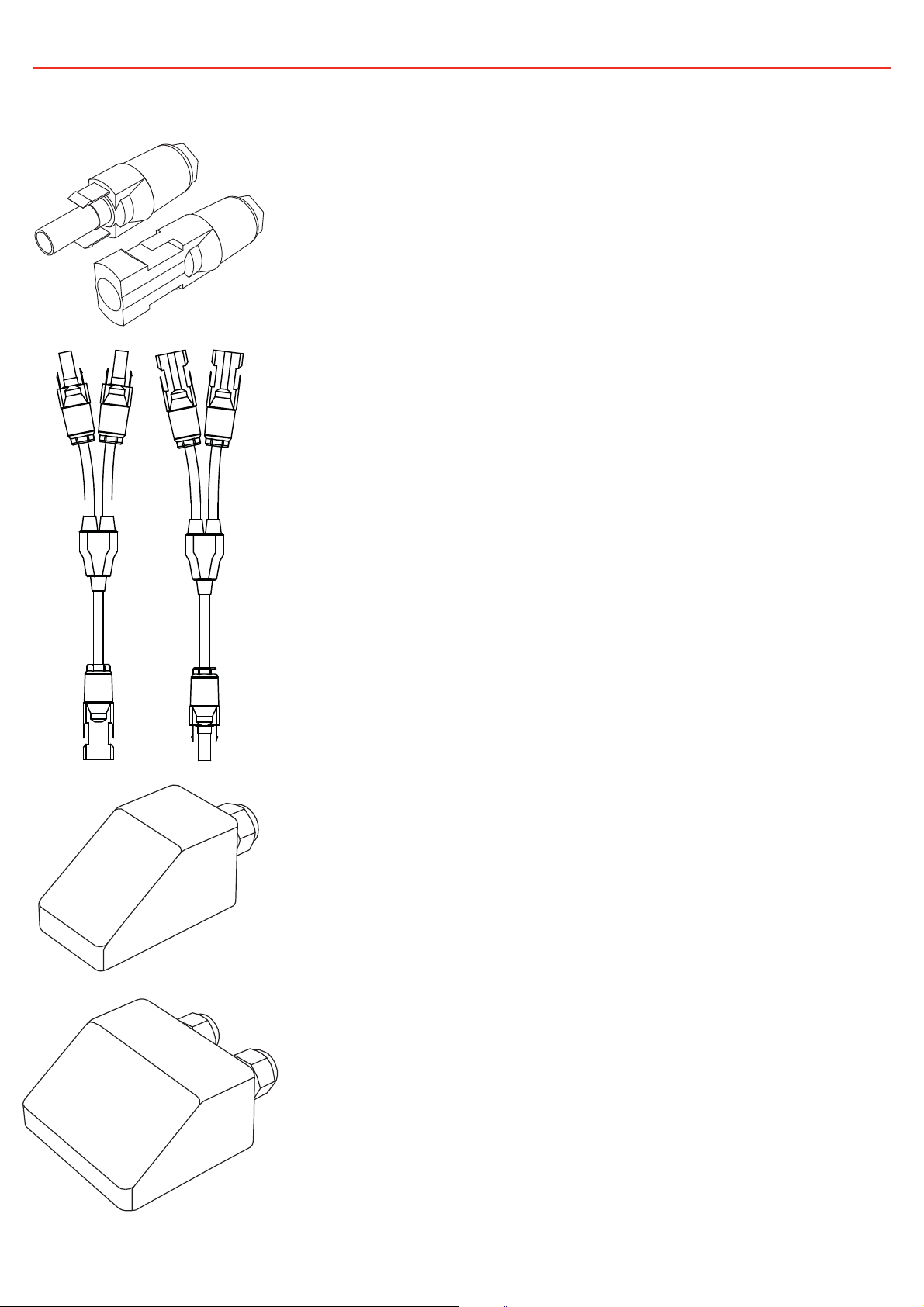

Accessories 16

PANEL FEATURES

Strong Aluminium

Frame

Diode Protected

Junction Box

Tempered Glass

Coating

Quality MC4

Connectors

Monocrystalline

Construction

2

50WATT MONOCRYSTALLINE SOLAR PANEL

35mm

540mm

645mm

SPECIFICATIONS

Model SMR1050 Short circuit Current 3.00A
Construction Monocrystalline Tolerance ±3%
Peak Power 50W Frame Anodized Aluminium
Net Weight 4.5kg Cable length 750mm
Dimensions 645x540x35mm Operating temp. -40° to +85°C
Max power Voltage 18.00V Std. test conditions

AM1.5 1000W/m² 25°C

Max power Current 2.78A Manufactured in China
Open circuit Voltage 22.20V Certifi cation CE

3

80WATT MONOCRYSTALLINE SOLAR PANEL

35mm

540mm

963mm

SPECIFICATIONS

Model SMR1080 Short circuit Current 4.80A
Construction Monocrystalline Tolerance ±3%
Peak Power 80W Frame Anodized Aluminium
Net Weight 6.5kg Cable length 800mm
Dimensions 963x540x35mm Operating temp. -40° to +85°C
Max power Voltage 18.00V Std. test conditions

AM1.5 1000W/m² 25°C

Max power Current 4.45A Manufactured in China
Open circuit Voltage 22.25V Certifi cation CE

4

120WATT MONOCRYSTALLINE SOLAR PANEL

35mm

808mm

963mm

SPECIFICATIONS

Model SMR1120 Short circuit Current 7.22A
Construction Monocrystalline Tolerance ±3%
Peak Power 120W Frame Anodized Aluminium
Net Weight 9.5kg Cable length 800mm
Dimensions 963x808x35mm Operating temp. -40° to +85°C
Max power Voltage 18.50V Std. test conditions

AM1.5 1000W/m² 25°C

Max power Current 6.50A Manufactured in China
Open circuit Voltage 22.50V Certifi cation CE
