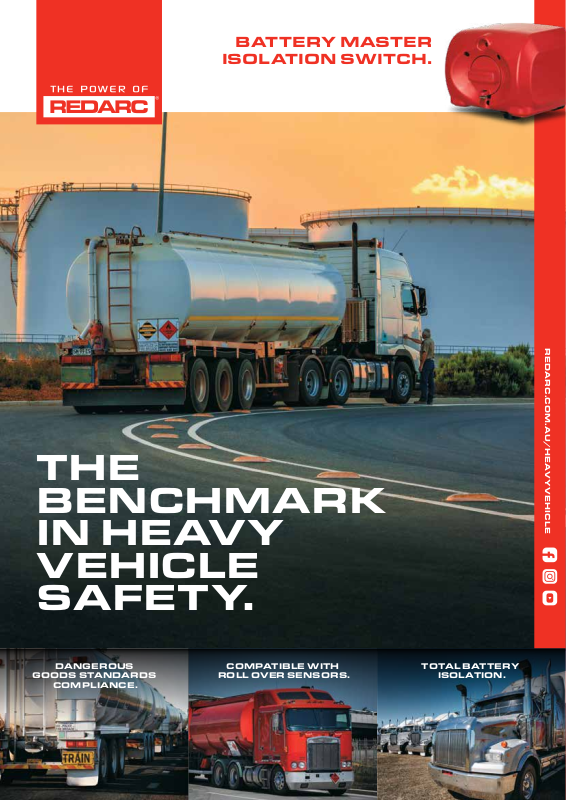

REDARC BMIS4PNV2KIT, BMIS4PPV2KIT User Manual

BATTERY MASTER

ISOLATION SWITCH.

THE
BENCHMARK
IN HEAVY
VEHICLE
S A F E T Y.

REDARC.COM.AU/HEAVYVEHICLE

DANGEROUS

GOODS STANDARDS

COMPLIANCE.

COMPATIBLE WITH

ROLL OVER SENSORS.

TOTAL BATTERY

ISOLATION.

BATTERY MASTER ISOLATION SWITCH.

REDARC has over 40 years’ experience in the design and manufacture

of high quality, reliable, Australian-made products for heavy vehicle applications.

BATTERY MASTER ISOL ATION SWITCH

The REDARC Bat tery Master Isolation Switch (BMIS) is designed to
safely isolate the vehicle batteries in both 12 and 24 volt vehicles
ensuring reliable performance when the vehicle is operating.
It allows for manual isolation of a truck’s electrical system from its
battery. It will work with existing roll over sensors on the market.

Features:

• In-built lockout capability

• Increased reliability with dual redundancy to avoid
falsetriggering

• Easy to install as new or a retrofit

• Compatible with roll over sensors

BMIS4PNV2KIT - With positive-positive isolation for

heavy vehicles with dual start cables to isolate both
battery circuits.

BMIS4PPV2KIT - With positive-negative isolation

to isolate both battery circuits.

• Durable, UV resistant housing, resistantto rocks and water

• IP66, IP67 and IP69K rated

• Meets AS2809:2020 standard.

ACCESSORIES

BMIS-CK - Connector Kit for installation on heav y vehicles
where a factory harness is not available.

BMIS-AP - Adaptor Plate designed to retrofit the BMIS
to existing installations of other brand switches.

REDARC Electronics

ABN 77 136 785 092

[e-mail]

23 Brodie Road (North)

Lonsdale, South Australia

Au s t r a l i a 5160

Australia

Phone [phone]

Fax [phone]

International

Phone [phone]

Fax [phone]

REDARC.COM.AU/HEAVYVEHICLE
